conga-IC175/i5-7300U: Description单板计算机 Thin Mini-ITX board based on Intel Core i5-7300U dual core processor with 2.6GHz up to 3.5GHz, 3MB Intel Smart Cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Kaby Lake-U).; CategoryEmbedded solution To calculate Single board computer; File Size3MB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-IC175/i5-7300U Overview

单板计算机 Thin Mini-ITX board based on Intel Core i5-7300U dual core processor with 2.6GHz up to 3.5GHz, 3MB Intel Smart Cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface (Intel Kaby Lake-U).

conga-IC175/i5-7300U Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	single board computer
Shipping restrictions	Mouser does not currently sell this product in your area.
series	conga-IC175
physical dimension	Mini-ITX
Processor brand	Intel
Processor type	Intel Core i5-7300U
frequency	2.6 GHz
cache memory	3 MB
Working power voltage	12 V to 24 V
Interface Type	Audio, Ethernet, I2C, LVDS, PCIe, SATA, USB
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	170 mm x 170 mm x 20 mm
storage	32 GB
storage type	DDR4
Power consumption	15 W
core	Intel Core i5-7300U
Factory packaging quantity	1

Preview

Download Datasheet

View All

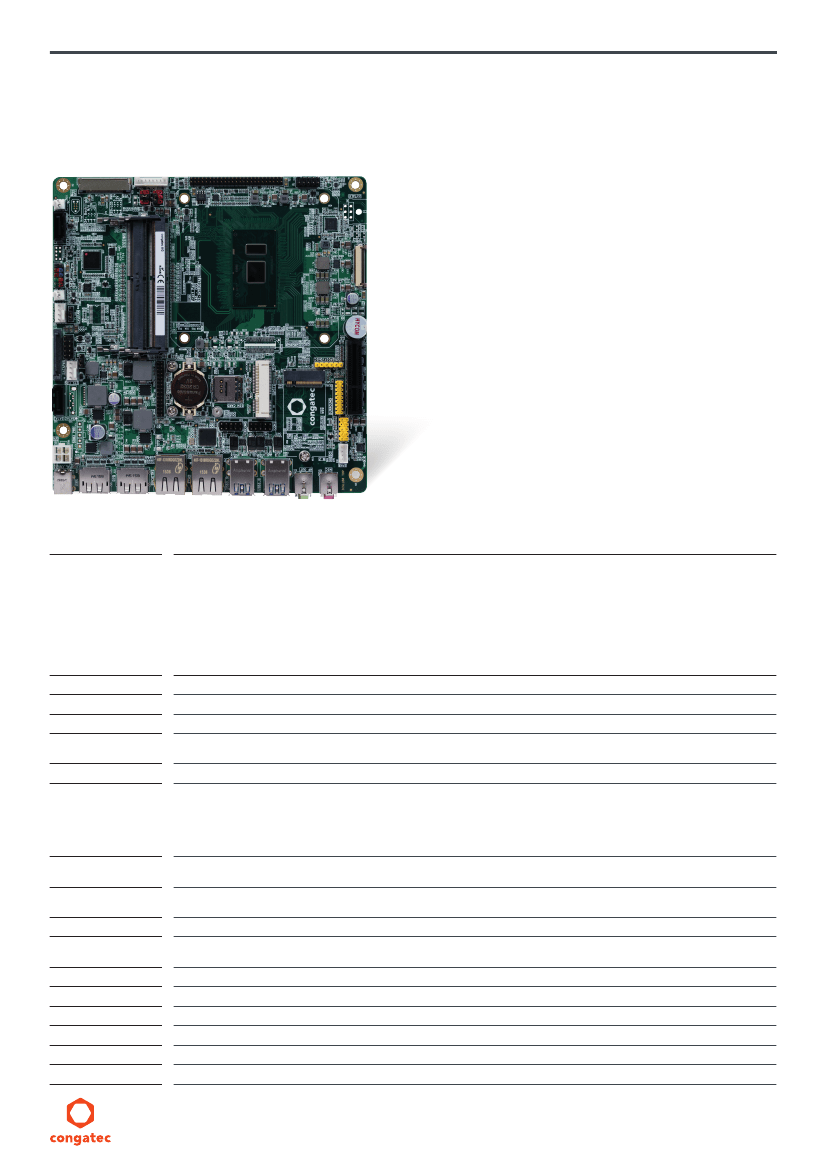

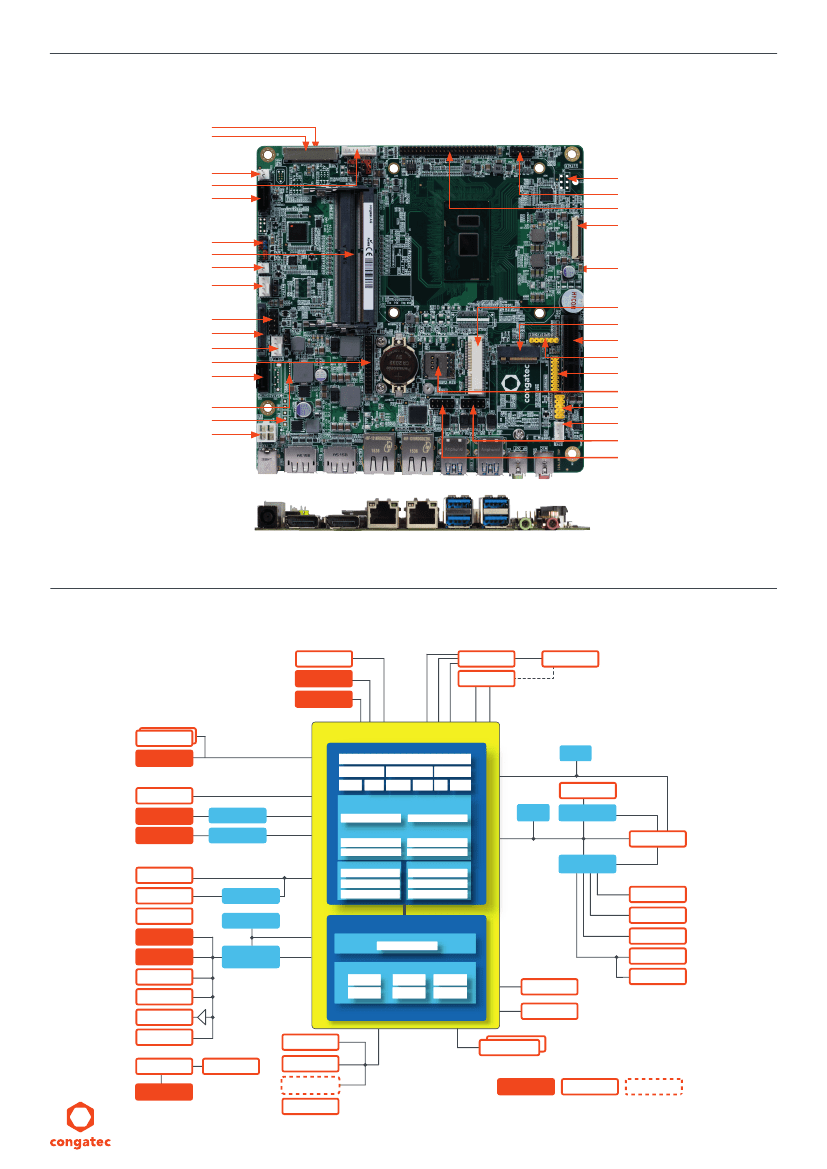

INDUSTRIAL THIN MINI-ITX

conga-IC175

Highest Performance Thin Mini-ITX board

Generation Intel

Core

Mobile SOC U-Processors

Improved Graphics Performance with HD600 Series

Ready for Intel

Optane™ memory technology on M.2

Wide Range Power Input 12-24 Volt

congatec embedded Board Controller Features

Formfactor

CPU

Industrial Thin Mini-ITX | 170 x 170 x 20 mm³

Intel

Core

™

i7-7600U

Intel

Core

™

i5-7300U

Intel

Core

™

i3-7100U

Intel

Celeron

3965U

2.8 GHz Dual Core

2.6 GHz Dual Core

2.4 GHz Dual Core

2.2 GHz Dual Core

Turbo Boost 3.9 GHz

Turbo Boost 3.5 GHz

4 MB Cache

3 MB Cache

2 MB Cache

15W TDP

7.5W cTDP

10W cTDP

Intel

HD Graphics 620

Intel

HD Graphics 620

Intel

HD Graphics 620

Intel

HD Graphics 610

Intel

Turbo Boost Technology | Intel

Hyper-Threading Technology (HT) | Intel

Advanced Vector Extensions 2.0 (AVX2) | Intel

Advanced Encryp-

tion Standard New Instructions (AES-NI) | Integrated dual channel memory controller up to 34.1 GByte/sec. memory bandwidth | Integrated Intel

HD Graphics 600 series with dynamic frequency up to 1.15 GHz | Intel

Clear Video HD Technology | Intel

Virtualization Technology (VT)Intel

Trusted Execution Technology (TXT) | Intel

Streaming SIMD Extensions 4.2 (SSE4.2) | PCLMULQDQ Instruction | Intel

Secure Key

Intel

Transactional Synchronization Extensions (TSX)

DRAM Memory

Ethernet

Sound

Graphics

Graphic Interfaces

Internal Connectors

Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s) | max. 2x 16 GByte

Dual LAN Gbit / 100 Mbit / 10 Mbit; 1x Intel Gigabit Ethernet PHY i219LM (with AMT support); 1x Intel Gigabit Ethernet Controller i211 (i210 optional)

High Definition Audio Interface | Realtek ALC 888S | 7.1-channel

Next gen Intel

HD Graphics with OpenCL 2.0 | OpenGL 4.X and DirectX12 support | up to three independent displays: HDMI 1.4, DVI, DisplayPort

1.2 | High performance hardware MPEG-2 decoding | WMV9 (VC-1) and H.264 (AVC) support

1x 24-bit Dual Channel LVDS Interface or eDP (x4) and 2x DisplayPort (DP++)

1x PCIe x4 slot (gen.3) | 1x full/half-size Mini PCIe slot | M.2 key B 2242/3042 connector (2x PCIe lanes for Intel

Optane™ key)

3x SATA (6G), one shared with M.2 | 1x SATA power | 4x USB 2.0 | 1x LVDS (2x24 bit) | 1x Embedded DisplayPort (x4)

2x serial port (COM2 opt. as ccTALK) | 1x feature connector (8 Bit general purpose I/O) | connector for Integrated Sensor Hub

1x microSIM card slot | 1x microSD card slot | 1x opt. battery header signal + power (SBM3) | 1x I²C Bus

Multi-Stage watchdog | Non-volatile user data storage | Manufacturing and board information | Board statistics | BIOS setup data backup

I²C bus (fast mode, 400 kHz, multi-master) | Power loss control

AMI Aptio

2.X (UEFI) BIOS; SM-BIOS | BIOS Update | Logo Boot | Quiet Boot | HDD Password

The conga-IC175 can be optionally equipped with a discrete ”Trusted Platform Module 2.0”. It is capable of calculating efficient hash and RSA algo-

rithms with key lengths up to 2048 bits and includes a real random number generator.

Power Management | ACPI S3/S4/DeepSx | Wake on time from S5 | Power Supply 12-24 V | 2 x fan (CPU / system) monitored & controlled

Microsoft

Windows 10 (64bit only) | Microsoft

Windows 10 IoT Enterprise (64bit only) | Linux

Typ. application: tbd. | see manual for full details

Operating: 0 .. +60°C

Operating: 10 - 90% r. H. non cond.

170 x 170 x 20 mm³

congatec embedded

Controller

External Connectors

(Rearpanel)

Embedded BIOS

Security

Power Specification

Operating Systems

Power Consumption

Temperature:

Humidity Operating:

Size

www.congatec.com
