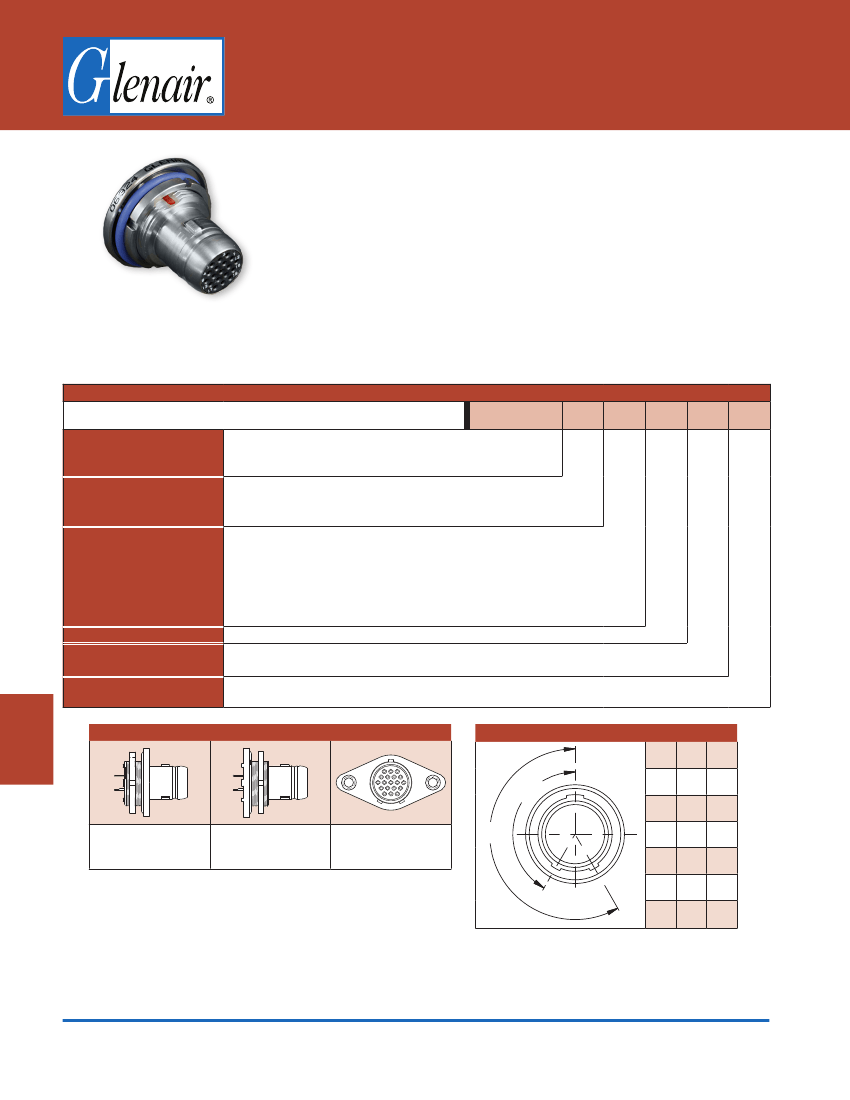

Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Panel Mount Plug
804-009, 804-021 Ordering Information
Panel Mount Plugs
save space inside the box compared to Series 804 removable
contact receptacles. Factory-installed non-removable contacts. Solder cup or
printed circuit board terminals. Available in front or rear panel and flange mount
versions.
Ingress Protection, Unmated
Specify
804-009
connectors for applications where
open face water immersion is not a requirement. For IP67 ingress protection and
MIL-STD-810 Method 512 immersion requirements, specify
804-021
watertight
connectors certified to meet one atmosphere pressure differential in open face
condition from -40° to +70°C.
"Push-Pull" Quick-Disconnect
Canted spring securely retains the mating plug.
How To Order
Sample Part Number
804-009
= Panel Mount Plug, Standard Potting
Series
804-021
= Panel Mount Plug
,Resilient Silicone Potting for
Watertight Seal from -40° to +70°C (1 ATM Pressure Differential)
-00
= Front Panel Mount Jam Nut (See Table IV)
-02
= Flange Mount
-07
= Rear Panel Mount Jam Nut (See Table III)
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
G
-00
Jam Nut, Front Panel
Mount
Series 804
Shell Style (See Table I)
Shell Material and Finish
Shell Key Positions
(See Table II)
Table I: Shell Style
-07
Jam Nut, Rear Panel
Mount
© 2014 Glenair, Inc.
804-009
-07
NF
10-26
E
A
Shell Size - Insert Arrangement
See Contact Arrangements Page G-2
P
= Pin, PC Tail
E
= Pin, Solder Cup
Contact Type
S
= Socket, PC Tail
F
= Socket, Solder Cup
Omit
= Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table II: Alternate Keyway Positions
Pos.
A°
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A
B
-02
Flange Mount
B°
C
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-12
E-Mail: sales@glenair.com

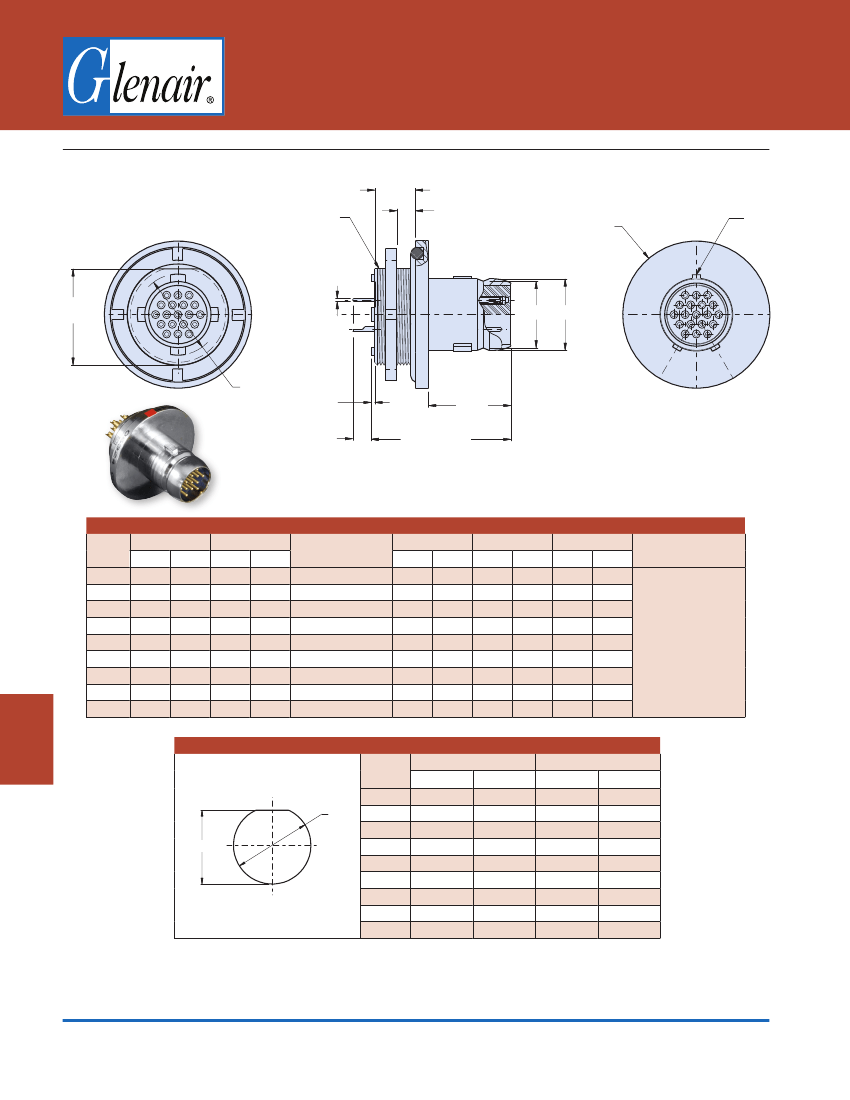

804-009-07, 804-021-07 Dimensions
Jam nut, rear panel mount plug - shell style 07
.125 (3.18) MAX
PANEL THK
øA
øG
C THREAD
KEY
øD øE
F
FLAT
øB
.025 (0.64)
TYP
.125 (3.18) TYP
MIN
.275
(6.99)
.560(14.22)
.950 (24.13) MAX
Dimensions
Shell
Size
5
6
7
8
9
10
11
12
14
ØA
In.
.790
.830
.910
.955
1.000
1.085
1.135
1.180
1.325
mm.
20.07
21.08
23.11
24.26
25.40
27.56
28.83
29.97
33.66
In.
.244
.330
.432
.493
.551
.620
.662
.703
.863
ØB
mm.
6.20
8.38
10.97
12.52
14.00
15.75
16.81
17.86
21.92
C Threads
.4375-32 UN-2A
.5000-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
.8750-28 UN-2A
1.0000-28 UN-2A
ØD
In.
.219
.282
.351
.398
.454
.529
.587
.646
.768
mm.
5.56
7.16
8.92
10.11
11.53
13.44
14.91
16.41
19.51
In.
.250
.313
.383
.429
.486
.563
.618
.676
.800
ØE
mm.
6.35
7.95
9.73
10.90
12.34
14.30
15.70
17.17
20.32
F Flat
In.
mm.
.415
10.54
.467
.594
.594
.655
.721
.790
.843
.968
11.86
15.09
15.09
16.64
18.31
20.07
21.41
24.59
ØG
Tail Dia.
#23
.018/.022 (0.46/0.56)
#20
.024/.028 (0.61/0.71)
#16
.060/.064 (1.52/1.63)
#12
.092/.096 (2.34/2.44)
Rear Mount Jam Nut Panel Cutout
Shell
Size
øB
A FLAT
5
6
7
8
9
10
11
12
14
A Flat
ØB
In.
± .002
.423
.475
.588
.602
.663
.729
.798
.851
.976
mm.
± 0.05
10.74
12.07
14.94
15.29
16.84
18.82
20.27
21.62
24.79
In.
± .005
.448
.510
.635
.635
.695
.760
.822
.885
1.010
mm.
± 0.13
11.38
12.95
16.13
16.13
17.65
19.30
20.88
22.48
25.65
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-13
E-Mail: sales@glenair.com
Series 804
Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Panel Mount Plug
G
Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Panel Mount Plug

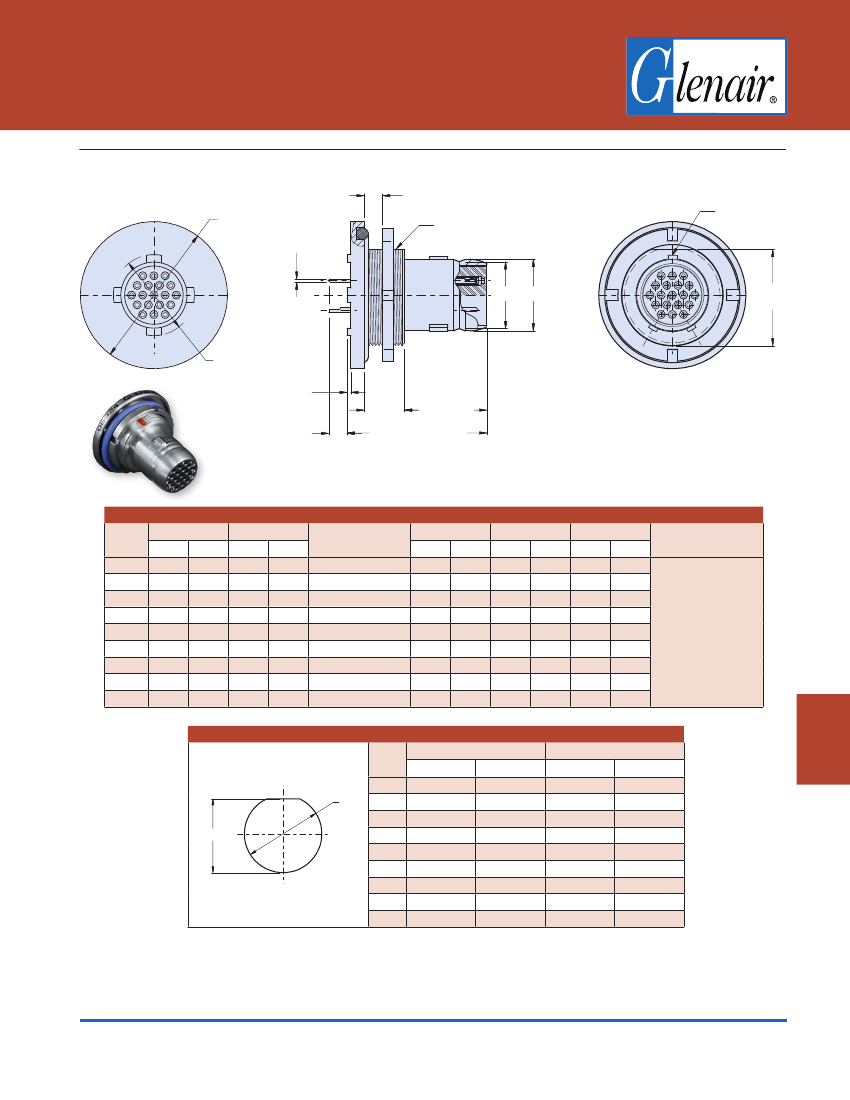

804-009-00, 804-021-00 Dimensions
G
Series 804
A
FLAT
øB
Shell
Size
5
6
7
8
9
10
11
12
14
A Flat
In.
mm.
.415
10.54
.467
11.86
.594
.594
.655
.721
.790
.843
.968
15.09
15.09
16.64
18.31
20.07
21.41
24.59
ØB
In.
.244
.330
.432
.493
.551
.620
.662
.703
.863
mm.
6.20
8.38
10.97
12.52
14.00
15.75
16.81
17.86
21.92
Jam nut, front panel mount plug - style 00
.275 (6.99)
C THREAD
.125 (3.18) MAX
PANEL THK
ØF
KEY
øG
øD øE
.025 (0.64)
TYP
.125 (3.18)
MIN
.560
(14.22)
.950 (24.13)
MAX
Dimensions
C Threads
.4375-32 UN-2A
.5000-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
.8750-28 UN-2A
1.0000-28 UN-2A
ØD
In.
.219
.282
.351
.398
.454
.529
.587
.646
.768
mm.
5.56
7.16
8.92
10.11
11.53
13.44
14.91
16.41
19.51
In.
.250
.313
.383
.429
.486
.563
.618
.676
.800
ØE
mm.
6.35
7.95
9.73
10.90
12.34
14.30
15.70
17.17
20.32
In.
.790
.830
.910
.955
1.000
1.085
1.135
1.180
1.325
ØF
mm.
20.07
21.08
23.11
24.26
25.40
27.56
28.83
29.97
33.66
ØG
Tail Dia.
#23
.018/.022 (0.46/0.56)
#20
.024/.028 (0.61/0.71)
#16
.060/.064 (1.52/1.63)
#12
.092/.096 (2.34/2.44)
Front Mount Jam Nut Panel Cutout
Shell
Size
A Flat
ØB
In.
± .002
.423
.475
.588
.602
.663
.729
.798
.851
.976
mm.
± 0.05
10.74
12.07
14.94
15.29
16.84
18.82
20.27
21.62
24.79
In.
.448
.510
.635
.635
.698
.760
.823
.885
1.010
mm.
11.38
12.95
16.13
16.13
17.73
19.30
20.90
22.48
25.65
øB
A FLAT
5
6
7
8
9
10
11
12
14
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-14
E-Mail: sales@glenair.com

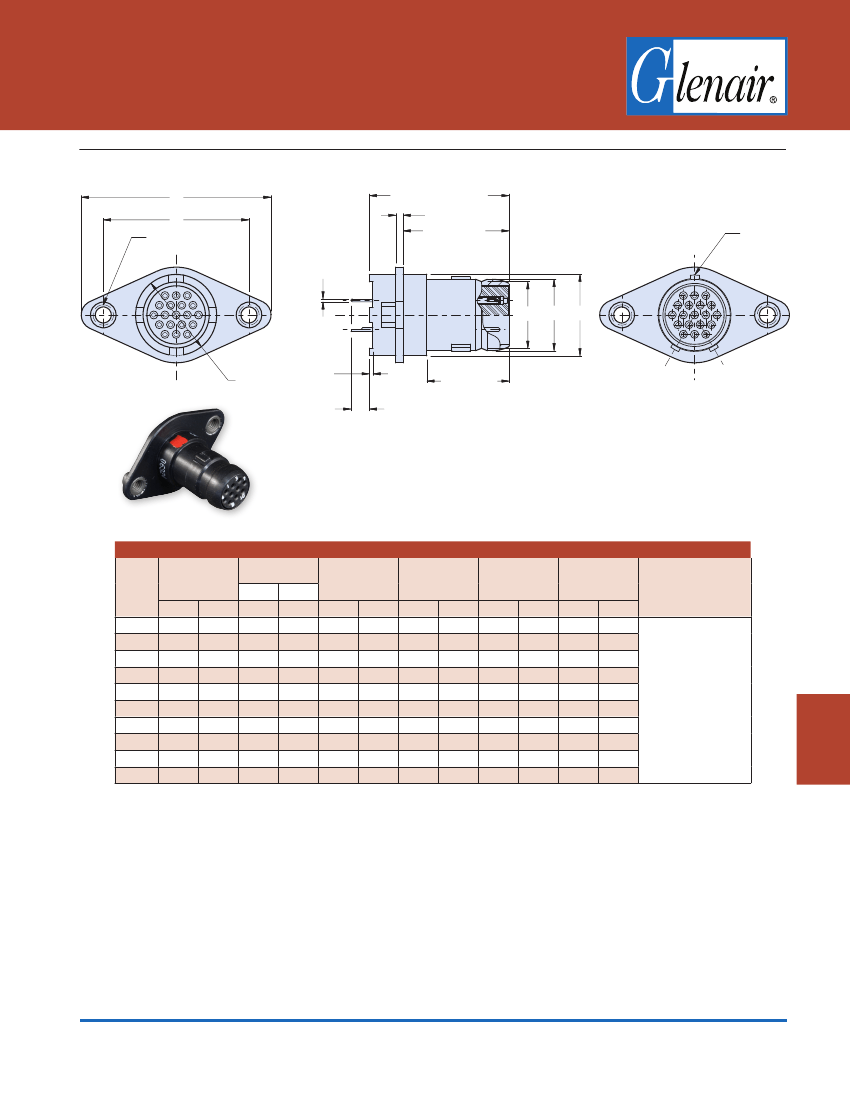

804-009-02, 804-021-02 Dimensions
Flange mount receptacle - style 02
A
B
#4-40 THREADED
LOCKNUT (2 PL)
øG
øD øE øF
.950 (24.13) MAX
.050 (1.27)
.720 (18.29
KEY
øC
.025 (0.64)
TYP
.125 (3.18)
MIN
.560(14.22)
Dimensions
Shell
Size
5
6
7
8
9
10
11
12
14
15
In.
1.055
1.120
1.185
1.230
1.290
1.360
1.420
1.485
1.600
1.665
A
mm.
26.80
28.45
30.10
31.24
32.77
34.54
36.07
37.72
40.64
42.29
B
In.
±.005
.755
.820
.885
.930
.990
1.060
1.120
1.185
1.300
1.365
mm.
±0.13
19.18
20.83
22.48
23.62
25.15
26.92
28.45
30.10
33.02
34.67
In.
.244
.330
.432
.493
.551
.620
.662
.703
.863
.912
ØC
mm.
6.20
8.38
10.97
12.52
14.00
15.75
16.81
17.86
21.92
23.16
In.
.219
.282
.351
.398
.454
.529
.587
.646
.768
.828
ØD
mm.
5.56
7.16
8.92
10.11
11.53
13.44
14.91
16.41
19.51
21.03
In.
.250
.313
.383
.429
.486
.563
.618
.676
.800
.860
ØE
mm.
6.35
7.95
9.73
10.90
12.34
14.30
15.70
17.17
20.32
21.84
In.
.320
.385
.450
.495
.555
.625
.690
.750
.865
.930
ØF
mm.
8.13
9.78
11.43
12.57
14.10
15.88
17.53
19.05
21.97
23.62
ØG
Tail Dia.
#23
.018/.022 (0.46/0.56)
#20
.024/.028 (0.61/0.71)
#16
.060/.064 (1.52/1.63)
#12
.092/.096 (2.34/2.44)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-15
E-Mail: sales@glenair.com
Series 804
Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Panel Mount Plug
G
