505448-1871: DescriptionHeaders and wire housings MicroLockPlus RA HDR DR 18CKT TIN-BIS BLK; CategoryThe connector Header and line shell; File Size47KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

505448-1871 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	505448-1871	-	-	View	Buy Now

505448-1871 Overview

Headers and wire housings MicroLockPlus RA HDR DR 18CKT TIN-BIS BLK

505448-1871 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Headers and wire housings
product	Headers
type	Receptacle
Number of locations	18 Position
Pitch	1.25 mm
Number of rows	2 Row
Installation style	SMD
Termination type	SMD/SMT
Installation angle	Right Angle
Contact type	Pin (Male)
Contact plating	Tin
Termination post length	-
series	505448
Encapsulation	Cut Tape
Encapsulation	Reel
Contact type	-
Current rating	1.5 A
Shell material	Polybutylene Terephthalate (PBT)
Voltage rating	50 VAC/DC
Contact material	Brass
Flammability rating	UL 94 V-0
Plastic shell interface type	-
Locking type	Unlatched
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	500
unit weight	1.701 g

Preview

Download Datasheet

View All

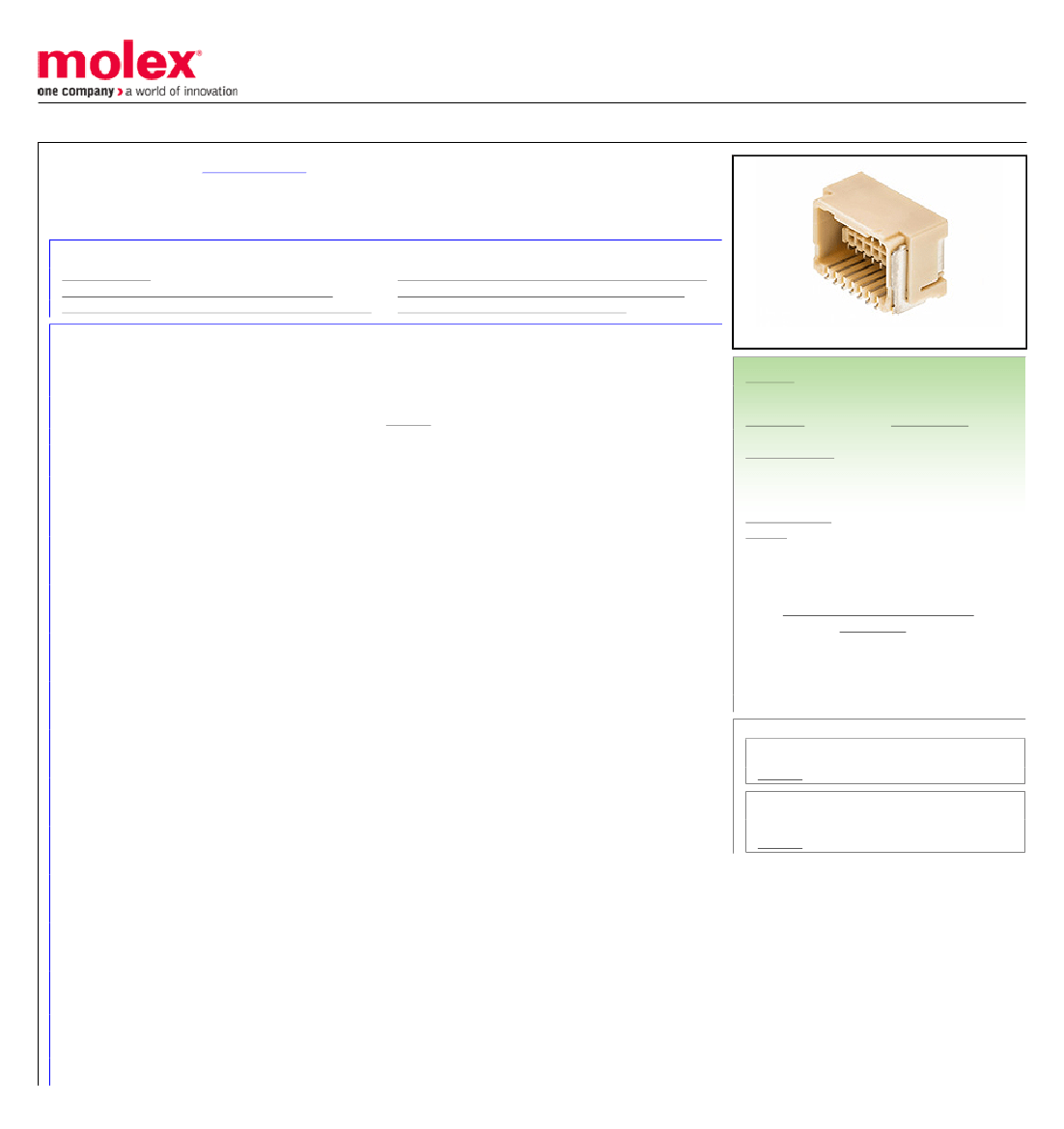

This document was generated on 04/24/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5054484276

Active

Micro-Lock™ PLUS Right Angle Header, 1.25mm Pitch, Dual Row, Tin-Bismuth

Plating, 42 Circuits, Green

Documents:

Drawing (PDF)

Product Specification 5054320000-002 (PDF)

Application Specification AS-505432-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification AS-505432-002-001 (PDF)

Packaging Specification 5054489200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Headers

505448

Signal, Wire-to-Board

Micro-Lock™ PLUS

889056424844

Green

Yes

None

Yes

Brass

Tin-Bismuth

Polyamide

2703.031/mg

Right Angle

Yes

Embossed Tape on Reel

1.25mm

1.000µm

Yes

-40°C to +105°C

Surface Mount

1.5A

50V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

505448 Series

Mates With

Micro-Lock™ PLUS Receptacle Housing

505432

505448-1871 Related Products

	505448-1871	505448-3071	505448-3671	505448-2271	505448-0871	505448-1271	505448-3471	505448-4071	505448-4271	505448-2871
Description	Headers and wire housings MicroLockPlus RA HDR DR 18CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 30CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 36CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 22CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 8CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 12CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 34CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 40CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 42CKT TIN-BIS BLK	Headers and wire housings MicroLockPlus RA HDR DR 28CKT TIN-BIS BLK
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Product Category	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings
product	Headers	Headers	Headers	Headers	Headers	Headers	Headers	Headers	Headers	Headers
type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Number of locations	18 Position	30 Position	36 Position	22 Position	8 Position	12 Position	34 Position	40 Position	42 Position	28 Position
Pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Number of rows	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row
Installation style	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Termination type	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Installation angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Contact plating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
series	505448	505448	505448	505448	505448	505448	505448	505448	505448	505448
Current rating	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Shell material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Voltage rating	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC	50 VAC/DC
Contact material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Flammability rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Locking type	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched	Unlatched
Maximum operating temperature	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory packaging quantity	500	500	500	500	500	500	500	500	500	500
unit weight	1.701 g	2.499 g	3 g	2 g	1 g	1.247 g	2.772 g	2.591 g	2.703 g	2.366 g
Encapsulation	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
