FEATURES
High efficiency: 86.5% @3.3V/5A
Industry standard 1x1 pinout
Size: 27.9x24.4x8.5mm (1.10”x0.96”x0.33”)
Fixed frequency operation
4:1 ultra wide input voltage range
Input UVLO
Output OCP, OVP and OTP
Monotonic startup into normal and pre-bias
loads
Output voltage trim ±10%
2250V isolation and basic insulation
No minimum load required
SMT and Through-hole versions
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing facility
UL/cUL 60950 (US & Canada) Recognized,
and TUV (EN60950) certified.
CE mark meets 73/23/EEC and 93/68/EEC
directives
Delphi S36SE, 17W 1x1 Brick Series
DC/DC Power Modules: 18~75V in, 3.3V/5A out
OPTIONS
The Delphi S36SE series, 1x1 sized, 18~75Vin, single output,
isolated DC/DC converters are the latest offering from a world leader
in power systems technology and manufacturing
Delta Electronics,
Inc. This product family is available in either a surface mount or
through-hole package and provides up to 17 watts of power or 5A of
output current (3.3V and below) in a standard 1x1 form factor
(1.10”x0.96”x0.33”). The pinout is compatible with the popular
industry standard 1x2 sized products. With creative design
technology and optimization of component placement, these
converters possess outstanding electrical and thermal performance,
as well as extremely high reliability under highly stressful operating
conditions. The S36SE 3.3V module could provide full output power
without any airflow up to 85°C ambient temperature while keeping the
component junction temperatures under most derating guidelines.
Typical efficiency of 3.3V/5A module is better than 86.5% and all
modules are fully protected from abnormal input/output voltage,
current, and temperature conditions.
Positive, negative, or no On/Off
Trim pin
OTP and Output OVP, OCP mode,
Auto-restart (default) or latch-up
Surface mounted pins
Short pin lengths
APPLICATIONS
Optical Transport
Data Networking
Communications, including Wireless
and traditional Telecom
Servers
DATASHEET
DS_S36SE3R305_02152007
TECHNICAL SPECIFICATIONS
T
A
= 25°C, airflow rate = 300 LFM, V
in
= 48 Vdc, nominal Vout unless otherwise noted.
PARAMETER
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Continuous
Transient(100ms)
Operating Temperature
Storage Temperature
Input/Output Isolation Voltage
INPUT CHARACTERISTICS
Operating Input Voltage
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Hysteresis Voltage
Maximum Input Current
No-Load Input Current
Off Converter Input Current
Inrush Current (I
2
t)
Input Reflected-Ripple Current
Input Voltage Ripple Rejection
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Load
Over Line
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
DYNAMIC CHARACTERISTICS
Output Voltage Current Transient
Positive Step Change in Output Current
Negative Step Change in Output Current
Settling Time (within 1% Vout nominal)
Turn-On Transient
Start-Up Time, From On/Off Control
Start-Up Time, From Input
Maximum Output Capacitance
EFFICIENCY
100% Load
60% Load
ISOLATION CHARACTERISTICS
Input to Output
Isolation Resistance
Isolation Capacitance
FEATURE CHARACTERISTICS
Switching Frequency
ON/OFF Control, Negative Remote On/Off logic
Logic Low (Module On)
Logic High (Module Off)
ON/OFF Control, Positive Remote On/Off logic
Logic Low (Module Off)
Logic High (Module On)
ON/OFF Current (for both remote on/off logic)
Leakage Current (for both remote on/off logic)
Output Voltage Trim Range
Output Over-Voltage Protection
GENERAL SPECIFICATIONS
MTBF
Weight
Over-Temperature Shutdown
NOTES and CONDITIONS
S36SE3R305 (Standard)
Min.
Typ.
Max.
80
100
123
125
2250
75
17
16
1
20
5
1
18
17
1.5
1.3
Units
Vdc
Vdc
°C
°C
Vdc
Vdc
Vdc
Vdc
Vdc
A
mA
mA
A
2
s
mA
dB
Vdc
mV
mV
mV
V
mV
mV
A
%
mV
mV
us
25
25
1000
ms
ms
µF
%
%
2250
10
1000
450
Vdc
MΩ
pF
kHz
0.8
18
0.8
18
0.25
-10%
3.79
TBD
9
128
30
10%
5
V
V
V
V
mA
uA
%
V
M hours
grams
°C
100ms
Refer to Figure 20 for measuring point
-40
-55
18
16
15
0.5
100% Load, 18Vin
P-P thru 12µH inductor, 5Hz to 20MHz
120 Hz
Vin=48V, Io=Io.max, Tc=25°C
Io=Io, min to Io, max
Vin=18V to 75V
Tc=-40°C to 100°C
Over sample load, line and temperature
5Hz to 20MHz bandwidth
Full Load, 1µF ceramic, 10µF tantalum
Full Load, 1µF ceramic, 10µF tantalum
Output Voltage 10% Low
48V, 10µF Tan & 1µF Ceramic load cap, 0.1A/µs
50% Io.max to 75% Io.max
75% Io.max to 50% Io.max
3.25
8
60
3.3
±3
±3
±33
3.2
60
10
0
110
120
150
150
300
16
16
5
130
3.35
±10
±10
3.4
Full load; 5% overshoot of Vout at startup
86.5
85.5
Von/off
Von/off
Von/off
Von/off
Ion/off at Von/off=0.0V
Logic High, Von/off=15V
Across Trim Pin & +Vo or –Vo, Pout≦max rated
Over full temp range;
Io=80% of Io, max; Ta=25°C, 300LFM
Refer to Figure 20 for measuring point
-0.7
2
-0.7
2
DS_S36SE3R305_02152007
2

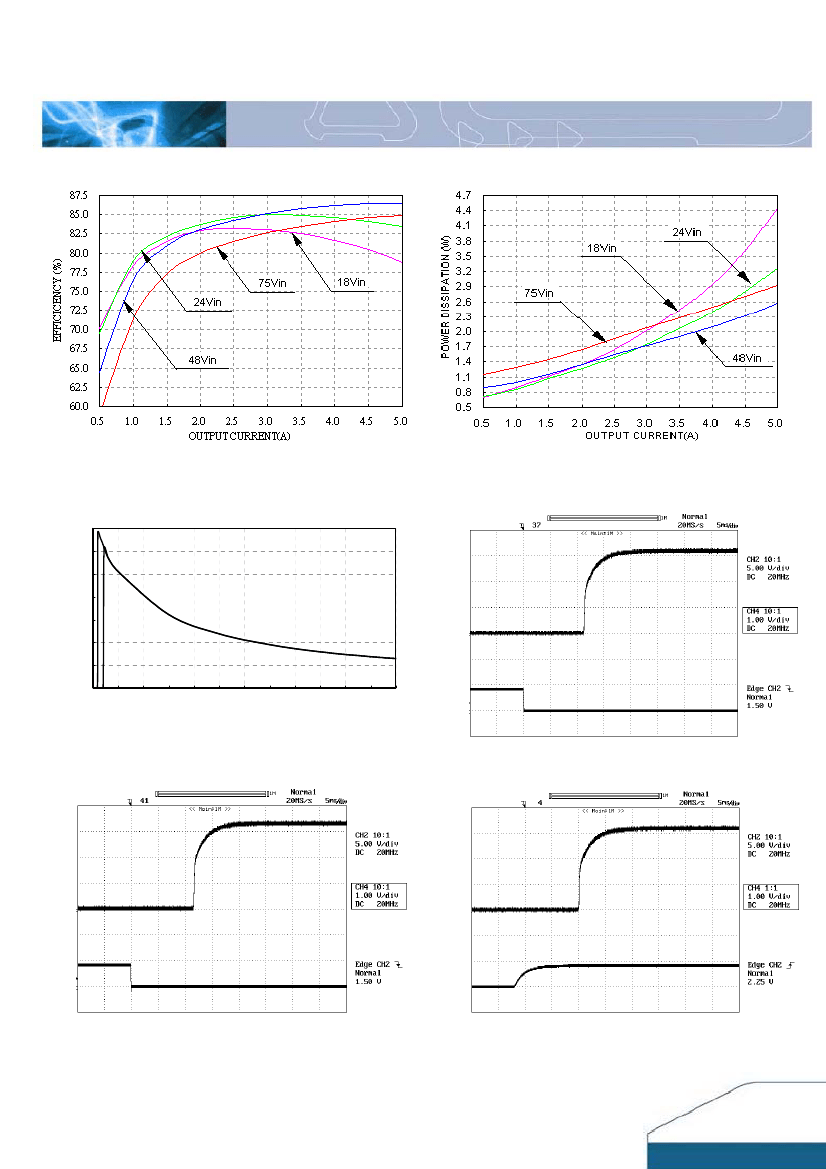

ELECTRICAL CHARACTERISTICS CURVES
Figure 1:
Efficiency vs. load current for minimum, nominal, and
maximum input voltage at 25°C.
Figure 2:
Power dissipation vs. load current for minimum, nominal,
and maximum input voltage at 25°C.
1.4
1.2
1
0.8
0.6
0.4
0.2
0
15
20
25
30
35
40
45
50
55
60
65
70
75
INPUT VOLTAGE(V)
Figure 3:
Typical full load input characteristics at room
temperature.
INPUT CURRENT(A)
Figure 4:
(For negative remote on/off logic) Turn-on transient at
full rated load current (5 ms/div). Vin=48V. Top Trace: Vout, 1V/div;
Bottom Trace: ON/OFF input, 5V/div.
Figure 5:
(For negative remote on/off logic) Turn-on transient at
zero load current (5 ms/div). Vin=48V. Top Trace: Vout, 1V/div,
Bottom Trace: ON/OFF input, 5V/div.
Figure 6:
(For positive remote on/off logic) Turn-on transient at full
rated load current (5 ms/div). Vin=48V. Top Trace: Vout, 1V/div;
Bottom Trace: ON/OFF input, 5V/div.
DS_S36SE3R305_02152007
3

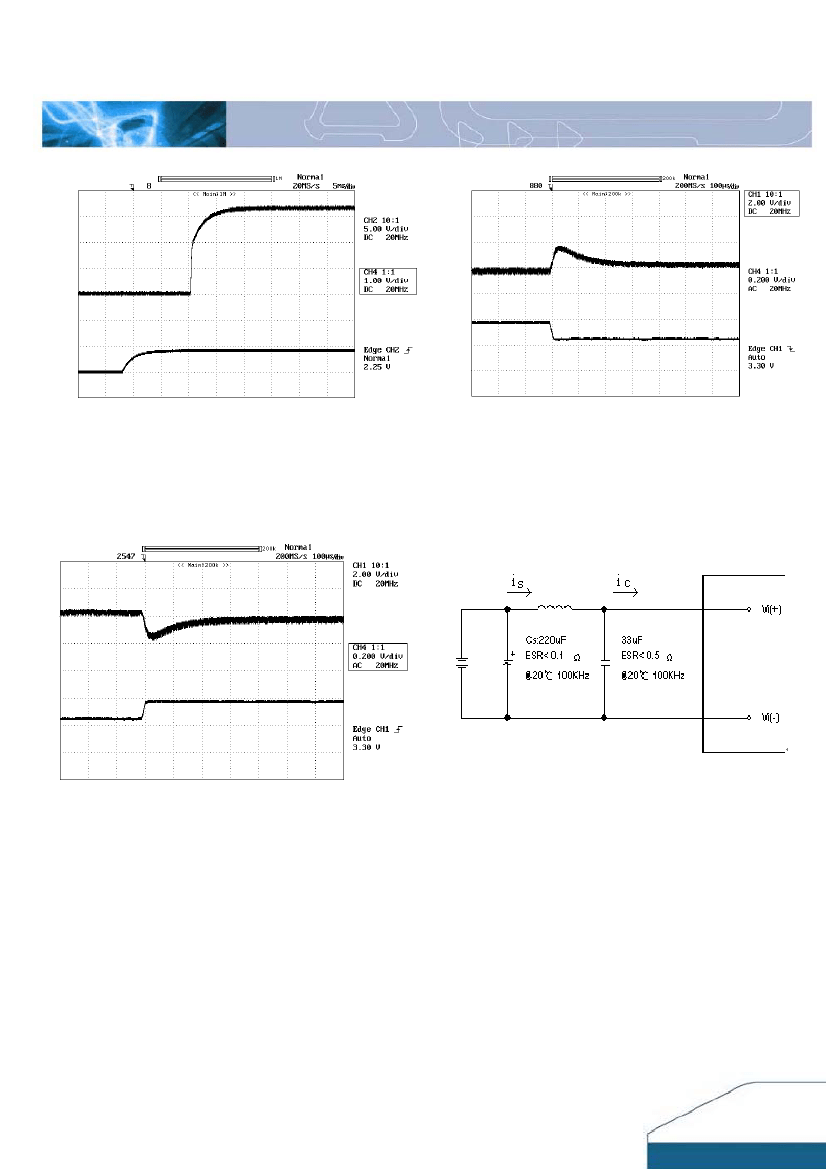

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 7:
(For positive remote on/off logic)Turn-on transient at zero
load current (5 ms/div). Vin=48V. Top Trace: Vout, 1V/div; Bottom
Trace: ON/OFF input, 5V/div.
Figure 8:
Output voltage response to step-change in load current
(75%-50% of Io, max; di/dt = 0.1A/µs). Load cap: 10µF tantalum
capacitor and 1µF ceramic capacitor. Top Trace: Vout (200mV/div,
100us/div), Bottom Trace: Iout (2A/div). Scope measurement
should be made using a BNC cable (length shorter than 20
inches). Position the load between 51 mm to 76 mm (2 inches to 3
inches) from the module.
Figure 9:
Output voltage response to step-change in load current
(50%-75% of Io, max; di/dt = 0.1A/µs). Load cap: 10µF tantalum
capacitor and 1µF ceramic capacitor. Top Trace: Vout (200mV/div,
100us/div), Bottom Trace: Iout (2A/div). Scope measurement
should be made using a BNC cable (length shorter than 20 inches).
Position the load between 51 mm to 76 mm (2 inches to 3 inches)
from the module.
Figure 10:
Test set-up diagram showing measurement points for
Input Terminal Ripple Current and Input Reflected Ripple Current.
Note: Measured input reflected-ripple current with a simulated
source Inductance (L
TEST
) of 12 µH. Capacitor Cs offset possible
battery impedance. Measure current as shown below.
DS_S36SE3R305_02152007
4

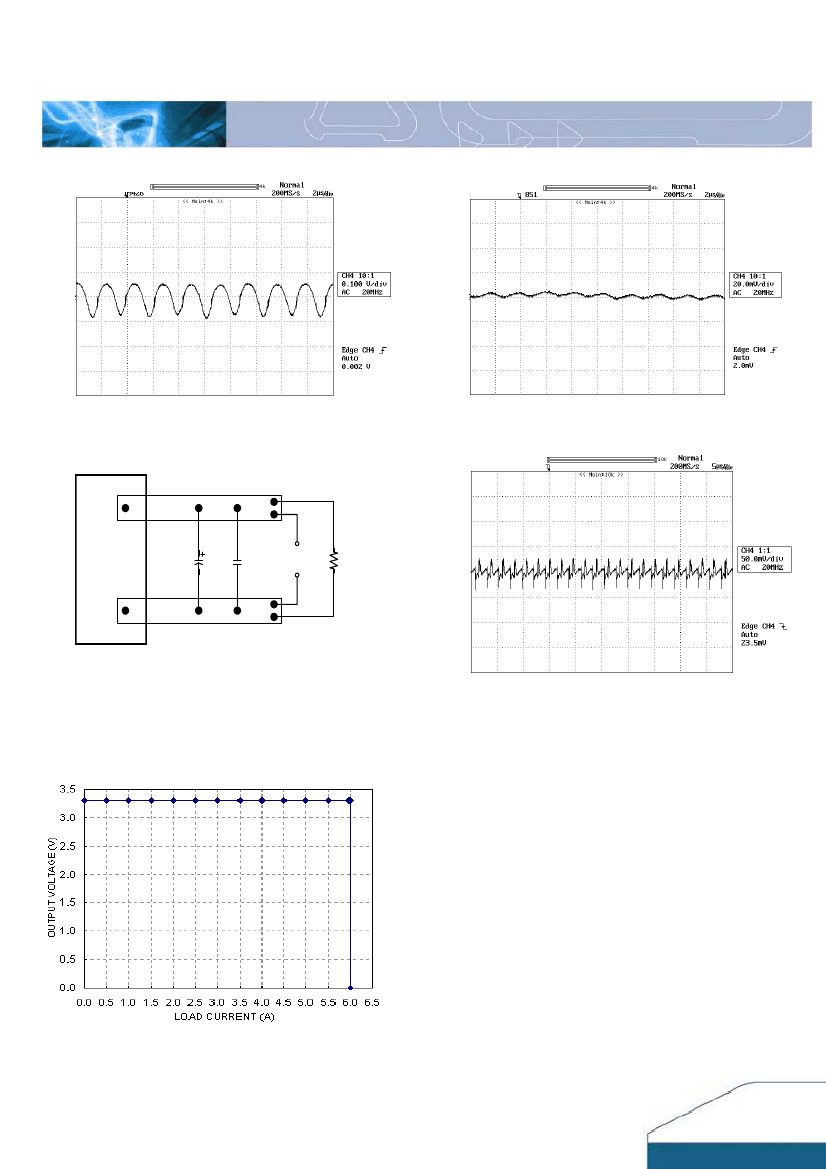

ELECTRICAL CHARACTERISTICS CURVES
Figure 11:
Input Terminal Ripple Current, i
c
, at full rated output
current and nominal input voltage with 12µH source impedance and
33µF electrolytic capacitor (100mA/div, 2us/div)
Figure 12:
Input reflected ripple current, i
s
, through a 12µH source
inductor at nominal input voltage and rated load current (20
mA/div, 2us/div)
Copper Strip
Vo(+)
10u
Vo(-)
1u
SCOPE
RESISTIV
E
LOAD
Figure 13:
Output voltage noise and ripple measurement test setup
Figure 14:
Output voltage ripple at nominal input voltage and rated load
current (Io=5A)(50 mV/div, 5us/div).Load capacitance: 1µF ceramic
capacitor and 10µF tantalum capacitor. Bandwidth: 20 MHz. Scope
measurements should be made using a BNC cable (length shorter than 20
inches). Position the load between 51 mm to 76 mm (2 inches to 3 inches)
from the module
Figure 15:
Output voltage vs. load current showing typical current
limit curves and converter shutdown points
DS_S36SE3R305_02152007
5
