59S2MB-40MT5-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> 59S2MB-40MT5-H

59S2MB-40MT5-H: DescriptionRF Connector/Coaxial ConnectorPlugPCBoardSolderPns Right Angle H Violet; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size344KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S2MB-40MT5-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S2MB-40MT5-H	-	-	View	Buy Now

59S2MB-40MT5-H Overview

RF Connector/Coaxial ConnectorPlugPCBoardSolderPns Right Angle H Violet

59S2MB-40MT5-H Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Product Category	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.
product	PCB Connectors
RF series	FAKRA
Type	Plug
impedance	50 Ohms
minimum frequency	-
maximum frequency	6 GHz
Termination type	PCB - Through Hole
direction	Right Angle
Installation type	PCB Mount
Subject type	Right Angle
Contact plating	Gold
Contact termination	-
Contact type	Pin (Male)
insulation	Non-Isolated
series	FAKRA
Voltage rating	335 V
Contact material	Brass
Insulation resistance	1000 MOhms
Operation cycle	25
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	200

Preview

Download Datasheet

View All

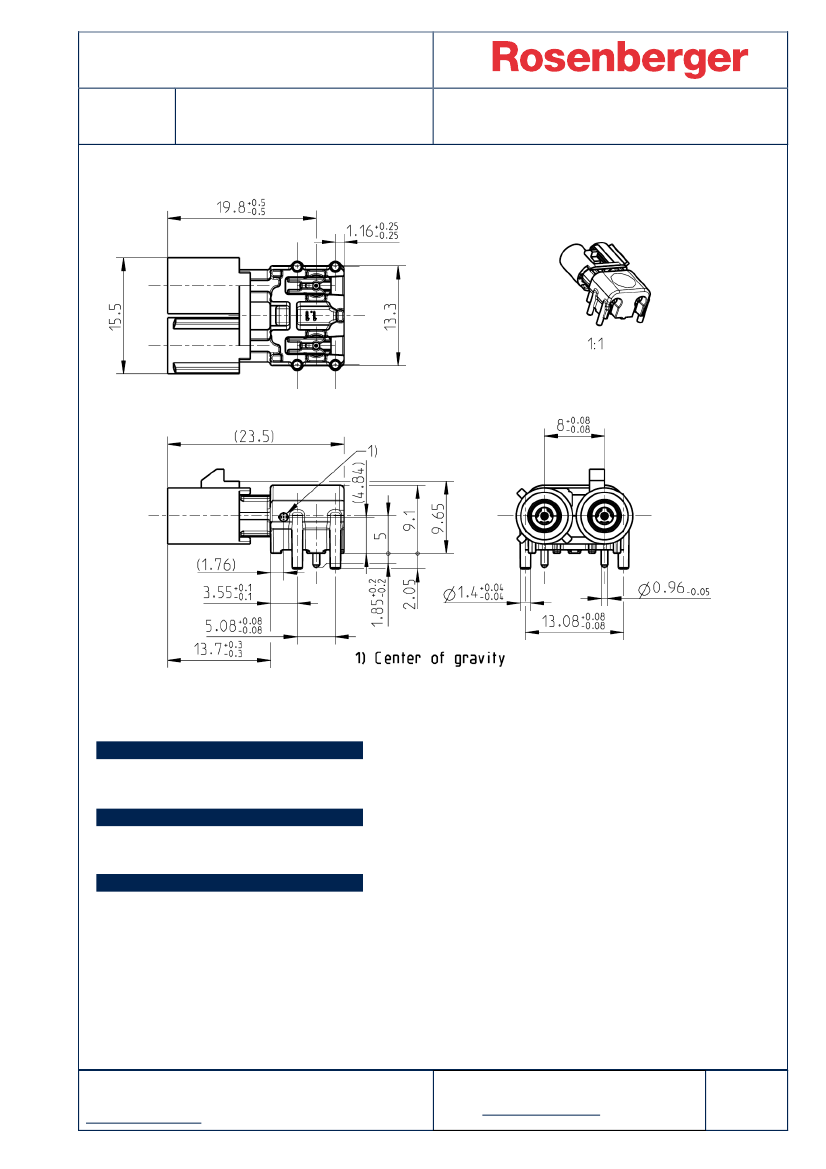

Technical Data Sheet

FAKRA

RIGHT ANGLE PLUG

FOR PCB

59S2MB-40MT5-Y

Dieses Dokument ist urheberrechtlich geschützt

●

This document is protected by copyright

●

Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Y = Part number has to be accomplished by codification

Interface

According to

ISO 20860-1, USCAR 17

Documents

PCB layout

MB_447

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Housing

Material

Brass

Zinc alloy

HTN

Plating

AuroDur®, gold plated

Tin, 2-4 µm

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3
