F-219
SLW–110–01–T–D
CES–125–02–L–D
(2.54 mm) .100"
SLW–120–01–G–S
CES–115–01–T–S
SLW, CES SERIES

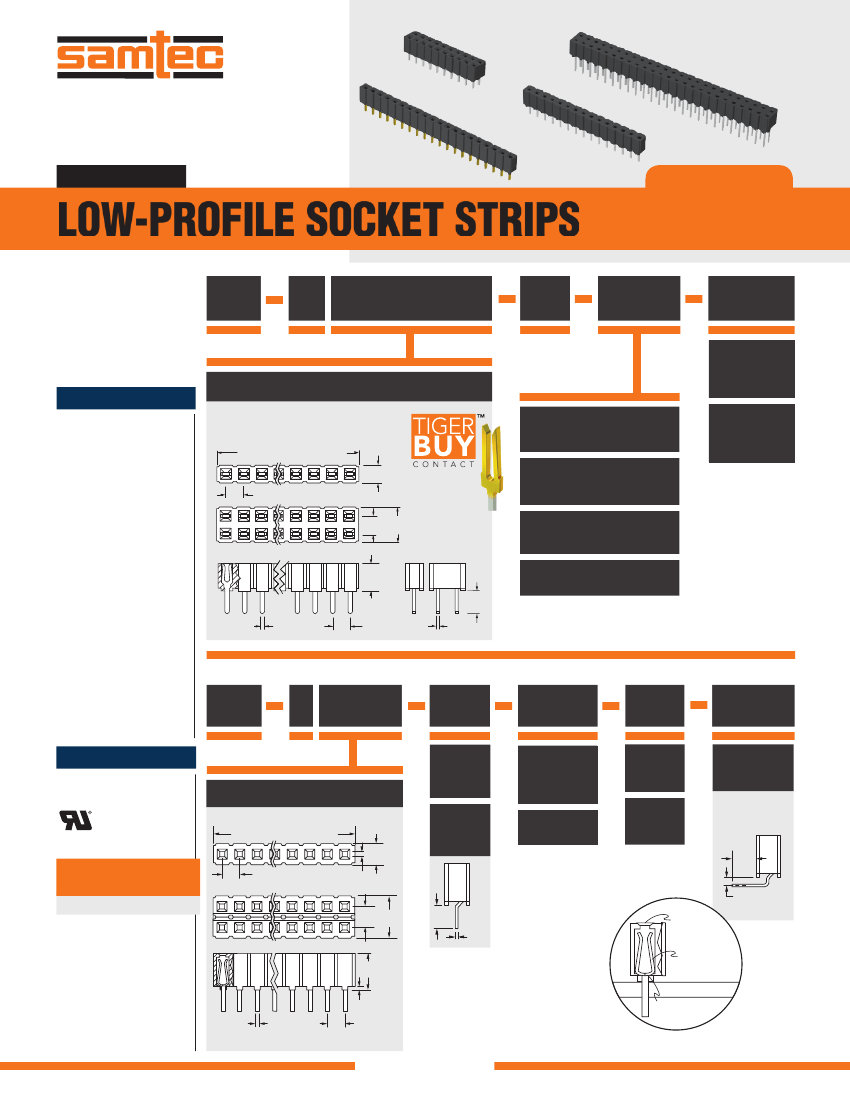

LOW-PROFILE SOCKET STRIPS
SLW Mates with:
TLW, TSW, MTLW, MTSW,
HW, EW, ZW, HTSW,
HMTSW, TSM
CES Mates with:
TLW, TSW, MTLW,
MTSW, HW, EW, ZW,
DW, HTSW, PHT, HMTSW
SLW
1
NO. PINS
PER ROW
01
PLATING
OPTION
ROW
OPTION
SPECIFICATIONS
For complete specifications
see www.samtec.com?SLW
or www.samtec.com?CES
Insulator Material:
Black G.F. Polyester
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ"(1.27 µm) Ni
SLW Current Rating
(SLW/TSW):
5.2 A per pin
(2 pins powered)
CES Current Rating
(TSW/CES):
5.5 A per pin
(2 pins powered)
Voltage Rating:
SLW: 406 VAC
CES: 400 VAC
Operating Temp Range:
-55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
Insertion Depth:
SLW: (2.16 mm) .085" to
(2.92 mm) .115"
CES: (2.62 mm) .103" to
(4.06 mm) .160"
RoHS Compliant:
Yes
Lead-Free Solderable:
No, Lead Wave only
01 02
01 thru 50
= Gold flash on contact,
Matte Tin on tail
(2.54)
.100
(2.54) .100
TYP
02
= Single
Row
–S
–F
–L
(2.54) .100 X No. of Positions
= Double
Row
–D
= 10 µ" (0.25 µm) Gold on contact,
Matte Tin on tail
(2.54) (4.95)
.100 .195
01
= 20 µ" (0.51 µm) Gold on contact,
Gold flash on balance
–G
–T
(4.57)
.180
(2.92)
.115
(0.64) .025
(2.54) .100
(0.41) .016
= Matte Tin
CES
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
RA
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
01 thru 50
01 02
= (3.25 mm)
.128
“A” Dim.
–01
= 10 µ" (0.25 µm)
Gold contact,
Matte Tin on tail
–L
–T
= Single
Row
–S
= Right-angle
version
Style – 02 only
Single Row only
– RA
FILE NO. E111594
(2.54) .100 X No. of Positions
–02
= (5.66 mm)
(3.05)
.120
.223
“A” Dim.
= Matte Tin
–D
= Double
Row
ALSO AVAILABLE
(MOQ Required)
• Other platings
(3.05)
.120
(2.54)
.100 TYP
02
(0.71)
.028 SQ
(1.02)
.040
(2.54)
(5.59)
.100
.220
01
A
(0.25)
.010
Chamfered
Dual leaf
folded
contact
(5.08)
.200
(0.51)
.020
(0.64)
.025
(2.54)
.100
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
Closed bottom
contact
