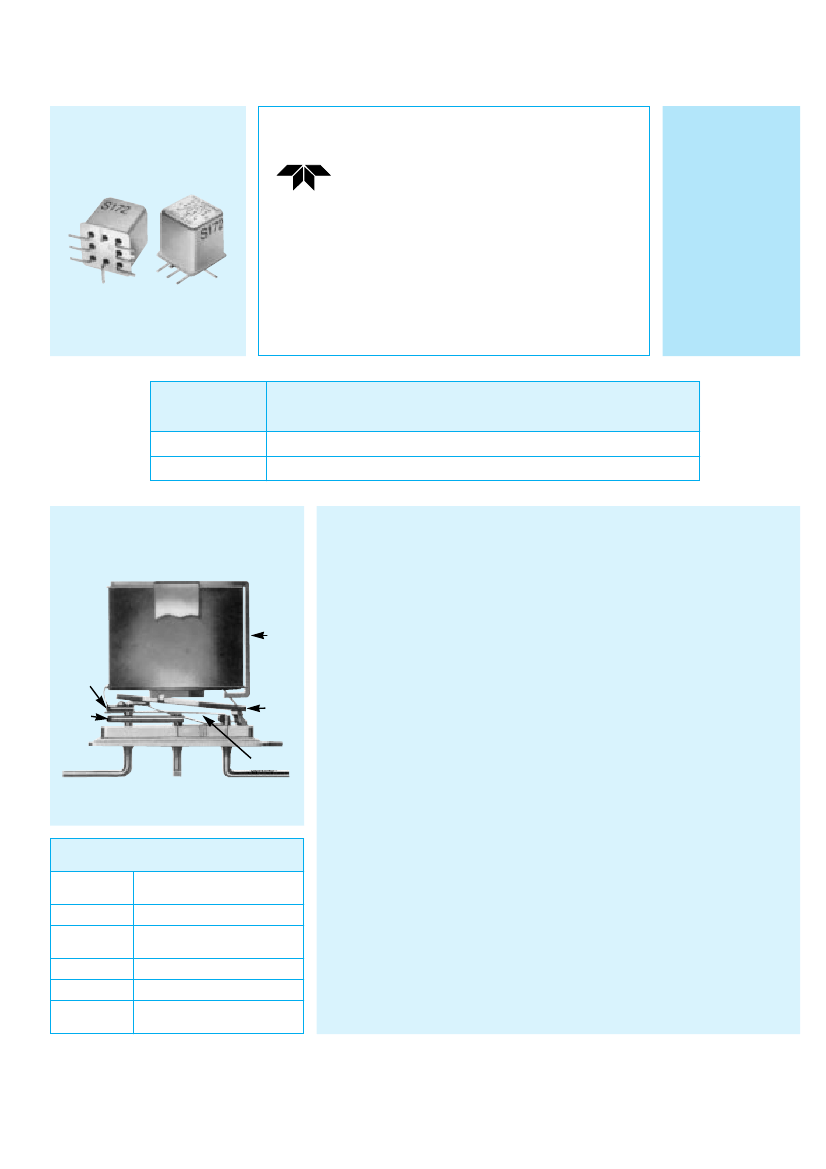

TELEDYNE RELAYS
CENTIGRID
®
SURFACE MOUNT
COMMERCIAL RELAY
DPDT
SERIES
S172
SERIES
DESIGNATION
S172
S172D
DPDT basic relay
RELAY TYPE
DPDT relay with internal diode for coil transient suppression
INTERNAL CONSTRUCTION
DESCRIPTION
The S172 Surface Mount Centigrid
®
relay is an ultraminiature, hermetically sealed, armature
relay for commercial applications. Its low profile height (.470) and .100” grid spaced
terminals, which precludes the need for spreader pads, makes it an ideal choice where
extreme packaging density and/or close PC board spacing are required. The specially
formed leads are pre-tinned to make the relays ideal for all types of surface mount solder
reflow processes.
The basic design and internal structure are similar to the Teledyne DPDT Centigrid
®
relay
(114 Series). Unique construction features and manufacturing techniques provide overall
high reliability and excellent resistance to environmental extremes:
•
•
•
•
•
All welded construction.
Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.
High force/mass ratios for resistance to shock and vibration.
Advanced cleaning techniques provide maximum assurance of internal cleanliness.
Precious metal alloy contact material with gold plating assures excellent high current
and dry circuit switching capabilities.
UNI-FRAME
UPPER
STATIONARY
CONTACT
LOWER
STATIONARY
CONTACT
ARMATURE
MOVING
CONTACT
ENVIRONMENTAL AND
PHYSICAL SPECIFICATIONS
Temperature
(Ambient)
Vibration
Shock
Enclosure
Weight
Reflow
Temperature
-55°C to +85°C
10 g’s to 500 Hz (Note 3)
30 g’s for 6 msec. (Note 3)
half-sine
All welded, hermetically sealed
0.15 oz (4.3 gms.) max.
260°C max. temp.
5 min. max. above 180°C
The S172 Series utilizes an internal discrete silicon diodes for coil suppression with
electrical characteristics as specified herein.
By virtue of its inherently low intercontact capacitance and contact circuit losses, the S172
relay is an excellent subminiature RF switch for frequency ranges well into the UHF
spectrum (see Figure 1). Applications include telecommunications, test instruments, mobile
communications, attenuators, and automatic test equipment.
94
SERIES S172
GENERAL ELECTRICAL SPECIFICATIONS
Contact Arrangement
Rated Duty
Contact Resistance
Contact Load Ratings (DC)
(See Fig. 2 for other DC
resistive voltage/current ratings)
Contact Life Ratings
(@ 25°C) (Notes 1 & 2)
2 Form C (DPDT)
Continuous
0.15 ohm max. before life; 0.3 ohm max. after life at 1A/28VDC, (measured 1/8” from header)
Resistive:
1 Amp/28VDC
Inductive:
200 mA/28VDC (320 mH)
Lamp:
100 mA/28VDC
Low Level: 10 to 50 µA/10 to 50 mV
5,000,000 cycles (typical) at low level
0,500,000
cycles (typical) at 0.5A/28VDC resistive
0,100,000
cycles min. at all other loads specified above
2A/28VDC Resistive (100 cycles min.)
Contact factory
6.0 msec max. at nominal rated coil voltage
S172: 3.0 msec max.
S172D: 6.0 msec max.
0.4 pf typical
1,000 megohms min. between mutually isolated terminals
Atmospheric pressure: 300 VRMS/60 Hz
60 VDC Min.
2.0 VDC Max.
(@ 25°C) (Note 2)
GENERIC PART
NUMBERS
Coil Voltage (VDC)
Coil Resistance (Ohms ± 20%)
Pick-up Voltage (VDC, Max.) Pulse Operation
Coil Operating Power at Nominal Voltage (Milliwatts)
Nom.
Max.
Contact Overload Rating
Contact Carry Rating
Operate Time
Release Time
lntercontact Capacitance
Insulation Resistance
Dielectric Strength
Diode P.I.V. S172D
Negative Coil Transient S172D
DETAILED ELECTRICAL SPECIFICATIONS
±
S172-5
S172D-5
5.0
5.8
64
3.8
405
S172-12
S172D-12
12.0
16.0
400
9.0
360
S172-26
S172D-26
26.5
32.0
1600
18.0
440
TYPICAL DC CONTACT RATINGS (RESISTIVE)
NOTES:
300
LOAD VOLTAGE (VDC)
250
200
150
100
50
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
LOAD CURRENT (AMPS DC)
1. Characteristics shown as “typical” are based on
available data and are best estimates. No on-going
verification tests are performed.
2. Unless otherwise specified, parameters are initial
values.
3. Relay contacts will exhibit no chatter in excess of
10 µsec or transfer in excess of 1 µsec.
4. Position of leads as they emerge from relay base.
5. Leads will fit noted pad layout with no overhang.
6. Lead ends are coplanar within .008” wide tolerance
zone.
7. Terminals coated with SN60 or SN63 solder per
QQ-S-571. Base material exposed at sheared end
of leads.
FIGURE 2
OUTLINE DIMENSIONS AND RECOMMENDED PAD LAYOUT (Notes 4, 5, 6 & 7)
.031 REF (.79)
.335 MAX
(8.51)
.035 REF
(.89)
4° MAX TYP
4° MAX TYP
.045 MIN 8 PL
(1.14)
.370** MAX
(9.40)
.100 TYP (2.54)
.375 SQ MAX
(9.53)
+.030
.378 –.020 TYP
(9.60 +.76 )
–.51
.200
(5.08)
.200
(5.08)
.410 MIN
(10.41)
7
8 (–) 1
5
4
3
6
2
TERMINAL LOCATIONS AND
SCHEMATIC DIAGRAMS
.100 4 PL
(2.54)
7
8
1
S172
.280 MAX*
(7.11)
Ø.017 REF
(.43)
2° ± 2° TYP
.200
(5.08)
6
2
* Unless otherwise specified .280” or .380” height may be supplied. To order the lower profile, add /28 to the part number.
e.g. 172-26/28 (NOTE: /28 will not be marked on relay). Unless otherwise specified, relays may be supplied with either can height.
** Max. overall height for the higher profile S172 will be .470 (11.94)
RECOMMENDED PAD LAYOUT (NOTE 5)
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
5
4 (+) 3
S172D
©1996
TELEDYNE RELAYS
95
12525 Daphne Avenue
Hawthorne, California 90250
