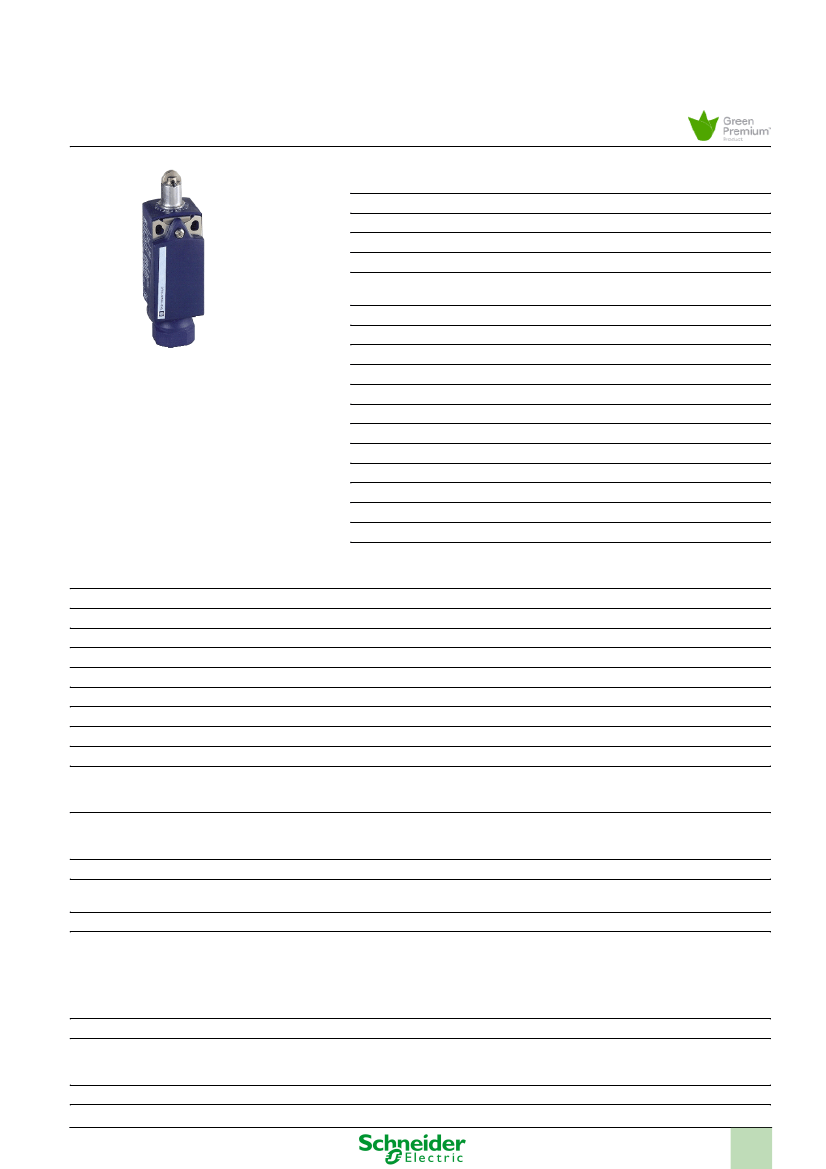

Product datasheet
Characteristics
XCKP2102N12
Main
Range of product
Series name
Product or component type
Device short name
Sensor design
Body type
Head type
Material
Body material
Head material
Fixing mode
Movement of operating head
Type of operator
Type of approach
Number of poles
Contacts type and composition
Contact operation
OsiSense XC
Standard format
Limit switch
XCKP
Compact form C conforming to CENELEC EN
50047
Fixed
Plunger head
Plastic
Plastic
Zamak
By the body
Linear
Spring return roller plunger metal
Lateral approach 2 directions
2
1 NC + 1 NO
Snap action
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
Switch actuation
Electrical connection
Cable entry
Contacts insulation form
Positive opening
Positive opening minimum force
Minimum force for tripping
Maximum actuation speed
Repeat accuracy
Contact code designation
By 30° cam
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
1 entry tapped for 1/2" NPT cable gland
Zb
With
36 N
12 N
1.64 ft/s (0.5 m/s)
0.1 mm on the tripping points with 1 million operating cycles
Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1
appendix A
500 V degree of pollution 3 conforming to IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
<= 25 MOhm conforming to IEC 60255-7 category 3
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
10 A cartridge fuse gG
5000000 cycles, DC-13, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
10000000 cycles
[Ui] rated insulation voltage
Resistance across terminals
[Uimp] rated impulse withstand voltage
Short-circuit protection
Electrical durability
Mechanical durability
Environment
shock resistance
50 gn (duration = 11 ms) conforming to IEC 60068-2-27
1/4
vibration resistance
IP degree of protection
IK degree of protection
electrical shock protection class
ambient air temperature for operation
ambient air temperature for storage
protective treatment
product certifications
25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IK04 conforming to EN 50102
Class II conforming to IEC 61140
Class II conforming to NF C 20-030
-13...158 °F (-25...70 °C)
-40...158 °F (-40...70 °C)
TC
CCC
CSA
UL
EN 60204-1
EN 60947-5-1
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
standards
Offer Sustainability
Green Premium product
Green Premium product
Compliant - since 1037 - Schneider Electric declaration Compliant - since 1037 - Schneider Electric declaration of conformity
of conformity
Reference not containing SVHC above the threshold
WARNING: This product can expose you to chemicals
including:
Reference not containing SVHC above the threshold
WARNING: This product can expose you to chemicals including:
Diisononyl phthalate (DINP), which is known to the State Diisononyl phthalate (DINP), which is known to the State of California to cause
of California to cause cancer, and
cancer, and
Di-isodecyl phthalate (DIDP), which is known to the StateDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth
of California to cause birth defects or other reproductive defects or other reproductive harm.
harm.
For more information go to www.p65warnings.ca.gov
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months

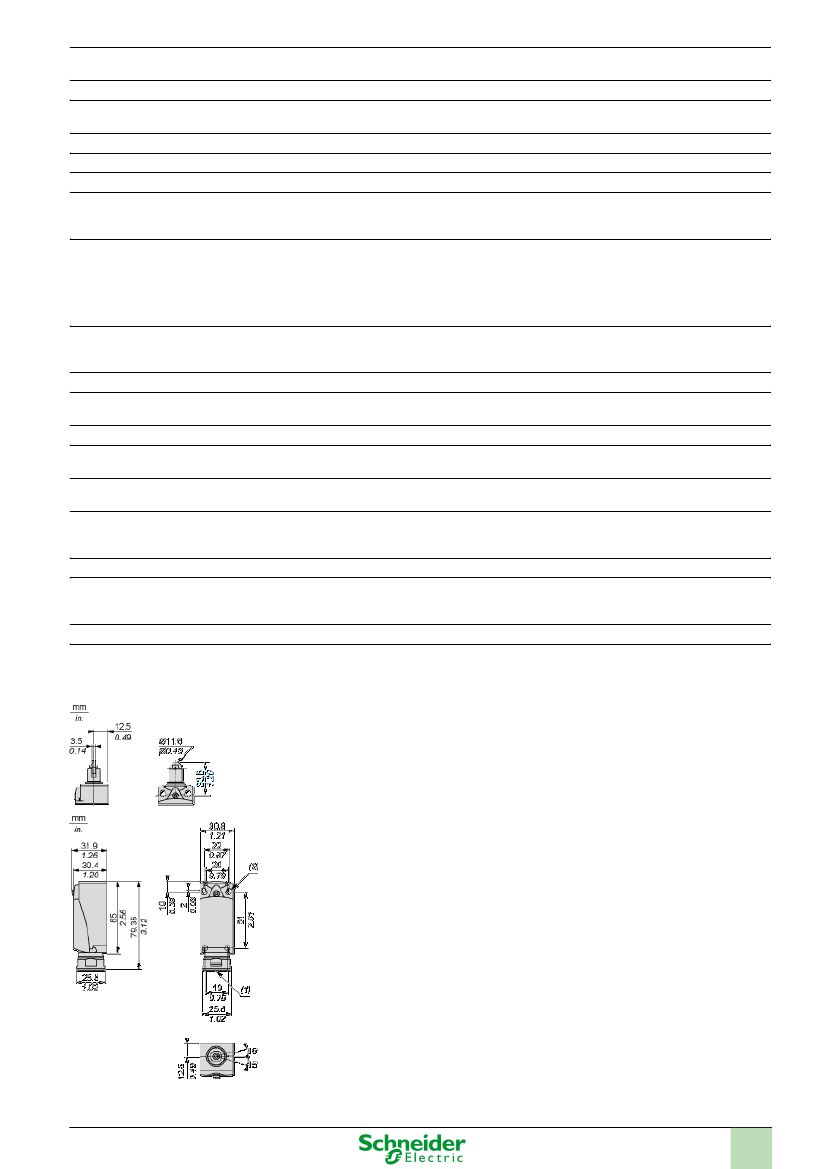

Dimensions
(1)
Tapped entry for 1/2" NPT
