RV5MJKUBR-S1

Description
Modular Connector/Ethernet Connector CAT5e JACK BROWN 1 PC PER PACK
CategoryThe connector    Modular connectors/Ethernet connector
File Size114KB,4 Pages
ManufacturerBelden Wire & Cable
Environmental Compliance
Download Datasheet Parametric View All

RV5MJKUBR-S1 Online Shopping

Suppliers Part Number Price MOQ In stock
RV5MJKUBR-S1 - - View Buy Now

RV5MJKUBR-S1 Overview

Modular Connector/Ethernet Connector CAT5e JACK BROWN 1 PC PER PACK

RV5MJKUBR-S1 Parametric

Parameter NameAttribute value
MakerBelden Wire & Cable
Product CategoryModular Connector/Ethernet Connector
Shipping restrictionsMouser does not currently sell this product.
seriesRV5MJK
Factory packaging quantity1
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION

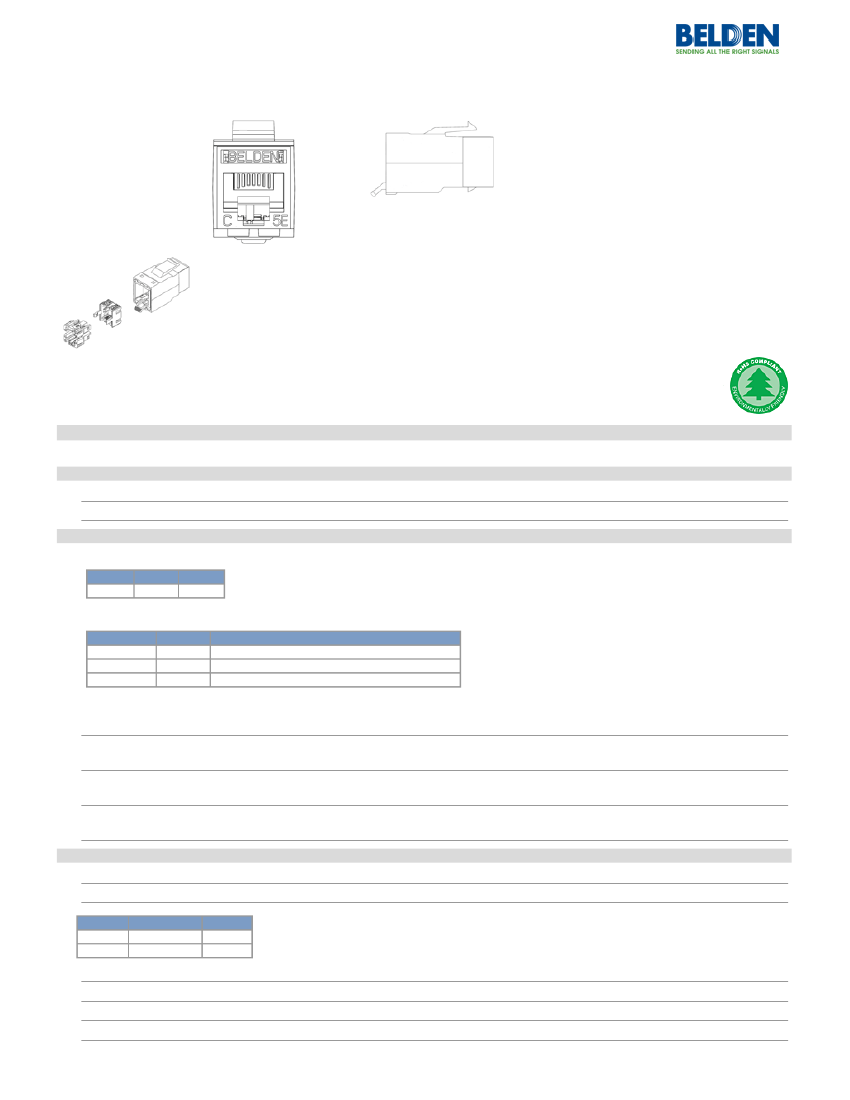

RV5MJKUXX-S1 Modular Connectors - REVConnect Jack CAT5E UTP
For more Information
please call
1-800-Belden1
General Description:
REVConnect CAT5E UTP Modular Jack, T568 A/B, Single Pack
Usage (Overall)
Suitable Applications:
Related Parts:
1200 System, TIA Category 5E, ISO Class D, 1GBASE-T
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
Physical Characteristics (Connectivity)
Dimensions
Dimensions:
Height (in.) Width (in.) Depth (in.)
0.940
0.640
1.337
Materials
Materials:
Description
Type
Material
Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
PBT glass reinforced UL94V-0
Front Connection RJ45
Connector Body
N/A
Rear Connection REVConnect Copper alloy, Gold plated contacts over Nickel
Color
Color:
Almond, Black, Blue, Blue (TIA 606), Brown, Brown (TIA 606), Elec. White, Gray, Green, Green (TIA 606),
Ivory, Orange, Orange (TIA 606), Purple, Purple (TIA 606), Red, Red (TIA 606), Yellow, Yellow (TIA 606)
Wiring Scheme
Wiring Scheme:
T568A/B
Weight
Weight:
0.016 lbs.
Packaging
Packaging:
Individually packaged in a plastic bag.
Mechanical Characteristics (Connectivity)
Footprint/Type:
Plug / Jack Compatibility:
Termination Interface:
Termination Connection
Front
Rear
Durabilities
Mated Connection 750 cycles
Mated Connection 20 cycles
15 lbs.
20 lbs.
11.250 lbs.
-40°C To +70°C
KeyConnect
RJ45, RJ11
Cable/Connector Retention:
Connector/Hardware Retention:
Plug/Connector Retention:
Storage Temperature Range:
Page 1 of 3
07-31-2017
