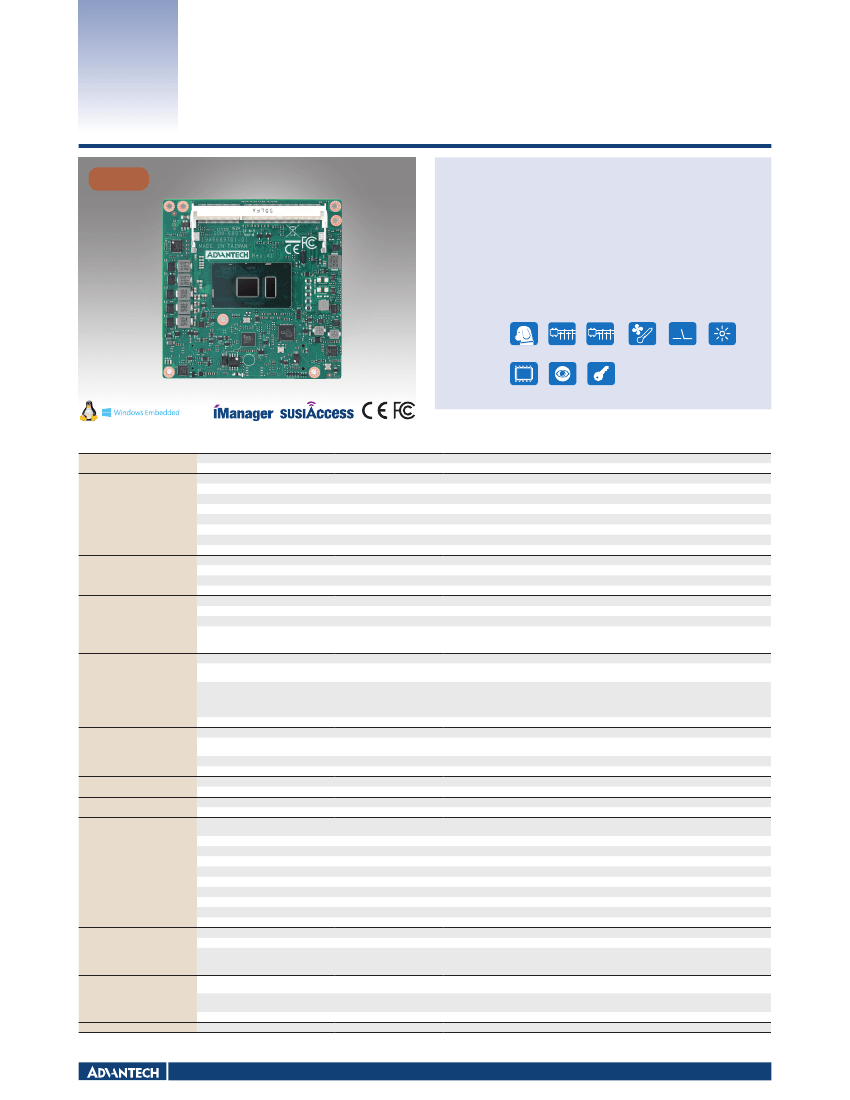

SOM-6897
NEW
6
th
Gen Intel Core/Celeron Processors
COM Express Compact Module Type 6
Features
6
th
Gen Intel Core i7/i5/i3/Celeron w/ integrated PCH-LP
Support Dual Channel DDR3L-1600 SODIMM up to 16GB
Integrated GFx supports HEVC, VP8, VP9 HW Transcode
Flexible PCI Express up to 8 lanes
Supports iManager SUSIAccess, and Embedded Software APIs
Software APIs:
Watchdog
I
2
C
SMBus
H/W Monitor
GPIO
Brightness
Control
Utilities:
BIOS flash Monitoring Embedded
Security ID
Specifications
Compliance
Form-Factor
Pin-out Type
Processor
Base Frequency
Turbo Boost Freq.
Core/Tread
LLC
CPU TDP
Chipset
BIOS
Technology
ECC Support
Channel/Socket
Max. Capacity
Controller
Base/Turbo Freq.
Graphics Memory
3D/HW Acceleration
VGA
LCD
Display
DDI
Multiple Display
PCI Express x16
Expansion
PCI Express x1
Audio Interface
LPC
SMBus
I
2
C Bus
Controller
Speed
SATA
USB3.0
USB2.0
SPI Bus
GPIO
Watchdog
COM Port
Express Card
TPM
Smart Fan
Type
Supply Voltage
Power Consumption
Temperature
Environment
Mechanical
Humidity
Vibration Resistance
Dimensions
COM Express Compact Module
COM Express R2.1 Type 6 pin out
i7-6600U
i5-6300U
i3-6100U
2.6 GHz
2.4 GHz
2.3 GHz
3.4 GHz
3.0 GHz
N/A
2/4
2/4
2/4
4 MB
3 MB
3 MB
15W
15W
15W
Integrated PCH-LP
AMI EFI BIOS
DDR3L (1.35V)-1600MHz
Not supported
Dual channels / 2 sockets
Up to 16GB
Intel Gen 9 LP GT2
Intel Gen 9 LP GT2
Intel Gen 9 LP GT2
300/1050MHz
100/1000 MHz
100/1000 MHz
Intel DVMT
Direct3D 2015/11.2/11.1/10/9, Direct2D, OpenGL 5.0, OpenCL 2.1/2.0/1.2
HW Decode: H.265/HEVC, H.264/AVC, VP9, VP8, MPEG2, WMV9/VC1, JPEG/MJPEG
HW Encode: H.265/HEVC, H.264/AVC, VP9, VP8, MPEG2, JPEG
Support up to 1920 x 1200 @ 60 Hz
LVDS support 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz
Optional eDP up to 3840 x 2160 @ 60Hz 24bpp or 4096 x 2304 @ 60Hz 24bpp
1 Ports, optional 2 while remove VGA, configurable to HDMI1.4/DVI/Displayport1.2
HDMI up to 4096 x 2160 @ 24Hz 24bpp
DVI up to 1920 x 1080 @ 60Hz
DP up to 3840 x 2160 @ 60Hz 24bpp or 4096 x 2304 @ 60Hz 24bpp
Support 3 independent display
Not available
PCI Express Gen3 (8.0 GT/s)
5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 (support up to 5 devices and 8 lanes)
Intel HD Audio Interface
Yes (24MHz)
Yes
Yes
Intel i219LM
10/100/1000 Mbps
Supports 2 SATA Gen 3 (8.0 Gb/s), i7/i5 optional support 3 SATA while PCIe supporting downgraded
Support RAID 0/1/5/10, AHCI 1.3
4 Ports
8 Ports
For BIOS only
8-bit GPIO
65536 level, 0 ~ 65535 sec
2 Ports (2-wire)
2 Ports
Optional TPM2.0 (Infineon SLB9665)
2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
ATX: Vin, VSB; AT: Vin
Vin: 8.5V (9V-5%) ~ 20V (19+5%); VSB: 5V ±5%
Burn in: (16GB DDR3L 1600) i3-6100U +12V @ 12.81W
Idle: (16GB DDR3L 1600) i3-6100U +12V @ 2.76W
*Only for reference and will depends on custom software loading, detail refer to user manual
Operating : 0 ~ 60° C (32 ~ 140° F), (Extend model TBD)
Storage : -40 ~ 85° C (-40 ~ 185° F)
Operating: 40° C @ 95% relative humidity, non-condensing
Storage: 60° C @ 95%relative humidity, non-condensing
3.5 Grms
95 x 95 mm (3.74" x 3.74")
Celeron 3955U
2.0 GHz
N/A
2C/2T
2 MB
15W
Platform
Memory
Intel Gen 9 LP GT1
100/900 MHz
Graphics
Serial Bus
Ethernet
I/O
Power
Computer On Modules
All product specifications are subject to change without notice.
Last updated: 29-Jun-2017
