2 GHz Band Power Dividers/Combiners
C/D Series
■

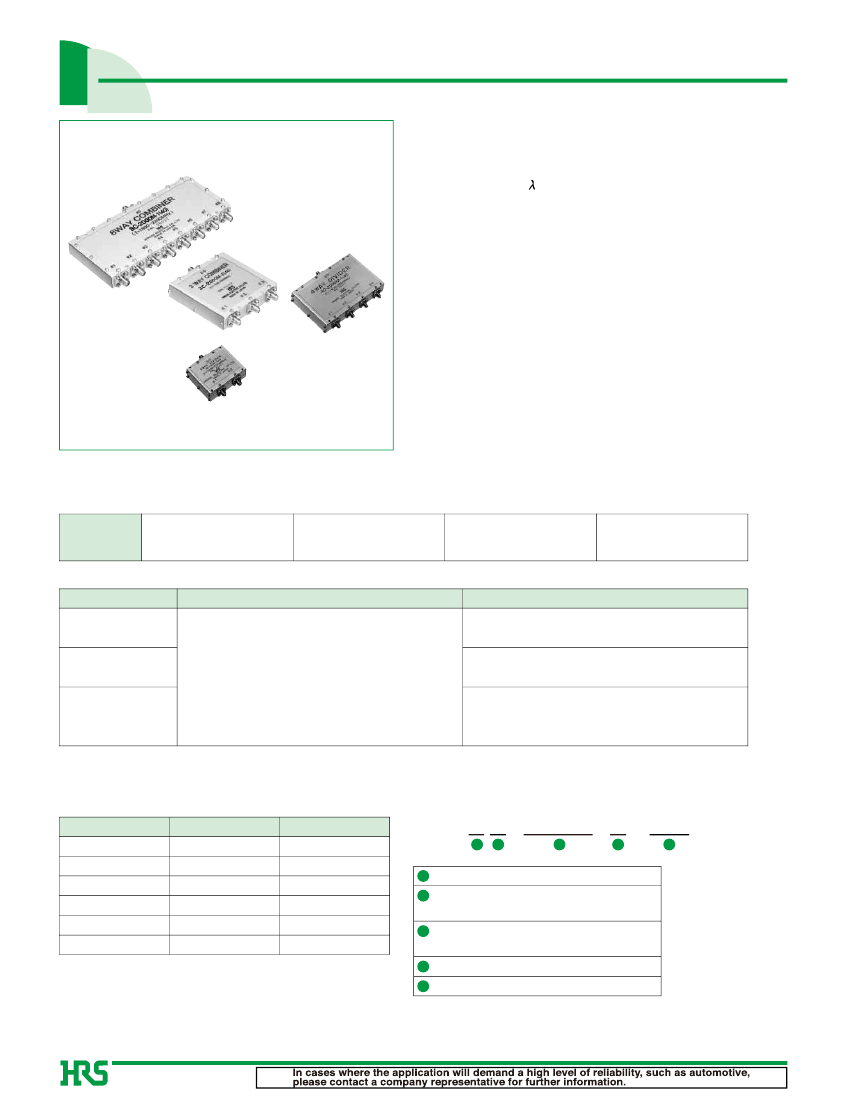

Features
1.Division System
The micro stripline method, which uses the
principle of the /4 impedance converter, provides
excellent high frequency performance.
2.High Performance
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
The low insertion loss and high isolation (of over 20
dB) afforded by the Wilkinson circuit structure make
these power dividers ideal for use in portable
telephone base stations, measuring instruments,
and for measurements.
3.Highly Reliable Design
Connectors are of the SMA type and use stainless
steel for extremely high performance.
The case uses corrosion-resistant aluminum and is
both miniature and lightweight.
■
Product Specifications
Ratings
Frequency range
Characteristic impedance
Maximum Input Power
1.7 to 2.3 GHz
50
ohms
1 to 20W
Operating temperature range
Operating relative humidity
-10ç to +65ç
95% Max.
●
Please see the specification items for details concerning insertion loss, VSWR, and isolation.
Item
1.Vibration
2.Shock
Standard
Conditions
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 axis
Acceleration of 294 m/s
2
, sine half-wave waveform,
No damage, cracks, or parts dislocation
3 cycles in each of the 3 axis
Temperature: -40ç
→
+15ç to +35ç
→
+85ç
→
+15ç to +35ç
3.Temperature cycle
Time: 30
→
2 to 3 max.
→
30
→
2 to 3 max. (Minutes)
100 cycles
●
The test method conforms to MIL-STD-202.
■
Materials
Part
Connector Body
Connector female contacts
Connector Insulator
■Ordering
Information
Material
Stainless steel
Beryllium copper
PTFE
Aluminum
Aluminum
Dielectric
Finish
Passivated
Gold plating
----------
2 D - 2000M - 2 - (40)
1
2
3
4
5
1
Number of Divisions (Number of Combination)
2
Series Name:
D: Divider
C: Combiner
Cover
Case
Board
Conductive white alumite
Conductive white alumite
Solder coating
3
Center Frequency
2000M : 2000MHz
4
Suffix
5
(40) : RoHS Compliant
36
C/D Series●2 GHz Band Power Dividers/Combiners

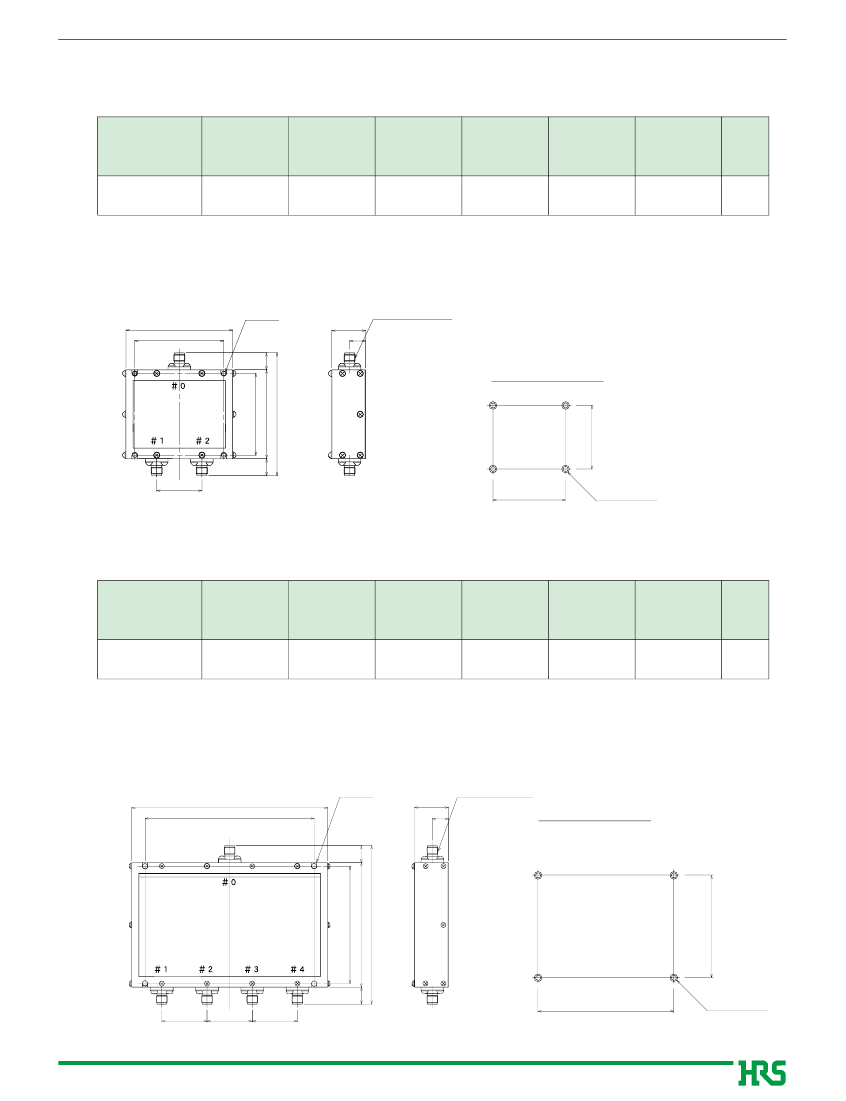

2WAY POWER DIVIDER
■
SPECIFICATION
Part Number
Frequency
Range
(GHz)
1.8~2.2
Insertion
Loss
(dB Max)
π(1)
0.4
V.S.W.R.
(Max)
π(2)
1.3
Isolation
(dB Min)
π(3)
20
Power
(W)
Weight
(g)
RoHS
2D-2000M-1(40)
20
110
YES
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
π
(1)The value of the insertion loss is the insertion loss minus the calculation value of 3 dB.
π
(2)The V.S.W.R. is applicable to port #0, #1, and #2. (See the Dimensions Diagram for the port numbers.)
π
(3)Applicable between the divider contacts.
■
External Dimensions
4-Ø2.6
60
50
9.55
19
9
3-1/4-36UNS-2A
PCB Mounting Pattern
46
50
69.1
25.4
9.55
50±0.1
46±0.1
4-M2.3∞0.4
4WAY POWER DIVIDER
■
SPECIFICATION
Part Number
Frequency
Range
(GHz)
1.8~2.2
Insertion
Loss
(dB Max)
π(1)
0.6
V.S.W.R.
(Max)
π(2)
1.3
Isolation
(dB Min)
π(3)
20
Power
(W)
Weight
(g)
RoHS
4D-2000M-1(40)
20
260
YES
π
(1)The value of the insertion loss is the insertion loss minus the calculation value of 6 dB.
π
(2)The V.S.W.R. is applicable to port #0, #1, #2, #3, and #4. (See the Dimensions Diagram for the port numbers.)
π
(3)Applicable between the divider contacts.
■
External Dimensions
4-Ø2.6
110
95
19
9
5-1/4-36UNS-2A
PCB Mounting Pattern
9.55
9.55
95±0.1
25.4
25.4
25.4
66±0.1
4-M2.3∞0.4
66
70
89.1
37
C/D Series●2 GHz Band Power Dividers/Combiners

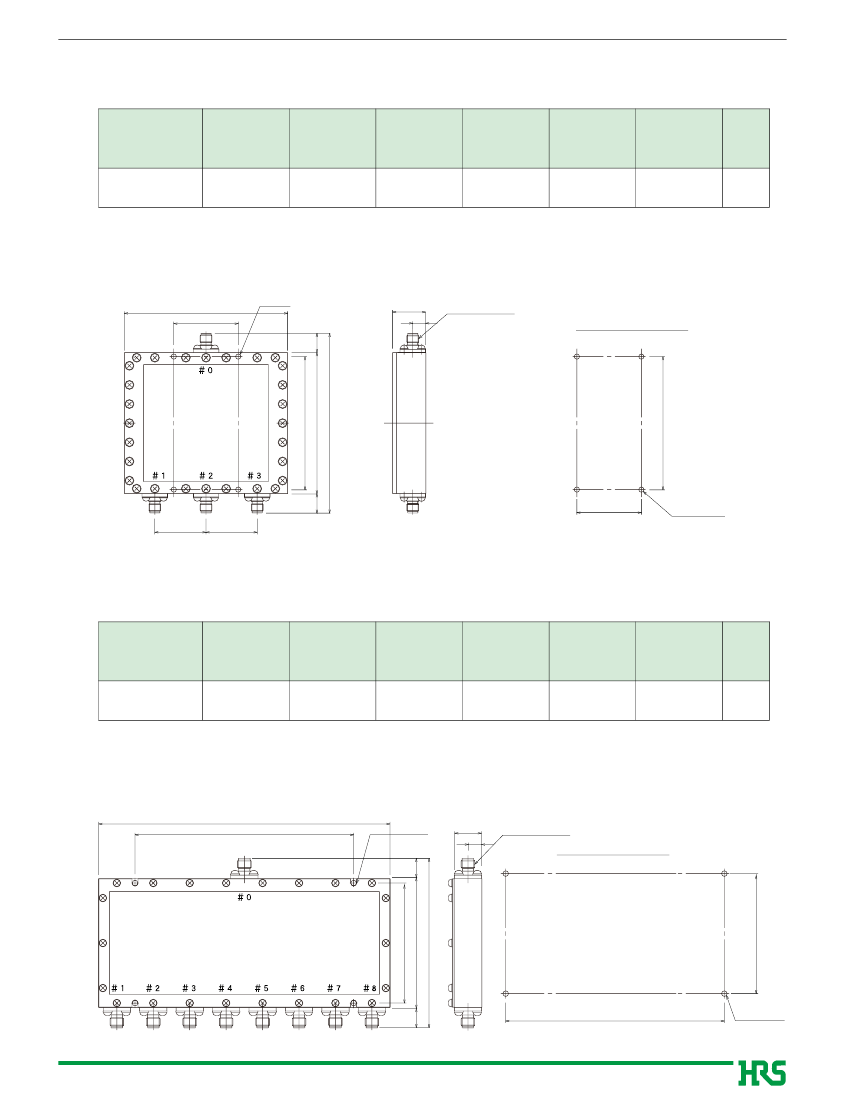

8WAY POWER DIVIDER
■
SPECIFICATION
Part Number
Frequency
Range
(GHz)
1.8~2.2
Insertion
Loss
(dB Max)
π
(1)
V.S.W.R.
(Max)
π
(2)
Isolation
(dB Min)
π
(3)
Power
(W)
Weight
(g)
RoHS
8D-2000M-1(40)
1
1.3
20
20
480
YES
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
π
(1)The value of the insertion loss is the insertion loss minus the calculation value of 9 dB.
π
(2)The V.S.W.R. is applicable to port #0, #1, #2, #3, #4, #5, #6, #7, and #8. (See the Dimensions Diagram for the port numbers.)
π
(3)Applicable between the divider contacts.
■
External Dimensions
4-Ø2.6
210
152
9.55
19
9
9-1/4-36UNS-2A
25.4
25.4
25.4
25.4
25.4
25.4
25.4
PCB Mounting Pattern
152±0.1
38
66±0.1
4-M2.3∞0.4
9.55
66
70
89.1
C/D Series●2 GHz Band Power Dividers/Combiners
3WAY POWER COMBINER
■
SPECIFICATION
Part Number
Frequency
Range
(GHz)
1.7~2.3
Insertion
Loss
(dB Max)
π(1)
0.5
V.S.W.R.
(Max)
π(2)
1.25
Isolation
(dB Min)
π(3)
22
Power
(W)
Weight
(g)
RoHS
3C-2000M-2(40)
1
135
YES
π
(1)The value of the insertion loss is the insertion loss minus the calculation value of 4.8 dB.
π
(2)The V.S.W.R. is applicable to port #0, #1, #2, and #3. (See the Dimensions Diagram for the port numbers.)
π
(3)Applicable between the divider contacts.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■
External Dimensions
75
32
4-Ø2.6
14
6.5
9.55
4-4/4-36UNS-2A
PCB Mounting Pattern
9.55
32±0.1
66±0.1
4-M2.3∞0.4
25.4
25.4
8WAY POWER COMBINER
■
SPECIFICATION
Part Number
Frequency
Range
(GHz)
1.8~2.2
66
70
89.1
Insertion
Loss
(dB Max)
π(1)
1
V.S.W.R.
(Max)
π(2)
1.3
Isolation
(dB Min)
π(3)
20
Power
(W)
Weight
(g)
RoHS
8C-2000M-1(40)
2.5
240
YES
π
(1)The value of the insertion loss is the insertion loss minus the calculation value of 9 dB.
π
(2)The V.S.W.R. is applicable to port #0, #1, #2, #3, #4, #5, #6, #7, and #8. (See the Dimensions Diagram for the port numbers.)
π
(3)Applicable between the divider contacts.
■
External Dimensions
136
102
4-Ø2.6
13.8
6.5
9-1/4-36UNS-2A
PCB Mounting Pattern
9.55
9.55
56
60
79.1
102±0.1
4-M2.3∞0.4
56±0.1
39
C/D Series●2 GHz Band Power Dividers/Combiners
2D-2000M-1(40)
Insertion Loss
[dB]
3.4
3.2
3.0
[dB]
50
45
40
35
30
# 1. # 2 Port
# 0 port
#1
# 2port
Isolation
1.4
V.S.W.R.
1.3
1.2
25
20
15
# 1. # 2 port
1.1
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.8
2.0
2.2
1.8
2.0
2.2
1.0
1.8
2.0
2.2
Frequency [GHz]
Frequency [GHz]
Frequency [GHz]
4D-2000M-1(40)
Insertion Loss
[dB]
6.6
6.4
6.2
6.0
5.8
5.6
# 1 . # 2 . # 3 . # 4 port
[dB]
50
45
40
35
30
25
20
15
#2
#1
Isolation
# 3port
# 4port
V.S.W.R.
1.4
1.3
1.2
#1
#3
# 2port
# 4port
# 1 . # 2 . # 3 . # 4port
1.1
# 0 port
1.8
2.0
2.2
1.8
2.0
2.2
1.0
1.8
2.0
2.2
Frequency [GHz]
Frequency [GHz]
Frequency [GHz]
8D-2000M-1(40)
Insertion Loss
[dB]
1.0
9.8
9.6
9.4
# 1. # 2. # 3. # 4. # 5. # 6. # 7. # 8port
[dB]
50
45
40
35
30
25
20
15
#2
#6
Isolation
#1
#4
# 8port
# 5port
V.S.W.R.
1.4
1.3
# 1. # 2. # 3. # 4. # 5. # 6. # 7. # 8port
1.2
# 0 port
# 3port
# 7port
#1
#2
#5
#7
# 3port
# 4port
# 6port
# 8port
9.2
9.0
1.1
1.8
2.0
2.2
1.8
2.0
2.2
1.0
1.8
2.0
2.2
Frequency [GHz]
Frequency [GHz]
Frequency [GHz]
40
