E38C140104 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> E38C140104

E38C140104: DescriptionSingle Board Computer LGA1151 socket 6th/7th Gen Intel Core Processor Intel H110 PCH DDR4 USB 3.0 SATA3 Dual GE AMT 6 COM DVI-I Gift Box packing w/o CPU Cooler PCIe x4 BIOS; CategoryEmbedded solution To calculate Single board computer; File Size222KB，2 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

E38C140104 Overview

Single Board Computer LGA1151 socket 6th/7th Gen Intel Core Processor Intel H110 PCH DDR4 USB 3.0 SATA3 Dual GE AMT 6 COM DVI-I Gift Box packing w/o CPU Cooler PCIe x4 BIOS

E38C140104 Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	single board computer
series	SHB140
Processor brand	Intel
Processor type	Intel Core
storage	32 GB
Working power voltage	3.3 V, 5 V, 12 V
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	338 mm x 126 mm x 1.6 mm
storage type	DDR4-2133/2400
chipset	H110

Preview

Download Datasheet

View All

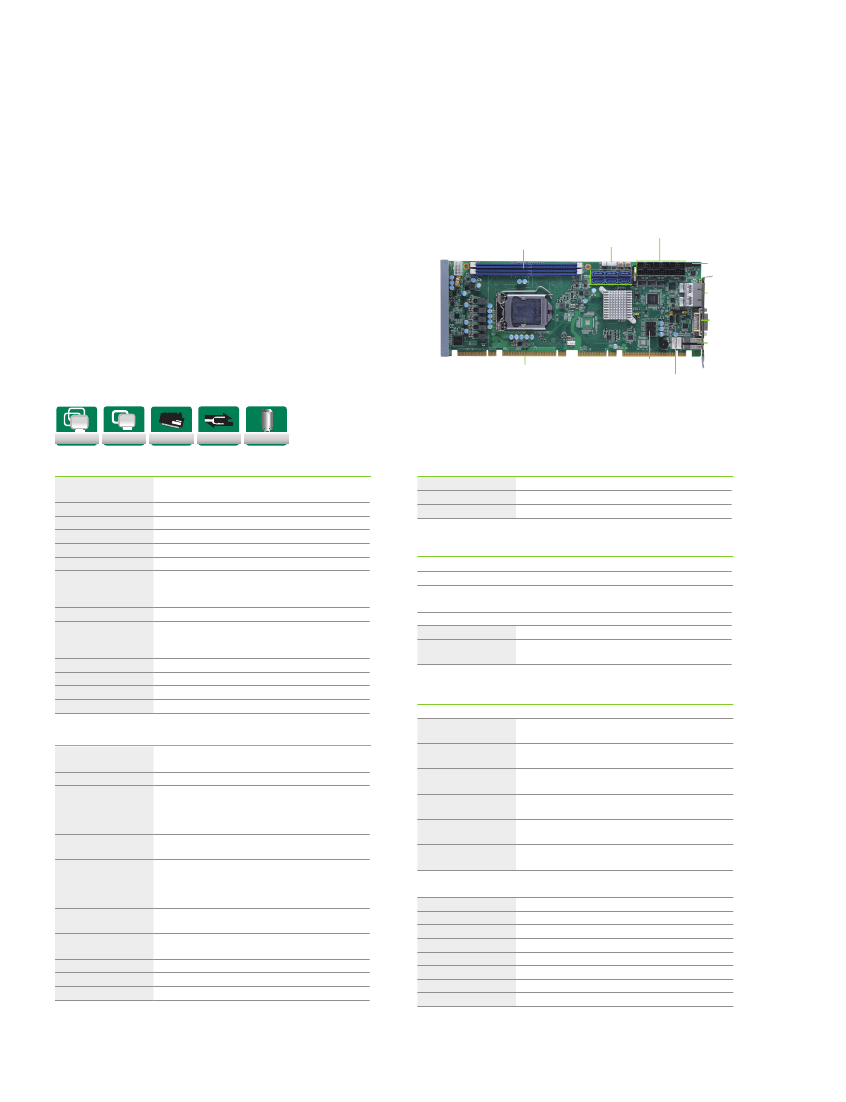

SHB140

PICMG 1.3 Full-size CPU Card with LGA1151 7th/6th Gen Intel® Core™ Processor,

Intel® Q170/H110, SATA3, USB 3.0, Dual LANs and DVI-I

Features

●

LGA1151 7th/6th gen Intel® Core™ processor

●

Intel® Q170/H110 chipset

●

2 DDR4-2400 un-buffered DIMM for up to 32GB of memory

(Kaby Lake)

●

Intel® AMT 11 (Q170)

●

Optional TPM supported

●

PCIe Gen3 at 8GT/s supported

●

Intel® vPro supported

●

6 SATA-600 with RAID 0/1/5/10 (Q170)

DDR4-2133 DIMM

SATA-600

COM

Audio

LAN

DVI-I

USB 3.0

LGA1151

USB 2.0

Internal PS/2 KB & MS

DDR4

USB

TripleView: Q170

DualView: H110

DDR4

USB 3.0

Full Solid

Cap Design

Core System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

LGA1151 socket 7th/6th gen Intel® Core™ processor, TDP

up to 65W, Intel® vPro supported

2 x 288-pin DDR4-2133/2400 un-buffered DIMM, up to 32GB

Intel® Q170/H110

AMI BIOS

N/A

225 levels, 1 to 255 sec.

1 x PCIe x16 Gen3

1 x PCIe x4 or 4 x PCIe x1 Gen2

4 x 32-bit PCI bus masters

Lithium 3V/220 mAH

Intel® Core™ i7-6700, 8GB DDR4-2133/2400 x 2

+5V @ 1.38A, +12V @ 2.13A, +5VSB @ 0.72A, +3.3V @

0.54A

338 x 126 mm

1.6 mm

0°C to +60°C (+32°F to +140°F)

10% to 95% relative humidity, non-condensing

Display

Graphic

Memory Size

Display Interface

Intel® HD Graphic

Share system memory

1 x DVI-I

Packing List

Standard

Quick installation guide, user’s manual/utility CD, cable

Cable

Part Number

593826A0000E

59380402010E

Battery

Power Requirements

Dimensions

Board Thickness

Operating Temperature

Humidity

Description

SATA signal cable, 500 mm

1 x COM port cable with bracket, P=2.54 mm,

L=300 mm

Qty

Ordering Information

Standard

SHB140DGGA

(P/N: E38C140101)

SHB140DGGA

(P/N: E38C140102)

SHB140DGGA

(P/N: E38C140107)

SHB140DGGA

(P/N: E38C140100)

SHB140DGGA

(P/N: E38C140104)

SHB140DGGA

(P/N: E38C140105)

Optional

5938A808010E

5948C122800E

59380000290E

593826A0000E

E393242100

59380402010E

59380703000E

594826A0010E

PICMG 1.3 full-size CPU card with LGA1151 socket,

Intel® Q170, DVI-I, 2 GbE LANs, audio and PCIe x1

PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®

Q170, DVI-I, 2 GbE LANs, audio and PCIe x4

PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® Q170,

DVI-I, 2 GbE LANs, audio and PCIe x4, TPM (limted to MoQ)

PICMG 1.3 full-size CPU card with LGA1151 socket,

Intel® H110, DVI-I, 2 GbE LANs, audio and PCIe x1

PICMG 1.3 full-size CPU card with LGA1151 socket,

Intel® H110, DVI-I, 2 GbE LANs, audio and PCIe x4

PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® H110,

DVI-I, 2 GbE LANs, audio and PCIe x4, TPM (limted to MoQ)

I/O

SATA

Hardware Monitoring

Ethernet

Q170: 6 x SATA-600, support RAID 0/1/5/10

H110: 4 x SATA-600

Detect CPU/system temperature, voltage and fan speed

1 x 10/100/1000 Mbps Ethernet with Intel® i219-LM;

supports Wake-on-LAN, RPL/PXE Boot ROM, AMT 11

1 x 10/100/1000 Mbps Ethernet with Intel® i211-AT;

supports Wake-on-LAN, RPL/PXE Boot ROM

HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out

with audio kit AX93242 (optional)

Q170: 2 x USB 3.0 & 10 x USB 2.0 (6 ports onboard, 4 ports

on SHB connector-C golden fingers)

H110: 2 x USB 3.0 & 8 x USB 2.0 (4 ports onboard, 4 ports

on SHB connector-C golden fingers)

5 x RS-232

1 x RS-232/422/485, mode selection by SW

1 x PS/2 keyboard internal connector

1 x PS/2 mouse internal connector

Infineon SLB9635 for trusted platform (optional)

N/A

2 x Smart fan for system Fan1/Fan2

Audio

USB

Serial

PS/2 Combo Port

TPM

SMBus

Others

2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm

2 x USB 3.1(Gen1) cable with bracket, L=400 mm

PS/2 keyboard & mouse cable with bracket

SATA signal cable/red, L=500mm

AX93242-RC HD audio converter kit

1 x COM port cable with bracket, P=2.54 mm, L=300 mm

2 x COM port cable with bracket, P=2.54 mm, L=300 mm

DVI-I to DVI-D+VGA Y cable

Updated Apr. 29, 2019.

* All specifications and photos are subject to change without notice.

w w w. a xi o m te k. c o m
