EBC-3100-R12/ACE-A630B datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Embedded solution> Module accessories> EBC-3100-R12/ACE-A630B

Preview

EBC-3100-R12/ACE-A630B: DescriptionModule accessoriesMini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A630B-RS 300W ATX power supply,black; CategoryEmbedded solution Module accessories; File Size398KB，2 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric Compare View All

EBC-3100-R12/ACE-A630B Overview

Module accessoriesMini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A630B-RS 300W ATX power supply,black

EBC-3100-R12/ACE-A630B Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	Module accessories
product	Embedded Chassis
used for	High Power Consumption Application
Description/Function	Mini ITX Embedded Chassis with ACE-A630B-RS 300 W ATX Power Supply
size	260 mm x 250 mm x 156 mm
series	EBC-3100
Maximum operating temperature	+ 50 C
Minimum operating temperature	0 C
Working power voltage	90 VAC to 264 VAC

Preview

Download Datasheet

View All

Industrial Computer Chassis

w w w.ieiworld.com

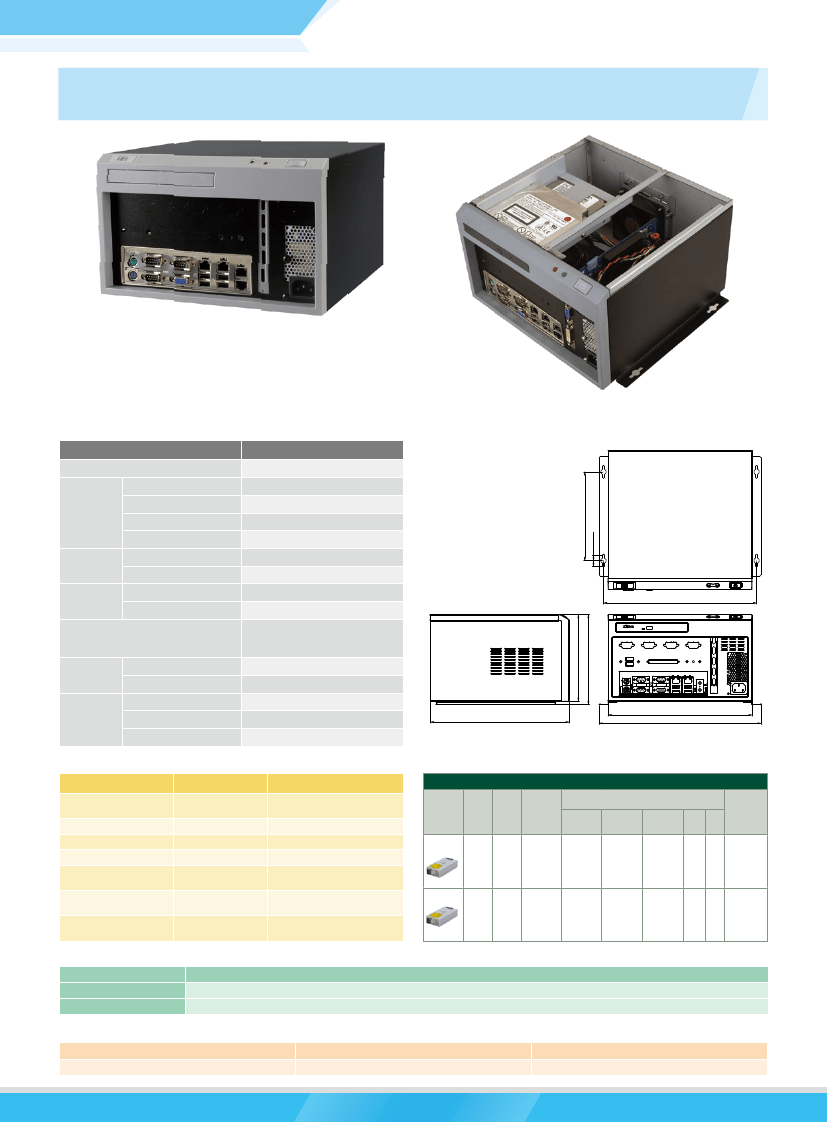

EBC-3100

Mini-ITX Chassis for High Power Consumption Applications

Features

●

Designed for high performance applications, bundled with 270W

high efficiency ATX power supply

●

Front accessible I/O design

●

Supports one expansion slot

●

One 3.5” hard drive, one slim type optical drive capacity

Specifications

Model Name

Platform

Color

Chassis

Dimensions (WxDxH) (mm)

System Fan (WxDxH) (mm)

Chassis Construction

Motherboard

Motherboard Model

SBC Size (mm)

Hard Drive

ODD

Dimensions

EBC-3100

Case only

Black

(Unit: mm)

80 x 80 x 25

Heavy duty metal with plastic front panel

Refer to KINO Series

Mini-ITX (170 x 170)

1 x 3.5" SATA HDD space

1 x 5.25" slim type

1 x Full-height expansion slot

Max. dimensions:

220 mm (L) x 27 mm (D)

160.00

20.00

260 x 250 x 156

Storage

276.00

Expansions

Power Input

Power Model

Mounting

Reliability

Operating Temperature

Weight (Net/Gross)

Power

90 V~264 V AC

ACE-A618A 180W, ACE-A627A 270W

Desktop, wall mount

0°C ~ 50°C

2.5 kg/3.9 kg

250.00

156.00

162.00

260.00

292.00

Compatible SBC

Part No.

KINO-AQ170

KINO-ABT

KINO-AA750-i2

KINO-AQ870

KINO-AQ670

KINO-AH611

KINO-AH612

Expansion Type

1 x PCIe x16

1 x PCIe x4

1 x PCIe x8

1 x PCIex4

1 x PCIe x16

1 x PCIe x4

Recommended CPU Cooler

CF1156A-RS, CF-1156C-RS,

CF-1156D-RS

Fanless

CF-989B-RS

CF-1150SC-RS

CF1156A-RS, CF-1156C-RS,

CF-1156D-RS

CF1156A-RS,CF-1156C-RS,

CF-1156D-RS

CF1156A-RS, CF-1156C-RS,

CF-1156D-RS

ACE-

300W

A630B

ATX

90~265

VAC

Products

Model

No.

Watt

AT/

ATX

PFC

Input

Voltage

1U AC Input

Output Current Range

+3.3 V

16A

(0.5A

min.)

+5 V

18A

(0.5A

min.)

14A

(0.2A

min.)

+12 V

-12 V

+5

Vsb

Efficiency

15A

0.5A 3A

(0.5A min)

82%

ACE-

180W

A618B

ATX

90~264

10A

VAC

(0.1A min)

10A

(0.6A

min.)

0.3A

2.5A

85%

Ordering Information

Part No.

EBC-3100-R12/ACE-A618B

EBC-3100-R12/ACE-A630B

Description

Mini-ITX embedded chassis, one 3.5” hard drive bay, with ACE-A618B-RS 180W ATX power supply, black

Mini-ITX embedded chassis, one 3.5” hard drive bay, with ACE-A630B-RS 300W ATX power supply, black

Packing List

1 x System Fan

1 x Power cord

1 x Screw set

1 x Wall mount kit

1 x QIG

1 x SATA slim ODD cable

EBC-3100-2018-V10

EBC-3100-R12/ACE-A630B Related Products

	EBC-3100-R12/ACE-A630B	EBC-3100-R12/ACE-A618B
Description	Module accessoriesMini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A630B-RS 300W ATX power supply,black	Module accessoriesMini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A618B-RS 180W ATX power supply,black
Maker	IEI	IEI
Product Category	Module accessories	Module accessories
product	Embedded Chassis	Embedded Chassis
used for	High Power Consumption Application	High Power Consumption Application
Description/Function	Mini ITX Embedded Chassis with ACE-A630B-RS 300 W ATX Power Supply	Mini ITX Embedded Chassis with ACE-A618B-RS 180 W ATX Power Supply
size	260 mm x 250 mm x 156 mm	260 mm x 250 mm x 156 mm
series	EBC-3100	EBC-3100
Maximum operating temperature	+ 50 C	+ 50 C
Minimum operating temperature	0 C	0 C
Working power voltage	90 VAC to 264 VAC	90 VAC to 264 VAC
