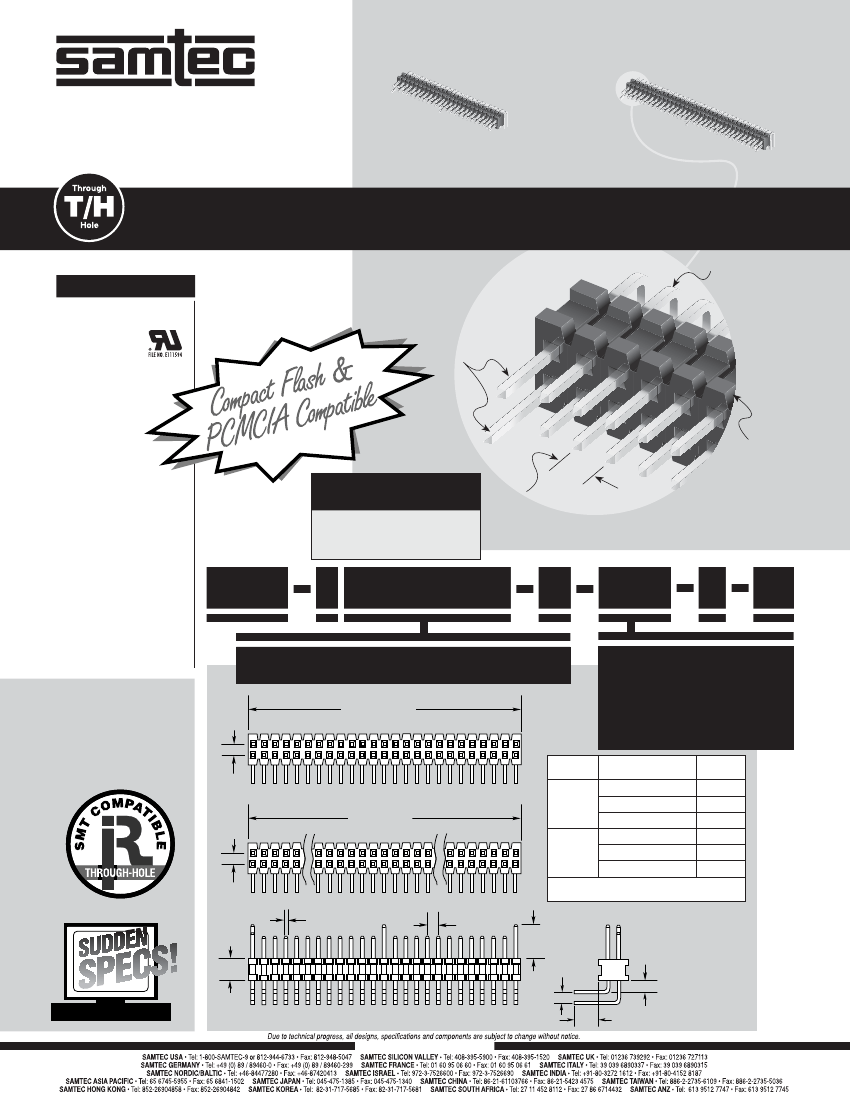

F-209 SUPPLEMENT
HPT–134–01–L–D–RA
HPT–125–01–S–D–RA
HOT PLUGGABLE HEADER
SPECIFICATIONS
For complete specifications
see www.samtec.com?HPT
Insulator Material:
Black Liquid Crystal
Polymer
Terminal Material:
Phosphor Bronze
Current Rating:
1.75A @ 80°C ambient
Operating Temp Range:
-55°C to +125°C
Plating:
Sn or Au over 50µ"
(1,27µm) Ni
RoHS Compliant:
Yes
HPT
SERIES
Right Angle
Through-Hole
for robust
functionality
Extended power and
ground pins for
first-mate-last-break
applications
APPLICATION
SPECIFIC OPTION
Other pin counts and
post heights available.
Call Samtec.
SMT
Processing
compatible
insulators
(1,27mm x 1,27mm)
.050" x .050"
micro pitch
HPT
Note:
Some sizes,
styles and options are
non-standard, non-returnable.
1
NO. PINS
PER ROW
01
PLATING
OPTION
D
RA
25, 34
(Call Samtec for other sizes)
–L
= 10µ" (0,25µm) Gold on contact,
Matte Tin on tail
Processing:
Max Processing Temp:
230°C for 60 seconds or
260°C for 20 seconds 3x
with Matte Sn plating
Lead–Free Solderable:
Wave, or reflow with
Matte Sn plating
01
(31,75) 1.250
13
25
–S
= 30µ" (0,76µm) Gold on contact,
Matte Tin on tail
NO. PINS
PER ROW
POSITION NO.
25, 26
25
01, 13, 38, 50
ALL OTHERS
34
A
(3,50) .138
(5,00) .197
(4,25) .167
(1,27)
.050
26
38
50
(43,18) 1.700
01
01, 17, 34, 35, 51, 68
(5,00) .197
34
36, 67
ALL OTHERS
(3,50) .138
(4,25) .167
(1,27)
.050
35
(0,41)
.016
SQ
(1,27)
.050
68
2 x 25 position is Compact Flash compatible.
2 x 34 position is PCMCIA compatible.
A
(2,51)
.099
(1,27)
.050
(1,27)
.050
www.samtec.com
WWW.SAMTEC.COM
(2,29)
.090
