Power Supplies
GL Series: Single & Multi Output Switchers
The new GL series provides a broad range of AC/DC power
supply solutions that covers power ratings from 25 watts to
250 watts for use in various industrial applications requiring
standard footprint size and very high reliability.
These low-profile AC/DC switchers offer universal input
voltage with no switches or jumpers, ideal for higher volume
worldwide applications.
All models feature:
• Industry standard footprints
• Universal input
• Full power to 50°C
• High demonstrated MTBF
• Automatic overvoltage protection
• Overload protection
• Built-in EMI Filtering
• Extensive safety approvals
• Derated operation to 70°C
• ±2% regulation on main output
• 250 VA size enclosed
• Two year limited warranty
Many models feature:
• EN61000-3-2 Compliance
• Supervisory outputs (5 V/12 V)
• Wide-adjustable floating 4
th
output
• Single wire current share
• Remote Sense
• Adjustable main output
• Power Fail and DC Good signals
• Wide-adjustable on single output models
Certifications and Compliances
•
- UL 60950-1
•
Certified, ITE
- CSA C22.2 CSA 60950-1
•
- IEC60950-1
Cover Options
• Cover options can be ordered separately. They are
designed to simplify mechanical integration of the
power supplies into systems and add an extra measure
of electrical safety for service personnel.
UL 60950
E137632
CUL/CSA-C22.2
No. 234-M90
E137632
Cover and Bracket Options
Catalog Number
GLX40
GLX250-CEF
GLX250-CF
Description
Enclosure kit for the GL20 and GL40
Cover end fan kit for the GL250
Cover with top fan kit for the GL250/350
Recognized Component, ITE
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
163
Power Supplies
Specifications
GL20, GL40
GL50
Input
Input
Voltage
1
Frequency
85 - 264 Vac;
120 - 300 Vdc
47-63 Hz , 400± 40 Hz
GL20: <15A peak
@ 115 Vac; <30A peak @ 230 Vac, cold
start @ 25°C.
GL40: <18A peak
@ 115 Vac; <36A peak @ 230 Vac, cold
start @ 25°C
90 - 264 Vac
127 - 300 Vdc
85 - 264 Vac
120 - 300 Vdc
47-63 Hz
85 - 264 Vac; 120 - 300 Vdc
GL60
GL250
Inrush
Current
<60A peak
@ 230 Vac,
cold start @ 25°C
<18A peak
@ 115 Vac,
<36 A peak
@ 230 Vac,
cold start @ 25°C
GL250:
20 A max.,
cold start @ 25°C.
Efficiency
70% typical
at full load
80% - 85%
typical
at full load
70% typical
at full load
75% typical at full load
EMI/RFI
FCC Class B ; CISPR 22 Class B ;
EN55022 Class B
Output
Power
Adjustment
Range on
Main Output
Hold-up
Time
Overload
Refer to the selection table
-5, +10%
minimum
±20% minimum for single output only
models
-5, +10% minimum
2:1 wide ratio
20 ms @ full load, 115 Vac nominal line
Short circuit protection on all outputs.
Primary overload protection
5 V output; 5.7 to
6.7 Vdc. Other
outputs 10% to
25% above
nominal output
Compensates for 0.5 V lead drop
minimum; Will operate without remote
sense connected, Reverse connection
protected
10/20 ms 115/230 Vac Input line
20 ms @ full load, 115 Vac nominal line
20 ms @ full load, 115 Vac nominal line
Overvoltage
Protection
30-50% above nominal output
5 V output; 5.7 - 6.7 Vdc. Other outputs
10% to 25% above nominal output
5 V output: 5.7
to 6.7 Vdc.
Other outputs 10% to 25% above
nominal output
Remote Sense
General
Temperature
2
Electro-
magnetic
Susceptibility
Humidity
Vibration
MTBF
Safety
Storage:
-40°C to +85°C;
Operating:
0° to 50°C ambient. Derate each output 2.5% per degree from 50° to 70°C, -20°C start up.
Designed to meet IEC 801, -2, -3, -4, -5, -6, Level 3 or EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing up to 95% RH
Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell at four major resonances 0.75G peak 5Hz to 500 Hz
(2 G peak 8 Hz to 500 Hz for GL500)
>550,000 hours demonstrated at full load and 25°C ambient conditions
EN60950, cRUus: UL/CSA 60950 E132002, CE Mark (LVD)
Notes:
1. Proper circuit protection required when operating with a DC input voltage. 2. Regulation and ripple may deviate from the spec at -20°C start up.
164
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
Power Supplies
Selection Table
Catalog
Number
GL20
[40 W] 25 W
GLS22
GLT22
GLS42
4
GL40
[55 W] 40 W
1
[40 W] 25 W
2
GLS43
4
GLT42
4
Output 1
5 V @ 5 A [8 A]
4
5 V @ 3 A [4 A]
5
Output 2
-
Output 3
-
-12 V @ 0.5 A [0.7 A]
-
-
-12 V @ 0.5 A [0.7 A]
-15 V @ 0.5 A [0.7 A]
12 V @ 0.5 A
-
-
-
-
-
-12 V @ [6 A]
-15 V @ [6A]
Output 4
-
Case
3
Pin
Assignments
3
1A
Mating
Connectors
3
1
12 V @ 1.5 A [2 A]
-
-
5
1B
2A
-
-
5 V @ 8 A [11 A]
4
12 V @ 3.3 A [4.5]
4
5 V @ 4 A [5 A]
5
3A
-
1
12 V @ 2 A [2.5 A]
5
1B
4A
-
-
-
-
-
4
7A
3B
-
-
5
8A
4B
-
2
3
5A
6A
2B
2B
GLT45
4
GL50
[50 W] 50 W
GL50
[60 W] 60 W
GL60
[80 W] 60 W
1
[60 W] 40 W
2
GLT54
4
GLS55
4
GLS63
4
GLS64
4
GLS253-C
GLS255-C
GLQ252-C
GLQ253-C
5 V @ 4 A [5 A]
5
5V@8A
5
24 V @ 2.5 A
4
12 V @ 5 A [6.7 A]
4
15 V @ 4 A [5.3 A]
4
12 V (6-12 V) @ [21 A]
24 V (24-48) @ [10.4 A]
15 V @ 2 A [2.5 A]
5
24 V @ 1.5 A
5
-
-
-
-
-
12 V @ [10 A]
15 V @ [10 A]
GL250
[250 W]
6 7
5 V @ [35 A]
7
5 V @ [35 A]
7
±5-25 V @ [6 A]
4
6
±5-25 V @ [6 A]
4
9A
Notes:
[ ] Rating with 30 CFM of air
1. Power rating when no cover option is used
2. Power rating when the cover/enclosure option is used
3. Refer to GL Series Dimensions and the sections that follow
4. Floating output
5. Approximate minimum loading: 10%
6. Optional fan cover, See Table 1
7. Optional end fan cover, See Table 1
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
165
Power Supplies

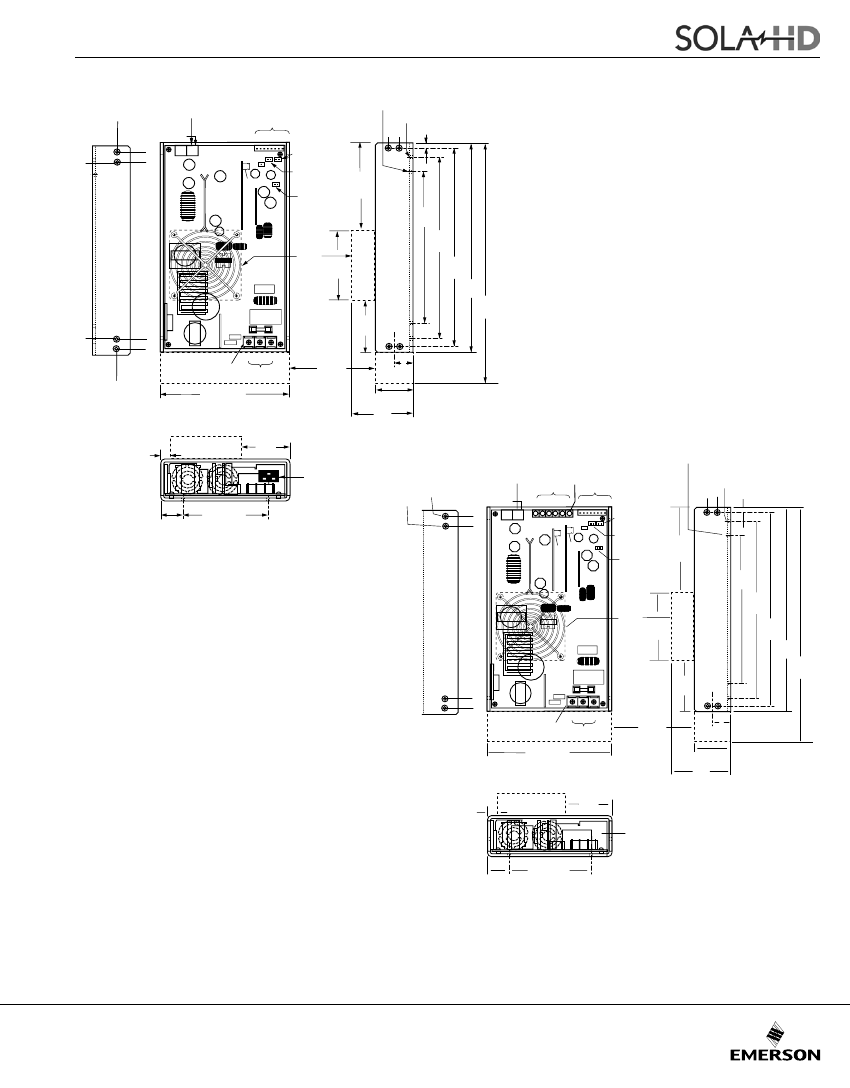

GL Series Dimensions
(Weight: 0.5 lbs/0.23 kg approx.)
Case 1
(Weight: 0.45 lbs/0.20 kg approx.)
Case 2
(Weight: 0.41 lbs/0.18 kg approx.)
Case 3
(Weight: 0.75 lbs/0.34 kg approx.)
Case 4
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ±0.02” (±0.5 mm)
3. Mounting holes M1 and M2 should be grounded for EMI purposes.
4. Mounting hole M1 is safety ground connection.
5. Specifications are for convection rating at factory settings at 115 Vac input, 25°C unless otherwise stated.
166
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
Power Supplies

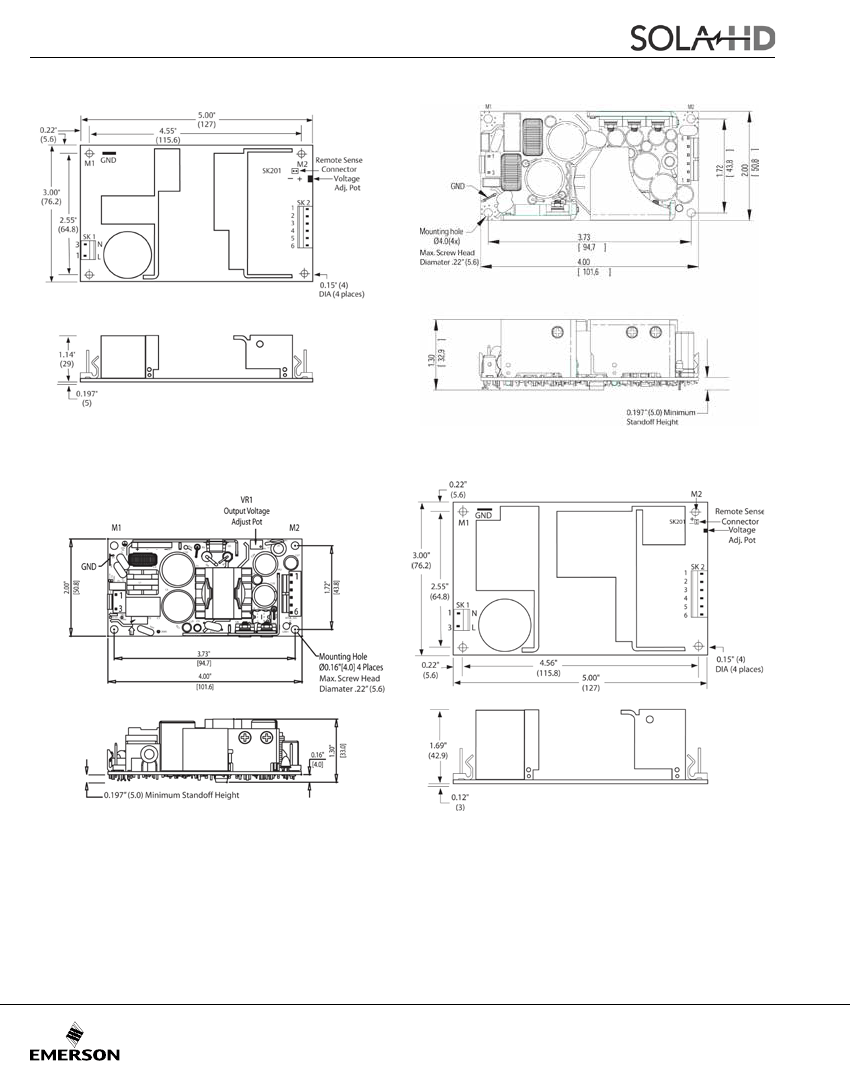

GL Series Dimensions (continued)
6 32
(2
6 32 (2
)
1
)
3
12345678
5
3
10.0
4
3.68
(93.6)
10.0
3 (4
)
6 32 (4
.24 (6.1)
)
7
.
5.46
(138.6)
6.64
(168.6)
(
)
3.15
(80)
8.52
(216.4)
9.0
(228.6)
10.32
(262.0)
2.17
(55)
3
10.0
6 32 (3
6 32
(2
)
3 2 1
1
(
)
1.18 (30.0)
)
5.0 (127.0)
2.0
(50.8)
3.0
(76.2)
M3 (8 places)
6-32 (2 places)
Main Output
#6-32 UNC (2 places)
M3
Terminal
Block TB1
10.0
+ve -ve
SK2
654321
M3
(6 places)
SK3
12345678
SK5
#6-32 (2 places)
M3 (2 places)
.55
(14)
1.30
(33.0)
#6-32 UNC (8 places)
.24 (6.1)
10.0
.79
(20)
3.42 (87.0)
(Weight: 2.6 lbs/1.19 kg approx.)
Case 5
SK4
FAN
SK7
FAN
3.68
(93.6)
5.46
(138.6)
6.64
(168.6)
3.15
(80)
8.52
(216.4)
9.0
(228.6)
10.32
(262.0)
O/P ADJ.
4th O/P ADJ.
Optional
(-CF)
Cover
with Fan
M3
10.0
#6-32 UNC
(2 places)
2.17
(55)
6-32 (3 places)
3 2 1
SK1
Optional
(-CEF)
Cover
with fans
2.0
(50.8)
3.0
(76.2)
1.18 (30.0)
5.0 (127.0)
.55
(14)
1.30
(33.0)
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ±0.02”.
3. Specifications are at factory settings.
4.
To enable normally closed remote inhibit, cut jumper J1.
5.
Mounting maximum insertion depth is 0.12”.
.79
(20)
3.42 (87.0)
AC Inlet
(Weight: 3.1 lbs/1.41 kg approx.)
Case 6
Visit our website at www.emerson.com or contact Technical Services at (800) 377-4384 with any questions.
© January 2017
167
