NOTES:
1. MATERIALS AND FINISHES:
N STR SOLDER PLUG - BRASS, WHITE BRONZE PLATING
CABLE - 0.085 SEMI-RIGID HAND CONFORMABLE
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 175101-R1-XX.XX AND DATE CODE".
THIRD ANGLE PROJ.
REV
REVISIONS
--
B
RELEASE TO MFG.
DESCRIPTION
DATE
FORMAT UPDATED,18.00" & METRIC LENGTHS ADDED
03-Oct-16
--
ECO
2004
--
APPR
VK
--
SCALE
0.500
LENGTH 'L' (SEE TABLE)
INTERFACE PER
MIL-STD-348
SERIES:N PLUG
TYP(2)
175101-R1-06.00
175101-R1-12.00
175101-R1-18.00
175101-R1-24.00
175101-R1-36.00
175101-R1-48.00
-
-
-
-
-
-
PART NUMBER
(IMPERIAL)
LENGTH TABLE
PART NUMBER
(METRIC)
-
-
-
-
-
-
LENGTH 'L' IN
INCHES [METERS]
6.00 [0.152]
9.84 [0.250]
175101-R1-M0.25
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
157.48 [4.000]
78.74 [2.000]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
175101-R1-M0.50
175101-R1-M0.75
175101-R1-M1.00
175101-R1-M2.00
175101-R1-M4.00
DESIGN REQUIREMENTS:
FREQUENCY: ____ TO ____ GHz
VSWR ____ : 1 MAX
INS. LOSS: ____ dB MAX
X
CONTINUITY
X
HI-POT: 500 VRMS
OTHER
MATERIAL
SEE NOTES
REFERENCE
EAR # 7307
CONFIGURATION LEVEL: In Work
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DRAWN
VIJI K
ENGINEER
GOPI M
APPROVED
K.CAPOZZI
DATE
04-Jul-16
DATE
27-Jan-12
DATE
03-Oct-16
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.

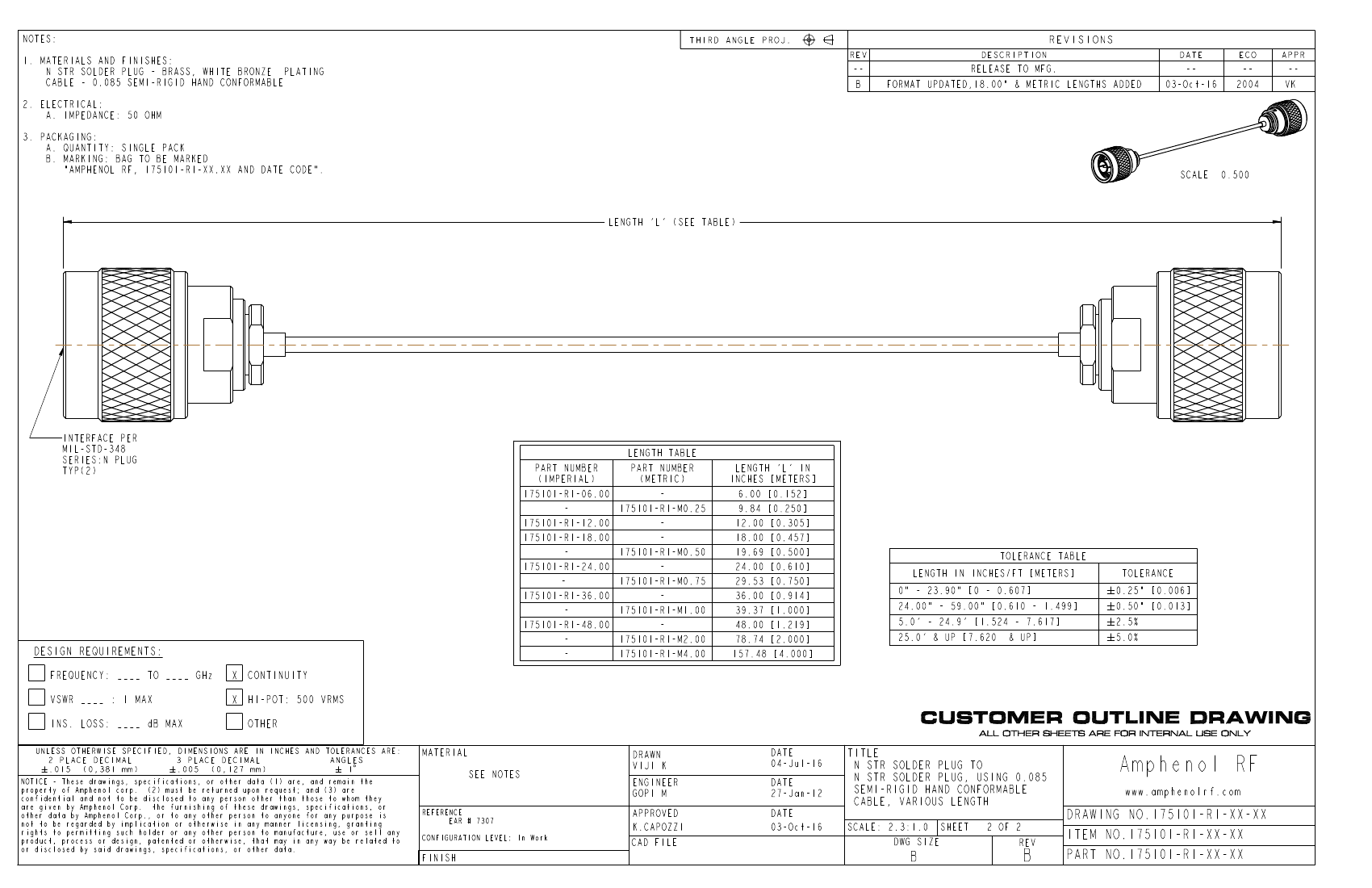

TITLE
N STR SOLDER PLUG TO
N STR SOLDER PLUG, USING 0.085
SEMI-RIGID HAND CONFORMABLE
CABLE, VARIOUS LENGTH
SCALE: 2.3:1.0
DWG SIZE
SHEET
2 OF 2
REV
Amphenol RF
www.amphenolrf.com
DRAWING NO. 175101-R1-XX-XX
ITEM NO. 175101-R1-XX-XX
PART NO. 175101-R1-XX-XX
FINISH
CAD FILE
B
B
