8HP-05PMMS-SF7001

Description
Ring Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN M CONN
CategoryThe connector    Circular connector    The annular metric connector
File Size168KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

8HP-05PMMS-SF7001 Online Shopping

Suppliers Part Number Price MOQ In stock
8HP-05PMMS-SF7001 - - View Buy Now

8HP-05PMMS-SF7001 Overview

Ring Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN M CONN

8HP-05PMMS-SF7001 Parametric

Parameter NameAttribute value
MakerAmphenol
Product CategoryRing Metric Connector
Shipping restrictionsMouser does not currently sell this product.
Number of contacts5 Contact
Thread sizeM8
Termination typeSolder Cup
Current rating3 A
IP ratingIP67
seriesM Series
Subject typeStraight
Contact platingGold
Description/FunctionM8 With Key (Plastic) Male Connector
TypeMale
Shell materialNylon
length16.4 mm
Housing typePlug
shieldUnshielded
Installation stylePanel
Contact typePin (Male)
Insert/contact genderPin
Factory packaging quantity1
1
2
3
4

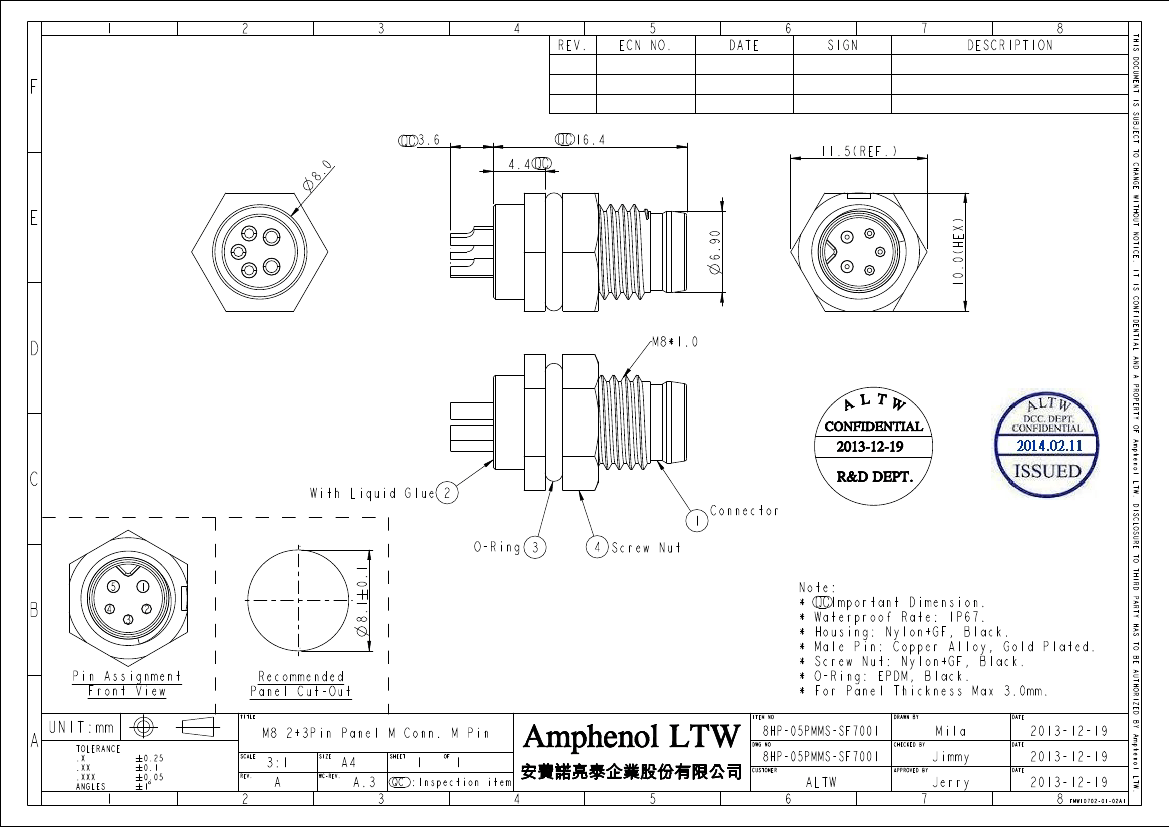

REV.
5
ECN NO.
6
DATE
SIGN
7
DESCRIPTION
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
QC
3.6
4.4
QC
QC
16.4
11.5 (REF.)
D
M8*1.0
10.0 (HEX)
E
6.90
8.0
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
T
A
L
W
CONFIDENTIAL
2013-12-19
C
R&D DEPT.
With Liquid Glue
2
1
O-Ring
5
1
3
Connector
3
4 Screw Nut
Note:
* Important Dimension.
QC
* Waterproof Rate: IP67.
* Housing: Nylon+GF, Black.
* Male Pin: Copper Alloy, Gold Plated.
* Screw Nut: Nylon+GF, Black.
* O-Ring: EPDM, Black.
* For Panel Thickness Max 3.0mm.
Pin Assignment
Front View
Recommended
Panel Cut-Out
TITLE
8.1
B
4
2
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
M8 2+3Pin Panel M Conn. M Pin
SCALE
3:1
A
SIZE
A4
A.3
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
8HP-05PMMS-SF7001
DWG NO
CHECKED BY
Mila
DATE
2013-12-19
2013-12-19
DATE
Amphenol LTW.
1
8HP-05PMMS-SF7001
CUSTOMER
APPROVED BY
Jimmy
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2013-12-19
8
FMW10702-01-02A1
