735-3C-C-12VDC (73503) datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> General relay> 735-3C-C-12VDC (73503)

735-3C-C-12VDC (73503): DescriptionGeneral Purpose Relay 20A, General Purpose Relay; CategoryMechanical and electronic products relay General relay; File Size698KB，8 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric View All

735-3C-C-12VDC (73503) Overview

General Purpose Relay 20A, General Purpose Relay

735-3C-C-12VDC (73503) Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	General purpose relay
product	Power Relays
series	735
Factory packaging quantity	20

Preview

Download Datasheet

View All

SONG CHUAN

735

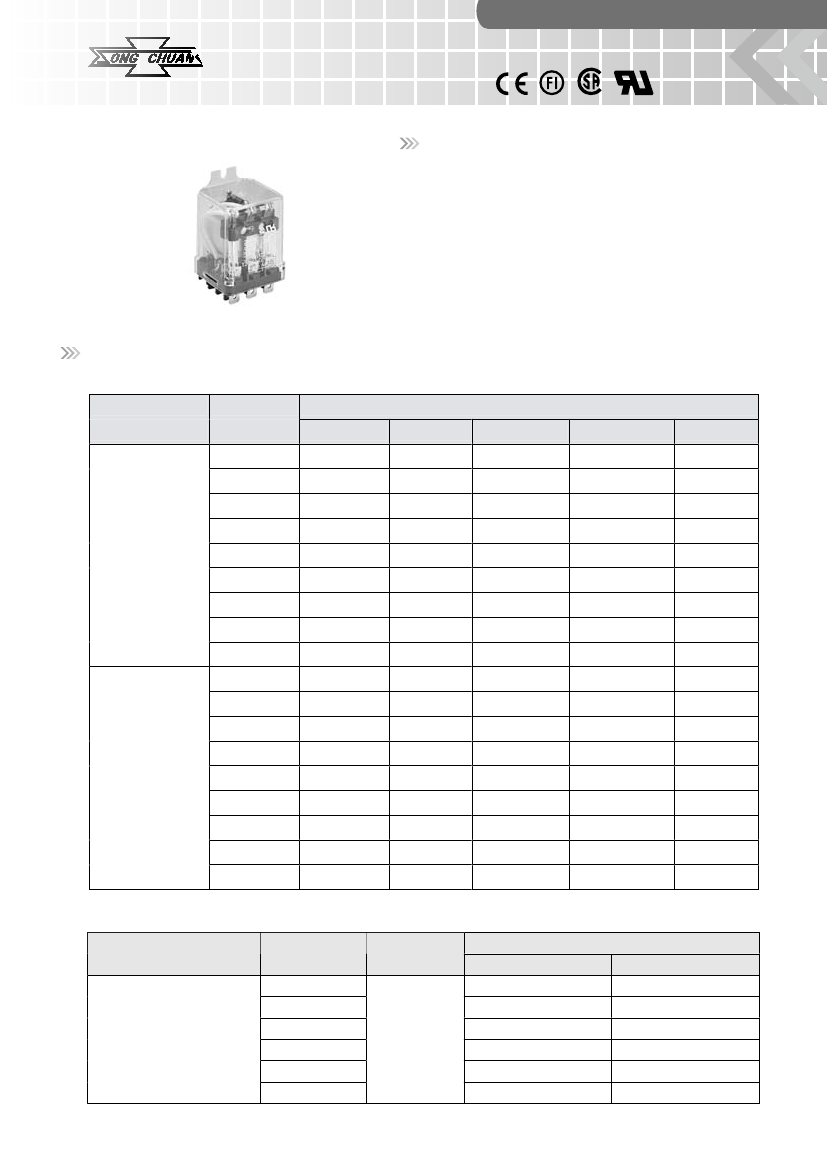

Features

□

20A/25A general purpose Power Relays.

□

SPDT, DPDT, TPDT contact configurations.

□

DC & AC coils are both available.

□

Optional for flange covers, tapped core w/anti-rotation

tab, indicator lamp, push-to-test button, PCB terminals

□

Comply with RoHS-Directive 2002/95/EC.

Type List

◆

Standard Type

Terminal

style

Contact

form

1A (SPNO)

1B (SPNC)

1C (SPDT)

2A (DPNO)

Enclosure style

Open type

735-1A

735-1B

735-1C

735-2A

735-2B

735-2C

735-3A

735-3B

735-3C

------

Dust cover

735-1A-C

735-1B-C

735-1C-C

735-2A-C

735-2B-C

735-2C-C

735-3A-C

735-3B-C

735-3C-C

735-1A-C-T

735-1B-C-T

735-1C-C-T

735-2A-C-T

735-2B-C-T

735-2C-C-T

735-3A-C-T

735-3B-C-T

735-3C-C-T

Ears on cover

735-1A-C1

735-1B-C1

735-1C-C1

735-2A-C1

735-2B-C1

735-2C-C1

735-3A-C1

735-3B-C1

735-3C-C1

------

Antirotation-tab

735-1A-C2

735-1B-C2

735-1C-C2

735-2A-C2

735-2B-C2

735-2C-C2

735-3A-C2

735-3B-C2

735-3C-C2

------

Ears on top

735-1A-C3

735-1B-C3

735-1C-C3

735-2A-C3

735-2B-C3

735-2C-C3

735-3A-C3

735-3B-C3

735-3C-C3

------

Quick terminal

2B (DPNC)

2C (DPDT)

3A (TPNO)

3B (TPNC)

3C (TPDT)

1A (SPNO)

1B (SPNC)

1C (SPDT)

2A (DPNO)

PCB terminal

2B (DPNC)

2C (DPDT)

3A (TPNO)

3B (TPNC)

3C (TPDT)

◆

High Power Type

Terminal

style

Contact

form

1A (SPNO)

1B (SPNC)

Quick terminal

1C (SPDT)

2A (DPNO)

2B (DPNC)

2C (DPDT)

Insulation

system

Enclosure style

Dust cover

735H-1A-F-C

735H-1B-F-C

735H-1C-F-C

735H-2A-F-C

735H-2B-F-C

735H-2C-F-C

Ears on cover

735H-1A-F-C1

735H-1B-F-C1

735H-1C-F-C1

735H-2A-F-C1

735H-2B-F-C1

735H-2C-F-C1
