Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,500 Vrms for 1min. (Detection current: 10mA.)
4,000 Vrms for 1min. (Detection current: 10mA.)
Min. 10,000 V
Max. 20 ms (Nominal voltage applied to the coil, excluding contact bounce time.)
Max. 20 ms (Nominal voltage applied to the coil, excluding contact bounce time.)
Min. 200 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10μs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10μs.)
10 to 55 Hz at double amplitude of 2.0 mm
Min. 10
6
(at 180 times/min.)
60A 250V AC Min. 10
3
(resistive load, operating frequency: 15s ON, 45s OFF)
50A 250V AC Min. 10
4
(resistive load, operating frequency: 15s ON, 45s OFF)
Ambient temperature: –40 to +70°C
–40 to +158°F
Humidity: 5 to 75% R.H. (Not freezing and condensing at low temperature)
1 times/min. (at rated load)
Approx. 35 g
1.23 oz
Rating
Surge breakdown
Between contact and coil
voltage*
2
(Initial)
Set time (at 20°C
68°F)
(Initial)
Reset time (at 20°C
68°F)
(Initial)
Functional
Destructive
Functional
Vibration resistance
Destructive
Mechanical
Shock resistance
Electrical
Conditions for operation, transport and storage*
3
Max. operating speed
Mechanical
characteristics
Expected life
Conditions
Unit weight
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2×50μs
according to JEC-212-1981
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
–2–
ASCTB179E 201607-T
DQ-M (ADQM)

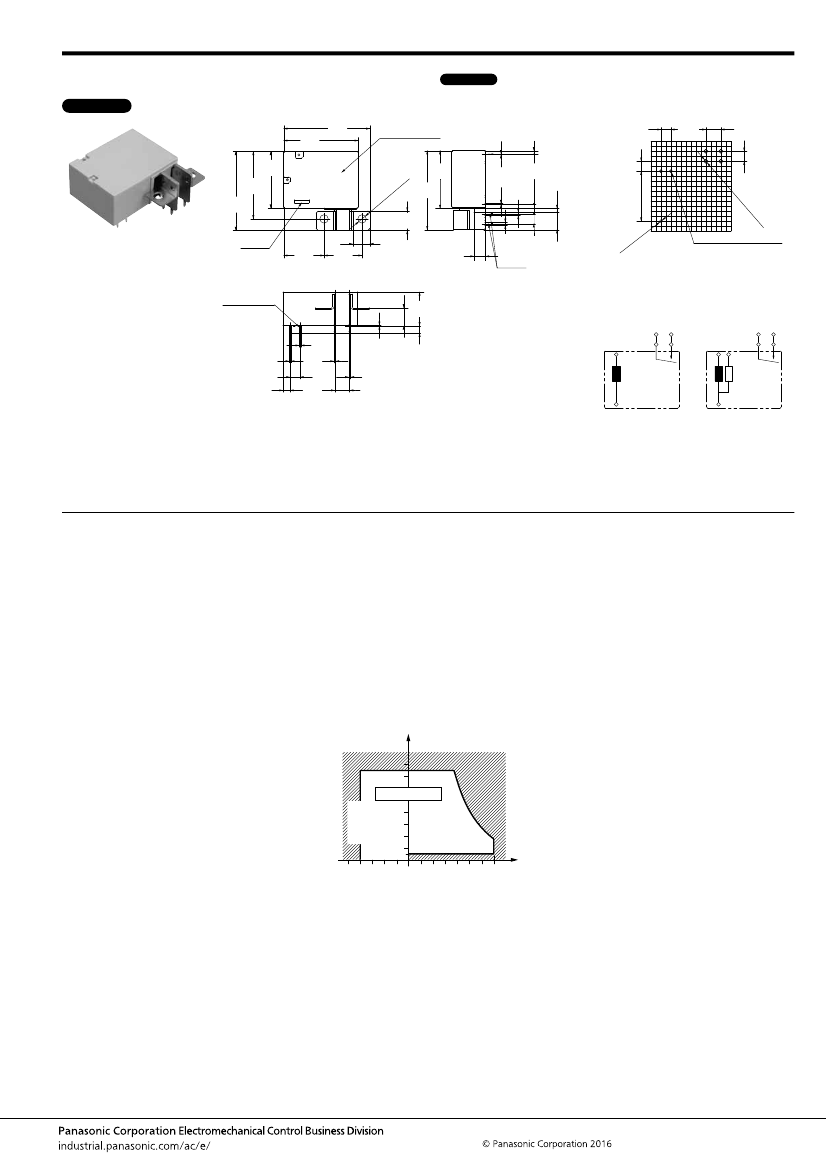

DIMENSIONS
(mm
inch)
CAD Data
38.0
1.496
29.0
1.142
34.5
1.358
40.4
1.591
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
44.0
1.732
This differs with
the part No.
0.4
.016
1.8
.071
PC board pattern (Bottom view)
5.08
.200
17.78
.700
7.62
.300
5.08
.200
29.5
1.161
.
.
a
di
ia
40.4
3
d
1.591
4.
69
2-
-.1
2
2-9.9
2-.390
20.56
.809
19.42
.765
2-8.7
2-.343
5.8
.228
0.4
.016
25.4
1.000
(2.0)
(.079)
1.5
.059
5.08
.200
5.08
.200
5.08
.200
25.4
1.000
a.
di
i a.
0
d
2.
9
4-
-.07
4
Lot. No.
1.5
.059
Note 1)
(8.9)
(.350)
.
dia
a.
5
9 di
1.
3-
-.05
3
2 coil latching type only
Tolerance:
±0.1
±.004
2 coil latching
type only
17.3
.681
3.7
.146
Schematic (Bottom view)
1 coil latching type 2 coil latching type
2
-
5
4
6
7
2
Reset
coil
- -
3
Set
coil
1
+
+
5
4
6
7
0.8
.031
5.08
.200
3.6
.142
0.8
.031
0.8
.031
22.86
.700
0.3 9.25
.012 .364
0.8
.031
7.62
.300
General tolerance:
±0.3
±.012
1
Notes: 1. These are dummy terminals for the strength reinforcement for the M4 screw terminal connection.
Fix or solder these to the PC board in case setting M4 screw.
However, do not use the dummy terminals as wiring to the PC board. In case wiring of the dummy
terminals, the conductor destruction may occur due to the high current.
2. No 3rd terminal on 1 coil latching type.
NOTES
1. For cautions for use, please read
“GENERAL APPLICATION
GUIDELINES”.
2. Coil operating power
Pure DC current should be applied to the
coil. The wave form should be
rectangular. If it includes ripple, the ripple
factor should be less than 5%. However,
check it with the actual circuit since the
characteristics may be slightly different.
Also, the power waveform should be
square and we recommend it be at least
0.1 seconds. Please keep continuous
power to the coil to within 10 seconds.
3. Usage, transport and storage
conditions
1) Temperature:
–40 to +70°C
–40 to +158°F
2) Humidity: 5 to 75% RH
(Avoid freezing and condensation.)
The humidity range depends on the
temperature. The allowable range are as
shown in the below figure.
3) Air pressure: 86 to 106 kPa
Temperature and humidity range for
operation, transport, and storage
Humidity, %R.H.
75
Allowable range
(Avoid icing
(Avoid
when used at
condensation
temperatures
when used at
lower than
temperatures
0°C
32°F)
higher than
0°C
32°F)
5
–40
–40
0
+32
Ambient temperature,
°C
°F
70
+158
4. Others
Installation of M4 securing screw
Do not apply excessive pressure on the
terminals. This could adversely affect
relay performance. Secure a dummy
terminal designed for reinforcement of
the terminal to the PC board and use a
washer in order to prevent deformation.
Keep the installation torque to within 1.2
and 1.4 N·m (12 to 14 kgf·cm). Also, use
a spring washer to prevent it from
loosening. Do not connect the dummy
terminals designed for reinforcement of
the terminal as wiring to the PC board.
The conductor destruction may occur
according to the amount of current.
–3–
