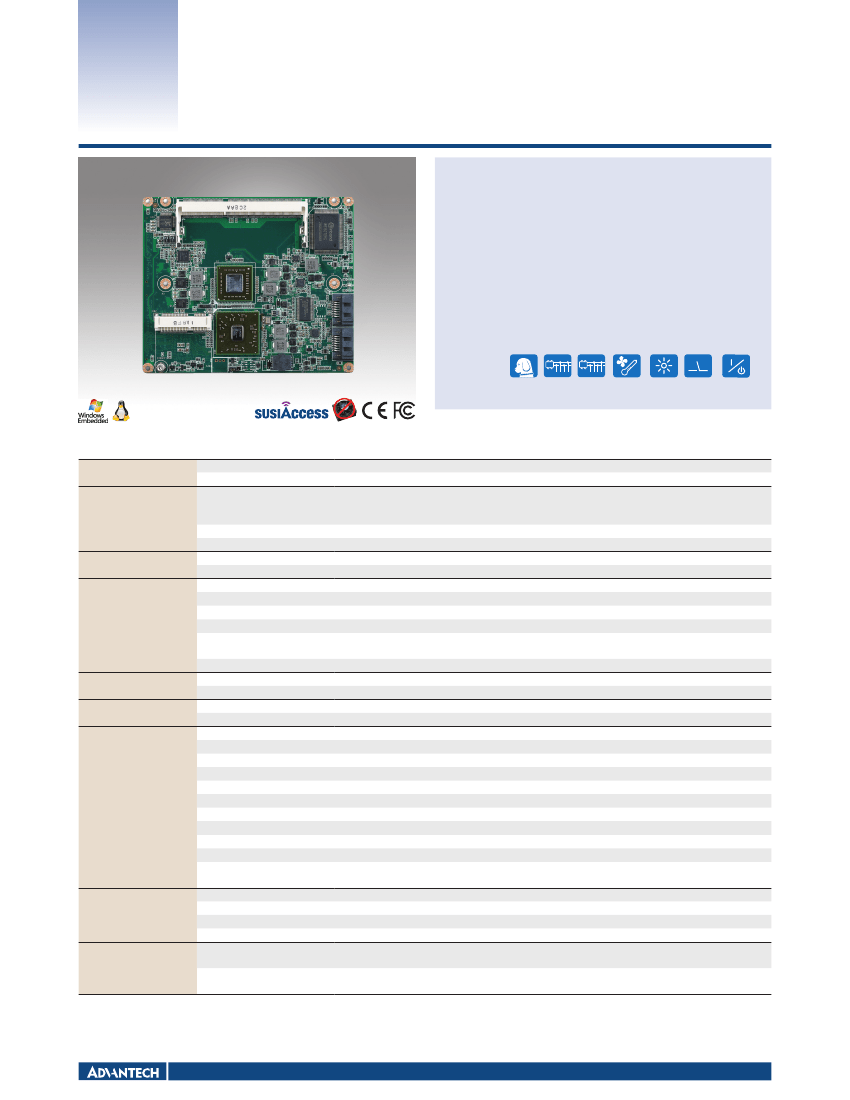

SOM-4466

AMD G-Series Processor ETX CPU

Module

Features

AMD G-Series Processor + FCH A55E

Supports DX11, OGL3.2, and H.264/AVC, VC-1 HW Acceleration

Supports DDR3-1066 up to 4GB

Supports PCI, ISA, SMBus, I

Supports 10/100 LAN, SATA, mSATA Socket, IDE, USB2.0

Software APIs:

Watchdog

SMBus H/W Monitor Brightness

GPIO Backlight On/Off

Specifications

Compliance

Pin Define

Form Factor

CPU Frequency/Core/L2 Cache

Processor System

Chipset

BIOS

Technology

Capacity

Graphic Engine

Graphic Memory

Capacity

VGA

LCD

Expansion I/F

Serial Bus

Dual Display

PCI

ISA

SMBus

C Bus

Ethernet

SATA

mSATA socket

IDE

USB2.0

Audio

COM Port

LPT/Floppy

Keyboard & Mouse

GPIO/GPE

Watchdog Timer

Power

Type

Supply Voltage

Power Consumption (Idle)

Power Consumption (Max.)

Temperature

Environment

Humidity

ETX V3.02

ETX Module 114 x 95 mm (3.74" x 4.5")

AMD T16R 615 MHz/Single Core/512 KB

AMD T40E 1GHz/Dual Core/512KB

AMD T56N 1.65GHz/Dual Core/512KB

AMD A55E

AMI 32 Mbit, SPI

DDR3-1066 MHz non-ECC unbuffered

1 SODIMM up to 4 GB

AMD Radeon HD 6320 / HD 6250

Share with system memory up to 512MB

Support DX11, OGL3.2, OCL1.1 and HW acceleration for H.264/AVC, VC-1, MPEG2

Resolution up to 1920 x 1200 @ 30 bpp

TTL Version: 18-bit up to 800 x 600

LVDS Version: 24-bit up to 1024 x 768

VGA + LCD

PCI V2.3, up to 4 masters

Support Memory and I/O decode

Yes

Realtek RTL8105E 10/100 LAN

2 Port on ETX Module , SATA Gen3 600 MB/s compliant. Support IDE/AHCI Mode, RAID 0, 1

1 Half-Size mSATA socket on ETX Module, SATA Gen 3 600 MB/s compliant

2 Channels, each channel support up to 1 IDE device. ATA/ATAPI-7 (UDMA133) compliant

4 Ports

Realtek ALC262. Support Line-in(L/R), Line-out(L/R), MIC

2 Ports

1 Port shared

1 Keyboard and 1 Mouse

1 GPIO, 2 GPE

256 level timer interval, from 0 to 255 sec or min setup by software, jumperless selection, generates system

reset

ATX, AT

ATX: +5 V and +5 VSB, AT: +5 V

+5 V @ 1.22 A

+5 V @ 1.55 A

Operating: 0 ~ 60° C (32 ~ 140° F)

Storage: -40 ~ 85° C (-40 ~ 185° F)

Operating: 40° C @ 95% relative humidity, non-condensing

Storage: 60° C @ 95%relative humidity, non-condensing

Memory

Display

I/O

Computer On Modules

All product specifications are subject to change without notice

Last updated : 14-Jan-2016
