PLCC2 SMD Side View Package LED
SMS1105PKD, PINK
SMS1105PKD
Industry Standard Footprint
Side Viewing, Low Profile Package
High Luminous Intensity
Wide Viewing Angle
High Power Efficiency
Bivar SMS1105 LED is offered in a side viewing PLCC2 package exhibiting high luminous intensity and
wide viewing angles. The miniature package is ideal for small scale applications such as displays, general
indication, and backlighting. Low power consumption and excellent long life reliability are suitable for bat-
tery powered equipment where minimal maintenance is required. Wide variety of color and intensity combi-
nations are available to meet any illumination needs. Bivar SMS1105 LED is packaged in standard tape
and reels for pick and place assemblies.
Part Number
SMS1105PKD
Material
InGaN
Emitted Color
Pink
Lumen Typ. mcd
200
Lens Color
Diffused
Viewing Angle
120°

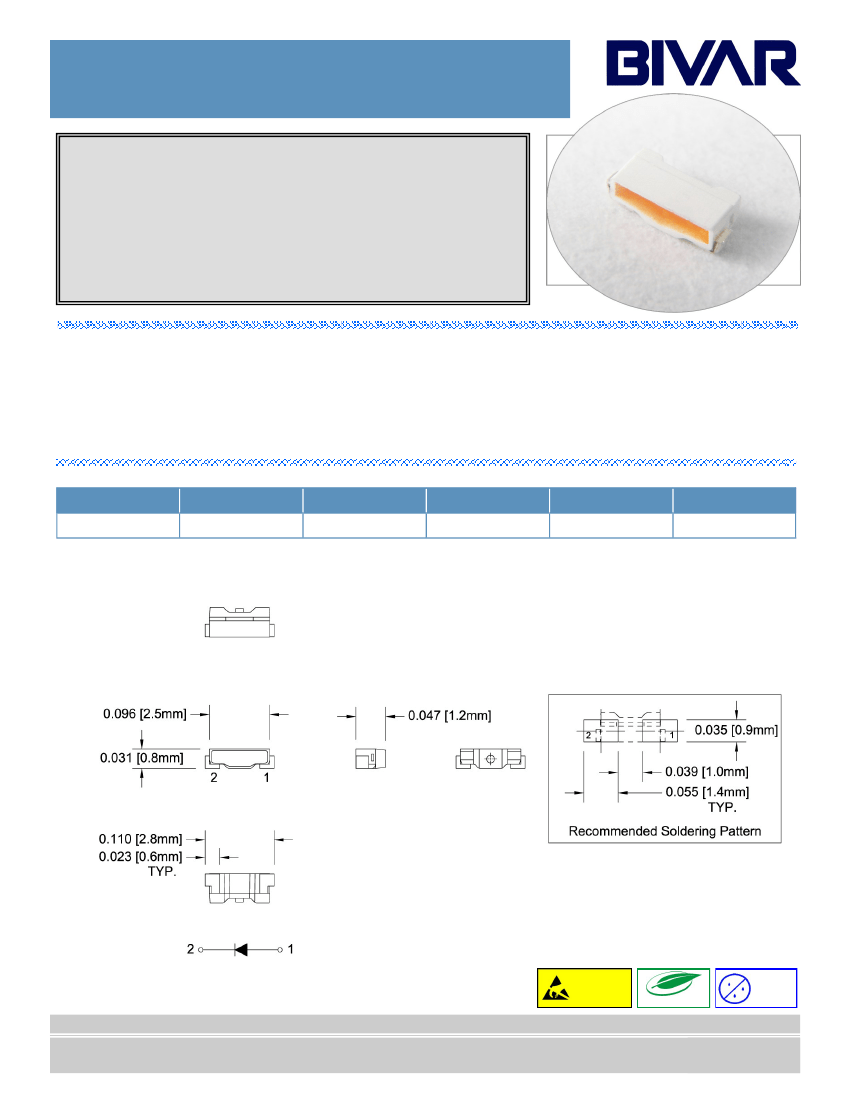

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 4
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 02/15
Page 1 of 5
PLCC2 SMD Side View Package LED
SMS1105PKD, PINK
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Continuous Forward Current
Peak Forward Current
1
Electrostatic Discharge Classification (HBM)
Reverse Voltage
Derating Linear From 25°C
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
Notes: 1. 10% Duty Cycle, Pulse Width ≤ 0.1 msec.
2. Solder time less than 5 seconds at temperature extreme.
100 mW
30 mA
100 mA
2000 V
5V
0.4 mA/°C
-30 ~ +85°C
-40 ~ +100°C
260°C
Electrical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
MIN
Pink
3.0
TYP MAX
3.4
3.8
Recommend
Forward
Current (mA)
TYP
20
Reverse
Current (µA)
V
R
=5V
MAX
10
Chromaticity
Coordinates (XY)
2
TYP
X=0.455 , Y=0.215
Luminous
Intensity (mcd)
3
MIN
100
MAX
300
Viewing
Angle
2 Ө ½ (deg)
TYP
120
Emitting
Color
Notes: 1. Tolerance of Forward Voltage : ±0.05V.
2. Tolerance of Chromaticity Coordinates : ±0.02.
3. Tolerance of Luminous Intensity : ±15%.

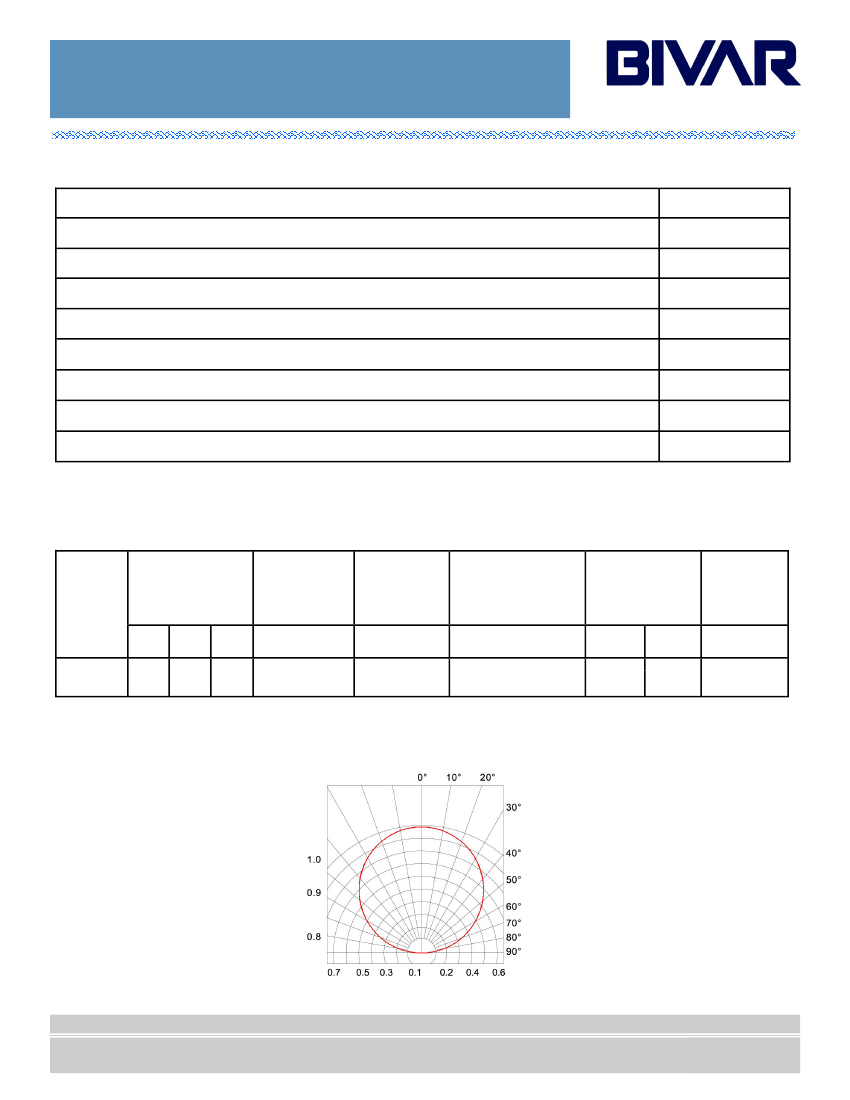

Directivity Radiation
T
A
= 25°C unless otherwise noted
Radiation Diagram
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 02/15
Page 2 of 5
PLCC2 SMD Side View Package LED
SMS1105PKD, PINK

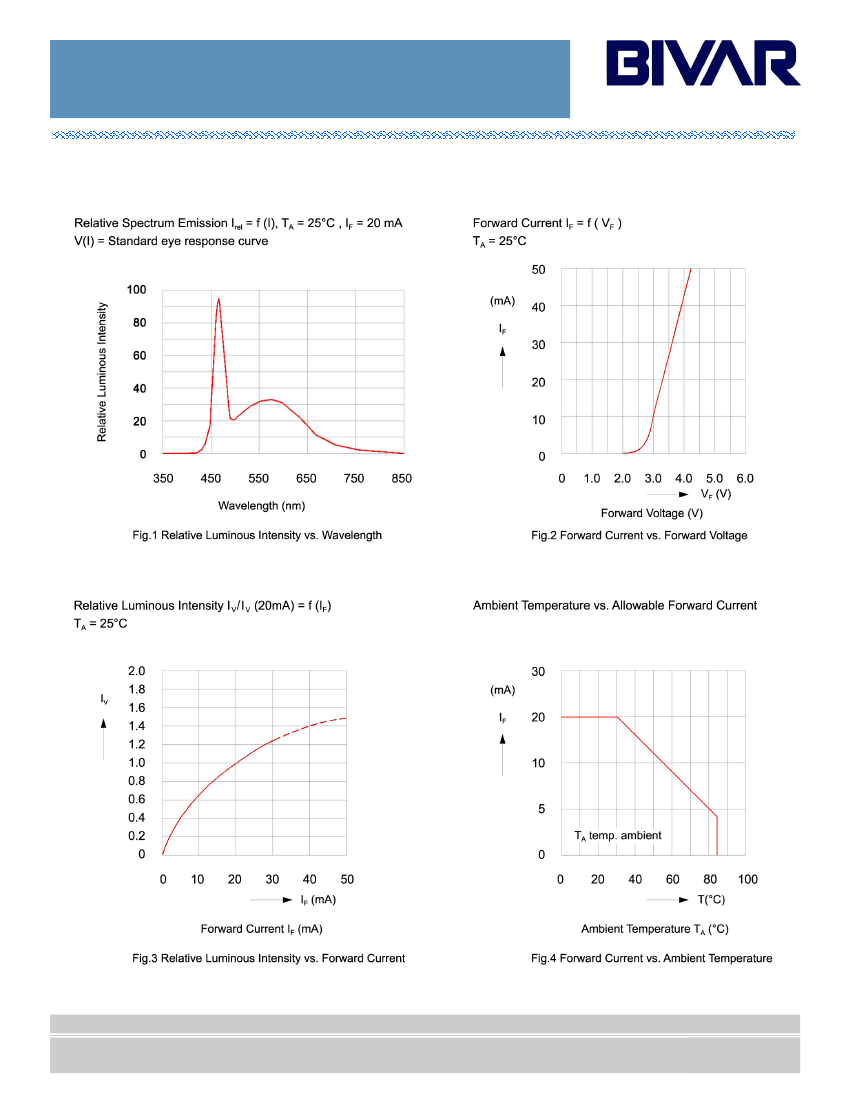

Typical Electrical / Optical Characteristics Curves
T
A
= 25°C unless otherwise noted
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 02/15
Page 3 of 5
PLCC2 SMD Side View Package LED
SMS1105PKD, PINK

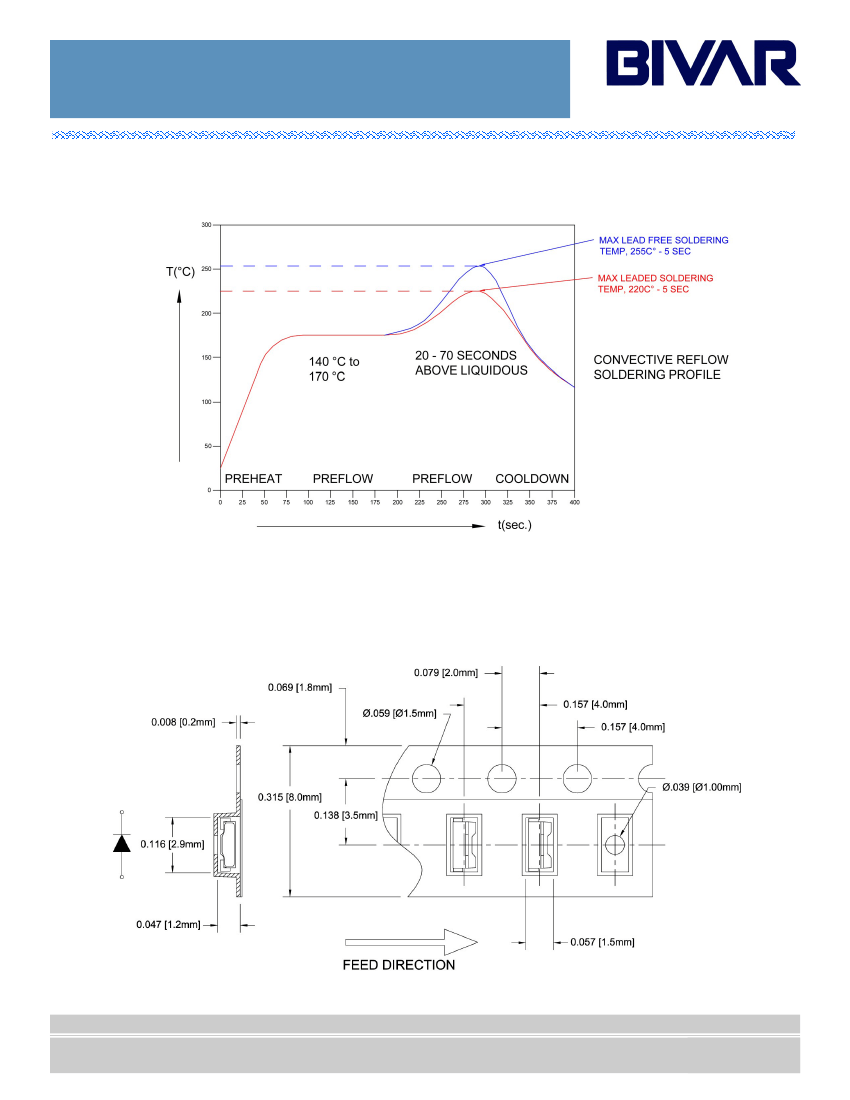

Recommended Soldering Conditions
Tape and Reel Dimensions
Note: 3000 pcs/Reel
2
1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 02/15
Page 4 of 5
PLCC2 SMD Side View Package LED
SMS1105PKD, PINK

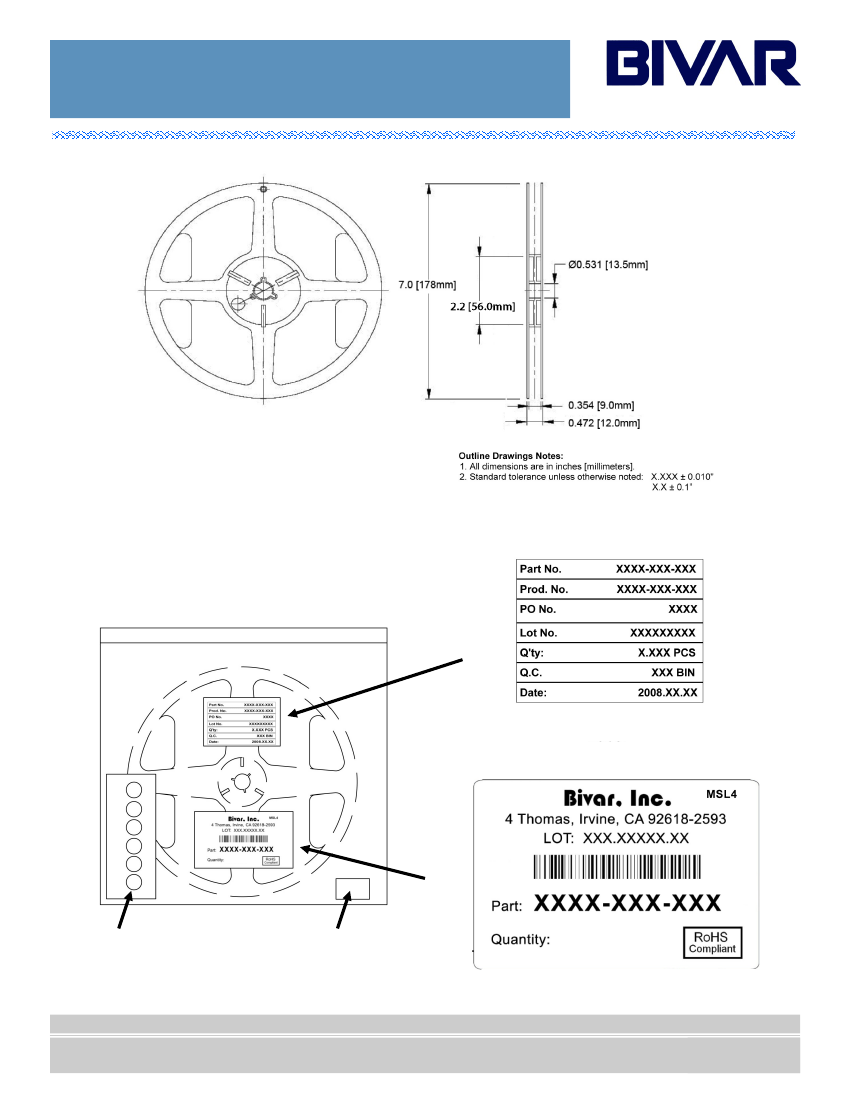

Packaging and Labeling Plan
Note: 1 Reel / Bag
Vacuum and Heat Sealed
Clear AntiStatic Poly Bag
Internal Quality Control Label
X.XXX
Humidity Indicator
Card
Desiccant
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 02/15
Page 5 of 5
