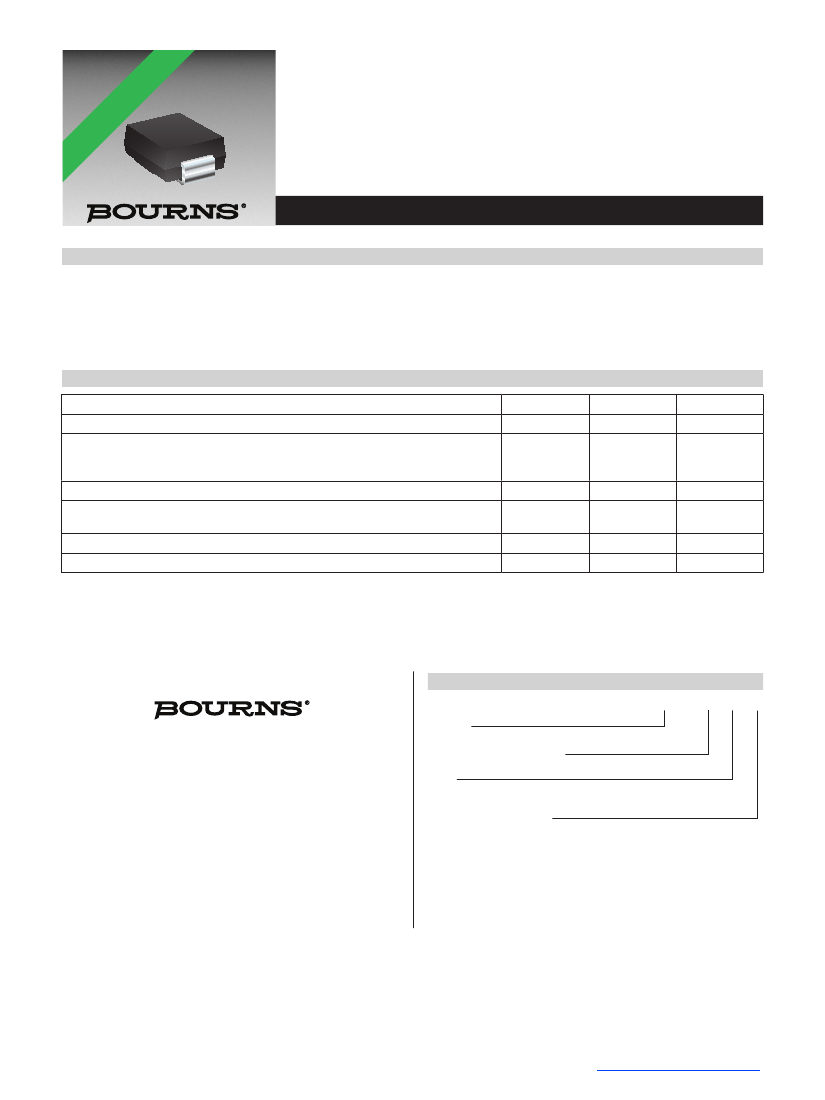

Features
n
RoHS compliant* and halogen free**
n
Surface mount SMC package
n
Standoff voltage: 12 to 43 volts
n
Peak Pulse Power: 5000 watts
n
AEC-Q101 compliant***
Applications
n
Protection of power buses
n
Protection of I/O interfaces
n
Overvoltage transient protection
n
Automotive
*R
oH
S
- Entertainment applications
- Comfort applications
n
Telecom, computer, industrial and
consumer electronics applications
General Information
5.0SMDJ-Q Transient Voltage Suppressor Diode Series
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC)
size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 12 V up to 43 V and Breakdown
Voltage up to 52.8 V. Typical fast response times are less than 1.0 ps from 0 V to Breakdown Voltage.
Bourns
®
Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration
minimizes roll away.
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
Minimum Peak Pulse Power Dissipation (Tp = 1 ms)
(Note 1,2)
Peak Forward Surge Current
8.3 ms Single Half Sine Wave Superimposed on Rated Load
(JEDEC Method)
(Note 3,4)
Steady State Power Dissipation @ TL = 50 °C
Maximum Instantaneous Forward Voltage @ I
PP
= 100 A
(For Unidirectional Units Only)
Operating Temperature Range
Storage Temperature Range
1.
2.
3.
4.
Symbol
P
PK
I
FSM
P
M(AV)
V
F
T
STG
T
J
Value
5000
300
6.5
5
-55 to +150
-55 to +150
Unit
Watts
Amps
Watts
Volts
°C
°C
Non-repetitive current pulse, per Pulse Waveform graph and derated above TA = 25 °C per Pulse Derating Curve.
Thermal Resistance Junction to Lead.
8.3 ms Single Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units only).
Mounted on 8.0 mm x 8.0 mm copper pad area to each terminal.
How to Order
5.0SMDJ 12 CA - Q
Asia-Pacific:
Tel: +886-2 2562-4117
Email: asiacus@bourns.com
Europe:
Tel: +36 88 520 390
Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500
Email: americus@bourns.com
www.bourns.com
Package
5.0SMDJ = SMC/DO-214AB
Working Peak Reverse Voltage
12 = 12 VRWM (Volts)
Suffix
A = 5 % Tolerance Unidirectional Device
CA = 5 % Tolerance Bidirectional Device
AEC-Q101 Compliant Suffix
Q = AEC-Q101 Compliant, 3000 pcs. per 13-inch Reel
QH = AEC-Q101 Compliant, 500 pcs. per 7-inch Reel
* RoHS Directive 2015/863, Mar 31, 2015 and Annex.
** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br)
and Chlorine (Cl) content is 1500 ppm or less.
*** Q suffix for automotive and other applications requiring appropriate AEC-Q101 compliance for electronic limiters.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
5.0SMDJ-Q Transient Voltage Suppressor Diode Series
A
Product Dimensions
A
Recommended Footprint
A
B
C
A
B
B
C
CATHODE BAND
(UNIDIRECTIONAL DEVICES ONLY)
G
CATHODE BAND
(UNIDIRECTIONAL DEVICES ONLY)
G
H
F
E
H
F
E
D
DIMENSIONS:
MM
(INCHES)
D
B
C
Dimension
C
A (Max.)
B (Min.)
C (Min.)
SMC (DO-214AB)
4.69
(0.185)
3.07
(0.121)
1.53
(0.060)
MM
DIMENSIONS:
(INCHES)
Dimension
SMC (DO-214AB)
MM
DIMENSIONS:
(INCHES)
- 7.11
6.60
A
(0.260 - 0.280)
5.59 - 6.22
B
(0.220 - 0.245)
2.90 - 3.20
C
(0.114 - 0.126)
0.15 - 0.31
D
(0.006 - 0.112)
7.75 - 8.13
E
(0.305 - 0.320)
0.05 - 0.20
F
(0.002 - 0.008)
2.01 - 2.62
G
(0.080 - 0.103)
0.76 - 1.52
H
(0.030 - 0.060)
MM
DIMENSIONS:
(INCHES)
Physical Specifications
Encapsulation .............................Molded plastic per UL Class 94V-0
Polarity....................... Cathode band indicates unidirectional device
No cathode band indicates bidirectional device
Environmental Specifications
Moisture Sensitivity Level ................................................................1
ESD Classification (HBM)............................................................. 3B
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
5.0SMDJ-Q Transient Voltage Suppressor Diode Series

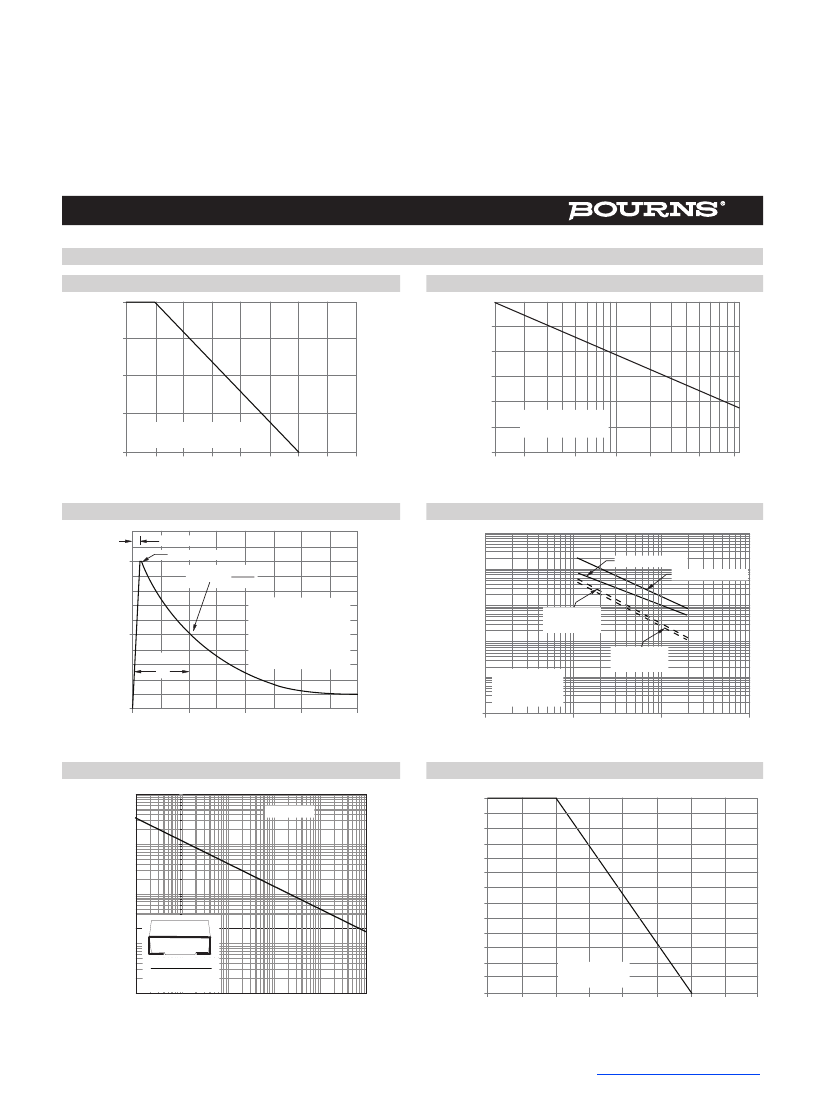

Rating & Characteristic Curves
Pulse Derating Curve
100
Peak Forward Surge Current (Amps)
Peak Pulse Derating in Percent of
Peak Power or Current
Maximum Non-Repetitive Surge Current
300
250
200
150
100
50
0
1
2
5
10
20
50
100
Number of Cycles at 60 Hz
300 A at 1 cycle
100 A at 80 cycles
75
50
25
10 x 1000 Waveform as Defined
by R.E.A.
0
0
25
50
75
100
125
150
175
200
Junction Temperature (°C)
Pulse Waveform
TR=10 µs
100
IP, Peak Pulse Current (%)
Peak value (IRSM)
Half value=
IRSM
2
Pulse width (TP)
is defined as that point
where the peak current
decays to 50 % of IPSM.
TA=25 °C
TP
10 x 1000 waveform
as defined by R.E.A.
Typical Junction Capacitance
100000
Bidirectional v=0v
Unidirectional v=0v
CJ - Junction Capacitance (pF)
10000
1000
50
Unidirectional
@ VR
Bidirectional
@ VR
100
10
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
1
10
0
0
1.0
2.0
T, Time (ms)
3.0
4.0
1
100
1000
VBR - Reverse Breakdown Voltage (V)
Pulse Rating Curve
1000
Steady State Power Derating Curve
6.5
P
M(AV)
Steady State Power Dissipation (W)
TA = 25 °C
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
60 Hz Resistive or
Inductive Load
50
75
100
125
150
175
200
P PPM - Peak Pulse Power (kW)
100
10
1
0.1
0.1 µs
8.0 x 8.0 mm
(0.31 x 0.31 in.)
Copper Pad Areas
1.0 µs
10 µs
100 µs
1.0 ms
10 ms
t d - Pulse Width (sec.)
TL, Lead Temperature (°C)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
CDDFN5-0504N - TVS/Steering Diode Array
5.0SMDJ-Q Transient Voltage Suppressor Diode Series

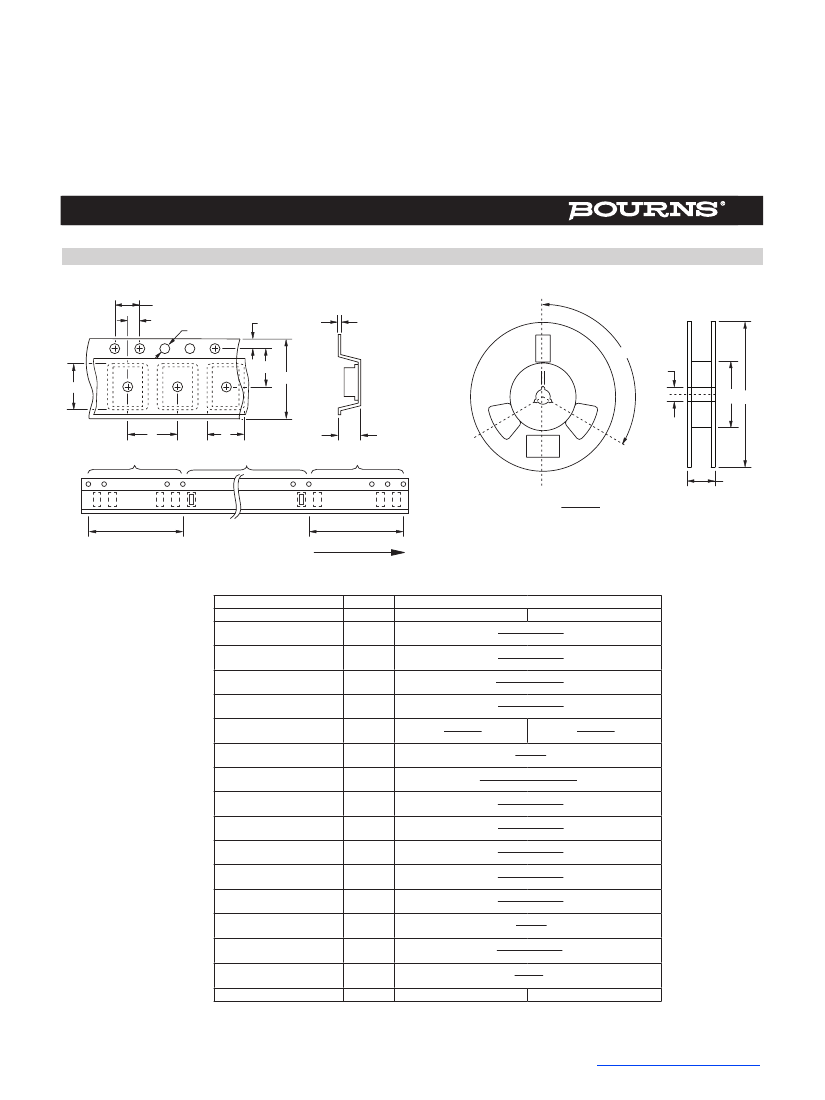

Packaging Information
The product will be dispensed in tape and reel format (see diagram below).
P
0
P
1
d
Index Hole
E
T
120 °
F
W
D2
D1 D
B
P
Trailer
A
Device
C
Leader
End
.......
.......
10 pitches (min.)
.......
.......
.......
.......
.......
.......
10 pitches (min.)
Start
W1
MM
DIMENSIONS:
(INCHES)
Direction of Feed
Devices are packed in accordance with EIA standard
EIA-481-D and specifications shown here.
SMC (DO-214AB)
7-Inch Reel
13-Inch Reel
6.0 ± 0.20
(0.236 ± 0.079)
8.3 ± 0.20
(0.327 ± 0.008)
2.5 ± 0.20
(0.098 ± 0.008)
1.50 ± 0.10
(0.059 ± 0.004)
178
330
(7.008)
(12.992)
50.0
MIN.
(1.969)
13.0 +0.50/-0.20
(0.512 +0.020/-0.008)
1.75 ± 0.10
(0.069 ± 0.004)
7.50 ± 0.10
(0.295 ± 0.004)
8.00 ± 0.10
(0.315 ± 0.004)
4.00 ± 0.10
(0.157 ± 0.004)
2.00 ± 0.10
(0.079 ± 0.004)
0.30± 0.10
(0.012 ± 0.004)
16.00 ± 0.30
(0.630 ± 0.012)
22.4
MAX.
(0.882)
500
3,000
Item
Carrier Width
Carrier Length
Carrier Depth
Sprocket Hole
Reel Outside Diameter
Reel Inner Diameter
Feed Hole Diameter
Sprocket Hole Position
Punch Hole Position
Punch Hole Pitch
Sprocket Hole Pitch
Embossment Center
Overall Tape Thickness
Tape Width
Reel Width
Quantity per Reel
Symbol
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
W1
--
06/18
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
