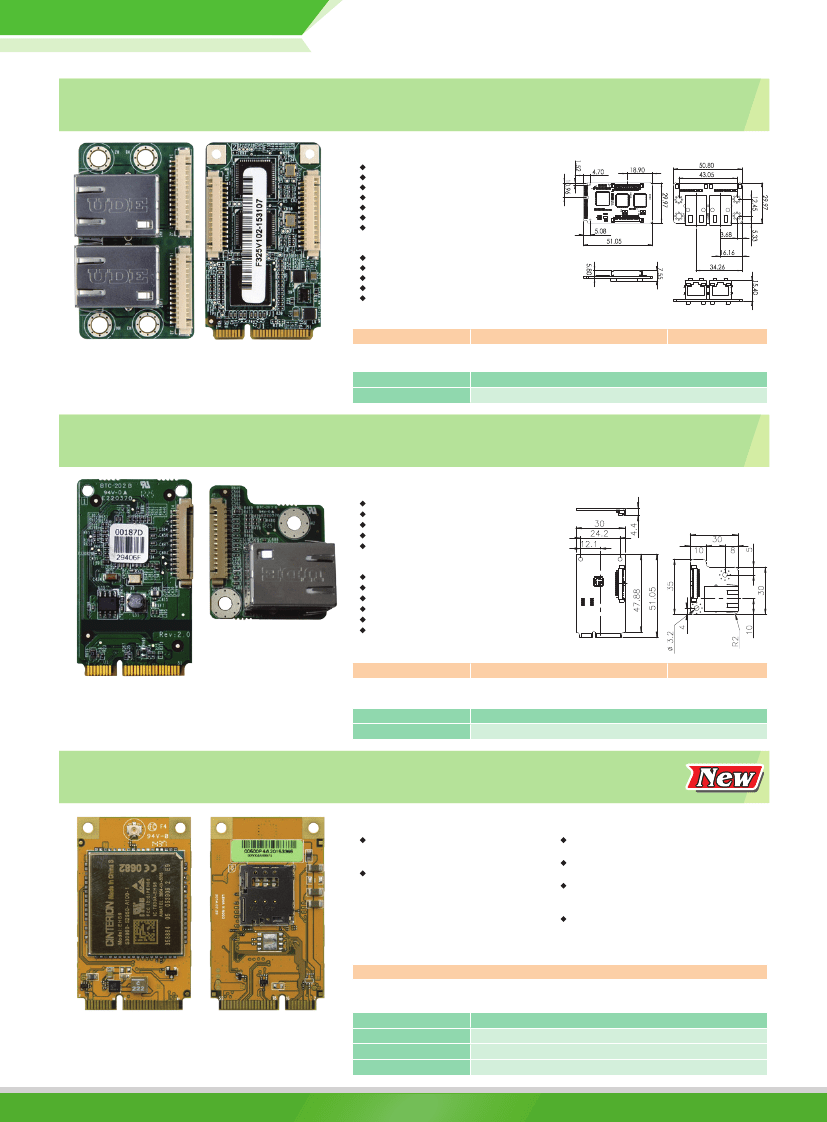

MPCIE-DLAN-R10
PCI Express Mini Dual Intel® GbE LAN
Module, Full Size, RoHS
Specifications
Form Factor: PCI Express Mini card
BIOS: UEFI BIOS
Ethernet Controller: Dual Intel® I210-IT
Speed: 10/100/1000Mbps
External Connector: 2 x 8-pin RJ-45
Power Supply: On board 3.3V
Compitable OS
Windows XP/Server 2003/ Server 2008/ Vista/ 7 /8.1/10
Linux kernel version 2.6.32 above
Operating Temperature: -10°C ~ 70°C
Operating Humidity: 5% ~ 95%, non-condensing
Dimensions (LxW) : 51 mm x 30 mm
Weight: 55g
CE/FCC compliant
Dimensions
(mm)
Packing List
1 x MPCIE-DLAN module
2 x Flat cable (pitch=1.25mm), 340mm length
1 x QIG
Features
● Support dual GbE LAN by Intel® I210-IT
● Compliant with PCI Express Mini specification 1.2
Ordering Information
Part No.
MPCIE-DLAN-R10
Description
PCI Express Mini dual Intel® GbE LAN module, full size, RoHS
MPCIE-LAN-R10
PCI Express Mini GbE LAN Module, Full Size, RoHS
Specifications
Form Factor: PCI Express Mini card
Ethernet Controller: Realtek RTL8111E
Speed: 10/100/1000Mbps
External Connector: 1 x 8-pin RJ-45
Compitable OS
Windows 2000/ XP/ Server 2003/ Server 2008/ Vista/ 7
Linux kernel version 2.6.32 above
Power Supply: On board 3.3V
Operating Temperature: -10°C ~ 70°C
Operating Humidity: 5% ~ 95%, non-condensing
Dimensions (LxW): 51 mm x 30 mm
Weight: 70g
CE/FCC compliant
Dimensions
(mm)
Packing List
1 x MPCIE-LAN module
1 x Flat cable (pitch=1.25mm), 340mm length
1 x QIG
Features
● Support one GbE LAN by RTL8111E
● Compliant with PCI Express Mini specification 1.2
Ordering Information
Part No.
MPCIE-LAN-R10
Description
PCI Express Mini GbE LAN module, full size, RoHS
MPCIE-3G-R20
PCI Express Mini 3G Adapter Card, RoHS
Specifications
Form Factor
PCI Express Mini card
Antenna 50Ohms. Main GSM/UMTS antenna
Frequency Bands
GSM/GPRS/EDGE:
850/900/1800/1900 GPRS/EDGE Class12
UMTS/HSPA+:
Dual band UMTS 800/850/900/1900/2100 MHz
USB
USB 2.0 High Speed (480Mbit/s) device interface
Compatible OS
Windows®8, Windows®7, Windows EC, Linux, Android
Operating Temperature
Normal operation: -30°C to +85°C
Restricted operation: -40°C to +95°C
Dimensions (W x D x H)
51.0 mm × 30.0 mm × 4.75 mm
Packing List
1 x PCI Express Mini 3G adapter card
Ordering Information
Features
● Real time clock: Timer functions via AT commands
● Phonebook: SIM and phone
● TTY/CTM support: Integrated CTM modem
Part No.
MPCIE-3G-R20
32501-000705-100-RS
32503-000100-100-RS
Description
PCI Express Mini 3G adapter card, RoHS
RF antenna cable
GSM antenna cable
