1N5404 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 1N5404

1N5404: Description3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD; Categorysemiconductor Discrete semiconductor; File Size126KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

1N5404 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5404	-	-	View	Buy Now

1N5404 Overview

3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD

1N5404 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	GREEN, PLASTIC PACKAGE-2
state	ACTIVE
packaging shape	round
Package Size	LONG FORM
Terminal form	Wire
terminal coating	PURE Tin
Terminal location	AXIAL
Packaging Materials	Plastic/Epoxy
structure	single
Shell connection	isolation
Diode component materials	silicon
Diode type	rectifier diode
application	EFFICIENCY
Phase	1
Maximum repetitive peak reverse voltage	400 V
Maximum average forward current	3 A
Maximum non-repetitive peak forward current	200 A

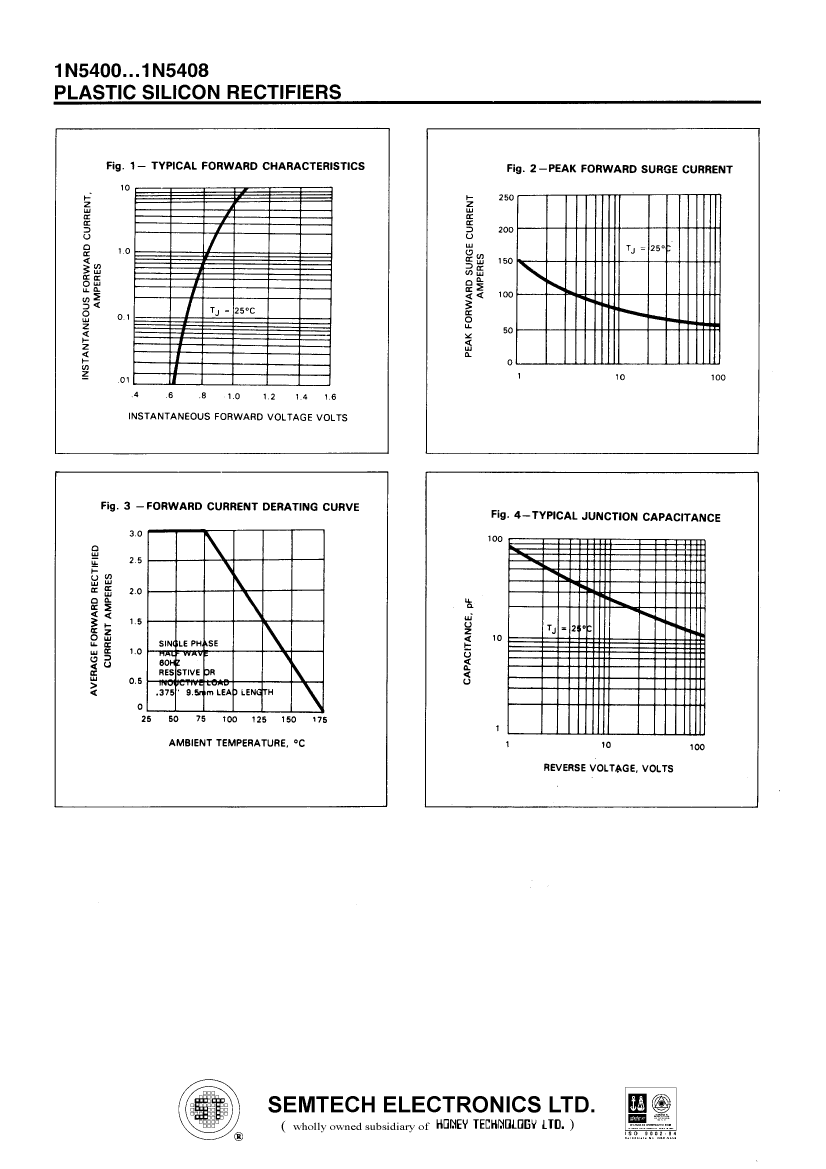

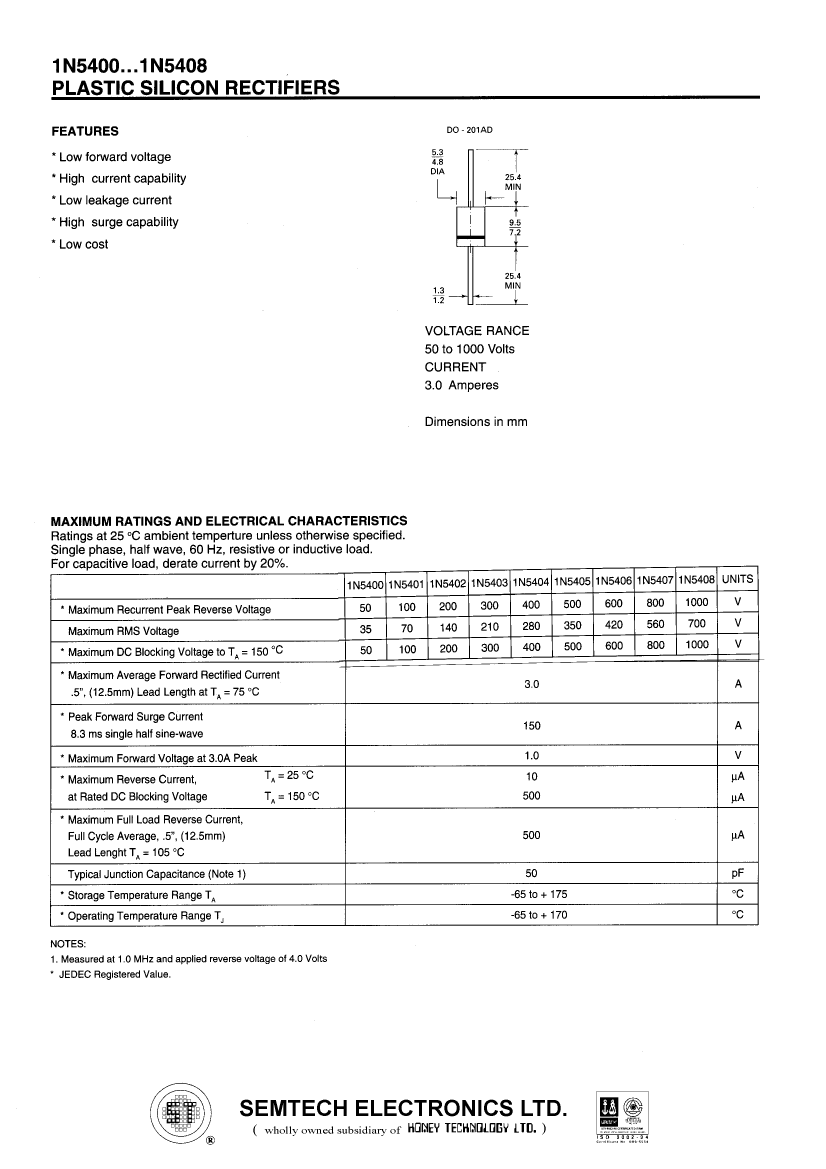

Preview

Download Datasheet

View All

1N5404 Related Products

	1N5404	1N5400	1N5401	1N5402	1N5403	1N5405	1N5406	1N5407	1N5408
Description	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 500 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 600 V, SILICON, RECTIFIER DIODE	3 A, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE,1KV V(RRM),DO-204AE
Number of terminals	2	2	2	2	-	-	2	-	-
Number of components	1	1	1	1	-	-	1	-	-
Processing package description	GREEN, PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	-	LEAD FREE, PLASTIC, CASE 267-05, 2 PIN	-	-
state	ACTIVE	ACTIVE	ACTIVE	DISCONTINUED	-	-	DISCONTINUED	-	CONSULT MFR
packaging shape	round	round	round	round	-	-	round	-	-
Package Size	LONG FORM	LONG FORM	LONG FORM	LONG FORM	-	-	LONG FORM	-	-
Terminal form	Wire	Wire	Wire	Wire	-	-	Wire	-	-
terminal coating	PURE Tin	MATTE Tin	tin	tin lead	-	-	MATTE Tin	-	-
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	-	-	AXIAL	-	-
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	-	Plastic/Epoxy	-	-
structure	single	single	single	single	-	-	single	-	-
Shell connection	isolation	isolation	isolation	isolation	-	-	isolation	-	-
Diode component materials	silicon	silicon	silicon	silicon	-	-	silicon	-	-
Diode type	rectifier diode	rectifier diode	rectifier diode	rectifier diode	-	-	rectifier diode	-	rectifier diode
application	EFFICIENCY	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	-	-
Phase	1	1	1	1	-	-	1	-	-
Maximum repetitive peak reverse voltage	400 V	50 V	100 V	200 V	-	-	600 V	-	-
Maximum average forward current	3 A	3 A	3 A	3 A	-	-	3 A	-	-
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A	-	-	200 A	-	-
