K50-3C1-E-25.0000MR Overview

Standard clock oscillator 25 MHZ

K50-3C1-E-25.0000MR Parametric

Parameter Name	Attribute value
Maker	AVX
Product Category	Standard clock oscillator
frequency	25 MHz
frequency stability	100 PPM
load capacitance	15 pF
Working power voltage	3.3 V
Supply voltage - min.	3 V
Supply voltage - max.	3.6 V
Output format	CMOS
Termination type	SMD/SMT
Package/box	7 mm x 5 mm
Minimum operating temperature	- 10 C
Maximum operating temperature	+ 70 C
length	7 mm
width	5 mm
high	1.6 mm
series	K50-3C
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
type	Crystal Oscillator
Duty Cycle - Max	60 %
Installation style	SMD/SMT
Factory packaging quantity	1000

Preview

Download Datasheet

View All

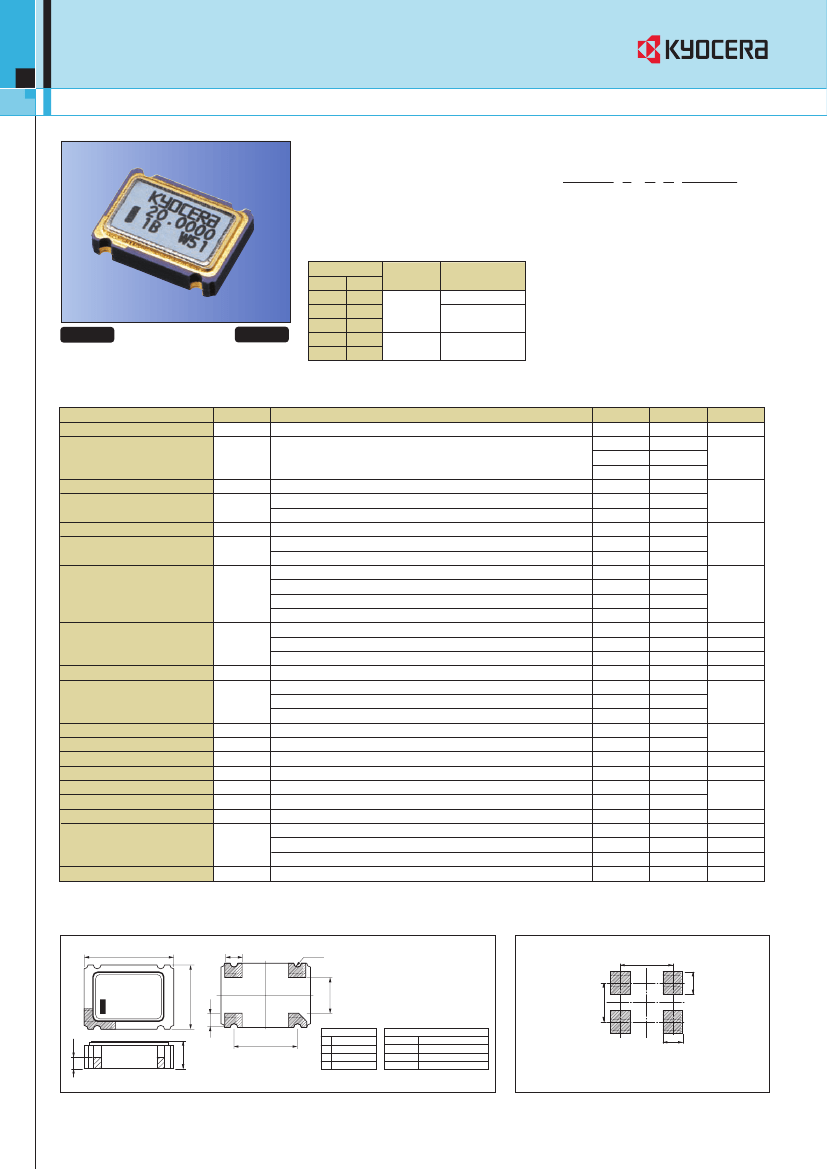

Clock Crystal Oscillators Surface Mount Type

K50-3C Series

CMOS / 3.3V / 7.0×5.0A

CMOS/ 3.3V/ 7.0×5.0mm

Clock Crystal Oscillators

Surface Mount Type

K50-3C

Series

This product is NOT recommended for new designs.

Features

• Miniature ceramic package

• Highly reliable with seam welding

• CMOS output

• Supply voltage V

=3.3V

•

±25ppm

available

How to Order

K50-3C 0 - S E 25.0000

w er

qType(7×5

SMD, 3.3V)

wFrequency

Stability Code(See Table1)

eDuty

Ratio(S: 45% to 55% STD)

rEnable/Disable

Function(STD)

tOscillation

Frequency(Ex.: 25.0000MHz)

Packaging(Tape & Reel 1Kpcs/reel)

Table 1

Stability

OPR

(°C)

Code (ppm)

−10

+70

(Standard)

±100 −40

+85

(Extend)

Note

Standard specifications

With only certain

frequencies

With only certain

frequencies

Pb Free

RoHS Conforming

Specifications

Item

Output Frequency Range

Frequency Stability

Storage Temperature Range

Symbol

OUT

SBY

STG

OPR

---

Stability:

±50ppm, ±30ppm, ±100ppm(Ext

Temp)

Stability:

±25ppm, ±50ppm(Ext

Temp)

1.5≤F

OUT

≤20MHz

20<F

OUT

≤40MHz

40<F

OUT

≤60MHz

60<F

OUT

≤80MHz

8≤F

OUT

≤32MHz(Standby

Function)

32<F

OUT

≤50MHz(Disable

Function)

50<F

OUT

≤80MHz(Standby

Function)

@50% V

8≤F

OUT

≤26MHz

26<F

OUT

≤45MHz

45<F

OUT

≤80MHz

=8mA

=−8mA

CMOS

Overall conditions:

initial tolerance, operating temperature range, rated power

supply voltage change, load change, aging(1year @25°C),

shock and vibration

Conditions

Min.

1.5

−25

−30

−50

−55

−10

−40

−0.5

2.97

3.14

---

90% V

---

Max.

+25

+30

+50

+125

+70

+85

7.0

3.63

3.46

10% V

---

Units

MHz

ppm

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

(Maximum Loaded)

Standard

Extend(option)

°C

Volt

μA

Volt

Standby/Disable Current

Duty Ratio(Symmetry)

Rise/Fall Time

(10% V

to 90% V

Maximum Loaded)

Output Voltage-"L"

Output Voltage-"H"

Output Load

Input Voltage Range

Input Voltage-"L"

Input Voltage-"H"

Output Disable Time

Output Enable Time

Start-up Time

SYM

Tr/Tf

---

8≤F

OUT

≤32MHz

32<F

OUT

≤50MHz

50<F

OUT

≤80MHz

---

70% V

---

30% V

---

150

Volt

@Minimum operating Voltage to be 0sec.

Note: Please contact us for inquires about extended operating temperature range, available frequencies and other conditions.

All electrical characteristics are defined at the maximum load and operating temperature range.

Dimensions

7.0

1.4

R0.35

(Unit : mm)

Recommended Land Pattern

5.08

(Unit : mm)

5.0

2.6

1.1

Pin Connections

Control

Case GND

Output

Enable/Disable Function

Pin1

Pin3(Output)

Open

Active

"H" Level

Active

"L" Level

High Z

∗

No-Oscillation:

8≤F

OUT

≤32MHz,

50<F

OUT

≤80MHz

4.2

0.6

5.08

1.6

1.8

Note: A capacitor of value 0.01μF between V

and GND is recommended.

152

2.0

Plating: Ni+Au

Tolerance:

±0.2

K50-3C1-E-25.0000MR Related Products

	K50-3C1-E-25.0000MR	K50-3C0E50.0000MR	K50-3C0SE29.4989MR	K50-3C1E33.8688MR	K50-3C1SE50.0000MR	K50-3C0E30.0000MR
Description	Standard clock oscillator 25 MHZ	Standard clock oscillator 50MHz 3.3V	Standard clock oscillator 29.4989MHz	Standard clock oscillator 33.8688MHz 3.3V	Standard clock oscillator 50MHz 3.3V	Standard clock oscillator 30MHz 3.3V
frequency stability	100 PPM	50%	50%	100%	100 PPM	50%
Minimum operating temperature	- 10 C	-10 °C	-10 °C	-10 °C	- 10 C	-10 °C
Maximum operating temperature	+ 70 C	70 °C	70 °C	70 °C	+ 70 C	70 °C
Maker	AVX	-	AVX	AVX	AVX	AVX
package instruction	-	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	-	DILCC4,.2,200
Reach Compliance Code	-	compliant	compliant	compliant	-	compliant
Other features	-	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	-	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	-	10 ns	10 ns	10 ns	-	10 ns
Frequency Adjustment - Mechanical	-	NO	NO	NO	-	NO
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
Number of terminals	-	4	4	4	-	4
Maximum operating frequency	-	80 MHz	80 MHz	80 MHz	-	80 MHz
Minimum operating frequency	-	8 MHz	8 MHz	8 MHz	-	8 MHz
Nominal operating frequency	-	50 MHz	29.4989 MHz	33.8688 MHz	-	30 MHz
Oscillator type	-	CMOS	CMOS	CMOS	-	CMOS
Output load	-	15 pF	15 pF	15 pF	-	15 pF
Maximum output low current	-	8 mA	8 mA	8 mA	-	8 mA
Package body material	-	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC
Encapsulate equivalent code	-	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	-	DILCC4,.2,200
physical size	-	7mm x 5mm x 1.6mm	7mm x 5mm x 1.6mm	7mm x 5mm x 1.6mm	-	7mm x 5mm x 1.6mm
power supply	-	3.3 V	3.3 V	3.3 V	-	3.3 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
longest rise time	-	10 ns	10 ns	10 ns	-	10 ns
Maximum slew rate	-	25 mA	25 mA	25 mA	-	25 mA
Nominal supply voltage	-	3.3 V	3.3 V	3.3 V	-	3.3 V
surface mount	-	YES	YES	YES	-	YES
maximum symmetry	-	60/40 %	55/45 %	60/40 %	-	60/40 %
technology	-	CMOS	CMOS	CMOS	-	CMOS
