PCF4020MT2R2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCF4020MT2R2

PCF4020MT2R2: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP, 4020; CategoryPassive components inductor; File Size453KB，14 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

PCF4020MT2R2 Overview

General Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP, 4020

PCF4020MT2R2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.058 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PCF4020
Number of functions	1
Number of terminals	2
Maximum rated current	1.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

PCF Series — SMD Shielded Power Inductor

Features

• Magnetically shielded to protect sensitive components nearby

• Design provides low DCR while handling large currents

• Electrode is attached directly to the ferrite core

• For Inductance values outside those listed in the datasheet contact factory

• Find Environmental information and Packaging specs in related supplimental documents

Applications

• Power supply for VTRs

• Notebook PCs

• DC/DC converters

• OA equipment

• Portable communication equipment

Inductance and Current ranges

• PCF4010

• PCF4020

• PCF4030

• PCF5010

• PCF5020

• PCF5030

• PCF6915

• PCF6919

• PCF7040

• PCF1015

• PCF1040

• PCF1062

1.0 ~ 180 µH

0.47 ~ 2,200 µH

1.5 ~ 560 µH

1.2 ~ 1,000 µH

1.0 ~ 10,000 µH

1.0 ~ 2,500 µH

1.0 ~ 820 µH

1.0 ~ 1,500 µH

0.36 ~ 1,000 µH

1.0 ~ 2,200 µH

0.56 ~ 1,000 µH

0.56 ~ 39 µH

1.60 ~ 0.11 A

1.84 ~ 0.035 A

1.90 ~ 0.09 A

1.77 ~ 0.067 A

2.70 ~ 0.026 A

4.00 ~ 0.045 A

3.28 ~ 0.10 A

3.52 ~ 0.095 A

9.24 ~ 0.18 A

4.10 ~ 0.10 A

12.60 ~ 0.28 A

10.18 ~ 1.30 A

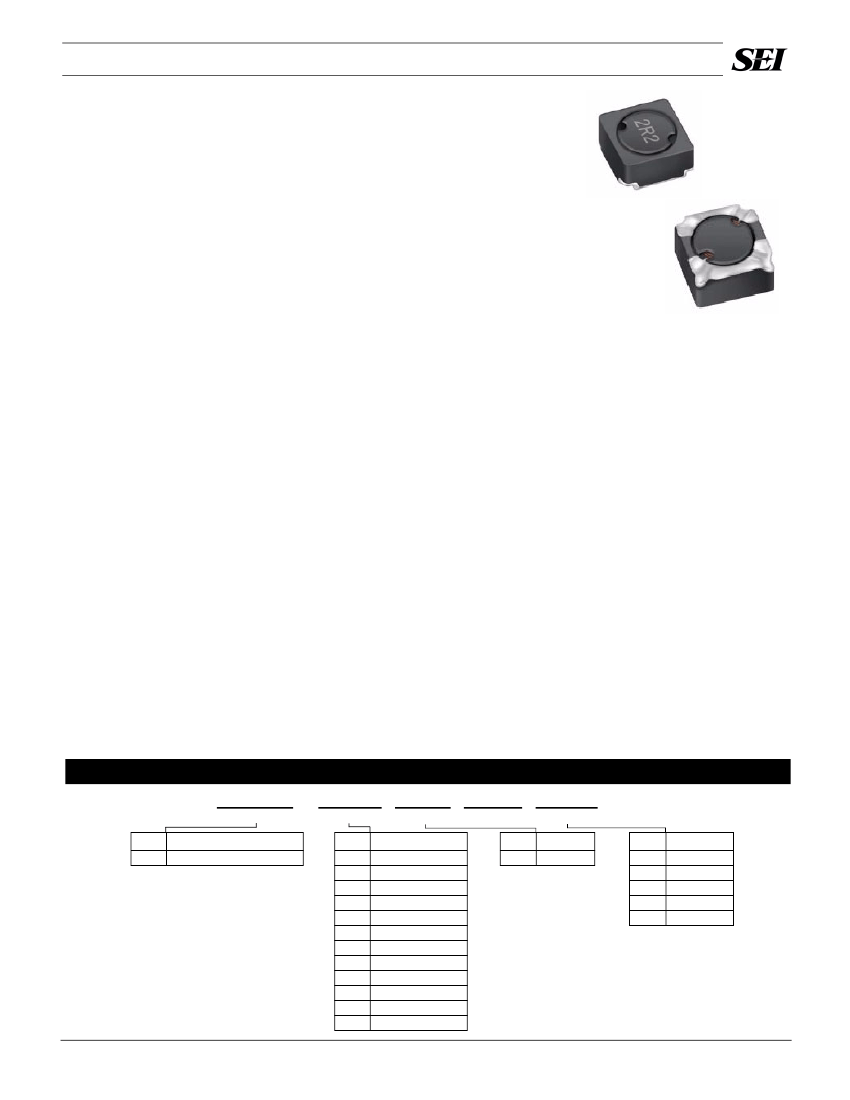

How to Order

PCF

SEI Type

4020

Dimensions

Tolerance

Packaging

101

Inductance

Type

PCF

Description

SMD Power Inductor

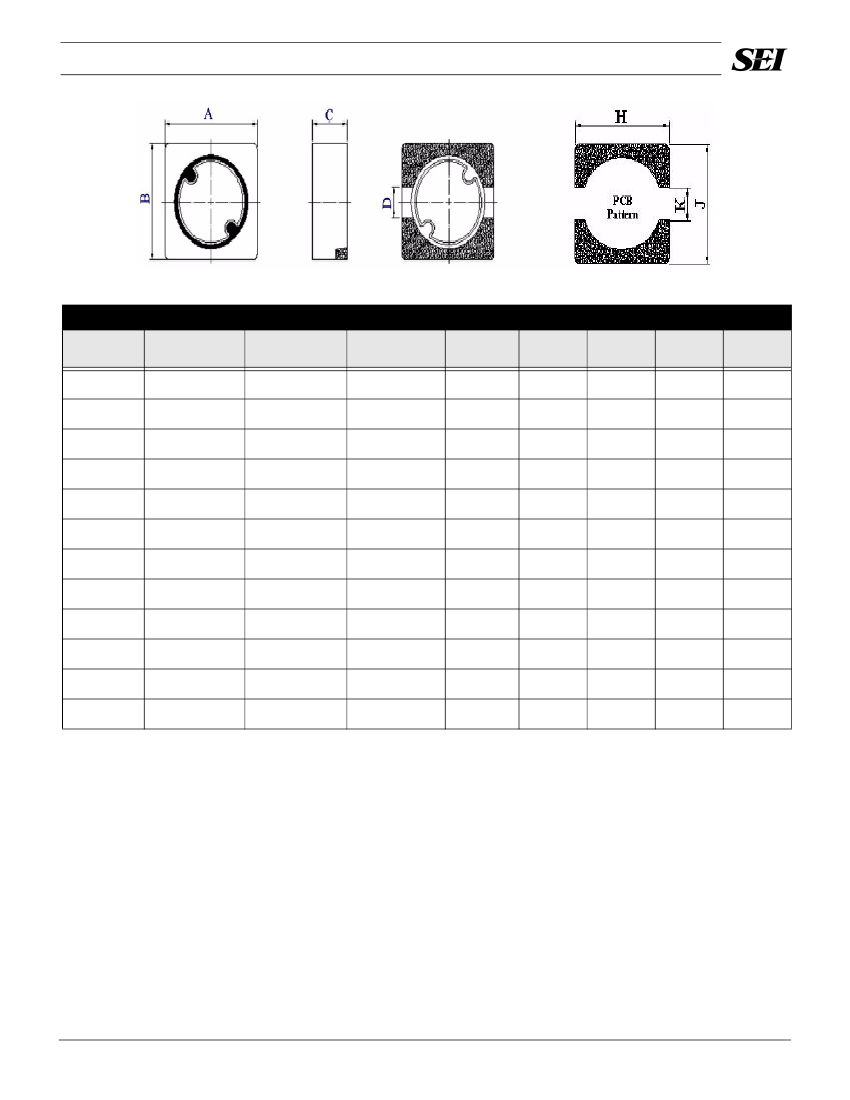

Code Dimensions(mm)

4010

4020

4030

5010

5020

5030

6915

6919

7040

1015

1040

1062

3.8

5.0

6.9

7.3

3.8 x 1.25

3.8 x 2.00

3.8 x 3.00

5.0 x 1.20

5.0 x 2.00

5.0 x 3.00

6.9 x 1.50

6.9 x 1.90

7.3 x 4.30

10 x 1.50

10 x 4.00

10 x 6.70

Code Tolerance

Code Inductance

1R1

470

101

102

103

1.1

µH

100

µH

1,000

µH

10,000

µH

20%

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 02/08
