PA4343.472ANLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA4343.472ANLT

PA4343.472ANLT: DescriptionFixed inductor 4.7uH 17A 6.5mm 20% SMT; CategoryPassive components inductor; File Size395KB，6 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA4343.472ANLT Overview

Fixed inductor 4.7uH 17A 6.5mm 20% SMT

PA4343.472ANLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	12 weeks 1 day
DC Resistance	0.0068 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Maximum rated current	20 A
Guideline	AEC-Q200
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	STANDARD: TS 16949
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

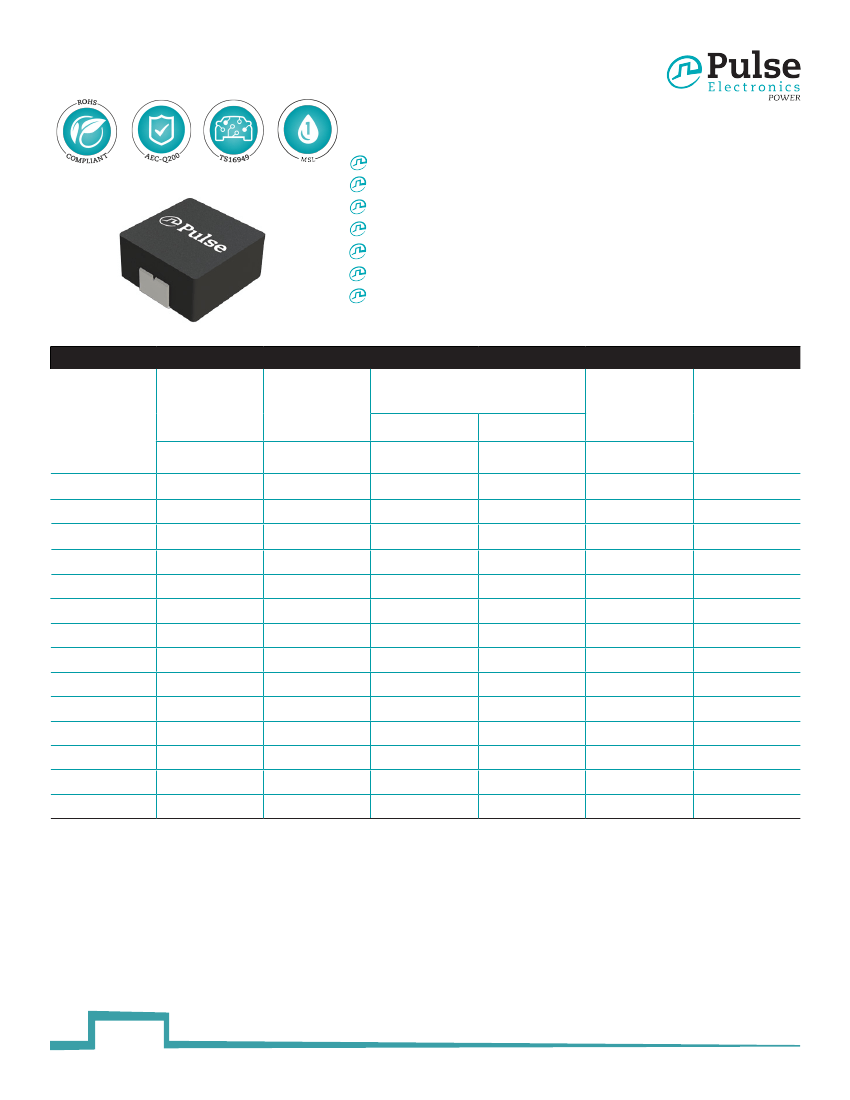

SMT Power Inductor

High Current Molded Power Inductor - PA4343.XXXANLT Series

Height:

6.5mm Max

Footprint:

14.0mm x 12.8mm Max

Current Rating:

up to 42.0A

Inductance Range:

0.22uH to 68.0uH

Shielded construction and compact design

High current, low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

Electrical Specifications @ 25°C - Operating Temperature -55°C to +155°C

Part

Number

PA4343.221ANLT

PA4343.681ANLT

PA4343.102ANLT

PA4343.152ANLT

PA4343.222ANLT

PA4343.332ANLT

PA4343.472ANLT

PA4343.562ANLT

PA4343.682ANLT

PA4343.822ANLT

PA4343.103ANLT

PA4343.223ANLT

PA4343.333ANLT

PA4343.683ANLT

Inductance

100KHz, 1V

uH±20%

0.22

0.68

1.00

1.50

2.20

3.30

4.70

5.60

6.80

8.20

10.0

22.0

33.0

68.0

Rated

Current

42.0

33.0

29.0

25.0

21.0

19.0

17.0

15.0

14.0

12.5

11.0

8.0

6.5

4.8

Resistance

MAX.

mΩ

0.46

1.5

1.8

2.53

4.2

6.2

8.0

9.8

11.3

13.8

15.8

35.0

55.0

100

TYP.

mΩ

0.4

1.25

1.5

2.2

3.7

5.3

6.8

8.3

9.8

12.0

13.0

31.0

46.0

82.0

Saturation

Current

Max.

105

46.0

36.0

30.0

24.0

22.5

21.0

19.5

18.0

17.0

15.0

9.0

8.0

5.0

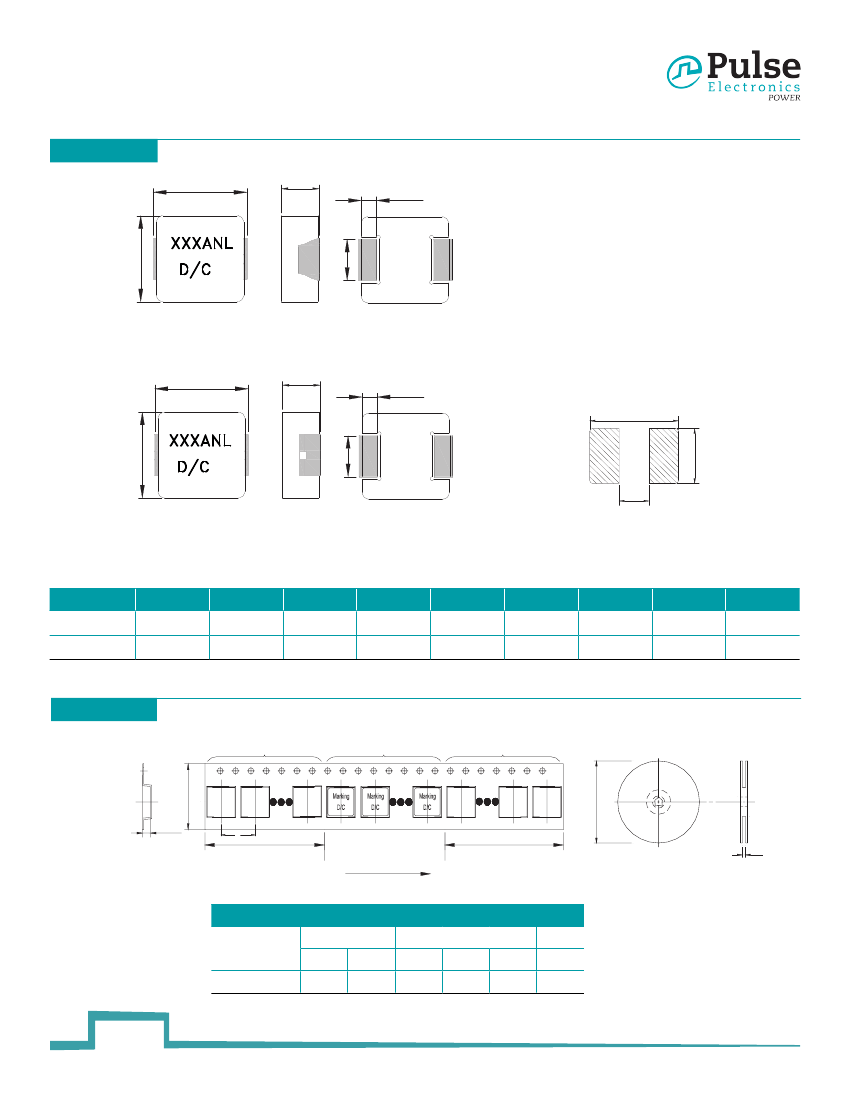

Mechanical

Footprint 1

Footprint 2

Notes:

1. Actual temperature of the component during system operation (ambient plus tempera- 3.

ture rise) must be within the standard operating range.

2. The saturation current is the current at which the initial inductance drops approximately

30% at the stated ambient temperature. This current is determined by placing the com-

ponent in the specified ambient environment and applying a short duration pulse cur- 4.

rent (to eliminate self-heating effect) to the component.

The rated current is the DC current required to raise the component temperature by

approximately 40½C. Take note that the components’ performanc varies depending on the

system condition. It is suggested that the component be tested at the system level, to

verify the temperature rise of the component during system operation.

The part temperature (ambient+temp rise) should not exceed 155½C under worst case

operating conditions. Circuit design, PCB trace size and thickness, airflow and other cool-

ing provisions all affect the part temperature. Part temperature should be verified in the

end application.

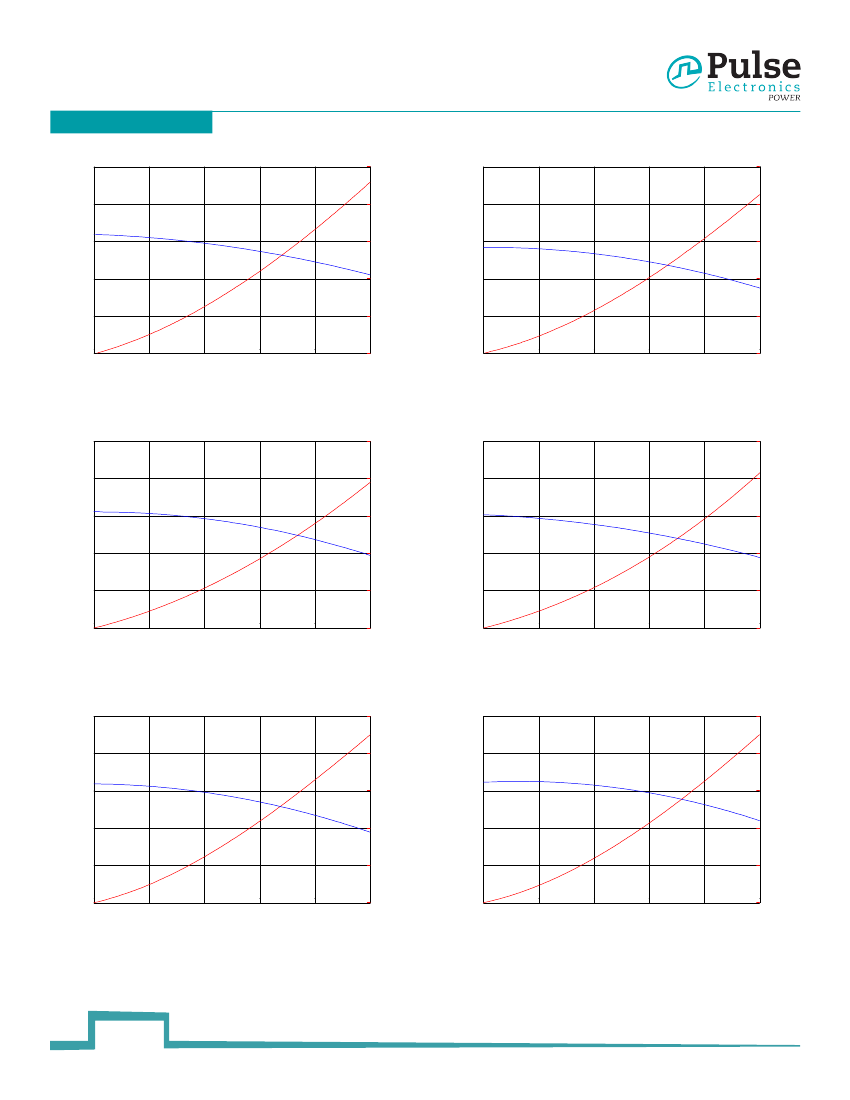

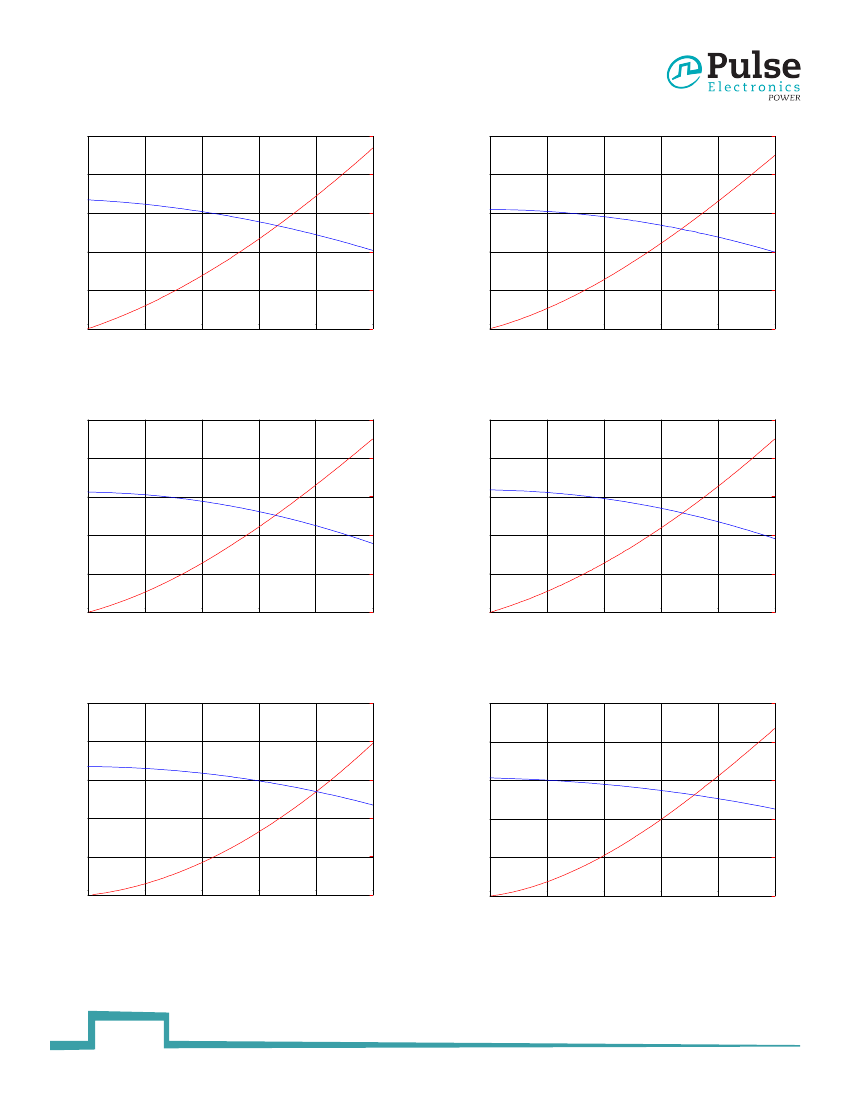

power.pulseelectronics.com

P793.C (09/17)

http://www.power.pulseelectronics.com/contact

PA4343.472ANLT Related Products

	PA4343.472ANLT	PA4343.332ANLT	PA4343.333ANLT	PA4343.562ANLT	PA4343.681ANLT	PA4343.222ANLT	PA4343.223ANLT	PA4343.682ANLT	PA4343.822ANLT
Description	Fixed inductor 4.7uH 17A 6.5mm 20% SMT	Fixed inductor 3.3uH 19A 6.5mm 20% SMT	Fixed inductor 33uH 6.5A 6.5mm 20% SMT	Fixed inductor 5.6uH 15A 6.5mm 20% SMT	Fixed inductor 0.68uH 33A 6.5mm 20% SMT	Fixed inductor 2.2uH 21A 6.5mm 20% SMT	Fixed inductor 22uH 8A 6.5mm 20% SMT	Fixed inductor 6.8uH 14A 6.5mm 20% SMT	Fixed inductor 8.2uH 12.5A 6.5mm 20% SMT
Maximum operating temperature	155 °C	155 °C	+ 155 C	+ 155 C	+ 155 C	+ 155 C	155 °C	+ 155 C	155 °C
Minimum operating temperature	-55 °C	-55 °C	- 55 C	- 55 C	- 55 C	- 55 C	-55 °C	- 55 C	-55 °C
shield	YES	YES	Shielded	Shielded	Shielded	Shielded	YES	Shielded	YES
Test frequency	0.1 MHz	0.1 MHz	100 kHz	100 kHz	100 kHz	100 kHz	0.1 MHz	100 kHz	0.1 MHz
Tolerance	20%	20%	20 %	20 %	20 %	20 %	20%	20 %	20%
Maker	-	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	-	Pulse Electronics	Pulse Electronics
Product Category	-	-	fixed inductor	fixed inductor	fixed inductor	fixed inductor	-	fixed inductor	-
Termination type	-	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	-	SMD/SMT	-
inductance	-	-	33 uH	5.6 uH	680 nH	2.2 uH	-	6.8 uH	-
Maximum DC current	-	-	6.5 A	15 A	33 A	21 A	-	14 A	-
Maximum DC resistance	-	-	55 mOhms	9.8 mOhms	1.5 mOhms	4.2 mOhms	-	11.3 mOhms	-
Installation style	-	-	PCB Mount	PCB Mount	PCB Mount	PCB Mount	-	PCB Mount	-
Package/box	-	-	13.5 mm x 12.6 mm x 6.2 mm	13.5 mm x 12.6 mm x 6.2 mm	13.5 mm x 12.6 mm x 6.2 mm	13.5 mm x 12.6 mm x 6.2 mm	-	13.5 mm x 12.6 mm x 6.2 mm	-
length	-	-	13.5 mm	13.5 mm	13.5 mm	13.5 mm	-	13.5 mm	-
width	-	-	12.6 mm	12.6 mm	12.6 mm	12.6 mm	-	12.6 mm	-
high	-	-	6.2 mm	6.2 mm	6.2 mm	6.2 mm	-	6.2 mm	-
application	-	-	High Current	High Current	High Current	High Current	-	High Current	-
series	-	-	PA4343.XXXANLT	PA4343.XXXANLT	PA4343.XXXANLT	PA4343.XXXANLT	-	PA4343.XXXANLT	-
Encapsulation	-	-	Reel	Reel	Reel	Reel	-	Reel	-
product	-	-	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	-	Fixed Inductors	-
Factory packaging quantity	-	-	500	500	500	500	-	500	-
