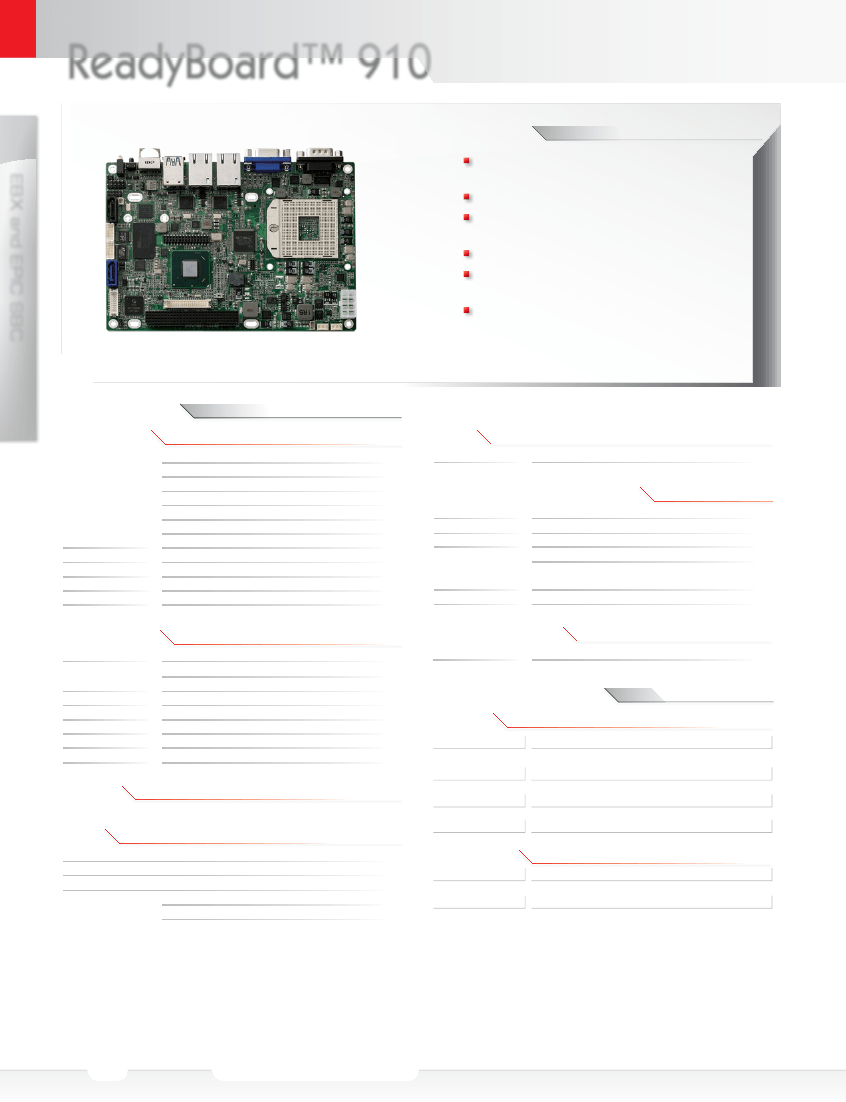

ReadyBoard™ 910
EBX and EPIC SBC
EPIC Single Board Computer with
Intel
®
Core™ Processor
Features
2
nd
/3
rd
Generation Intel
®
Core™ i7/i5/i3
Processor
Dual Gigabit Ethernet
USB 3.0 with SuperSpeed 5Gb/s Data
Transfer Rate
Analog VGA, LVDS and DVI-D display
PCI Express Mini Card socket, PCI-104
expansion
Onboard SSD
Specifications
Core System
CPU
Intel Core™ i7-3610QE, 2.3GHz, 6M L3 Cache, 45W TDP
Intel
®
Core™ i5-3610ME, 2.7GHz, 3M L3 Cache, 35W TDP
Intel
®
Core™ i3-3120ME, 2.4GHz, 3M L3 Cache, 35W TDP
Intel
®
Core™ i7-2710QE, 2.1GHz, 6M LLC, 45W TDP
Intel
®
Core™ i5-2510E, 2.5GHz, 3M LLC, 35W TDP
Intel
®
Core™ i3-2330E, 2.2GHz, 3M LLC, 35W TDP
Intel
®
Celeron
®
B810, 1.6GHz, 2M LLC, 35W TDP
Up to 16GB dual channel DDR3 1066/1333MHz SODIMM
Intel
®
HM65 Platform Controller Hub
AMI with CMOS backup in 32 Mbit SPI flash with ACPI 2.0
Supply voltages and CPU temperature
PCI-104, PCIe Mini Card
®
Power
Input Power
Power States
AT mode (12 V +/- 5%), ATX mode (12 V and 5 Vsb +/- 5%)
Supports S0, S1, S3, S4, S5
Mechanical and Environmental
Form Factor
Dimensions
Board Thickness
Operating Temperature
EPIC
165.1 x 114.3 mm (6.5 x 4.5”)
2.36 mm (0.093”)
Standard: 0°C to +60°C
Industrial: -20°C to +80°C (35W CPU with fansink thermal module)
-20°C to +70°C (35W CPU with passive heatsink)
-20°C to +75°C
90% at +60°C
Memory
Chipset
BIOS
Hardware Monitor
Expansion Buses
Storage Temperature
Humidity
I/O Interfaces
SATA
USB
Serial
LED & Reset
Keyboard/Mouse
GPIO
Audio
Storage
2 devices
2x USB 3.0 with 5Gb/s data transfer rate (faceplate)
2x USB 2.0 (onboard pin header)
2 configurable ports for RS-232/422/485
Power, SATA active, reset button
PS/2 interface
4x GPI and 4x GPO
High Definition Audio; S/PDIF
Onboard SSD (default 4GB)
Operating Systems
Standard Support
Win 7, Windows XP, Linux
Extended Support (BSP) Win XPe, WES 2009, WES 7, WEC 7, VxWorks 6.9, QNX 6.5
Ordering Information
Modules
Model Number
RB-910-S
RB-910-S-2710
RB-910-L-2710
Description/Configuration
ReadyBoard 910, PCI-104, HM65, Socket G2, 4GB on
board SSD with fansink thermal module
ReadyBoard 910, PCI-104, HM65, Intel
®
Core™ i7-2710QE
Processor, 4GB on board SSD, fansink thermal module
Quick Start Kit (Intel
®
Core™ i7-2710QE Processor, cable
kit, 2GB RAM, QuickDrive, fansink thermal module)
Ethernet
Dual Gigabit Ethernet (Intel
®
82574IT controller)
Video
Integrated Intel
®
HD Graphics 4000 supporting dual independent displays
Intel
®
Dynamic Video Memory Technology (DVMT 5.0)
DirectX 10.1/11 and OpenGL 3.0/4.0
Graphics Outputs
DVI-D: Resolution up to 1920 x 1200 @ 60Hz (WUXGA)
VGA: Resolution up to 2048 x 1536 @ 60Hz (QXGA)
LVDS: Dual-channel 24-bit LVDS; resolution up to
1920 x 1080 @ 60Hz
Accessories
Model Number
DDR3 memory
Description/Configuration
Verified industrial grade 1GB, 2GB, 4GB, 8GB DDR3
SODIMM memory available
http://www.adlinktech.com/rugged
