CAPA312HGGA-N4200 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> CAPA312HGGA-N4200

CAPA312HGGA-N4200: DescriptionSingle Board Computer 3.5" Embedded SBC with Intel Pentium Processor N4200 HDMI/LVDS Dual LANs and Audio; CategoryEmbedded solution To calculate Single board computer; File Size423KB，2 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric View All

CAPA312HGGA-N4200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAPA312HGGA-N4200	-	-	View	Buy Now

CAPA312HGGA-N4200 Overview

Single Board Computer 3.5" Embedded SBC with Intel Pentium Processor N4200 HDMI/LVDS Dual LANs and Audio

CAPA312HGGA-N4200 Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	single board computer
series	CAPA312
Processor brand	Intel
Processor type	Intel Pentium
frequency	1.1 GHz to 2.5 GHz
storage	8 GB
Working power voltage	12 V
Interface Type	Serial
Minimum operating temperature	- 20 C
Maximum operating temperature	+ 60 C
size	146 mm x 104 mm x 1.6 mm
storage type	DDR3L-1867
Power consumption	6 W
cache memory	2 MB
chipset	SoC Integrated
core	Intel Pentium
Processor series	N4200
Factory packaging quantity	1

Preview

Download Datasheet

View All

CAPA312

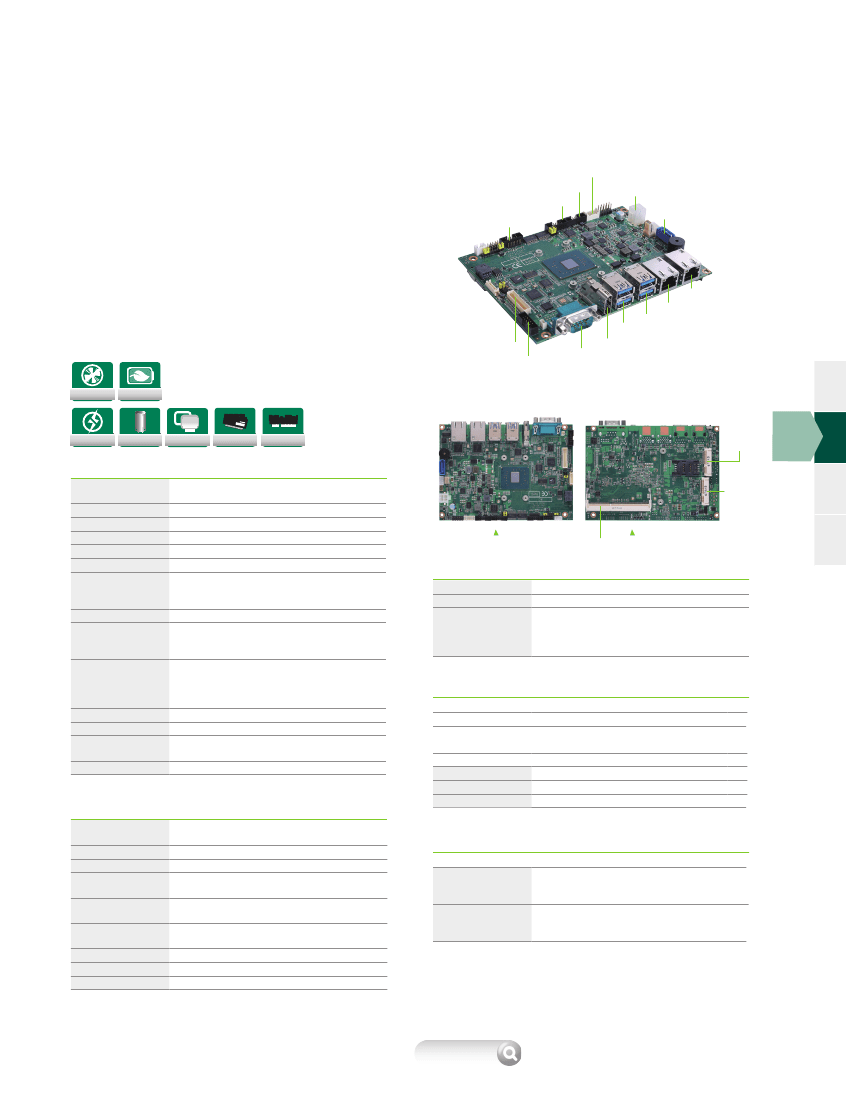

3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350,

HDMI/LVDS, Dual GbE LANs and Audio

Features

●

Intel® Pentium® processor N4200/Celeron® processor

N3350

●

1 DDR3L SO-DIMM, up to 8GB

●

2 USB 2.0 and 4 USB 3.0

●

2 PCI Express Mini Card slots

COM 4

USB 2.0 1/2

Audio

COM 3

+12V power input

SATA-3

LVDS

COM 2

Fanless

Low Power

DDR3L

PCIe

Mini

Ethernet 2

Ethernet 1

USB 3.0 3/4

USB 3.0 1/2

HDMI

COM 1

Full-size PCI

Express Mini

Card slot

with mSATA

supported

Embedded

SBCs

AiRD

Full Solid

Cap Design

DualView

DDR3L

PCIe Mini

Core System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Intel® Pentium® processor N4200/Celeron® processor

N3350 onboard

1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB

SoC Integrated

AMI

N/A

65536 levels, 1 ~ 65535 sec.

1 x full-size PCI Express Mini Card with mSATA supported

1 x full-size PCI Express Mini Card

1 x SIM slot

Lithium 3 V/220 mAH

2 x 2-pin cinnector

+12V DC-in only

AT Auto Power On function supported

Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L

Max. RMS. +12V @ 1.5A

Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L

Max. RMS. +12V @ 1.2A

146 x 104 mm

1.6 mm

Standard: -20°C ~ +60°C (-4°F ~ +140°F)

Optional: -20°C ~ +70°C (-4°F ~ +158°F)

10% ~ 95% relative humidity, non-condensing

Full-size PCI

Express Mini

Card slot

Top view

Rear view

DDR3L SO-DIMM

Display

Chipset

Memory Size

Display Interface

Intel® integrated Gfx graphic engine

Share system memory

1 x LVDS; 18/24-bit single/dual channel

1 x HDMI

1 x VGA (optional)

1 x eDP (optional)

Battery Lithium

Power Input

Power Requirements

Packing List

Standard

Quick installation guide, user’s manual/utility CD and accessories

Accessories

Part Number

59382620000E

59384500100E

59382631000E

Size

Board Thickness

Temperature

Relative Humidity

I/O

MIO

SATA

Hardware Monitoring

Ethernet

Audio

USB

SMBus/I

Digital I/O

TPM

2 x RS-232/422/485

2 x RS-232

1 x SATA-600

Detect CPU/system temperature, voltage and fan speed

2 ports 10/100/1000 Mbps support Wake-on-LAN,

PXE Boot ROM with Intel® i211AT

HD Codec audio as Mic-in/Line-in/Line-out with Realtek

ALC662

2 x USB 2.0

4 x USB 3.0

Yes for advanced monitoring/control

8 channels in/out programmable

ST ST33TPM12LPC with TPM 1.2 compliant

Description

1 x COM w/ bracket, P=2.0 mm, L=300 mm

Audio cable w/ bracket, P=2.0 mm, L=450 mm

2 x USB 2.0 wafer cable w/ bracket, 180 mm

Qty

Ordering Information

Standard

CAPA312HGGA-N4200

(P/N: E38E312100)

CAPA312HGGA-N3350

(P/N: E38E312102)

3.5" Embedded SBC with Intel® Pentium® processor

N4200 (1.1 ~ 2.5 GHz, 2MB Cache, 6 W), LVDS/HDMI, 2 GbE

LANs and audio

3.5" Embedded SBC with Intel® Celeron® processor N3350

(1.1 ~ 2.4 GHz, 2MB Cache, 6 W), LVDS/HDMI, 2 GbE LANs

and audio

* All specifications and photos are subject to change without notice.
