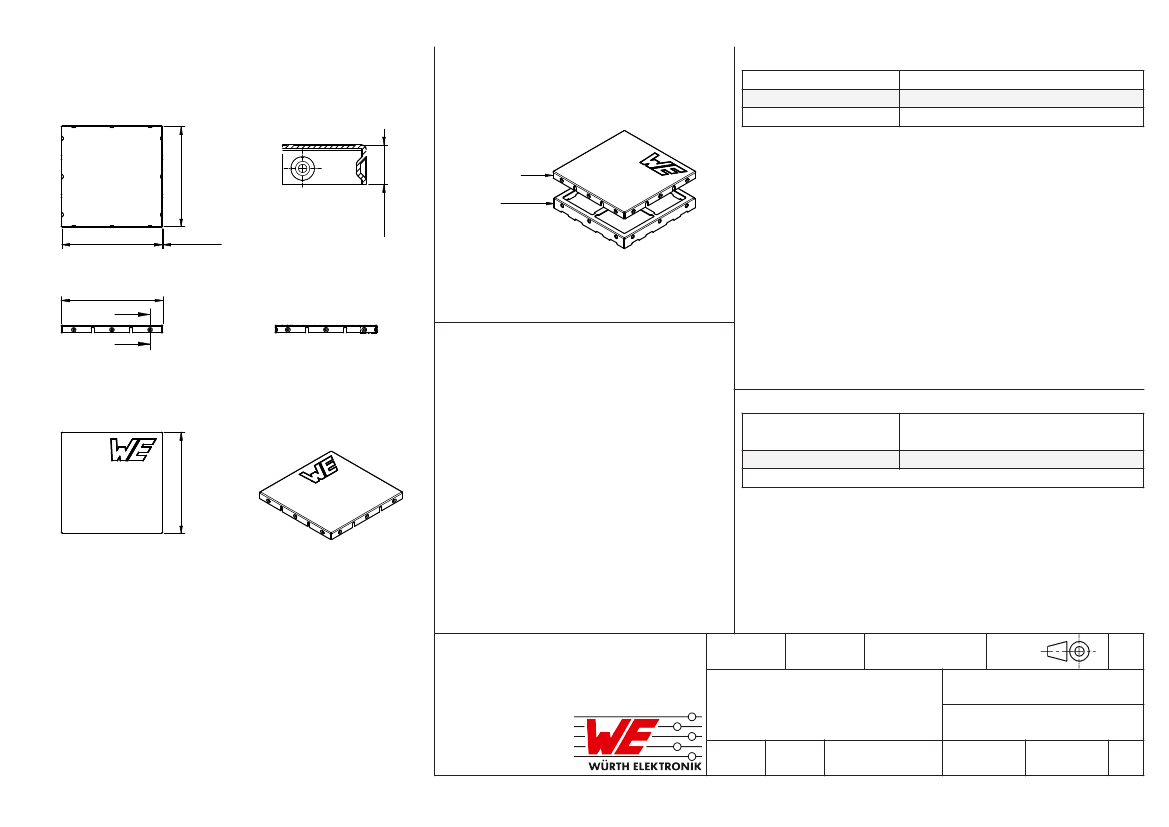

Dimensions: [mm]
Assembly with SMD Frame:
Material:
Base Material
Plating
Version
Tin plate
Tin
Top Cover
detail B
25,46 ±0,1
Top Cover
2,0 ±0,1
Frame
25,46 ±0,1
0,2 ±0,05
25,86 ±0,1
A
A
sectional drawing A-A
B
Scale - 1:1
General Information:
Storage Temperature (in original
packaging)
25,86 ±0,1
-20 °C up to +60 °C
-40 °C up to +125 °C
Operating Temperature
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
36003250S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.000
Valid
2017-06-19
eiSos
1/2
