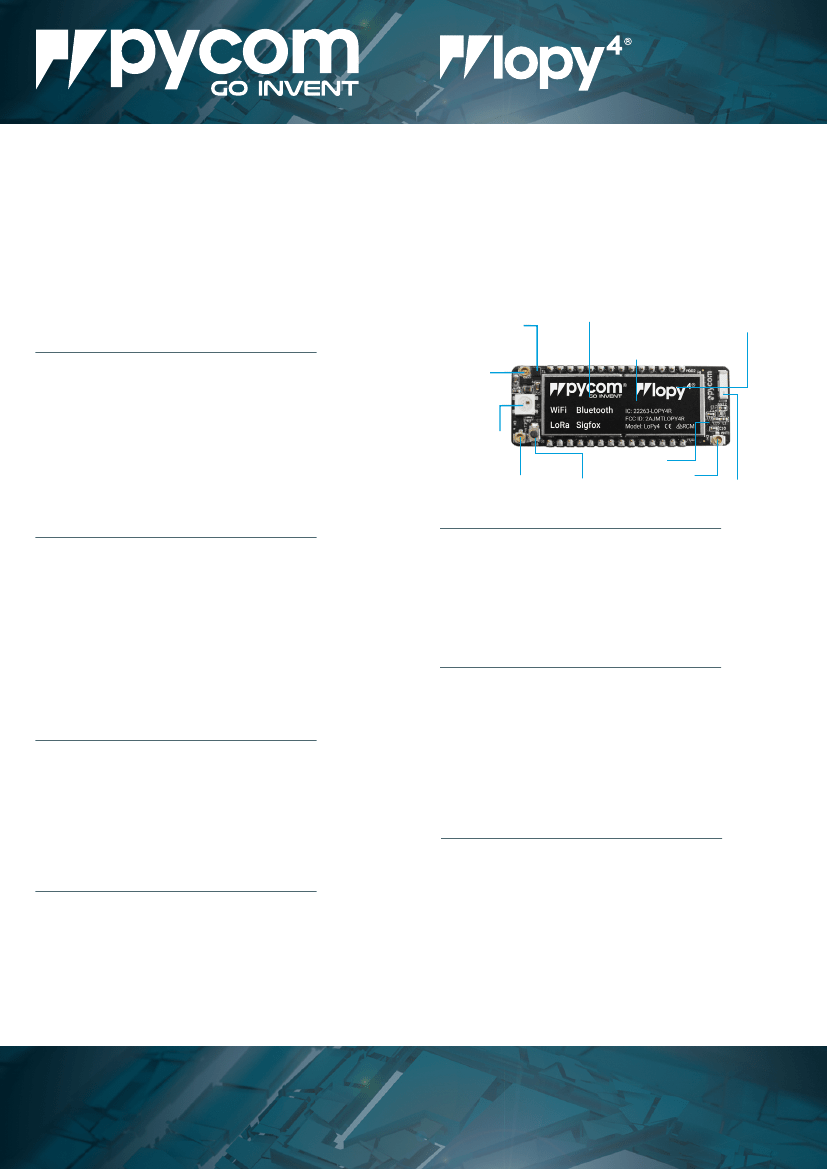

LoPy4
The LoPy4 is a quadruple bearer MicroPython enabled
development board (LoRa, Sigfox, WiFi, Bluetooth) – perfect
enterprise grade IoT platform for your connected Things. With the
latest Espressif chipset the LoPy4 offers a perfect combination of
power, friendliness and flexibility.
Create and connect you things everywhere. Fast.
Mechanical
Size: 55mm x 20mm x 3.5mm
Operating temperature:
-40 to 85 degrees celsius
3V3 Ultra-Low
-Noise switching
regulator
LoRa / Sigfox
868-915
MHz antenna
LoRa / Sigfox transceiver
ESP32 Dual Core
Microcontroller and
WiFi/Bluetooth 4.2
radio
8MB flash memory
LoPy4 Features
- Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi
Range
- Can also double up as a Nano LoRa gateway
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected
micro controllers
WS2812 RGB
multi-colour
LED
LoRa 433-510 MHz
antenna
RF switch
U.FL connector
Reset switch
Internal WiFi and
Bluetooth Antenna
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6
stack.
- Main processor is entirely free to run the user application.
- An extra ULP-coprocessor that can monitor GPIOs, the ADC
channels and control most of the internal peripherals during
deep-sleep mode while only consuming 25uA.
Sigfox Operating Frequencies
- RCZ1 - 868MHz (Europe)
- RCZ2 - 902MHz (US, Canada and Mexico)
- RCZ3 - (Japan and Korea)
- RCZ4 - 920 - 922 MHz (ANZ, Latin America and S-E Asia)
Sigfox Specification
- Class 0 device. Maximum Tx power:
+14dBm (Europe)
+20dBm (America)
+20dBm (Australia and New Zealand)
- Node range: Up to 50km
- Sigfox certified
LoRa Operating Frequencies
- 868 MHz (Europe) at +14dBm maximum
- 915 MHz (North and South America, Australia and New Zealand)
at +20dBm maximum
- 433 MHz (Europe) at +10dBm maximum
- 470 - 510 MHz (China) at +14dBm maximum
Lora Range Specifiction
- Node range: Up to 40km
- Nano-Gateway: Up to 22km
- Nano-Gateway Capacity: Up to 100 nodes
LoRa Specifiction
- Semtech LoRa transceiver SX1276
- LoRaWAN stack
- Class A and C devices
Distributed and manufactured by Pycom Ltd.
Registered office:
High Point, 9 Sydenham Road, Guildford, Surrey GU1 3RX, UK
Copyright © 2017 by Pycom Ltd. All rights reserved. No part of this
document may be reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or other electronic or
mechanical methods, without the prior written permission of Pycom Ltd,
except in the case of brief quotations embodied in critical reviews and
certain other noncommercial uses permitted by copyright law.
To order contact
sales@pycom.io
Interfaces
- 2 x UART, SPI, 2 x I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
-
GPIO: Up to 24
Hash / encryption
SHA, MD5, DES, AES
WiFi
802.11b/g/n 16mbps
Power
– Input: 3.3V – 5.5V
– 3v3 output capable of sourcing up to 400mA
– WiFi: 12mA in active mode, 5uA in standby
– LoRa: 15mA in active mode, 1-uA in standby
– Sigfox (Europe): 12mA in Rx mode, 42mA in Tx mode and 0.5uA
in standby
– Sigfox (Australia, New Zealand and South America): 12mA in Rx
mode, 120 mA in Tx mode and 0.5uA in standby
Bluetooth
Low energy and classic
RTC
Running at 32KHz
Memory
- RAM: 4MB
- External flash 8MB
- Hardware floating point acceleration
- Python multi-threading
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC - 2AJMTLOPY4R
- CE 0700
Use the Pymakr Plugins
Plugins for popular code editors to write your MicroPython scripts
With dozens of ready to use templates and libraries soon to
be available on the Pycom Exchange, developing a new IoT
solution is now easier and faster.
Quick Verification
For easy and fast debugging use the interactive shell that is
accessible through telnet or one of the serial ports
Easy Upload
Upload your scripts, and any other files you want to the LoPy4 via
the FTP server
Locally or remotely
Reset the LoPy4 (you can do it locally, or remotely via Telnet)
Distributed and manufactured by Pycom Ltd.
Registered office:
High Point, 9 Sydenham Road, Guildford, Surrey GU1 3RX, UK
Copyright © 2017 by Pycom Ltd. All rights reserved. No part of this
document may be reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or other electronic or
mechanical methods, without the prior written permission of Pycom Ltd,
except in the case of brief quotations embodied in critical reviews and
certain other noncommercial uses permitted by copyright law.
To order contact
sales@pycom.io
EU Regulatory Conformance
Hereby, Pycom Ltd declares that this device is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
for ensuring compliance with the module(s) installed and fully
operational. For example, if a host was previously authorized as
an unintentional radiator under the Declaration of Conformity
procedure without a transmitter certified module and a module is
added, the host manufacturer is responsible for ensuring that the
after the module is installed and operational the host continues to
be compliant with the Part 15B unintentional radiator requirements
The module is limited to OEM installation ONLY. The module is
limited to installation in mobile or fixed application. We hereby
acknowledge our responsibility to provide guidance to the host
manufacturer in the event that they require assistance for ensuring
compliance with the Part 15 Subpart B requirements.
IMPORTANT NOTE:
In the event that these conditions cannot
be met (for example certain laptop configurations or co-location
with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID cannot be used on the
final product. In these circumstances, the OEM integrator will
be responsible for reevaluating the end product(including the
transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the
antenna may be installed such that 20 cm may be maintained between
the antenna and users. The final end product must be labeled in a
visible area with the following: “Contains FCC ID: 2AJMTLOPY4R”.
The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
The following FCC part 15.19 statement has to also be available on
the label:
This device complies with Part 15 of FCC rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
RF Warning Statement
To comply with FCC RF exposure compliance requirements, the
antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna
or transmitter.
This device is intended only for OEM integrators under the
following conditions:
1) The antenna must be installed such that 20 cm is maintained
between the antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as two conditions above are met, further transmitter test
will not be required.
However, the OEM integrator is still responsible for testing
their end-product for any additional compliance requirements
required with this module installed. To ensure compliance with all
non-transmitter functions the host manufacturer is responsible
Manual Information to the End User
The OEM integrator has to be aware not to provide information to
the end user regarding how to install or remove this RF module in
the user’s manual of the end product which integrates this module.
In the user manual of the end product, the end user has to be
informed that the equipment complies with FCC radio-frequency
exposure guidelines set forth for an uncontrolled environment.
The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
The end user manual shall include all required regulatory
information/warning as show in this manual.
The maximum operating ambient temperature of the equipment
declared by the manufacturer is
-20~+85C
Receiver category 3
