KV2001 – KV2801
TM
®
VARACTOR DIODES
HF/VHF/UHF Hyperabrupt Junction
RoHS Compliant
DESCRIPTION
These families of hyperabrupt junction RF varactor diodes feature
computer controlled grown junction epitaxy which provides extraordinary
consistency and the highest Q available in a 22 Volt hyperabrupt varactor.
These series give the designer a full capacitance range of 10 to 500 pF at 3
or 4 volts of bias, depending on product series. They allow octave tuning of
LC tanks through 500 MHz. With a reduced 1.5 to 1 frequency ratio,
straight-line-frequency tuning over a 3 to 8 volt tuning range is possible.
Ultrahigh Q and excellent large signal handling capabilities, along with a 2
to 1 capacitance ratio, is obtained by tuning from 9 to 20 volts of reverse
bias. Linear, wide deviation tuning of VCXO/TCXO’S and frequency
modulators also results when these diodes are tuned over a 3 to 8 volt bias
range.
Closely matched sets of all HF-VHF diodes are available along with “A”
suffix versions having ±5% capacitance tolerance at 3 or 4 volts of reverse
bias depending on series selected.
KEY FEATURES
Available as packaged devices or
as chips for hybrid applications
Octave Tuning Range
Ultrahigh Q
Available with 5% Tolerance C
T
www.MICROSEMI.com
APPLICATIONS
These families of hyperabrupt varactors are ideal for wide bandwidth
VCOs. They also provide excellent performance in frequency modulators,
voltage variable filters, analog phase shifters, TCXOs and VCXOs.
APPLICATIONS/BENEFITS
Values cover the entire HF / VHV
/ UHF spectrum;
Highest Q / lowest VCO phase
noise
Tough MIL-Spec SiO
2
passivation
Dozens of package outlines
available
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Working Voltage
Storage Temperature
Operating Temperature
Symbol
V
R
T
STG
T
OP
Value
22
-65 to +150
-55 to +150
Unit
V
KV2001-KV2801
KV2001-KV2801
ºC
ºC
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
Unless otherwise specified, these products
are supplied with Gold terminations suitable
for RoHS compliant assembly.
1
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KV2001 – KV2801
TM
®
VARACTOR DIODES
HF/VHF/UHF Hyperabrupt Junction
RoHS Compliant
HF / VHF – HYPERABRUPT VARACTORS
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
C
T
(pF)
MODEL
NUMBER
V
R
= 4V
KV2001
KV2201
KV2301
KV2401
KV2501
KV2601
KV2701
18 / 20 / 22
45 / 50 / 55
100 / 110 / 120
140 / 155 / 170
180 / 200 / 220
270 / 300 / 330
450 / 500 / 550
ƒ = 1 MHz
www.MICROSEMI.com
Min / Typ / Max
V
R
= 8V
7.5 / 8.5 / 10.5
18 / 20 / 25
39 / 45 / 55
55 / 65 / 80
70 / 85 / 105
110 / 125 / 155
175 / 195 / 225
V
R
= 20V
3.1 / 3.5 / 3.9
7.3 / 8.0 / 9.2
15 / 17 / 19
22.5 / 25 / 28
29 / 32 / 36
42.5 / 48 / 53.5
66 / 75 / 83
Capacitance
Ratio
Typ
C(-4V) / C(-20V)
5.8
6.3
6.6
6.2
6.3
6.4
6.8
Quality
1
Factor
Min/Typ
Q @-4V
ƒ= 50MHz
160 / 220
125 / 165
80 / 110
70 / 90
60 / 80
40 / 50
30 / 40
I
R
Typ/Max
V
R
= 20V
(nA)
15 / 100
20 / 100
30 / 100
50 / 500
70 / 500
100 / 1000
150 / 1000
UHF – HYPERABRUPT VARACTORS
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
C
T
(pF)
MODEL
NUMBER
V
R
= 3V
KV2101
KV2801
10.5 / 11.5 / 12.5
25 / 28 / 31
ƒ = 1 MHz
Min / Typ / Max
V
R
= 8V
4.3 / 5.0 / 5.7
10 / 12 / 13.5
V
R
= 20V
2.0 / 2.15 / 2.3
4.5 / 4.8 / 5.1
CAPACITANCE
RATIO
Typ
C(-3V) / C(-20V)
5.4
5.9
QUALITY
1
FACTOR
Min/Typ
Q @-3V
ƒ = 50MHz
300 / 350
200 / 250
I
R
Typ/Max
V
R
= 20V
(nA)
10 / 100
20 / 100
ELECTRICAL
ELECTRICAL
1.
Q is determined at V
R
= 4V, ƒ=50 MHz by
Q
½
1 /( 2
fRsCj
)
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748

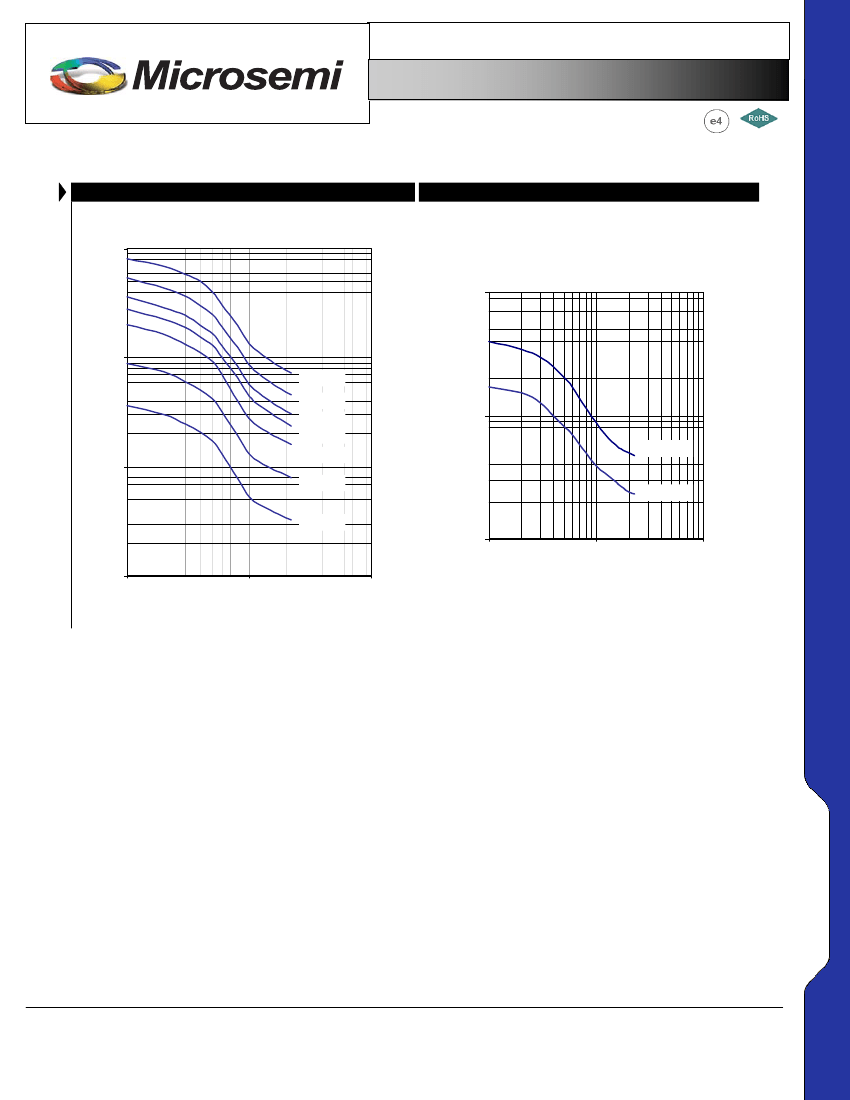

KV2001 – KV2801
TM
®
VARACTOR DIODES
HF/VHF/UHF Hyperabrupt Junction
RoHS Compliant

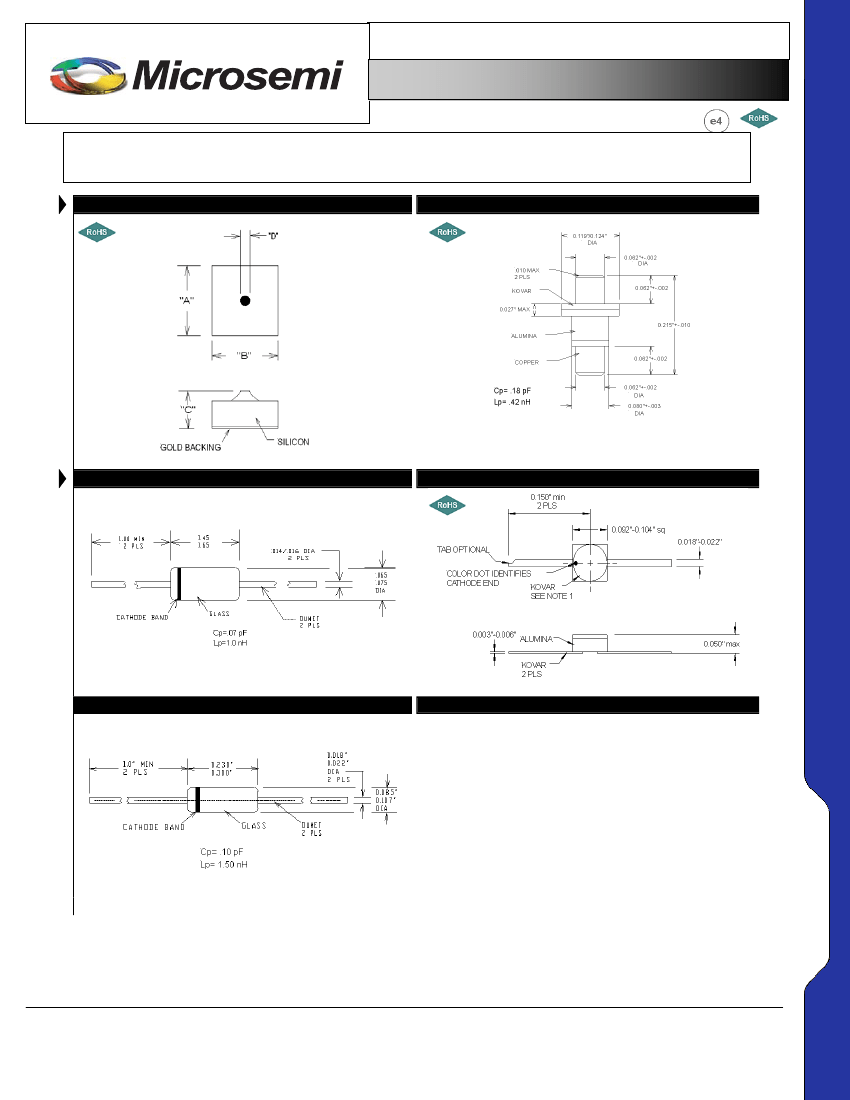

TYPICAL PACKAGE SYLES
Microsemi offers a variety of package styles to meet specific application requirements. Some limitations apply. Consult
factory for details.
PACKAGE STYLE 00
PACKAGE STYE 30
www.MICROSEMI.com
PACKAGE STYLE 15
PACKAGE STYPE 17
PACKAGE STYLE 11
NOTES
The standard 11 and 15 package styles are not
RoHS compliant. Consult Factory for RoHS
complaint options.
MECHANICAL
MECHANICAL
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 4
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
