QPP2209
®
8 – 12 GHz 40 Watt VPIN Limiter
Product Overview

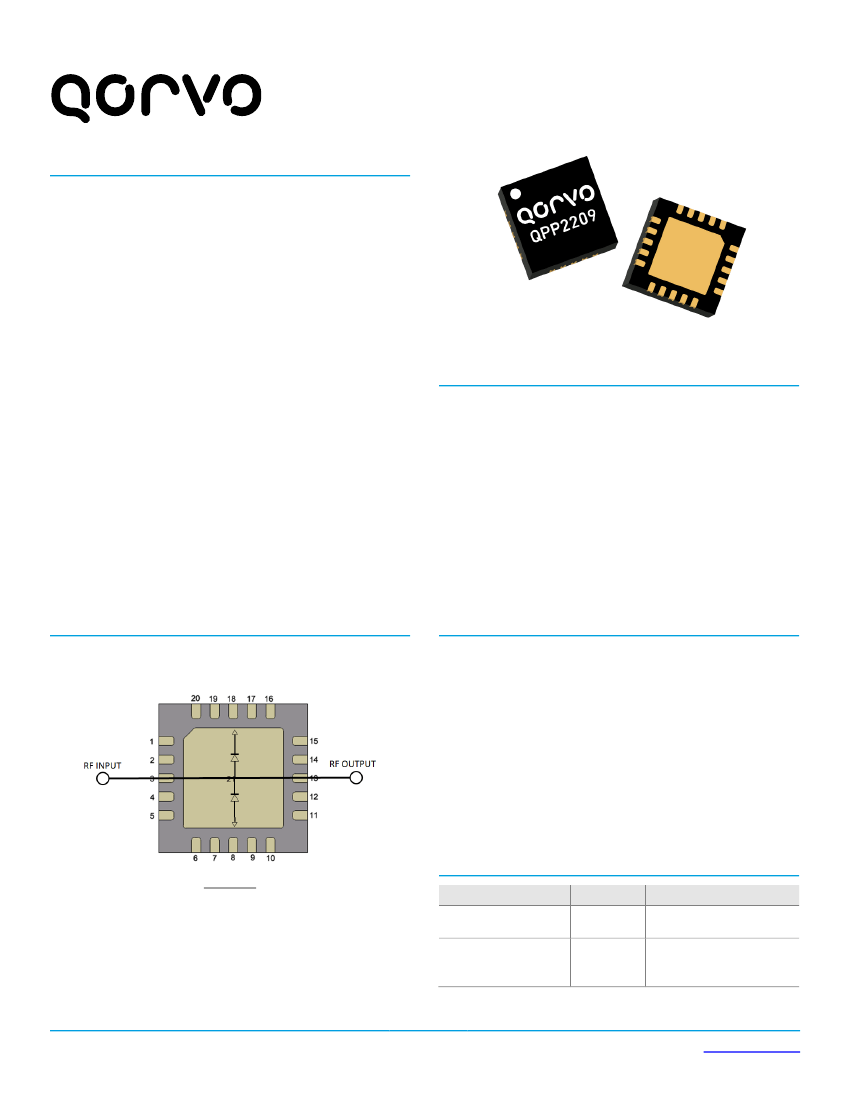

Qorvo's QPP2209 is a high power VPIN limiter robust to
short-pulse input signals up to 40W. It offers exceptionally
low insertion loss over a wide bandwidth and requires no
DC bias. The QPP2209 is housed in a low-cost plastic
over-molded QFN package.
The QPP2209 is internally matched to 50 ohms and
operates from 8 to 12 GHz with typical insertion loss less
than 0.5dB and flat leakage below 19dBm. It is capable of
withstanding 40W of incident power under short-pulse
conditions. It is well suited for both commercial and
defense related applications.
Lead-free and RoHS compliant.

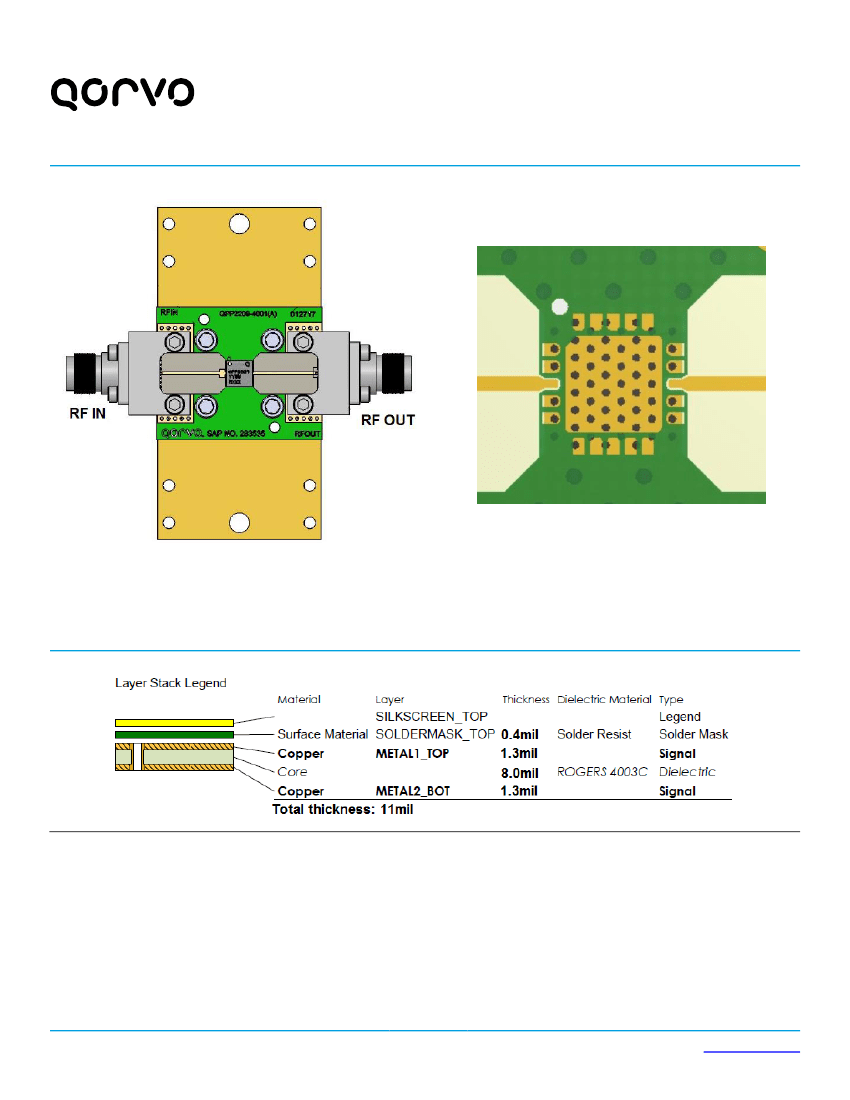

Evaluation boards available on request.
20L 4 x 4 mm OVM QFN Package

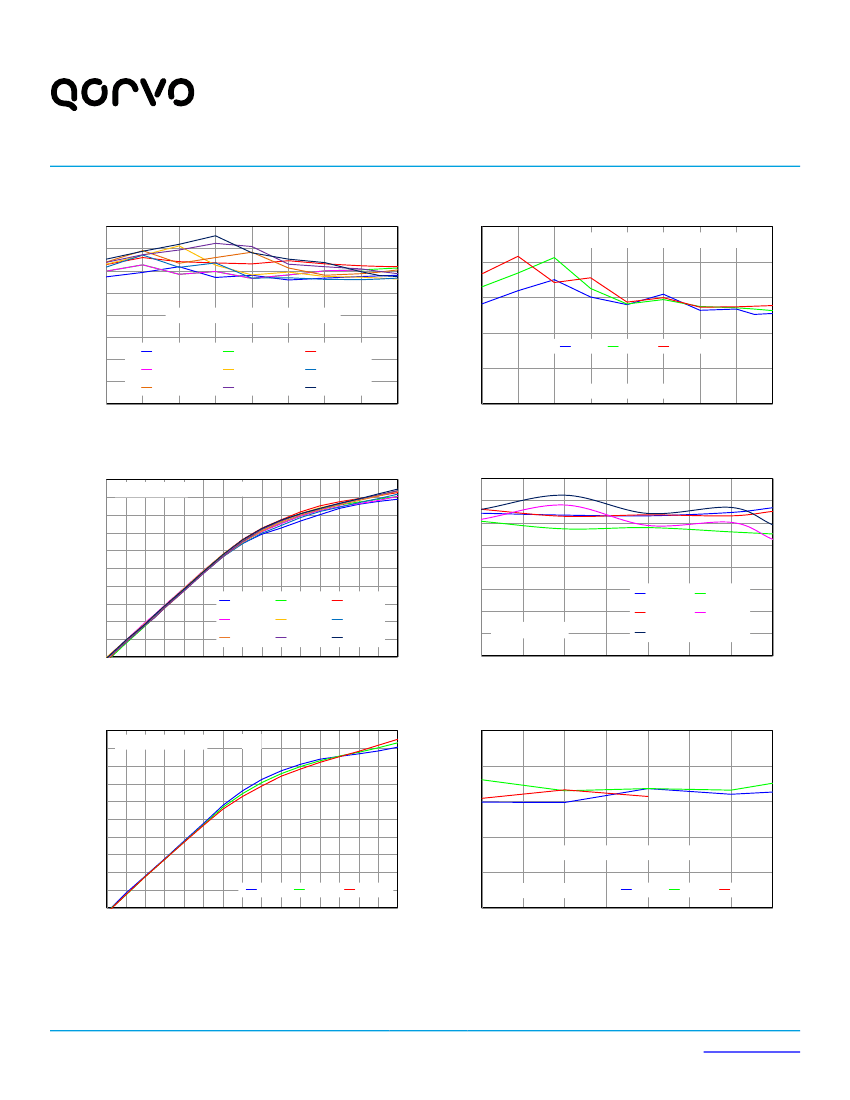

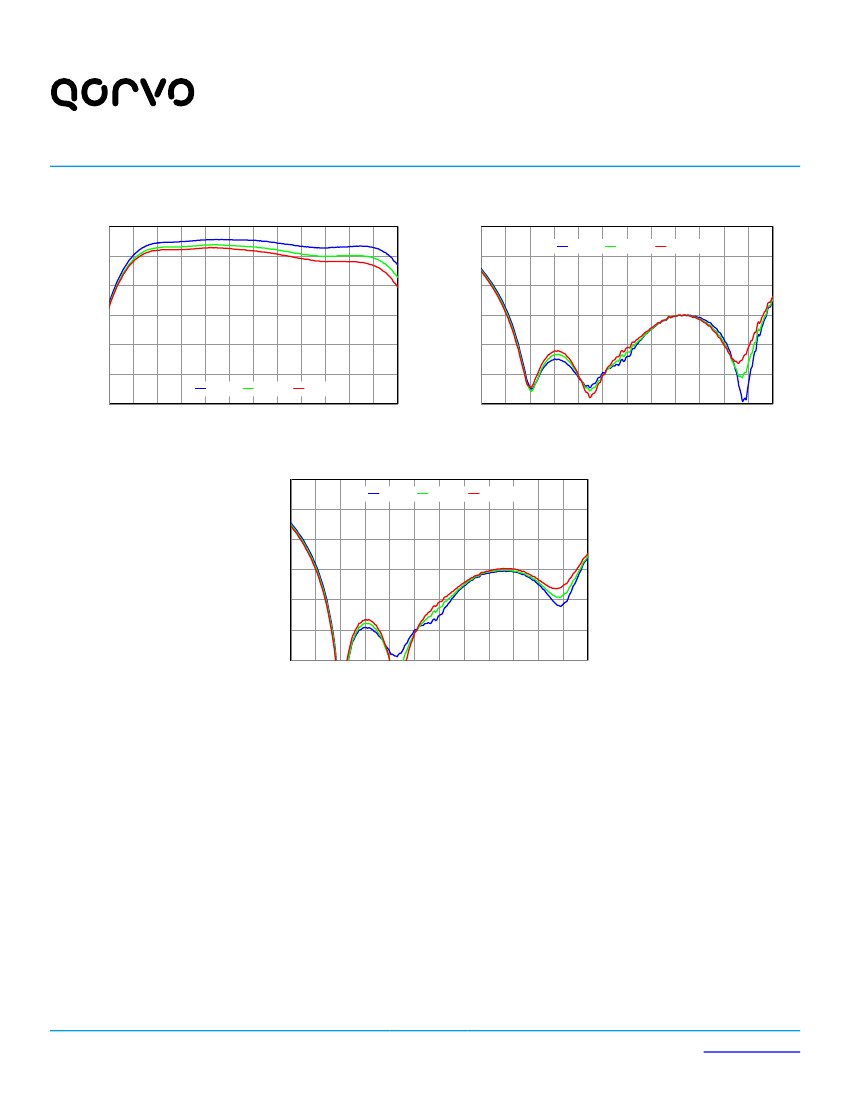

Key Features
Frequency Range: 8 to 12 GHz
Insertion Loss: < 0.5 dB
Peak Power Handling: 40 W (pulsed)
Flat Leakage: < 19 dBm
Spike Leakage < 20.5 dBm
Passive (no DC bias required)
Recovery time < 115 ns
Package Dimensions: 4.00 x 4.00 x 0.85 mm
Functional Block Diagram
Applications
Receive Chain Protection
Commercial and Military Radar
Ordering Information
Top View
Part
QPP2209
QPP2209_EVB
ECCN
EAR99
EAR99
Description
8–12 GHz 40W VPIN
Limiter
8–12 GHz 40W VPIN
Limiter Evaluation
Board
Data Sheet Rev. B, August, 2017 | Subject to change without notice
1 of 8
www.qorvo.com
