High Temperature Dura-Con
TM
Micro-D
175°C Plug and PCB Connectors
High reliability connectors for military, oil and gas applications
Our product engineering and development activities employ cutting edge technologies, and our various
technologies and expertise enable us to deliver the right solutions and products to meet your application needs.
belfuse.com/cinch
Dura-Con
TM

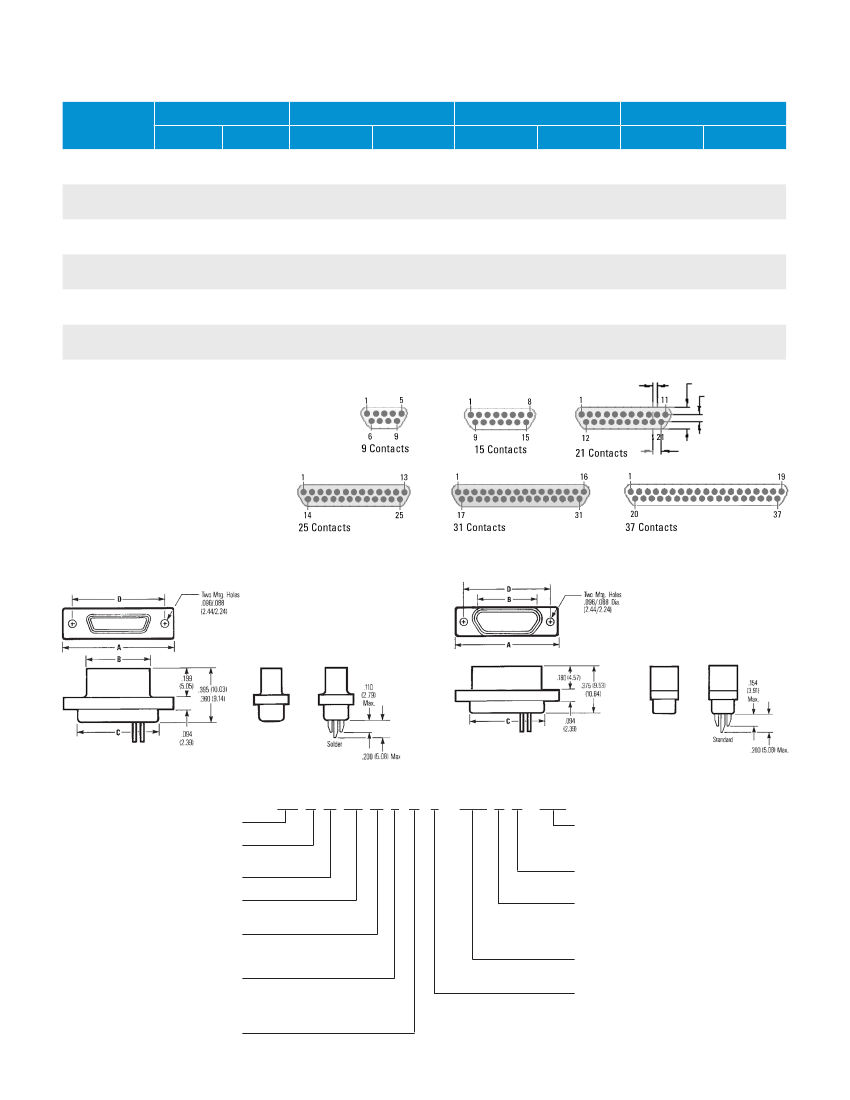

DCHM Solder Cup with Wire
No. of
Contacts
9
15
21
25
31
37
Plug
Socket
Plug
Socket
Plug
Socket
Plug
Socket
Plug
Socket
Plug
Socket
A Max.
In.
0.785
0.785
0.935
0.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
B Max.
mm.
19.94
19.94
23.74
C Max.
mm.
8.48
10.08
12.29
13.89
16.10
17.70
18.64
20.24
22.45
24.05
26.26
27.86
D Nominal
mm.
10.16
10.16
13.97
13.97
17.78
17.78
20.32
20.32
24.13
24.13
27.94
27.94
.0254 Typ.
in.
0.334
0.397
0.484
0.547
0.634
0.697
0.734
0.797
0.884
0.947
1.034
1.097
in.
0.400
0.400
0.550
0.550
0.700
0.700
0.800
0.800
0.950
0.950
1.100
1.100
in.
0.565
0.565
0.715
0.715
0.865
0.865
0.965
0.965
1.115
1.115
1.265
1.265
.130
.043
(1.09)
mm.
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
23.74
27.56
27.56
30.10
30.10
33.97
33.97
37.72
37.72
Contact Arrangements
Face View of Pin Insert
(use reverse order for socket side)
.05 (1.27)
Typ.
Shell Dimensions
Plug
Socket
How to Order
DC H M XX P 6 N 6 - 36.0 B N - HT1
Cinch Dura-Con “D”
Insulator Type
H=High Temperature LCP
M=Metal Shell
Contact Positions
xx = 9,15, 21, 25, 31, 37
Contact Type
P = Plug (PIN)
S = Socket (Receptacle)
Wire Size (in AWG)
6=26, 8=28
S=Solder Cup
(Skip to Mounting Hardware)
Operating Temperature
HT1 = 175°C
Shell Plating
N = Nickel
Mounting hardware
B = No Hardware
M = Jackscrew Hex Head
Low Profile Per M83513/05-02
Lead Length
(in Inches) XX.X
Insulation Color
1 = White
5 = Color Coded Per Mil-Std 681 System 1
First 10 Colors then repeat
Insulated Wire Type
N = Mil-W-22759/33
Dura-Con
TM

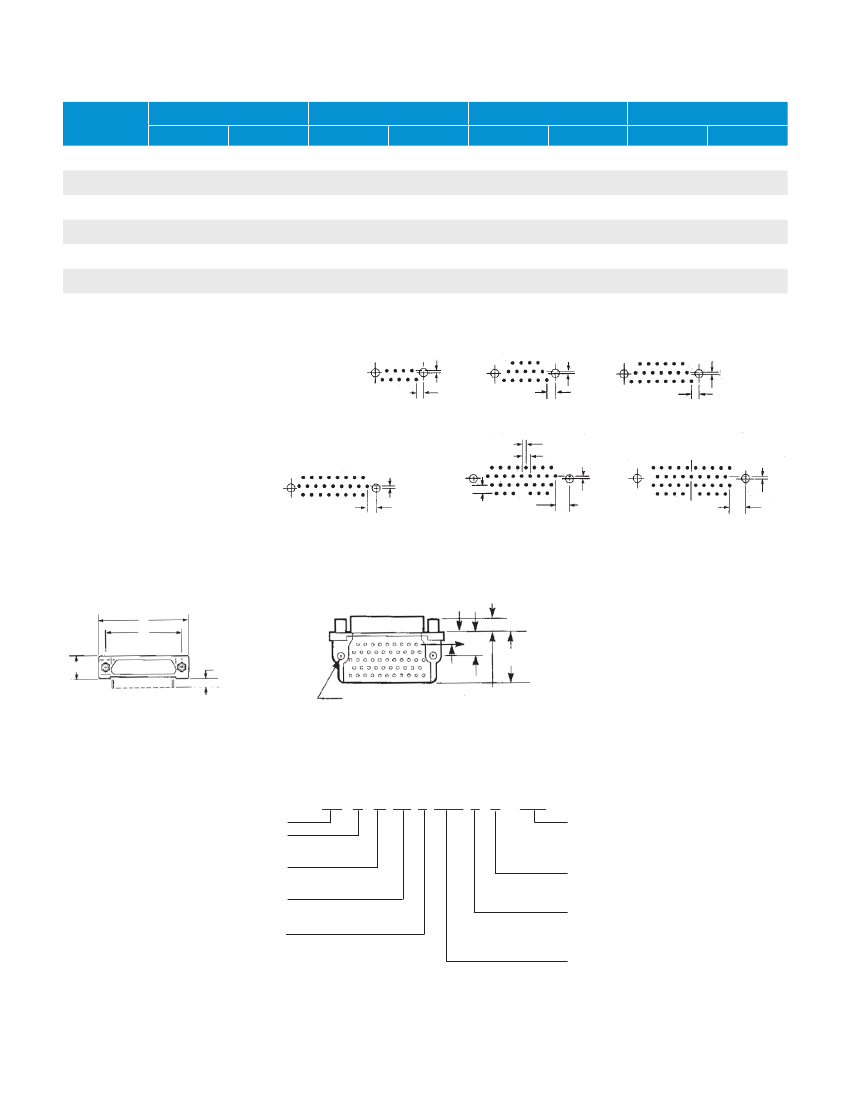

DCHM PCB Sockets
No. of
Contacts
9 Socket
15 Socket
21 Socket
25 Socket
31 Socket
37 Socket
A Max.
In.
0.785
0.935
1.085
1.185
1.335
1.485
B
mm.
19.940
23.750
27.560
30.100
33.910
37.720
C
mm.
14.350
18.160
21.970
24.510
28.320
32.130
D Max.
mm.
5.840
3.300
3.300
3.300
3.300
3.300
in.
0.565
0.715
0.865
0.965
1.115
1.265
in.
0.230
0.130
0.130
0.130
0.130
0.130
in.
0.420
0.420
0.420
0.420
0.520
0.520
mm.
10.670
10.670
10.670
10.670
13.210
13.210
0.020”
(0.508)
0.020”
(0.508)
0.020”
(0.508)
Termination Arrangements
Per MIL-DTL-83513
(as viewed from bottom of terminal block)
0.083” (2.108)
0.108” (2.743)
0.083” (2.108)
9 Contacts
15 Contacts
0.050 (1.270) TYP.
0.020”
(0.508)
21 Contacts
0.020”
(0.508)
0.020”
(0.508)
0.100 (2.540) TYP.
0.083” (2.108)
0.100” (2.540) TYP.
0.158”
(4.013)
0.183” (4.648)
25 Contacts
31 Contacts
37 Contacts
Shell Dimensions
90° Narrow Termination Socket
A
B
0.250”
0.308”
D
0.109” ± 0.015
0.096” Dia.
C
0.190”
(Max.4.83)
How to Order
DC H M XX S CBR P N - HT1
Cinch Dura-Con “zD”
Insulator Type
H = High Temperature
LCP
Mounting Type
M = Metal Shell
Number of Contacts
XX = 9,15, 21, 25, 31, 37
Contact Type
S = Socket (Receptacle)
Operating Temperature
HT1 = 175°C
Shell Finish
N = Electroless Nickel
Hardware
No Letter = Less Hardware
P = Jackpost
CBR = 90° Narrow Profile PCB

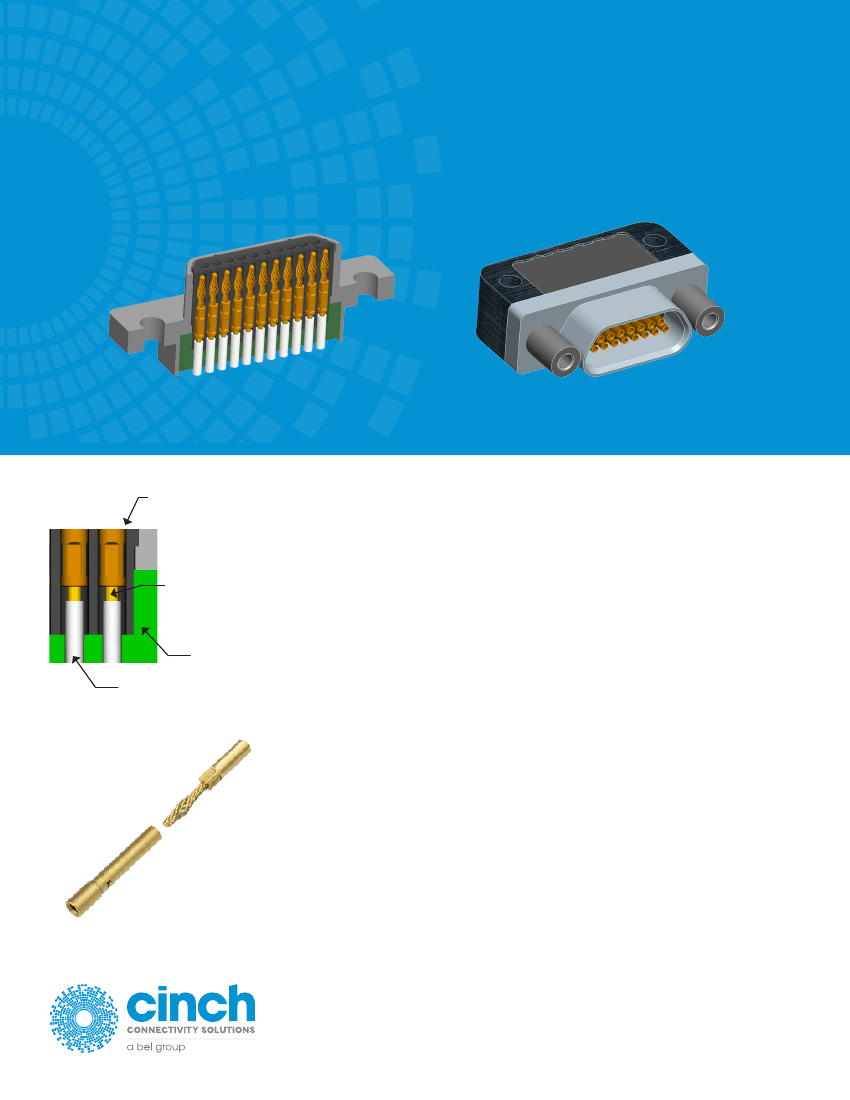

Connection Technology
Our DCHM Dura-Con
TM
productis capable of meeting the extreme mechanical and electrical needs in the harshest
enviroments of military/aerospace and industrial applications, such as downhole drilling. Cinch has teamed our proven
twist pin technology with unique plug insulators that preovide increased electrical protection between cavities.
These plugs mate to our right angle PCB socket connectors, to make a connector system that offers superior performance.
This technology also provides the confidence and reliability needed in high temperature, vibration and shock applications.
Dura-Con™ Plug (pin)
Dura-Con™ PCB Connector (socket)
Custom Insulator
Product Offerings
• Sizes: 9, 15, 21, 25, 31 and 37
(contact factory for larger sizes).
Exposed Conductor
Recessed Into
Insulator
• Full harnessing capabilities ranging from simple point-point to complex
with many branches
•
Custom configurations and modifications available to fit unique
packaging and design requirements
2-Part Epoxy
Wire Insulation
Performance Charatoristics
• Operating Temerature: -55°C to 175°C
• Shock: 50 G’s per MIL-STD-1344, Method 2004, Condition E
(EIA-364-27, Condition E)
• Vibration: 20 G’s per MIL-STD-1344, Method 2005, Condition IV
(EIA-364-28, Condition IV)
Cinch’s Twist Pin Advantage
• Combine the twist pin performance with increased temperature range
• BeCu wire strands provide seven points of electrical contact
Detail of Dura-Con™ Twist Pin
• Achieve high mating cycles and better resistance to shock and vibration
• Approved system applications (Aerospace, Defense and Geo-Thermal)
•
Qualified and approved to Mil-DTL-83513
+1 630.705.7524
inquiry@us.cinch.com
cinch.com
© 2018 Cinch Connectivity Solutions
CCS Dura-Con Micro-D High Temp rev03_04262018
