34_BNC-SMB-50-1/133_NE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

34_BNC-SMB-50-1/133_NE Overview

RF Adapters - Between Series

34_BNC-SMB-50-1/133_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	BNC-SMB
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	BAYONET-SNAP
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

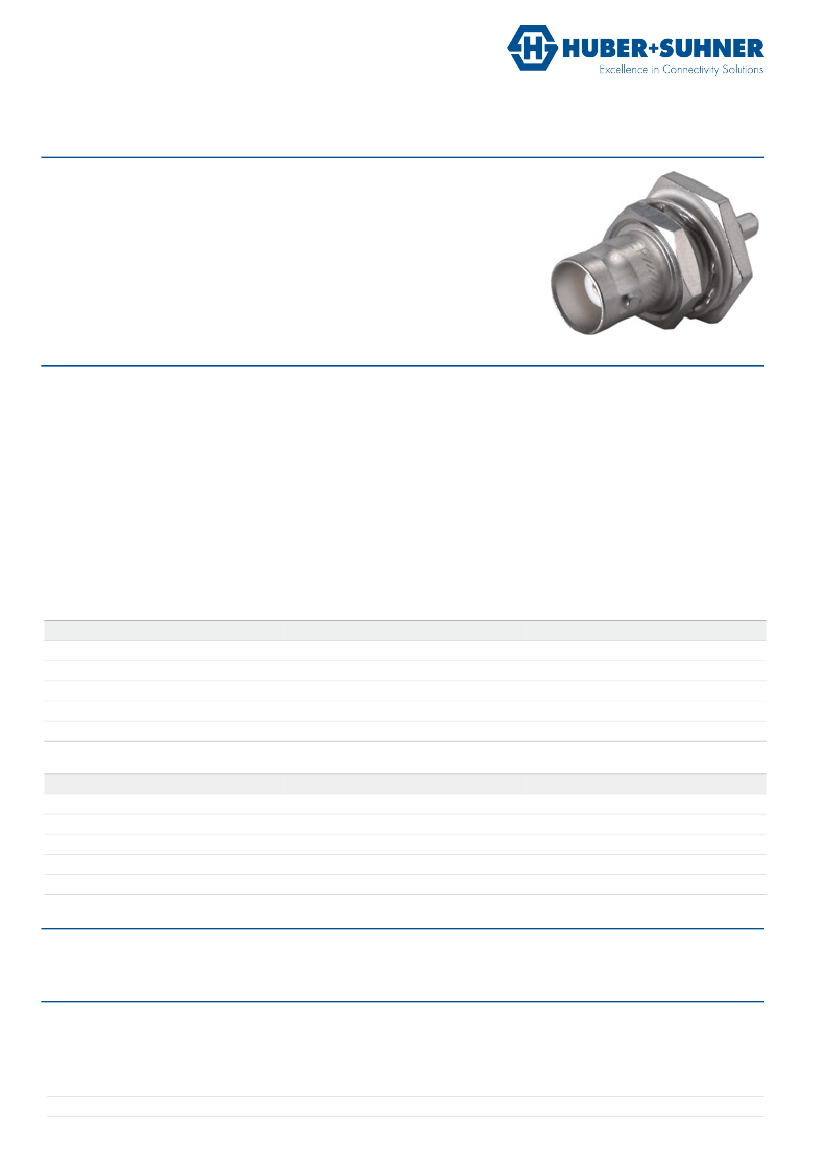

Data Sheet

Between Series Adaptor

34_BNC-SMB-50-1/133_N

Description

Bulkhead adaptor jack/jack

BNC jack (female) / SMB jack (female)

Ingress protection according to IP66

Interface standards

Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120

Series SMB - IEC 60169-10_MIL-STD-348A/311_CECC 22130

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

4 GHz

DC to 2 GHz

≥ 30 dB

2 to 4 GHz

≥ 17 dB

Mechanical Data

Number of matings

Weight

500

0.0137 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - BNC jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

VMQ (Silicone rubber)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Interface - SMB jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

VMQ (Silicone rubber)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating
