33_TNC-N-Q50-4/133_NE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size119KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

33_TNC-N-Q50-4/133_NE Overview

RF Adapters - Between Series

33_TNC-N-Q50-4/133_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeTNC-N
Other featuresSTANDARD: IEC 60169-17, MIL-STD-348A/313
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-FEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
MIL complianceYES
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.14
Base Number Matches1
Data Sheet

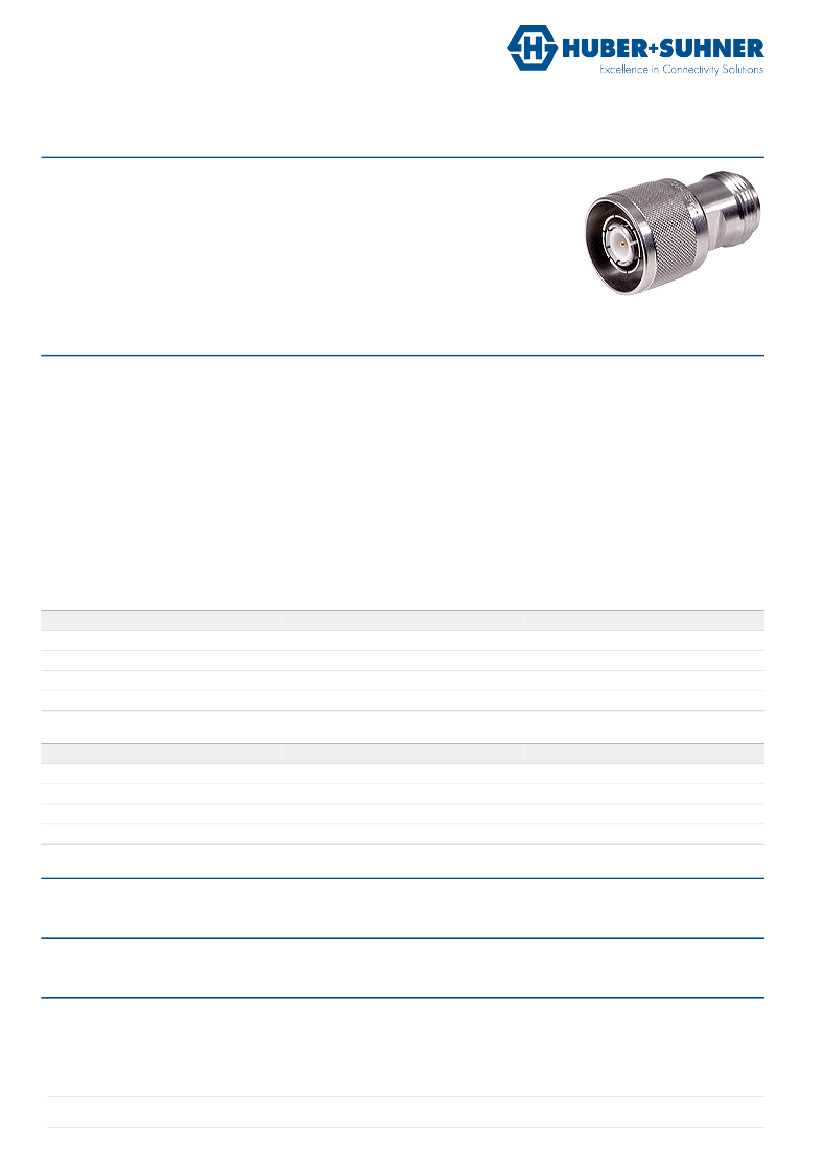

Between Series Adaptor
33_TNC-N-Q50-4/133_N
Description
Adaptor plug/jack
TNC Quick-mate plug (male) / N jack (female)
Quick-mate coupling mechanism, pluggable without tightening
For Test & Measurement applications
Interface standards
Series TNC Quick-mate - HUBER+SUHNER Quick-mate
Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
11 GHz
DC to 4 GHz
≥ 30 dB
4 to 8 GHz
≥ 24 dB
8 to 11 GHz
≥ 18 dB
Mechanical Data
Number of matings
Weight
500
0.0361 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - TNC Quick-mate plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - N jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00014203
Ordering Information
Single package
33_TNC-N-Q50-4/133_NE
Remarks
Durability of QUICK MATE interface: 1000 matings
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195212 O / PDO F / date of publication: 12/4/2014 4:39:45 PM / uncontrolled copy
Page 1/1
