34_BNC-50-0-6/100_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size106KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

34_BNC-50-0-6/100_NE Overview

RF Adapters - Within Series

34_BNC-50-0-6/100_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeBNC-BNC
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-FEMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
MIL complianceYES
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.7
Base Number Matches1

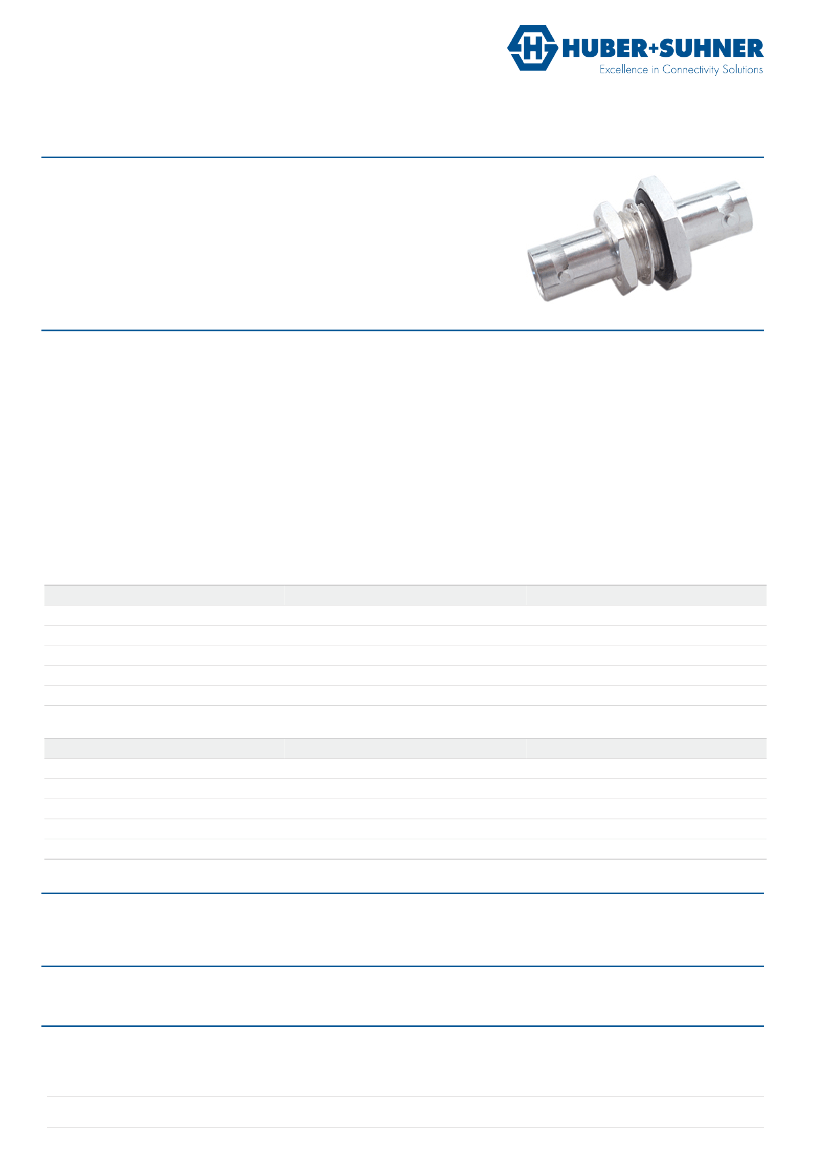

Data Sheet
Within Series Adaptor
34_BNC-50-0-6/100_N
Description
Bulkhead adaptor jack/jack
BNC jack (female) / BNC jack (female)
Hermetic sealed connector
Interface standard
Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
4 GHz
DC to 4 GHz
≥ 15 dB
Mechanical Data
Number of matings
Weight
500
0.0232 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
not compliant
Material Data
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
EPDM (Ethylene propylene diene rubber)
Surface Plating
Gold Plating (Nickel underplated)
Silver Plating
Silver Plating
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
EPDM (Ethylene propylene diene rubber)
Surface Plating
Gold Plating (Nickel underplated)
Silver Plating
Silver Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00013677
DOU-00008751
Ordering Information
Single package
34_BNC-50-0-6/100_NE
Remarks
Hermetic sealed
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194258 T / PDO J / date of publication: 09.06.2016 08:00:22 / uncontrolled copy
Page 1/1
