33_MMPX-SK-50-1/199_NE Overview

RF Adapters - Between Series

33_MMPX-SK-50-1/199_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeMMPX-SK
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-FEMALE
Coupling typeSNAP-THREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPPO PPE
MIL complianceNO
Maximum operating frequency40 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.22
Base Number Matches1

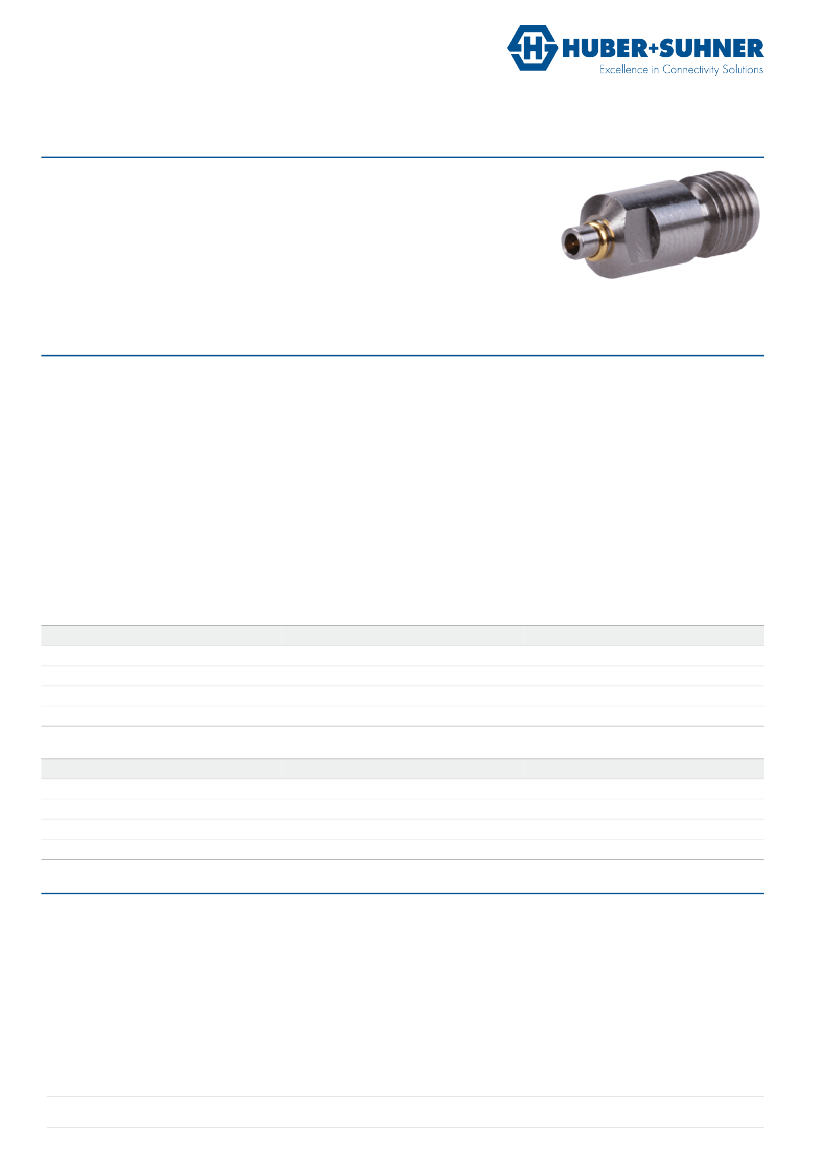

Data Sheet
Between Series Adaptor
33_MMPX-SK-50-1/199_N
Description
Adaptor plug/jack
MMPX plug (male) / SK jack (female)
Precision adaptor
For Test & Measurement applications
Interface standards
Series MMPX - HUBER+SUHNER MMPX STD (Patent US 7.294.023)
Series SK - MIL-STD-348A/323
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
40 GHz
DC to 15 GHz
≥ 26 dB
16.1 mm
15 to 30 GHz
≥ 23 dB
30 to 40 GHz
≥ 20 dB
Mechanical Data
Number of matings
Weight
100
0.0022 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 125 °C
compliant
Material Data
Interface - MMPX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Surface Plating
SUCOPRO Plating
Interface - SK jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Surface Plating
SUCOPRO Plating
Ordering Information
Single package
33_MMPX-SK-50-1/199_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000288297 O / PDO G / date of publication: 12/4/2014 4:34:11 PM / uncontrolled copy
Page 1/1
