RJF Tv
NEW
For big insulation wire up to 1.6 mm
special RJf tV plug dedicated to ethernet cable with
insulation wire from 1,1 to 1,6 mm.
Remark:
- compatible with any RJf tV receptacle
- for cables which are not compatible with standard RJ45
plug
Applications
n
Robotics
n
Industrial process control
n
cnc machines
n
special machines
n
oil & Gas
n
Motion control
n
Data acquisition and transmission in
harsh environment
n
tele-maintenance
main characteristics
n
sealed against fluids and dusts (IP68)
n
shock, vibration and traction resistant
n
cabling operation in field and no tools required
no
n
Mechanical coding / Polarization (4 positions)
n
Improved eMI protection
n
Tri Start Thread coupling mechanism (mIl-DTl-38999 series III type)
with anti-decoupling device - Shell size 19
n
Robust metallic shells
n
RJ45 cordset retention in the plug: 100 n in the axis
n
Mating cycles: 500 min
n
ompatible with cable diameter from 6 mm [0.236 in] to 13 mm [0.512 in], for
c
smaller diameters please consult us
Data transmission
10 baset, 100 basetX and 1000 baset
networks
cat 5e per tIa/eIa 568b and classD per
Iso/Iec 11801
Environmental protection
n
sealing: IP68
n
salt spray: 48 h with nickel plating
> 96 h with black coating
> 500 h with olive drab cadmium
n
fire retardant/low smoke: Ul94 V0 and nf f 16 101 & 16 102
n
Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 10 nano s.
n
shocks: IK06
►
weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated
pair)
n
Humidity: 21 days, 43°c, 98% humidity
n
thermal shock: 5 cycles at - 40°c / +100°c
n
temperature range: - 40°c / +85°c
Amphenol
56 [2.2]
41 [1.61]

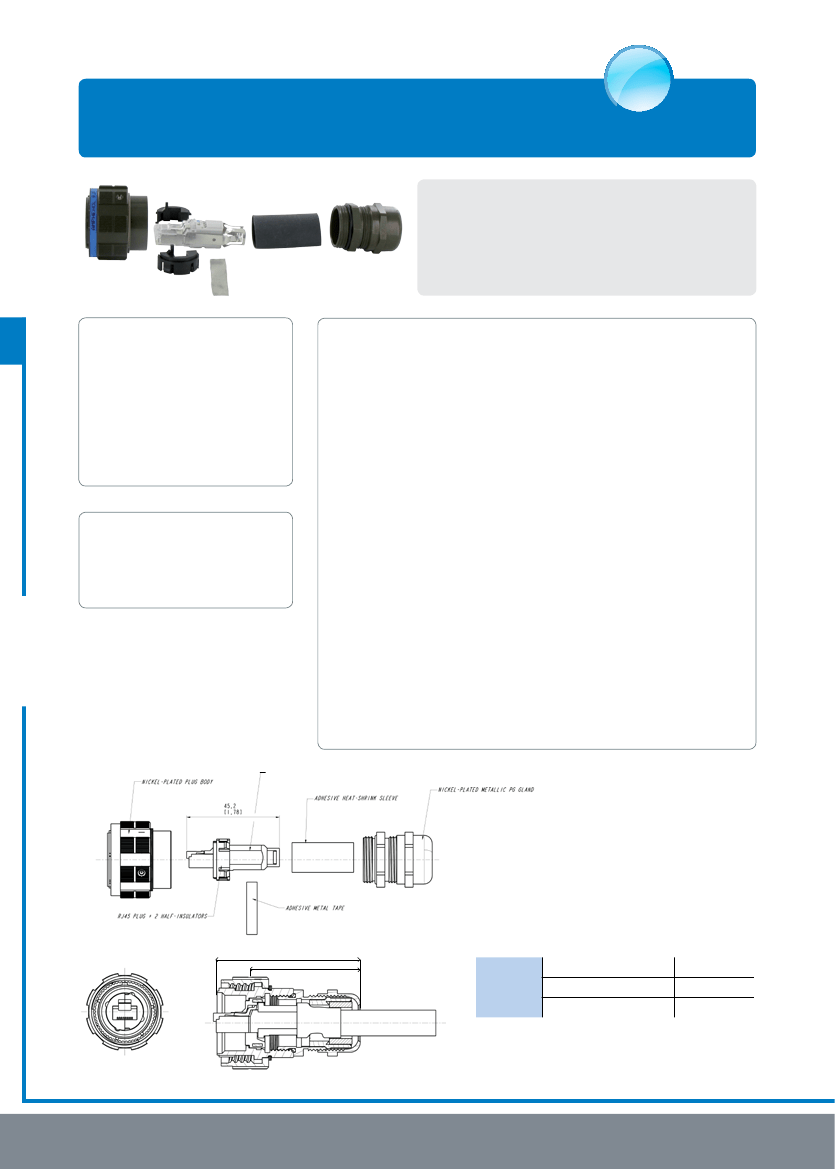

SPECIAL RJ45 PLUG FOR ISOLATION WIRE UP TO 1,6 MM
Part
number
Plating
nickel -
ROHS compliant
olive drab cadmium
P/N
35660
35660G
38
