TPSMCJ Series
Working Voltage: 10 to 78 V
Peak Pulse Power: 1500 W
Features
●
●
Surface Mount
Transient Voltage Suppressors
SMC/ DO-214AB
Glass passivated chip
1500 W peak pulse power capability with a
10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
High reliability application and automotive
grade AEC Q101 qualified
Low leakage
Uni and Bidirectional unit
Excellent clamping capability
Very fast response time
RoHS compliant
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Solderable per MIL-STD-750, method
2026
Polarity: Color band denotes cathode end
except Bipolar
Mounting position: Any
●
●
●
●
●
●

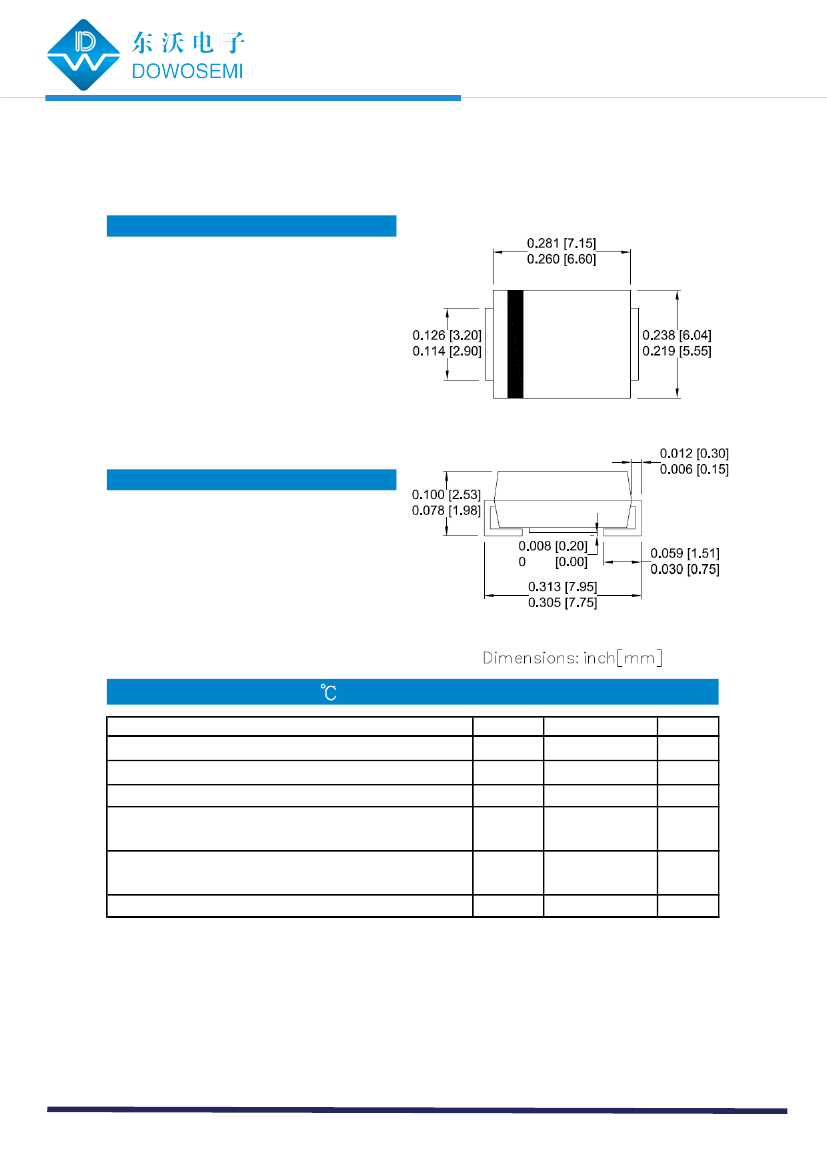

Mechanical Data
●
●
●
●
●
Maximum Ratings(T
A
=25℃ unless otherwise noted)
Parameter
(1)
Peak power dissipation with a 10/1000μs waveform
Peak pulse current with a 10/1000μs waveform
(1)
Power dissipation on infinite heatsink at T
L
= 75 °C
Peak forward surge current, 8.3 ms single half sine-
(2)
wave unidirectional only
Maximum instantaneous forward voltage at 100 A for
(3)
unidirectional only
Operating junction and storage temperature range
Note:
(1)Non-repetitive current pulse per Fig.5 and derated above T
A
= 25 °C per Fig.1
(2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
(3)V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Value
Symbol
P
PP
1500
I
PP
See Next Table
P
D
6.5
I
FSM
V
F
T
J
, T
STG
200
3.5/5.0
- 55 to +150
Unit
W
A
W
A
V
°C
www.dowosemi.cn
P. 1
TPSMCJ Series
Ratings and Characteristics Curves (T
A
=25℃ unless otherwise noted)

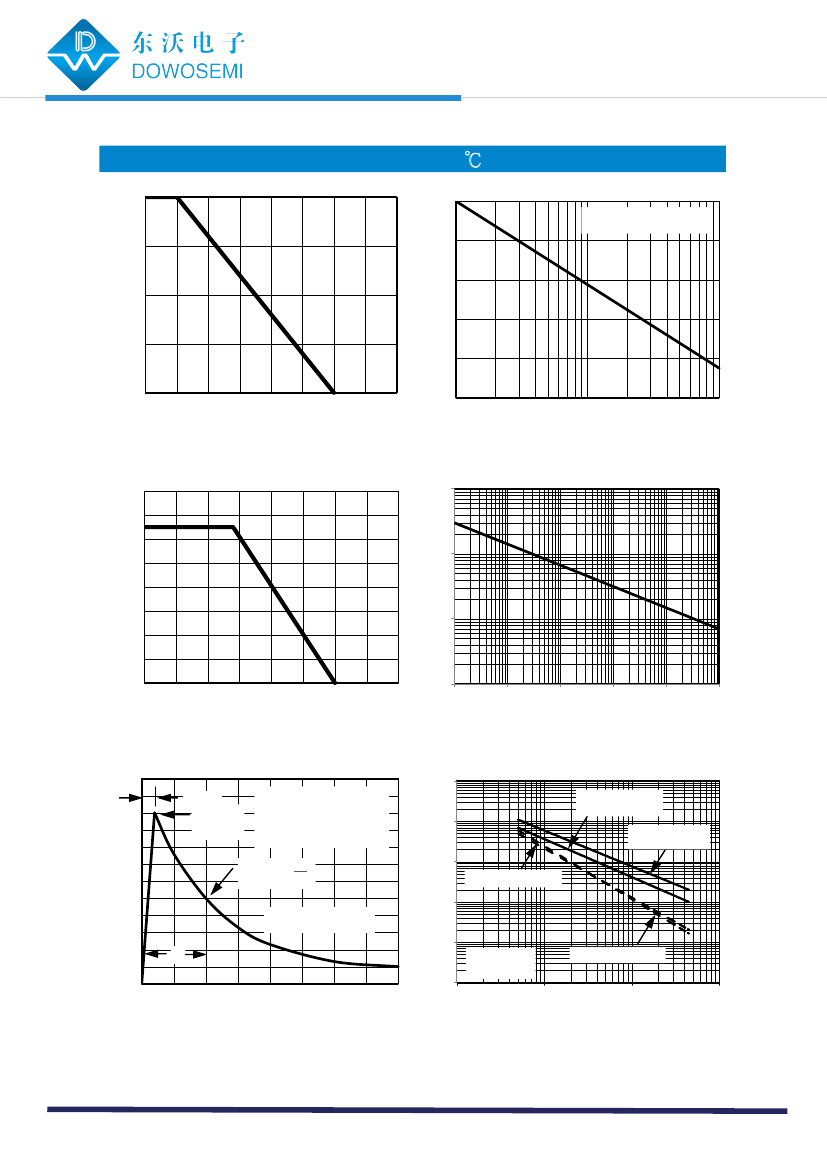

Peak Pulse Derating in Percentage of Peak
Power or Current, (%)
AVERAGE FORWARD CURRENT, (A)
AMBIENT TEMPERATURE , (℃)
100
100
Peak Forward Surge Current, (A)
75
0
25
150
200
1
100
200
T
J
= T
J
max.
30
100
0
8.3 ms Single Half Sine-Wave
160
120
50
80
25
40
0
0
25
50
75
100
125
150
175
200
0
1
10
Number of Cycles at 60 Hz
100
Ambient Temperature ,T
A
(℃)
Fig. 1 - Pulse Derating Curve
8.0
100
Fig. 2 - Maximum Non-Repetitive
Surge Current
0.1
10000
Peak Power (kW)
10
0
Steady State Power Dissipation, (W)
70
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
6.5
6.5
0
30
0.7
##
1
0
25
50
75
100
125
150
175
200
0.1
0.1
1
10
100
1000
10000
Lead Temperature , T
L
(℃)
Pulse Width ,t
d
(μs)
Fig. 3 - Steady State Power Derating Curve
100000
100
Peak Pulse Current , (% )
Tr=10μs
Peak Value
(Ipp)
T
J
= 25
°C
Pulse Width (td) is defined as the
point where the peak current
0
0
decays to 50 % of Ipp
Fig. 4 - Peak Pulse Power Rating Curve
5
10000
Junction Capacitance,C
J
(pF)
450
200
450
100
Bi-directional @zero
bias
Uni-directional
@zero bias
11000
5
50
td
0
0.2
100
0.5
Half Value = Ipp
76
1
2
50
1.5
33
10/1000 μsec.
Waveform
2
as defined
23
R.E.A.
by
3
13
4
10
1
2
Time , (ms)
3
1000
7000
Uni-directional
450
RWM
@V
5
100
6000
5
17
450
21
Bi-directional @V
RWM
10
100
1000
10
5000
T =25
°C
J
f=1.0MHz
1
1
0
4
Reverse Breakdown Voltage,V
BR
(V)
Fig. 5 - Pulse Waveform
Fig. 6 - Typical Junction Capacitance
www.dowosemi.cn
P. 2
TPSMCJ Series
Electrical Characteristics(T
A
=25℃ unless otherwise noted)
Part Number
(Uni)
Part Number
(Bi)
Device
Marking
Code
Uni
TPSMCJ10A
TPSMCJ11A
TPSMCJ12A
TPSMCJ13A
TPSMCJ14A
TPSMCJ15A
TPSMCJ16A
TPSMCJ17A
TPSMCJ18A
TPSMCJ19A
TPSMCJ20A
TPSMCJ22A
TPSMCJ24A
TPSMCJ26A
TPSMCJ28A
TPSMCJ30A
TPSMCJ33A
TPSMCJ36A
TPSMCJ40A
TPSMCJ43A
TPSMCJ45A
TPSMCJ48A
TPSMCJ51A
TPSMCJ54A
TPSMCJ58A
TPSMCJ60A
TPSMCJ64A
TPSMCJ70A
TPSMCJ75A
TPSMCJ78A
TPSMCJ10CA
TPSMCJ11CA
TPSMCJ12CA
TPSMCJ13CA
TPSMCJ14CA
TPSMCJ15CA
TPSMCJ16CA
TPSMCJ17CA
TPSMCJ18CA
TPSMCJ19CA
TPSMCJ20CA
TPSMCJ22CA
TPSMCJ24CA
TPSMCJ26CA
TPSMCJ28CA
TPSMCJ30CA
TPSMCJ33CA
TPSMCJ36CA
TPSMCJ40CA
TPSMCJ43CA
TPSMCJ45CA
TPSMCJ48CA
TPSMCJ51CA
TPSMCJ54CA
TPSMCJ58CA
TPSMCJ60CA
TPSMCJ64CA
TPSMCJ70CA
TPSMCJ75CA
TPSMCJ78CA
GDXA
GDZA
GEEA
GEGA
GEKA
GEMA
GEPA
GERA
GETA
GEBA
GEVA
GEXA
GEZA
GFEA
GFGA
GFKA
GFMA
GFPA
GFRA
GFTA
GFVA
GFXA
GFZA
GGEA
GGGA
GGKA
GGMA
GGPA
GGRA
GGTA
Bi
BDXA
BDZA
BEEA
BEGA
BEKA
BEMA
BEPA
BERA
BETA
BEBA
BEVA
BEXA
BEZA
BFEA
BFGA
BFKA
BFMA
BFPA
BFRA
BFTA
BFVA
BFXA
BFZA
BGEA
BGGA
BGKA
BGMA
BGPA
BGRA
BGTA
Breakdown Voltage V
BR
@I
T
Maximum Working
Maximum Maximum
Reverse Peak Reverse
Reverse
Clamping
Leakage
Voltage
Surge
Voltage
I
R
@V
RWM
V
RWM
Current I
PP
V
C
@I
PP
I
T
(mA)
(uA)
(V)
(A)
(V)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
88.24
82.42
75.38
69.77
64.66
61.48
57.69
54.35
51.37
48.73
46.30
42.25
38.56
35.63
33.04
30.99
28.14
25.82
23.26
21.61
20.63
19.38
18.20
17.22
16.03
15.50
14.56
13.27
12.40
11.90
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.8
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
Min (V)
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
Max (V)
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
1. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices
2. For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double
Note:
www.dowosemi.cn
P.
3
