Features
•
Industry Standard Surface Mount Packages
•
Lead-Free (RoHS Compliant) Equivalents
Available with 260
°C
Reflow Compatibility
•
Low Loss, High Isolation Switching Diodes
•
Low Distortion Attenuator Diodes
•
Single and Dual Diode Configurations
•
Tape and Reel Packaging
SMPP Series
V6
MA4P278 / MA4P7438 devices have longer intrinsic
layers to provide better distortion performance in
attenuator circuits.
The MA4P282 / MA4P7447 and MA4P274 / MA4P7455
are general-purpose PIN diodes useful in either
switches or attenuators. These parts are available as
Single diodes, Series Tees ( ST ), Series Tee
Reverse ( STR ), Common Cathode pairs ( CK ),
Common Anode pairs ( CA ), and unconnected pairs
in the respective featured packages.
The SMPP series of PIN diodes is available in the
SOT-23 (case style 287), the SOT-143 (case style
1068), the SOT-323 (case style 1146) , the SOD-323
(case style 1141) , and the SC-79 (case style 1279)
packages. These packages are supplied on tape
and reel for automatic pick and place assembly on
surface mount circuit boards. The tape and reel suf-
fix designation is a “T” at the end of the part number.
Description and Applications
M/A-COM offers six unique PIN diodes in five
industry standard, low cost, surface mount plastic
packages. These diodes are offered with standard
Sn/Pb plating, as well as with 100% matte Sn plating
on our RoHS compliant equivalent devices. Within
this series, the PIN diodes feature a variety of low
resistance, low capacitance and long minority carrier
lifetime characteristics for microwave control circuit
applications.
The MA4P275 / MA4P7436 has the lowest series
resistance for best performance as Low Loss Series
Switches and High Isolation Shunt Switches. The
MA4P789 / MA4P7433 has the lowest capacitance
and offers the highest Isolation in Series and
Series-Shunt switches through 3 GHz. The
MA4P277 / MA4P7437 and

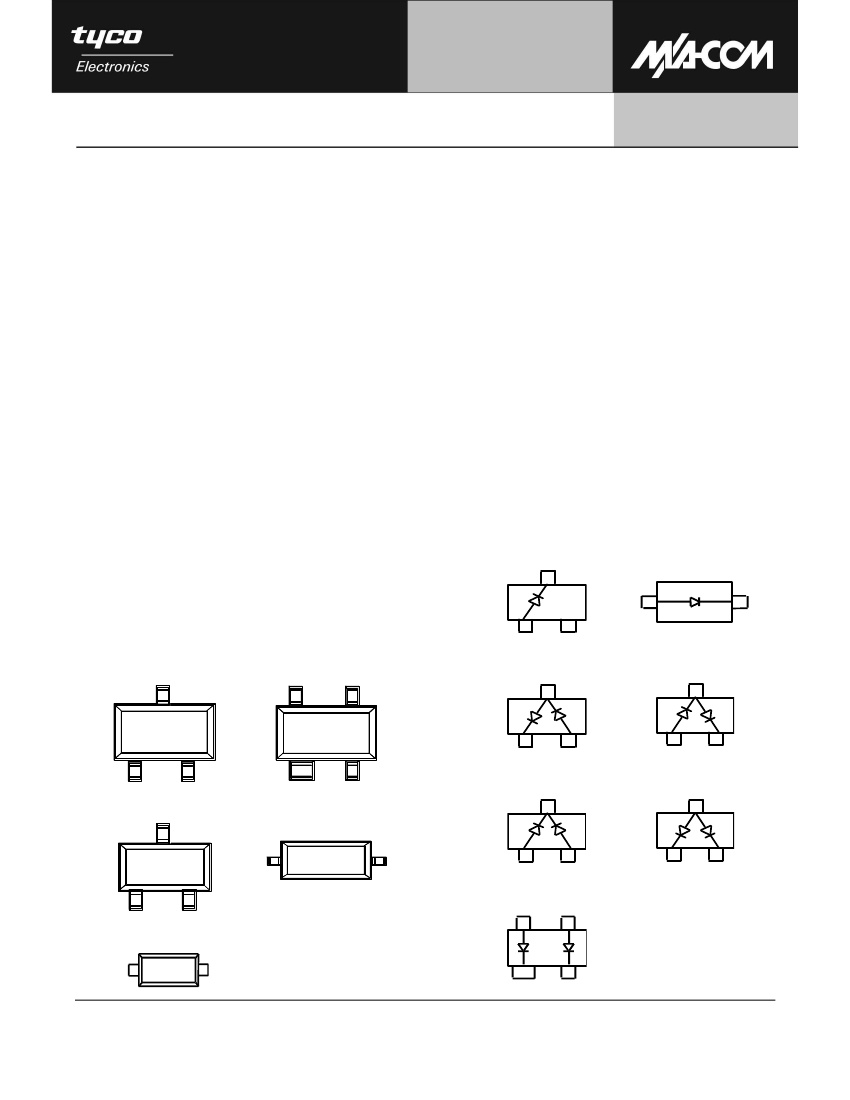

Configurations (Top View)
3
1
2
Package Outlines
SOT-23
SOT-143
1
2
Single
3
Single
3
1
2
1
2
Series Pair
SOT-323
SOD-323
3
Series Pair Reverse
3
1
2
1
2
Common Cathode
4
3
Common Anode
SC-79
1
2
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
Also Offering
RoHs Compliant
Equivalent Parts
Surface Mount
Plastic PIN Diodes
Absolute Maximum Ratings @ 25 °C
1
(Unless Otherwise Noted)
Parameter
Operating Temperature
Storage Temperature
Junction Temperature
RF C.W. Incident Power @ 25
°C:
MA4P282 / MA4P7447 (
θ
die = 15
°C
/ W ), RF & DC Incident De-rating Coefficient = -
MA4P275 / MA4P7436 (
θ
die = 25
°C
/ W ), RF & DC Incident De-rating Coefficient = -
MA4P278 / MA4P7438 (
θ
die = 30
°C
/ W ), RF & DC Incident De-rating Coefficient = -
MA4P274 / MA4P7455 (
θ
die = 35
°C
/ W ), RF & DC Incident De-rating Coefficient = -
MA4P277 / MA4P7437 (
θ
die = 45
°C
/ W ), RF & DC Incident De-rating Coefficient = -
MA4P789 / MA4P7433 (
θ
die = 80
°C
/ W ), RF & DC Incident De-rating Coefficient = -
21.3 mW /
°C
16.8 mW /
°C
13.3 mW /
°C
13.3 mW /
°C
13.3 mW /
°C
10.7 mW /
°C
SMPP Series
V6
Absolute Maximum Value
-65°C to +150
°C
-65°C to +125
°C
+ 175
°C
+ 32 dBm
+ 31 dBm
+ 30 dBm
+ 30 dBm
+ 30 dBm
+ 29 dBm
250 mW
200 mW
Voltage Rating
150 mA DC
Total ( RF + DC ) Power Dissipation @ 25
°C
( SOT-23, SOT-143 ) : RF & DC Dissipated De-rating Coefficient = - 33.3 mW /
°C
( SOT-323, SOD-323, SC-79 ) : RF & DC Dissipated De-rating Coefficient = - 26.7 mW /
°C
Reverse Voltage
Forward Current @ 25
°C
1. Operation of this device above any one of these parameters may cause permanent damage.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
Also Offering
RoHs Compliant
Equivalent Parts
Surface Mount
Plastic PIN Diodes
SOT-23

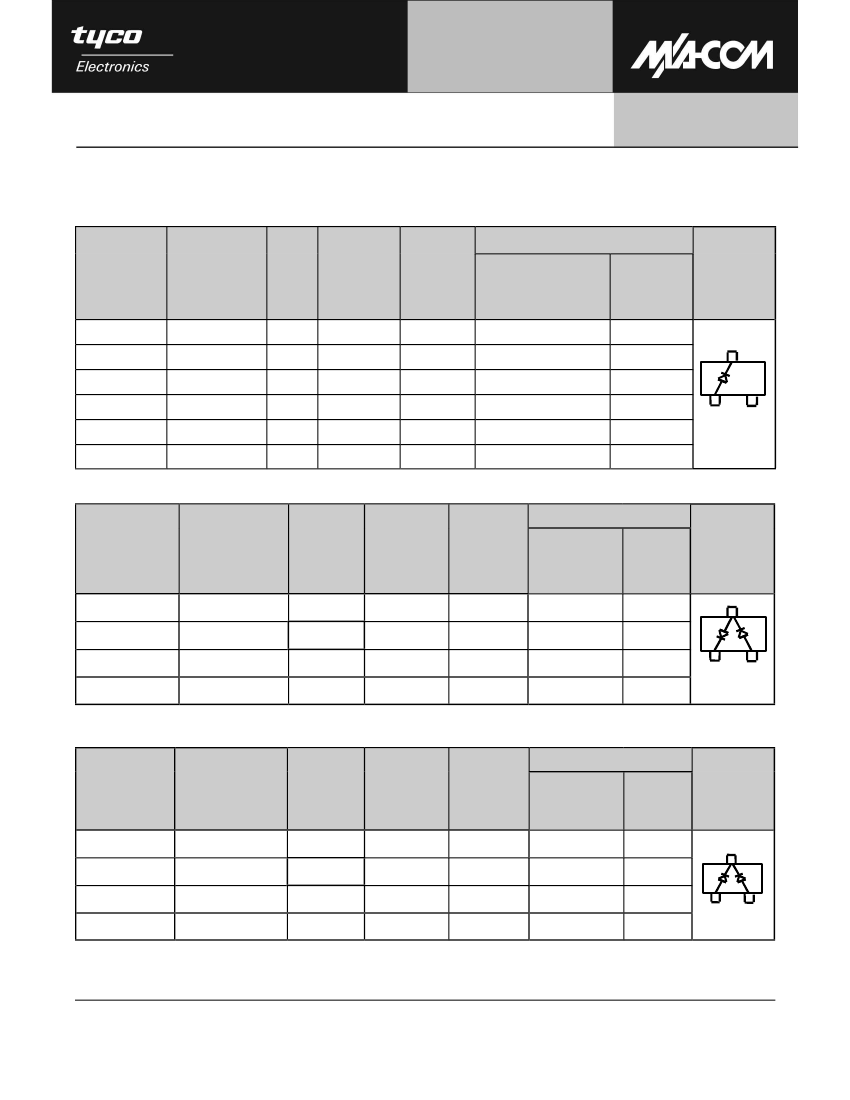

Electrical Specifications @ 25°C — SOT-23 Single Diode
