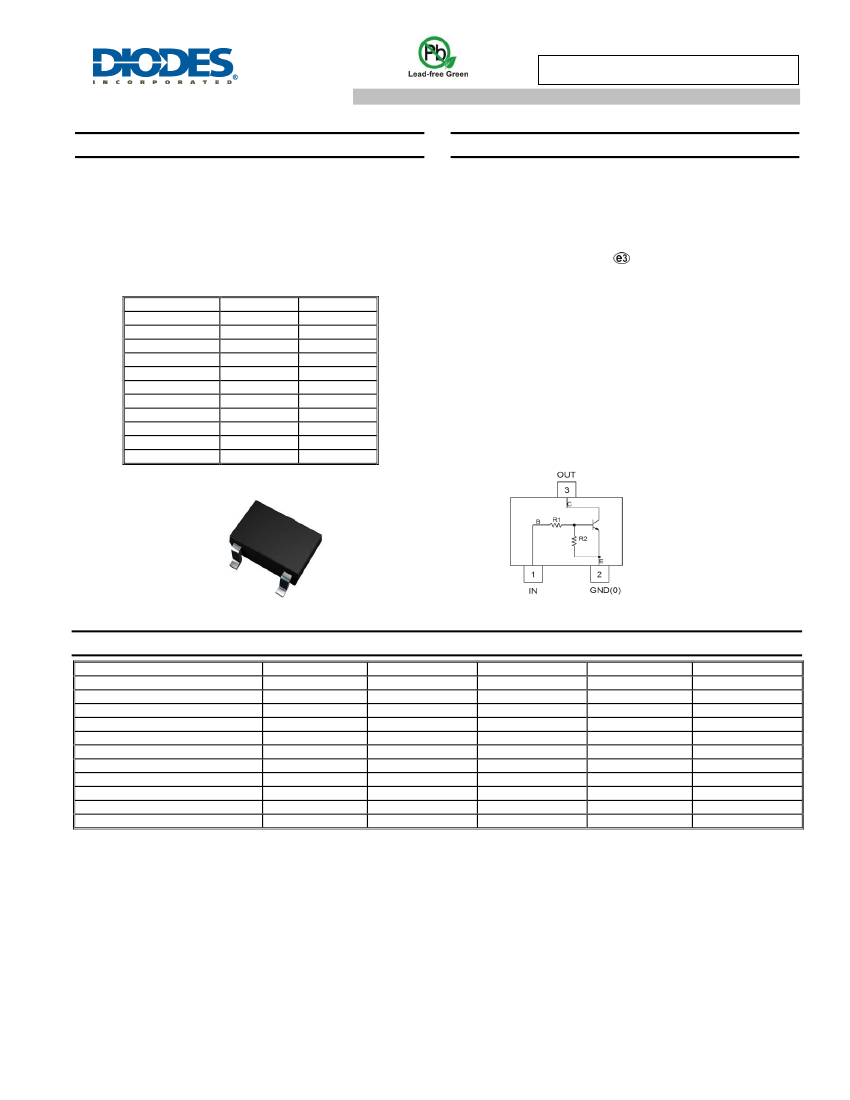

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT323
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
Part Number
DDTC113ZUA
DDTC123YUA
DDTC123JUA
DDTC143XUA
DDTC143FUA
DDTC143ZUA
DDTC114YUA
DDTC114WUA
DDTC124XUA
DDTC144VUA
DDTC144WUA
R1(NOM)
1kΩ
2.2kΩ
2.2kΩ
4.7kΩ
4.7kΩ
4.7kΩ
10kΩ
10kΩ
22kΩ
47kΩ
47kΩ
SOT323
R2(NOM)
10kΩ
10kΩ
47kΩ
10kΩ
22kΩ
47kΩ
47kΩ
4.7kΩ
47kΩ
10kΩ
22kΩ
Top View
Device Schematic
Ordering Information
(Note 4)
Product
DDTC113ZUA-7-F
DDTC123YUA-7-F
DDTC123JUA-7-F
DDTC143XUA-7-F
DDTC143FUA-7-F
DDTC143ZUA-7-F
DDTC114YUA-7-F
DDTC114WUA-7-F
DDTC124XUA-7-F
DDTC144VUA-7-F
DDTC144WUA-7-F
Notes:
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Marking
N02
N05
N06
N09
N10
N11
N14
N15
N18
N21
N22
Reel Size (inches)
7
7
7
7
7
7
7
7
7
7
7
Tape Width (mm)
8
8
8
8
8
8
8
8
8
8
8
Quantity per Reel
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
