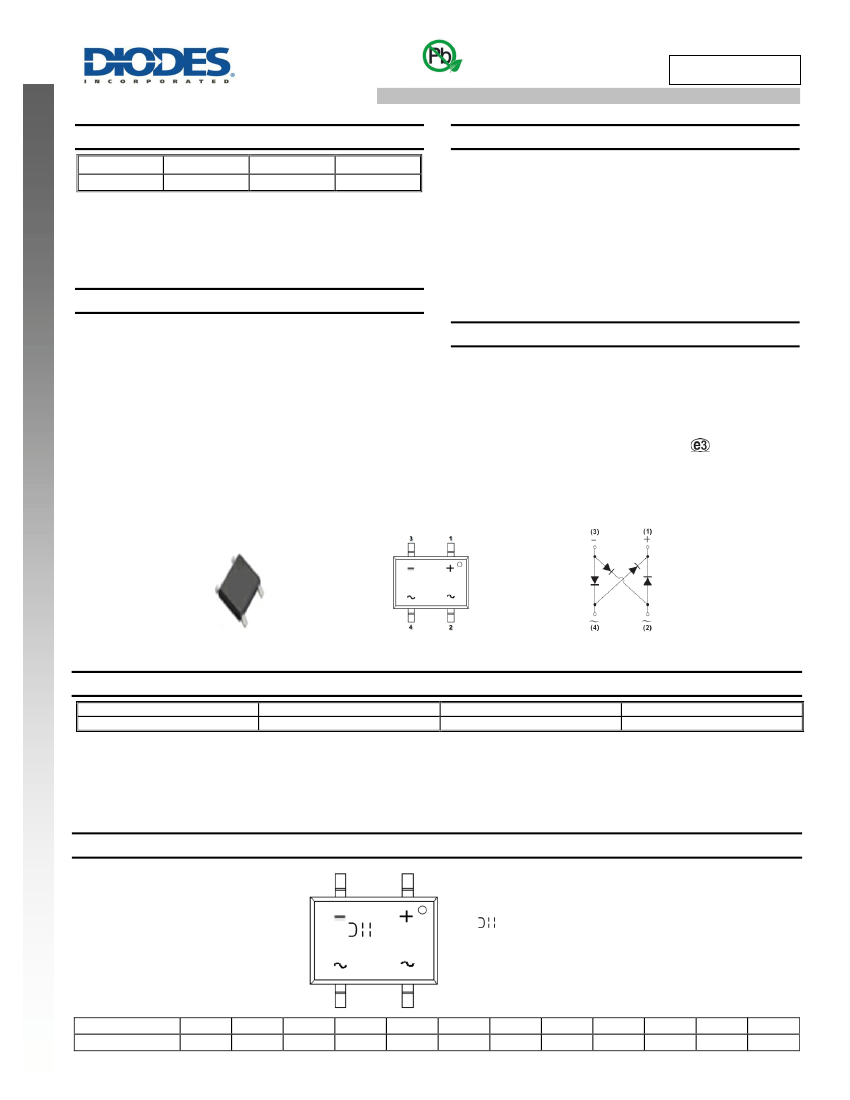

4A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

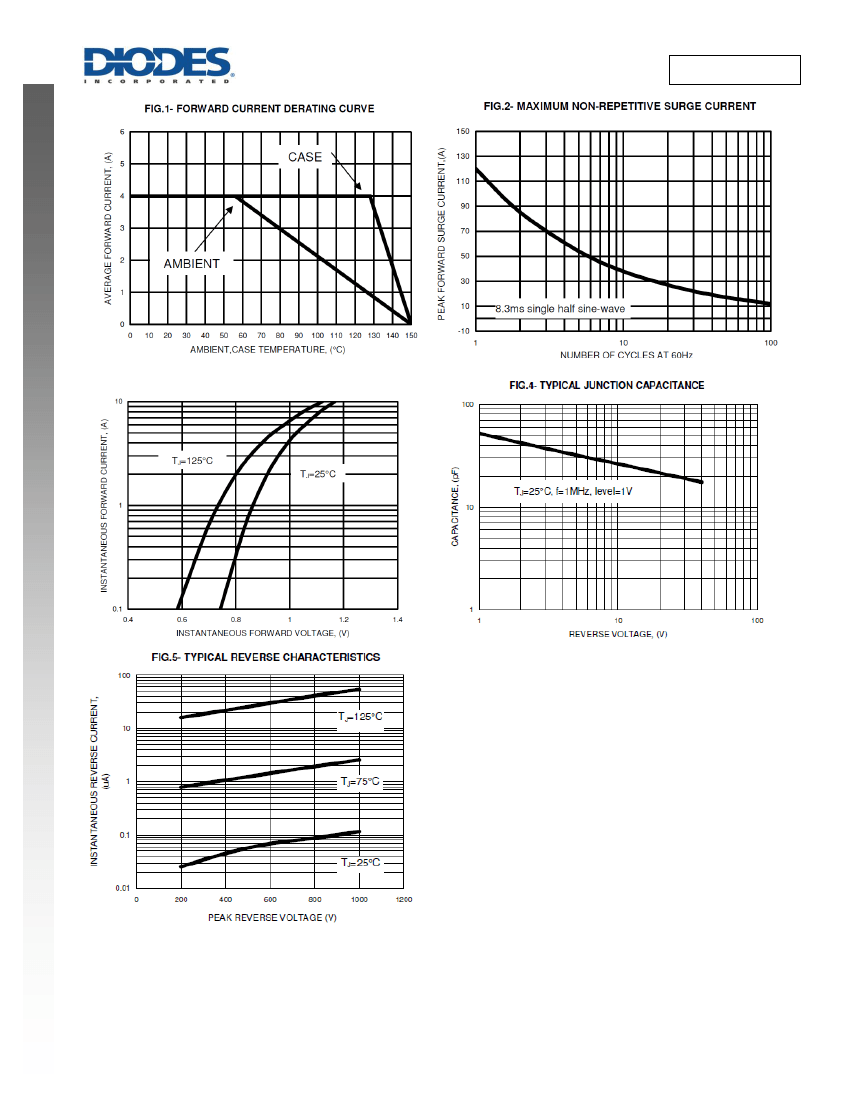

Product Summary
(@T
A
= +25°
C)
V
RRM
(V)
1000
I
O
(A)
4
V
F
(V)
1.0
I
R
(μA)
5
Features and Benefits
Glass Passivated Die Construction
Compact, Thin Profile Package Design
Low Forward Voltage Drop Improves Power Efficiency
High Current and Surge Capability
Reliable Robust Construction
Ideal for SMT Manufacturing
Rated at 1000V PRV
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
ADVANCED INFORMATION
ADVANCED INFORMATION
NEW PRODUCT
Description and Applications
Suitable for AC to DC bridge full wave rectification for SMPS, LED
lighting, adapter, battery charger, home appliances, office equipment,
and telecommunication applications.

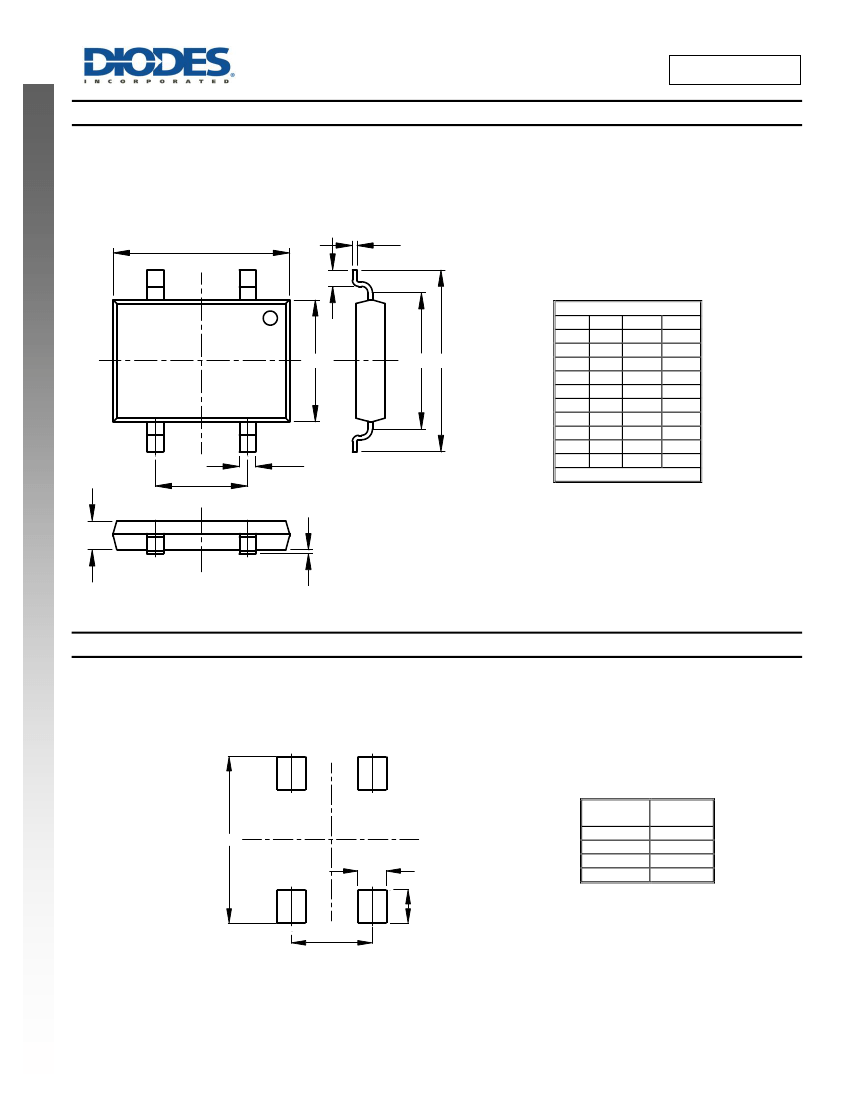

Mechanical Data
Case: TT
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: As Marked on Body
Weight: 0.297 grams (Approximate)
Top View
Pin Diagram
Internal Schematic
Ordering Information
(Note 4)
Part Number
TT410-13
Notes:
Compliance
Commercial
Case
TT
Packaging
1,500/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
