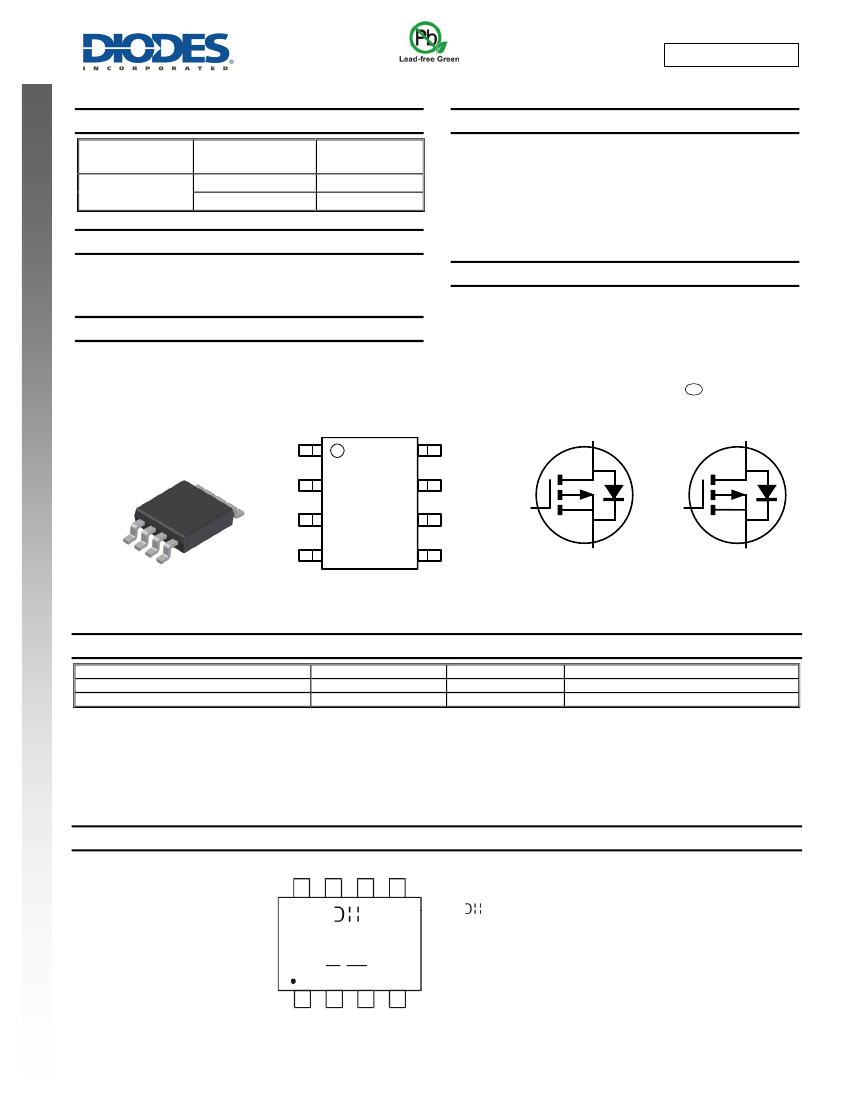

DMP4047SSD

40V DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

-40V

DS(on)

45mΩ @ V

= -10V

55mΩ @ V

= -4.5V

= +25°C

-6.5A

-5.9A

Features



100% Unclamped Inductive Switch (UIS) test in production

Low on-resistance

Fast switching speed

Totally Lead-Free & Fully RoHS compliant (Note 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

NEW PRODUCT

This MOSFET has been designed to minimize the on-state resistance

DS(ON)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Mechanical Data



Case: SO-8

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish – Tin Finish annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.074 grams (approximate)

Applications



Backlighting

DC-DC Converters

Power Management Functions

SO-8

Top View

Pin-Out

Top View

Equivalent Circuit

Ordering Information

(Note 4 & 5)

Part Number

DMP4047SSD-13

DMP4047SSDQ-13

Notes:

Compliance

Standard

Automotive

Case

SO-8

Packaging

2,500/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

P4047SD

YY WW

= Manufacturer’s Marking

P4047SD = Product Type Marking Code

YYWW = Date Code Marking

YY = Year (ex: 09 = 2009)

WW = Week (01 - 53)

DMP4047SSD

Document Number DS36353 Rev. 3 - 2

1 of 5

www.diodes.com

September 2013

DMP4047SSD

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

NEW PRODUCT

Dimensions

Value (in mm)

0.60

1.55

5.4

1.27
