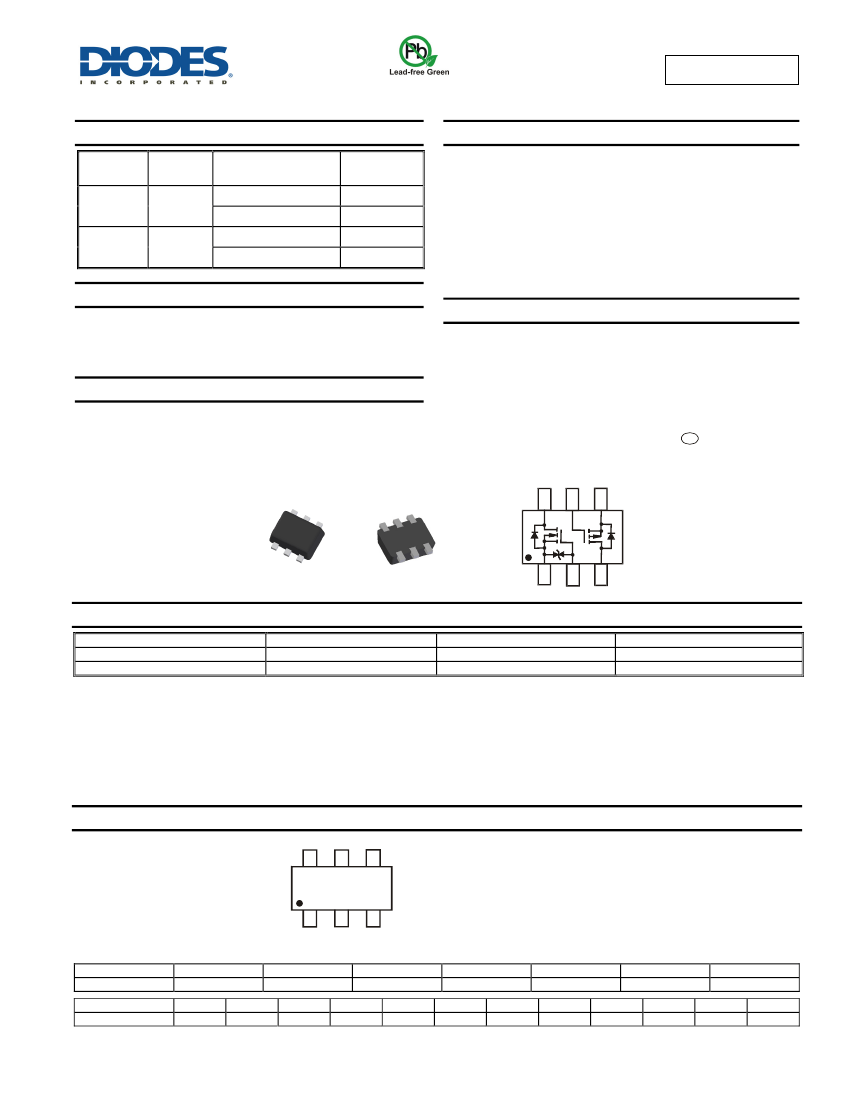

DMG1029SV
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
Q1
V
(BR)DSS
60V
R
DS(ON)
max
1.7Ω @ V
GS
= 10V
3Ω @ V
GS
= 4.5V
4Ω @ V
GS
= -10V
6Ω @ V
GS
= -4.5V
I
D
max
T
A
= +25°C
500mA
400mA
-360mA
-310mA
Features and Benefits
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
Q2
-60V
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data
Case: SOT563
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See diagram
Terminals: Finish
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.027 grams (approximate)
Applications
General Purpose Interfacing Switch
Power Management Functions
Analog Switch
SOT563
D
1
G
2
S
2
Q
1
Q
2
Top View
Bottom View
S
1
G
1
D
2
Ordering Information
(Note 4 & 5)
Part Number
DMG1029SV-7
DMG1029SVQ-7
Notes:
Compliance
Standard
Automotive
Case
SOT563
SOT563
Packaging
3000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
Marking Information
GA1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)
GA1
YM
Date Code Key
Year
Code
Month
Code
2009
W
Jan
1
Feb
2
2010
X
Mar
3
Apr
4
2011
Y
May
5
Jun
6
2012
Z
Jul
7
2013
A
Aug
8
Sep
9
2014
B
Oct
O
Nov
N
2015
C
Dec
D
DMG1029SV
Document number: DS35421 Rev. 3 - 2
1 of 9
www.diodes.com
August 2013
© Diodes Incorporated
