Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
INFORMATION
ADVANCED NEW PRODUCT
ADVANCED INFORMATION
60V

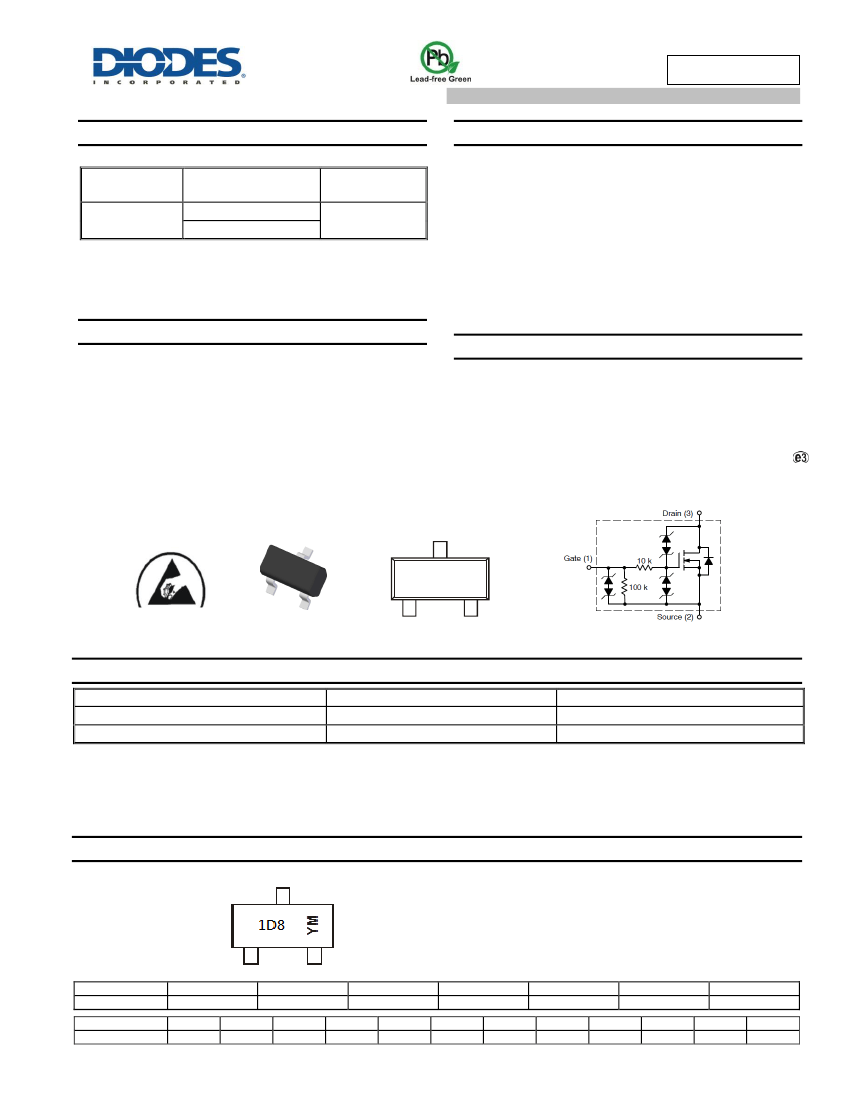

Description and Applications
The DMN61D8LQ provides a single component solution for switching
inductive loads such as relays, solenoids, and small DC motors in
automotive applications, without the need of a freewheeling diode.
DMN61D8LQ accepts logic level inputs, thus allowing it to be driven
by logic gates, inverters, and microcontrollers.
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.008 grams (Approximate)
SOT23
View
D
ESD protected
Top View
G
S
Top View
Internal Schematic
Equivalent Circuit
Ordering Information
(Note 5)
Part Number
DMN61D8LQ-7
DMN61D8LQ-13
Notes:
Case
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
