SFPS-41T-187-8: DescriptionWire Gauge - AWG: 16~22 Plating Thickness: - Wire Gauge - mm²: 0.3~1.31 Product Type: Quick Connect Terminal Certification: RoHS; CategoryThe connector terminals; File Size201KB，9 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

SFPS-41T-187-8 Overview

Wire Gauge - AWG: 16~22 Plating Thickness: - Wire Gauge - mm²: 0.3~1.31 Product Type: Quick Connect Terminal Certification: RoHS

SFPS-41T-187-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	187
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	1.25 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

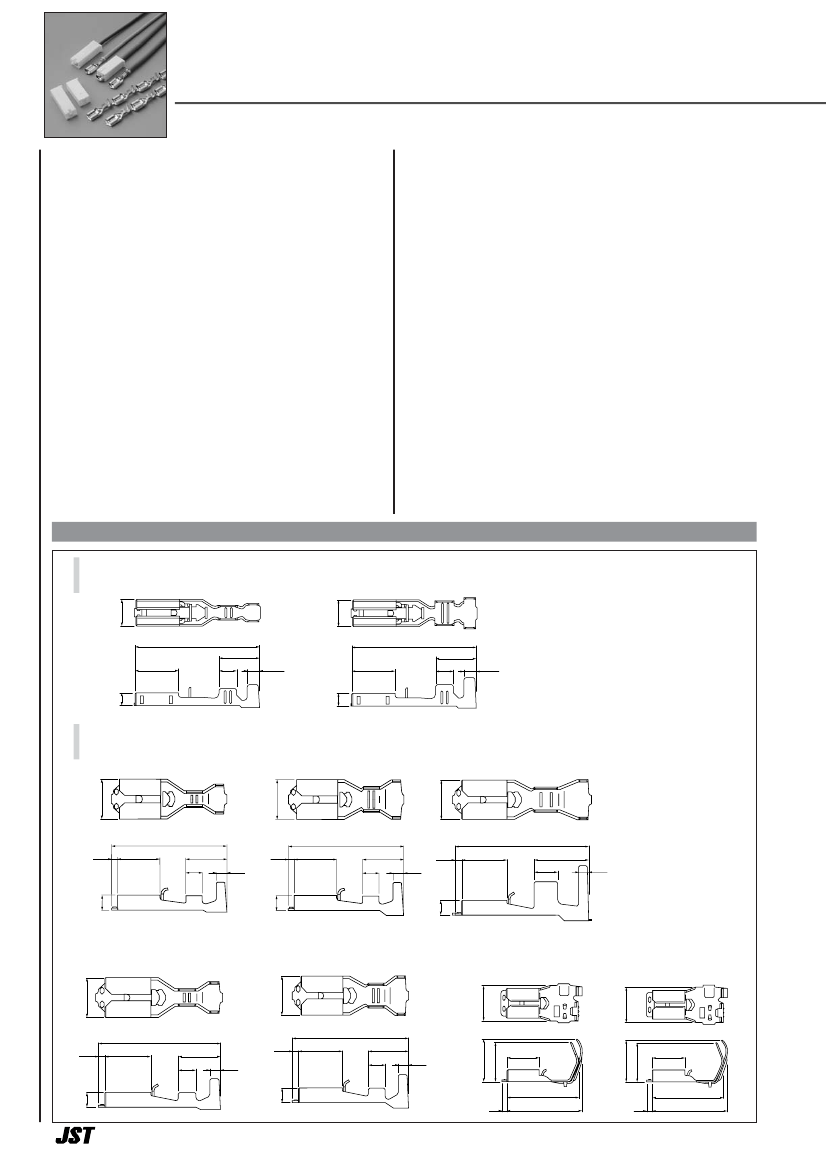

CONNECTOR

Connectors for tabs

• Secure locking, easy insertion

• Stable contact performance

• Mis-insertion prevention mechanism and

housing lance

• Tab mis-mating prevention mechanism

(Short housing type)

• The product compatible with glow wire is

also available for short housing type.

Specifications –––––––––––––––––––

• Current rating: 25 A AC, DC (#250 Tab /AWG #10)

• Voltage rating: 250 V AC, DC

• Temperature range:

40˚C to

105˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 3 mΩ max.

After environmental tests/ 6 mΩ max.

• Insulation resistance: 1,000 MΩ min.

• Withstanding voltage: 2,000 VAC/minute

• Applicable wire:

#110...AWG #24 to #16 #187...AWG #26 to #14

#205...AWG #22 to #14

#250...AWG #22 to #10

Standards ––––––––––––––––––––

Certified LR20812

R9850196

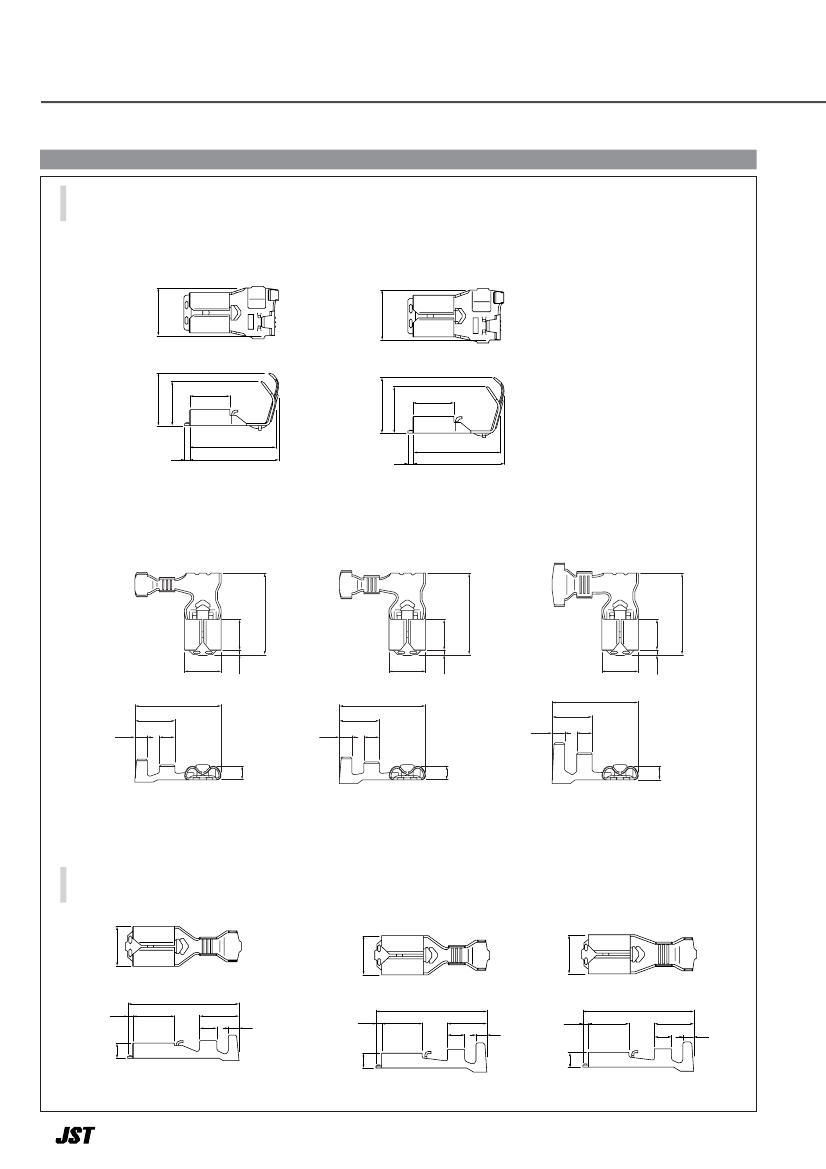

Contact

#110 Series

SPS-01T-110

3.7

Recognized E60389

• Applicable Tab: #110 Tab 0.5 mm thick

#187 Tab 0.5 mm/ 0.8 mm thick

#205 Tab 0.5 mm/ 0.8 mm thick

#250 Tab 0.8 mm thick

* Contact JST when you use the glow wire correspondence

product of PS-250-G (Short housing type).

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

SPS-41T-110

3.7

17.2

5.7

17.2

5.7

1.75

2.5

1.75

2.5

1.8

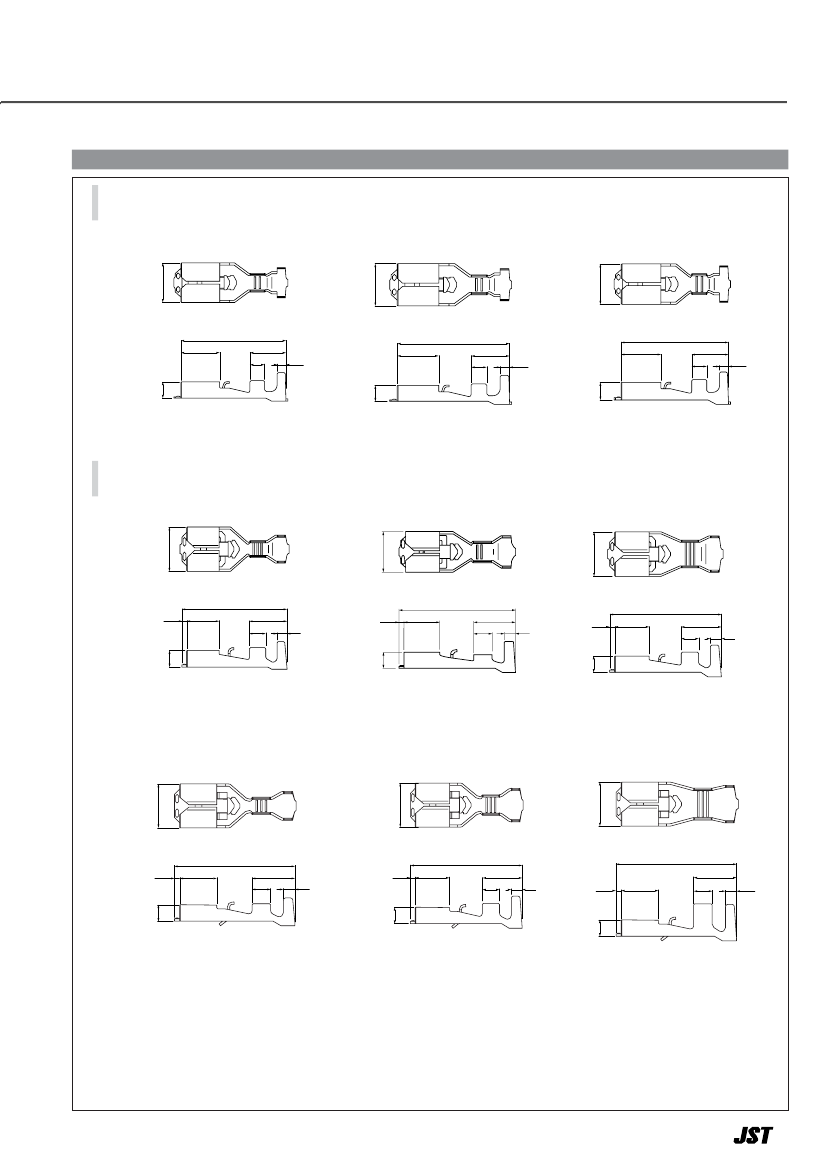

#187 Series

SPS-01T-187

(for 0.5 mm thick tabs)

SPS-51T-187

(for 0.5 mm thick tabs)

1.8

SPS-82T-187

(for 0.5 mm thick tabs)

5.6

17.2

0.9

6.4

2.5

1.5

0.9

6.4

5.6

17.2

6.1

2.5

1.6

0.8

6.4

5.6

18.8

7.7

3.2

1.7

2.2

SPS-01T-187-8

(for 0.8 mm thick tabs)

SPS-51T-187-8

(for 0.8 mm thick tabs)

SFPS-41T-187

(for 0.5 mm thick tabs)

6.8

SFPS-41T-187-8

(for 0.8 mm thick tabs)

6.8

5.6

17.2

0.9

6.4

2.5

6.2

1.5

0.9

6.4

17.2

6.1

7.6

2.5

1.6

6.3

2.2

13.9

14.7

7.6

13.9

14.7
