NOTES: VALID UNLESS OTHERWISE SPECIFIED
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-34791-020
b. PRODUCT SPECIFICATION SEE: PS-34791-020
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: SEE CHART
d. SOLDERABILITY PER SMES-152
e. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-300
f. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID#13255)
g. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191
h. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)
2. DESIGN - MATERIALS:
a. SHROUD (PLASTIC HOUSING): SPS 30% GF, 20% REGRIND MAX PER WEIGHT
b. BLADES:
BASE METAL: C260 BRASS
PLATING REQUIREMENTS:
TIN OVER NICKEL:
UNDERPLATING:
OVERALL NICKEL
OVERPLATING:
OVERALL TIN
3. DESIGN - GEOMETRY:
a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA
IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION
NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 2009
c. GENERAL TOLERANCES:
LINEAR: SEE TITLE BLOCK
ANGULAR:
±
3
°
d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
e. CORNERS SHOWN AS SHARP TO BE R 0.1 MAX
f. LETTERING SHALL BE 0.10 MAX RAISED. THIS INCLUDES RECYCLING CODE,
PLANT AND CAVITY ID, VENDOR ID, AND CIRCUIT ID.
K
K

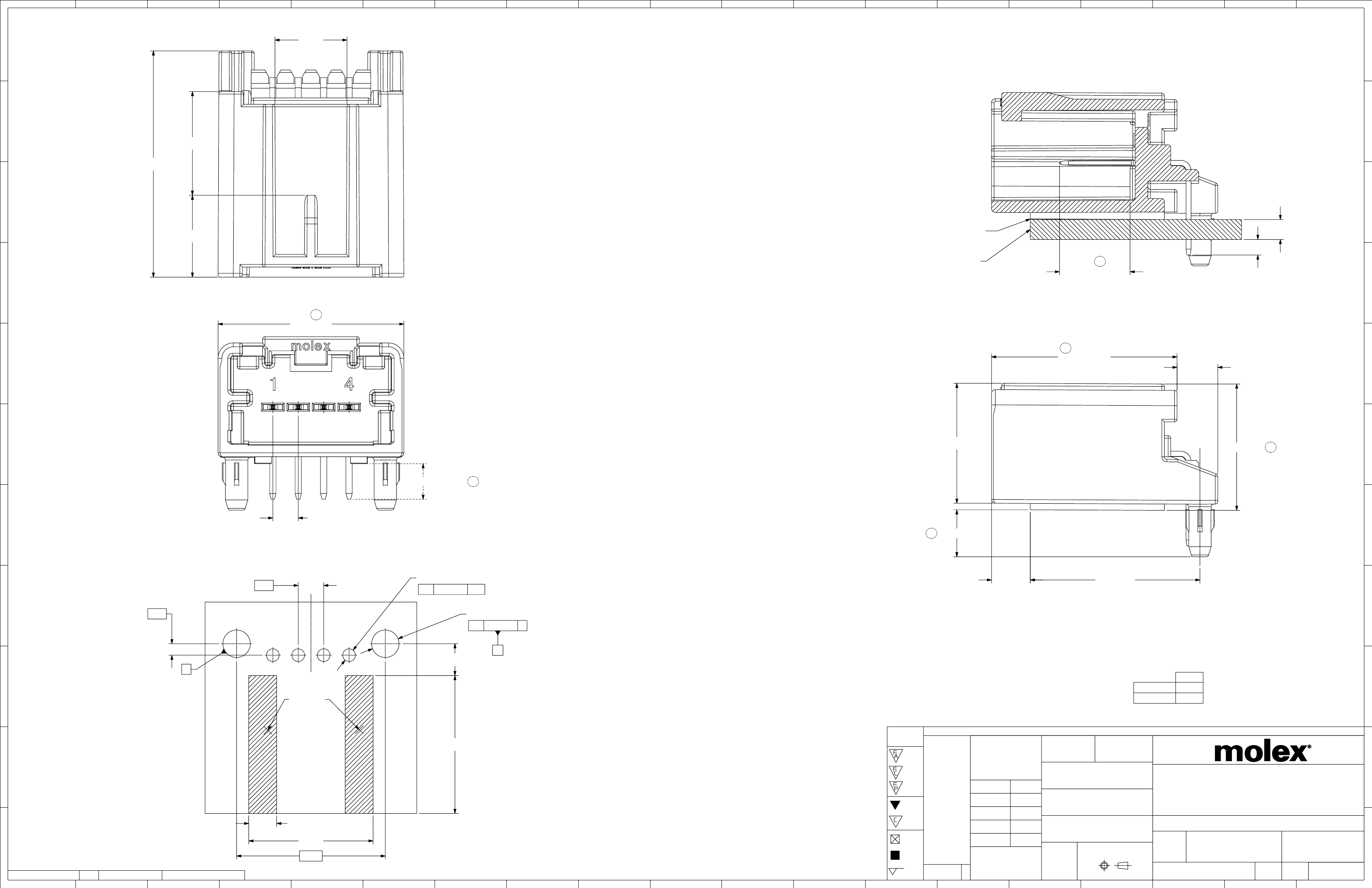

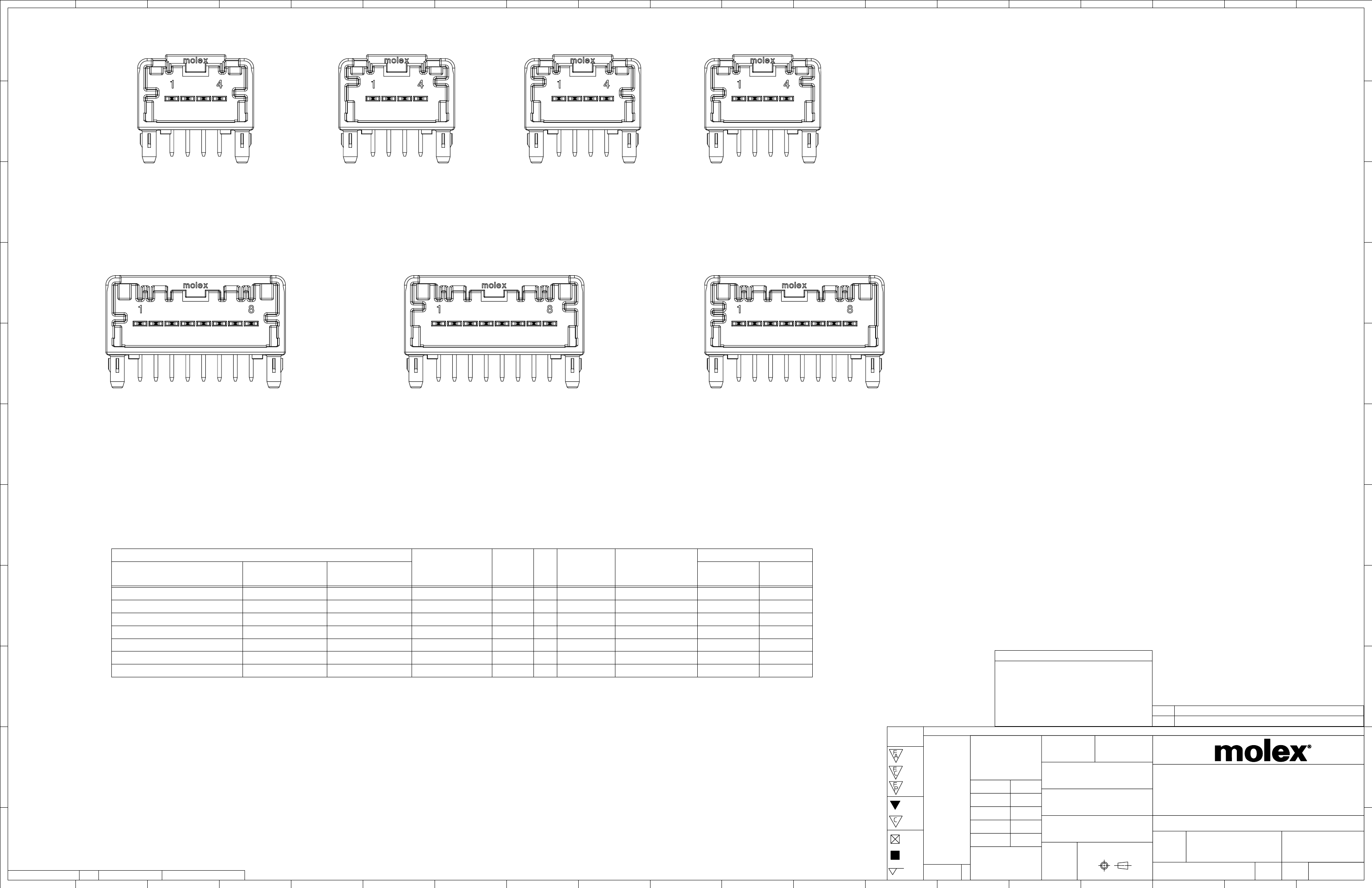

4 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION A
J
4 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION B
4 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION C
4 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION D
J
H
H
G
G

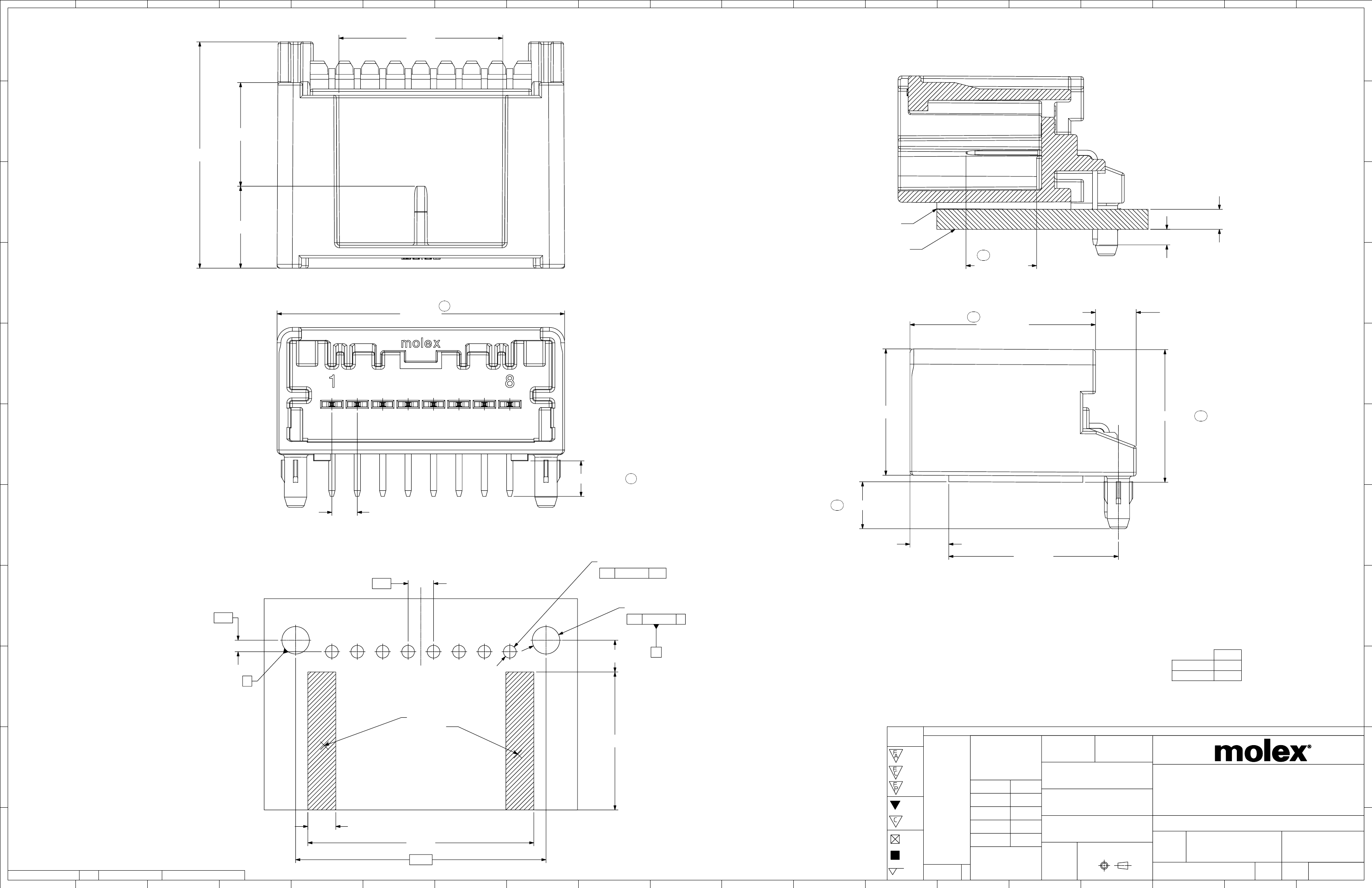

8 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION A
8 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION B
8 CIRCUIT RIGHT ANGLE HEADER
POLARIZATION OPTION C
F
F
E
MINI50 RIGHT ANGLE HEADER ASSEMBLIES
MATERIAL NUMBER
TAPE AND REEL PACKAGING
TUBE PACKAGING TRAY PACKAGING CONFIGURATION
CIRCUIT
POL
PK-47799-0001
PK-31301-688
PK-31301-440
MATING COMPONENT
E
COLOR
BLADE PLATING
UN-BRIDGED
BRIDGED
D
34793-8040
34793-8041
34793-8042
34793-8043
34793-8080
34793-8081
34793-8082
34793-9040
34793-9041
34793-9042
34793-9043
34793-9080
34793-9081
34793-9082
34793-0040
34793-0041
34793-0042
34793-0043
34793-0080
34793-0081
34793-0082
USCAR
USCAR
USCAR
USCAR
USCAR
USCAR
USCAR
4
4
4
4
8
8
8
A
B
C
D
A
B
C
BLACK
TIN OVER NICKEL
GRAY
TIN OVER NICKEL
DARK GRAY TIN OVER NICKEL
GREEN
TIN OVER NICKEL
BLACK
TIN OVER NICKEL
GRAY
TIN OVER NICKEL
DARK GRAY TIN OVER NICKEL
34791-0040
34791-0041
34791-0042
34791-0043
34791-0080
34791-0081
34791-0082
34791-0140
34791-0141
34791-0142
34791-0143
34791-0180
34791-0181
34791-0182
D
INSPECTION BALLON NUMBER LOG
PER DRAWING REVISION: F1
LAST BALLOON USED: 9
C
C
ADDED BALLOON NUMBERS:
REMOVED BALLOON NUMBERS: 1
2018/03/20
2018/03/21
2018/03/21
F1
REV
NX REMASTERING
DESCRIPTION
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
SYMBOLS
TOLERANCES
5:1
MM ONLY
=
0
(UNLESS SPECIFIED)
B
DRWN BY
DATE
=
=
=
=
=
0
0
0
173902
KHEWITT
JDUNAJ
JDUNAJ
B
ANGULAR TOL ±
°
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
±
±
±
±
±
JDUNAJ
CHK'D BY
DATE
2010/06/21
2010/06/21
DATE
MINI 50 SINGLE ROW
R/A HEADER ASSEMBLY SALES DRAWING
0.1
0.2
BDICK
APPR BY
0
0
0
0
PRODUCT CUSTOMER DRAWING
2011/11/21
SERIES
MATERIAL NUMBER
CUSTOMER
SMARCEAU
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
A
=
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
P1
RELEASE DATE
18
2018/03/21
17
22:36:18
C
=
F2
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34793
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
SD-34793-001
3
PSD
2
001
1 OF 3
