The resistors are constructed in a high grade ceramic body (aluminium oxide). Internal metal
electrodes are added at each end and connected by a resistive paste that is applied to the top
surface of the substrate. The composition of the paste is adjusted to give the approximate resistance
required and the value is trimmed to within tolerance by laser cutting of this resistive layer.
The resistive layer is covered with a protective coat. Finally, the two external end terminations are
added. For environmental soldering issue, the outer layer of these end terminations is a Lead-free
solder.
Features:
•
•
•
•
SMD metal film resistor with high reliability and stability
High performance of TCR: 25 ppm/K
Low current noise
±0.05% is upon the customer request
Laser trimmed
Resistive
Element
Primary Layer
Termination
Application:
•
•
•
•
Medical equipment
Measuring instrument
Communication device
Computer and Printer
Protective Layer
Marking
Alumina Substrate

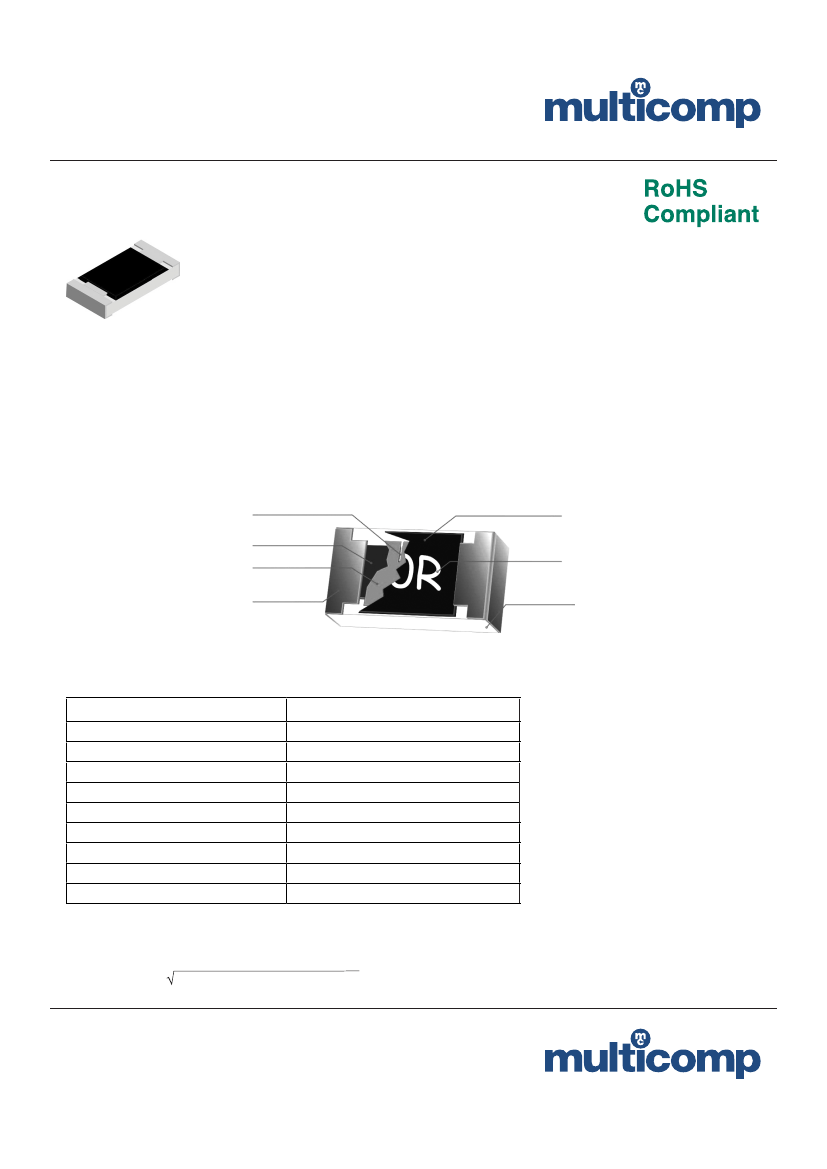

Construction of Chip-R
Quick Reference Data
Item
Series No.
Size code
Resistance Tolerance
Resistance Range
TCR (ppm/°C)
Max. Dissipation @ T amb = 70°C
Max. Operation Voltage (DC or RMS)
Max. Overload Voltage (DC or RMS)
Operation temperature
Note:
1. This is the maximum voltage that may be continuously supplied to the resistor element, see “IEC publication 60115-8”
2. Max. Operation Voltage : So called RCWV (Rated Continuous Working Voltage) is determined by
RCWV = Rated Power × Resistance Value or Max. RCWV listed above, whichever is lower.
General Specification
MCWF08U
0805 (2012)
±1%, ±0.5%, ±0.25%, ±0.1%, ±0.05%
4.7Ω to 1MΩ (E24 +E192)
+25 to -25 ppm/°C
1/10 W
100V
200V
-55°C to +155°C
www.element14.com
www.farnell.com
www.newark.com
Page <1>
20/12/16
V1.0
High Precision Thin Film Chip Resistor
Mechanical Data
Part Number
L
W
A
B
t
MCWF08U
2 ±0.1
1.25 ±0.1
0.25 ±0.2
0.4 ±0.2
0.5 ±0.15
Dimensions : Millimetres
Marking
4-digits marking for 0805 size
For E24/E96 series, each resistor is marked with a four digits code on the protective coating to designate the nominal
resistance value. For non E24/E96 series, no marking is applied!
Example:
Resistance
4-digits marking
10Ω
10R0
12Ω
12R0
100Ω
1000
6800Ω
6801
47000Ω
4702
Functional Description:
Product characterization
Standard values of nominal resistance are taken from the E192 & E24 series for resistors with a tolerance of ±1%, ±0.5%,
±0.25%, ±0.1%, ±0.05%. The values of the E24/E192 series are in accordance with “IEC publication 60063”.
Derating
The power that the resistor can dissipate depends on the operating temperature.

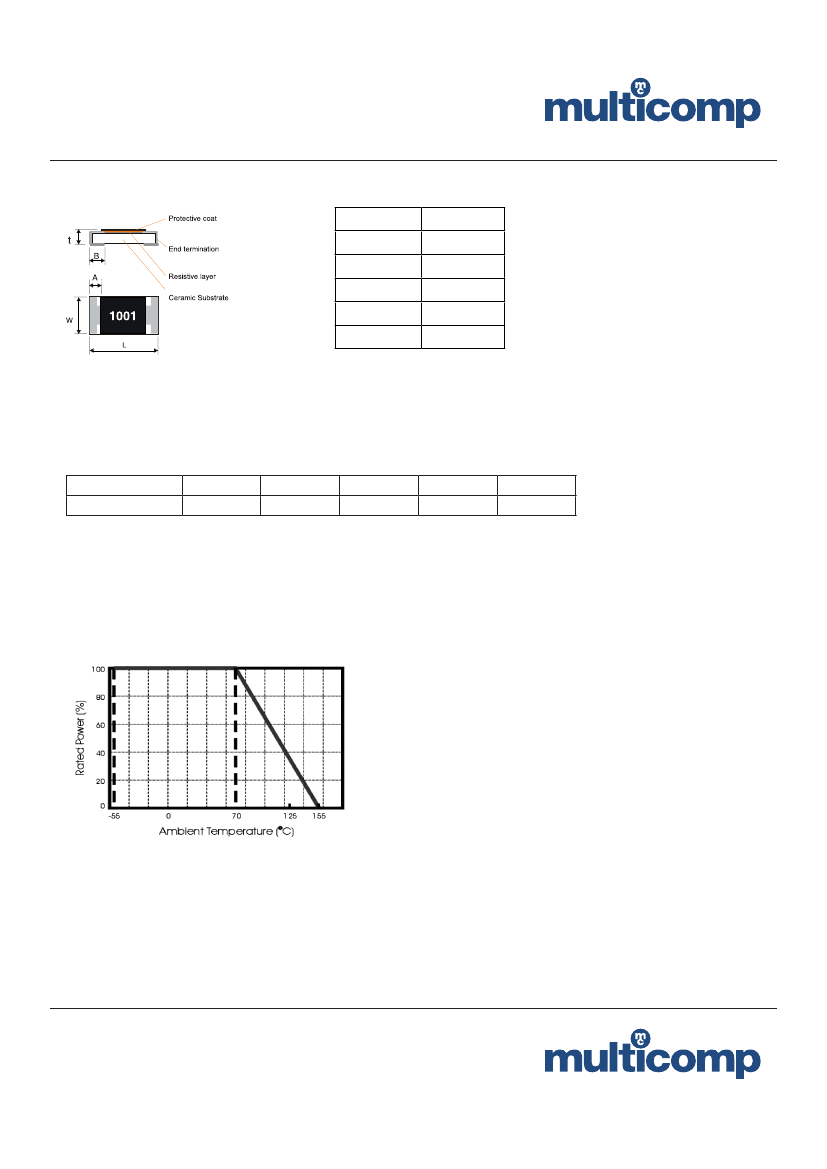

Max. Dissipation in percentage of rated power
As a function of the ambient temperature
Mounting
Due to their rectangular shapes and small tolerances, Surface Mountable Resistors are suitable for handling by automatic
placement systems.
Chip placement can be on ceramic substrates and printed-circuit boards (PCBs).
Electrical connection to the circuit is by individual soldering condition.
The end terminations guarantee a reliable contact.
www.element14.com
www.farnell.com
www.newark.com
Page <2>
20/12/16
V1.0
High Precision Thin Film Chip Resistor
Soldering Condition:
The robust construction of chip resistors allows them to be completely immersed in a solder bath of 260°C for 10 seconds.
Therefore, it is possible to mount Surface Mount Resistors on one side of a PCB and other discrete components on the reverse
(mixed PCBs).
Surface Mount Resistors are tested for solderability at 235°C during 2 seconds. The test condition for no leaching is 260°C for
30 seconds. Typical examples of soldering processes that provide reliable joints without any damage are given in below figure.

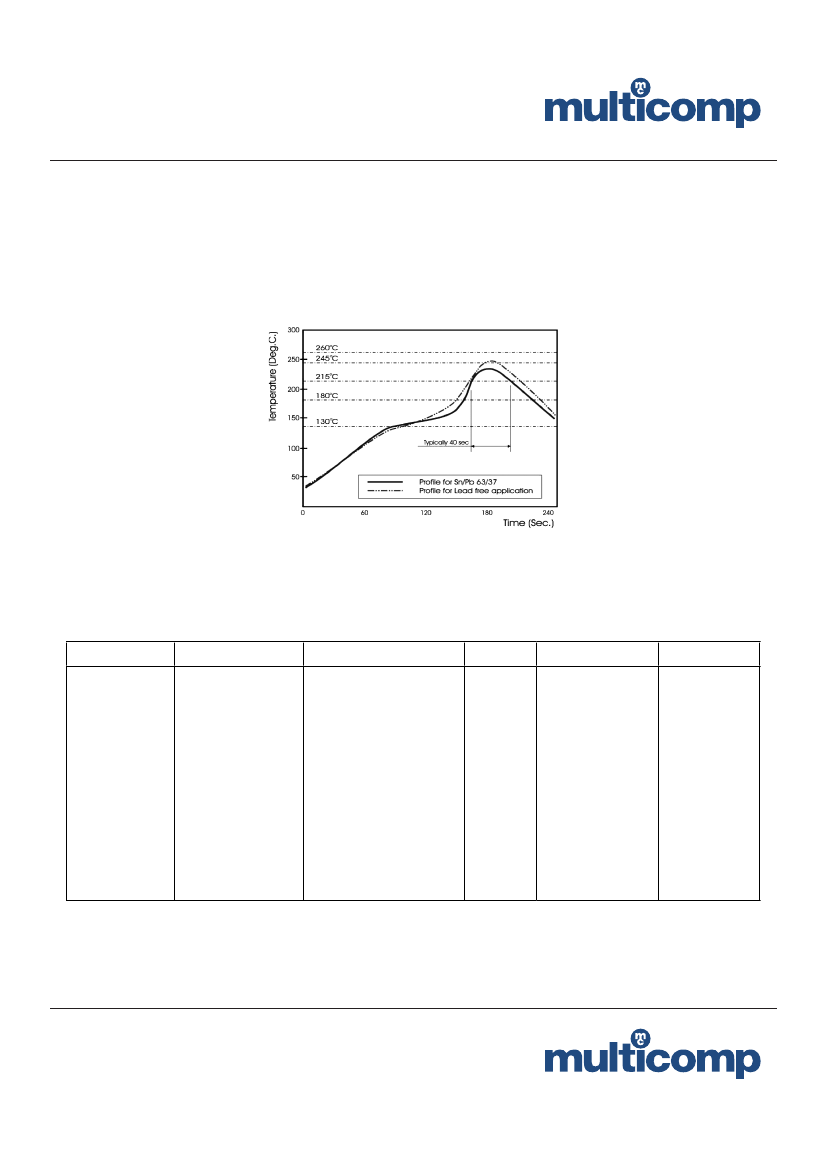

Infrared soldering profile for Chip Resistors
Catalogue Numbers:
The resistors have a catalogue number starting with
MCWF08
Size code
MCWF08 : 0805
U
Type code
U : TCR 25ppm
XXXX
Resistance code
E192+E24:
3 significant digits followed
by No. of zeros
e.g.:
102Ω = 1020
37.4kΩ = 3742
220Ω = 2200
B
Tolerance
B : ±0.1%
T
Packaging code
T : Reeled
L
Termination
code
L
=
Sn base
(lead free)
Reeled tape packaging : 8mm width paper taping
5,000pcs/reel for MCWF08U Series.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
20/12/16
V1.0
High Precision Thin Film Chip Resistor
Test And Requirements
Basic specification : JIS C 5201-1 : 1998
Test
Clause 4.5
DC resistance
Procedure
DC resistance values measured at the test voltages
specified below :
<10Ω@0.1V, <100Ω@0.3V, <1kΩ@1.0V,
<10kΩ@3V, <100kΩ@10V,<1MΩ@25V, <10MΩ@30V
Natural resistance change per change in degree
Centigrade.
R
2
- R
1
(ppm/°C)
× 10
6
R
1
(t
2
- t
1
)
R
1
: Resistance at reference temperature
R
2
: Resistance at test temperature
t
1
: 20°C +5°C -1°C.
t
2
: 125°C +5°C -1°C.
Clause 4.13
Short time overload
Clause 4.18
Resistance to
soldering heat (R.S.H)
Clause 4.17
Solderability
Clause 4.19
Temperature cycling
Permanent resistance change after a 5 second
application of a voltage 2.5 times RCWV or the
maximum overload voltage specified in the above list,
whichever is less.
∆R/R
max. ±(0.2% +0.05Ω)
Requirement
Within the specified tolerance
Clause 4.8
Temperature
Coefficient of
Resistance (TCR )
Refer to quick reference data for T.C.R
specification
Un-mounted chips completely immersed for 10±1second No visible damage
in a SAC solder bath at 260°C ±5°C.
∆R/R
max. ±(0.1% +0.05Ω)
Un-mounted chips completely immersed for 2 ±0.5
second in a SAC solder bath at 235°C ±5°C.
1. 30 minutes at -55°C ±3°C,
2. 2~3 minutes at 20°C +5°C-1°C,
3. 30 minutes at +155° ±3°C,
4. 2~3 minutes at 20°C +5°C-1°C,
Total 5 continuous cycles.
1000 +48/-0 hours, loaded with RCWV or Vmax in
chamber controller 70±2ºC, 1.5 hours on and 0.5 hours
off.
1000 +48/-0 hours, loaded with RCWV or Vmax in
humidity chamber controller at 40°C±2°C and 90~95%
relative humidity, 1.5 hours on and 0.5 hours off.
Resistors mounted on a 90mm glass epoxy resin
PCB(FR4); bending : 3mm, once for 10 seconds.
Pressurizing force: 5N, Test time: 10±1sec.
Apply the maximum overload voltage (DC) for 1 minute.
Apply the maximum overload voltage (AC) for 1 minute.
Good tinning (>95% covered)
No visible damage
No visible damage
∆R/R
max. ±(0.25% +0.05Ω)
Clause 4.25
Load life (endurance)
Clause 4.24
Load life in Humidity
Clause 4.33
Bending strength
Clause 4.32
Adhesion
Clause 4.6
Insulation Resistance
Clause 4.7
Dielectric Withstand
Voltage
∆R/R
max. ±(0.5%+0.05Ω)
∆R/R
max. ±(0.5%+0.05Ω)
∆R/R
max. ±(0.1%+0.05Ω)
No remarkable damage or removal of
the terminations
R
^
10GΩ
No breakdown or flashover
www.element14.com
www.farnell.com
www.newark.com
Page <4>
20/12/16
V1.0
High Precision Thin Film Chip Resistor
Packaging:

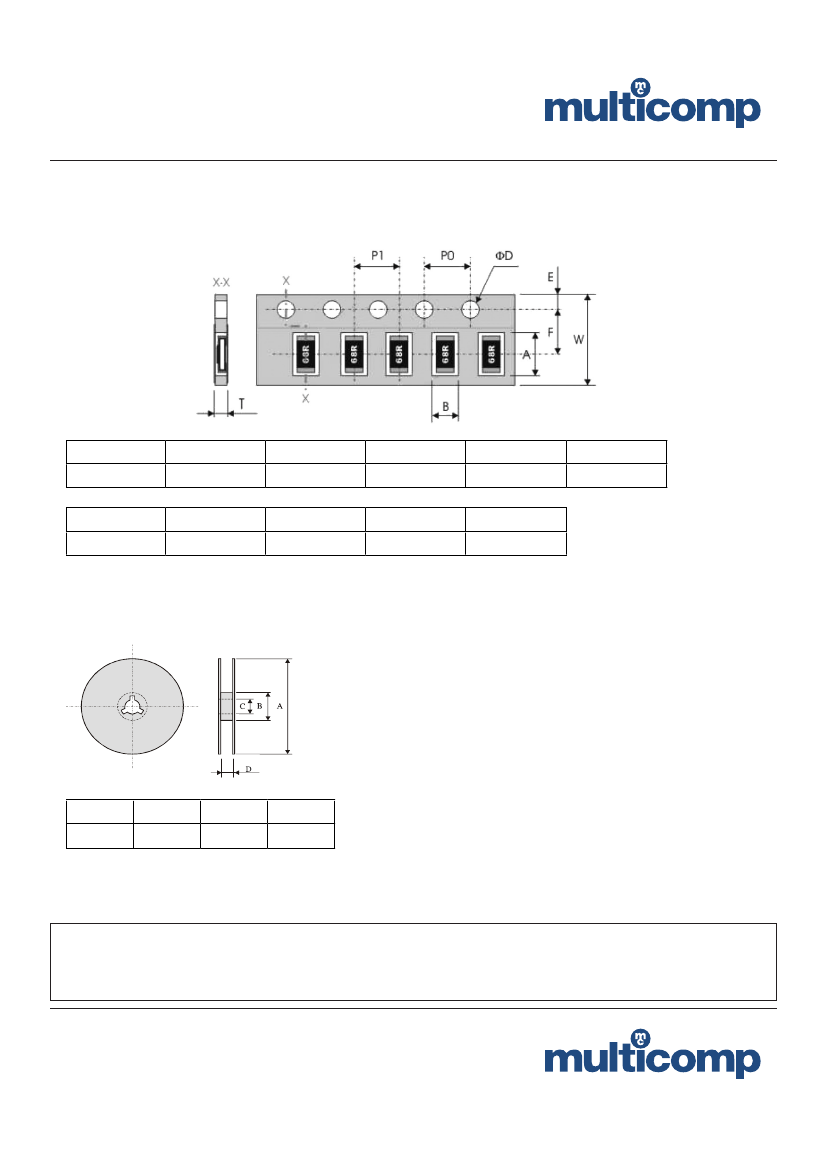

Paper Tape specifications
Series No.
MCWF08
Series No.
MCWF08
A
2.4 ±0.2
P1
4 ±0.1
B
1.65 ±0.2
P0
4 ±0.1
W
8 ±0.3
D
1.5
-0
+0.1
F
3.5 ±0.2
T
Max. 1
E
1.75 ±0.1
Dimensions : Millimetres
Reel dimensions:
A
Φ178 ±2
B
Φ60 ±1
C
13 ±0.2
D
9 ±0.5
Dimensions : Millimetres
Important Notice :
