LQW18AN6N8C00D

Description
Accuracy: ±0.2nH Rated current: 750mA DC resistance (internal resistance): 82mΩ Inductance value: 6.8nH
CategoryPassive components    inductor
File Size13MB,433 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

LQW18AN6N8C00D Online Shopping

Suppliers Part Number Price MOQ In stock
LQW18AN6N8C00D - - View Buy Now

LQW18AN6N8C00D Overview

Accuracy: ±0.2nH Rated current: 750mA DC resistance (internal resistance): 82mΩ Inductance value: 6.8nH

LQW18AN6N8C00D Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMurata
package instruction0603
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time7 weeks
Samacsys Confidence2
Samacsys StatusReleased
Samacsys PartID409381
Samacsys Pin Count2
Samacsys Part CategoryInductor
Samacsys Package CategoryOther
Samacsys Footprint Name0603 (1608) T=0.8±0.2mm
Samacsys Released Date2019-02-07 09:53:41
Is SamacsysN
uppercase and lowercase codes0603
structureWirewound Chip
core materialAIR
DC Resistance0.082 Ω
Nominal inductance(L)0.0068 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.8 mm
Package length1.6 mm
Package formSMT
Package width0.8 mm
method of packingTR, Paper, 7 Inch
Minimum quality factor (at nominal inductance)35
Maximum rated current0.75 A
self resonant frequency6000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 250 MHZ
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeONE SURFACE
Test frequency100 MHz
Tolerance2.941%
Base Number Matches1
O05E.pdf
Apr.28,2017

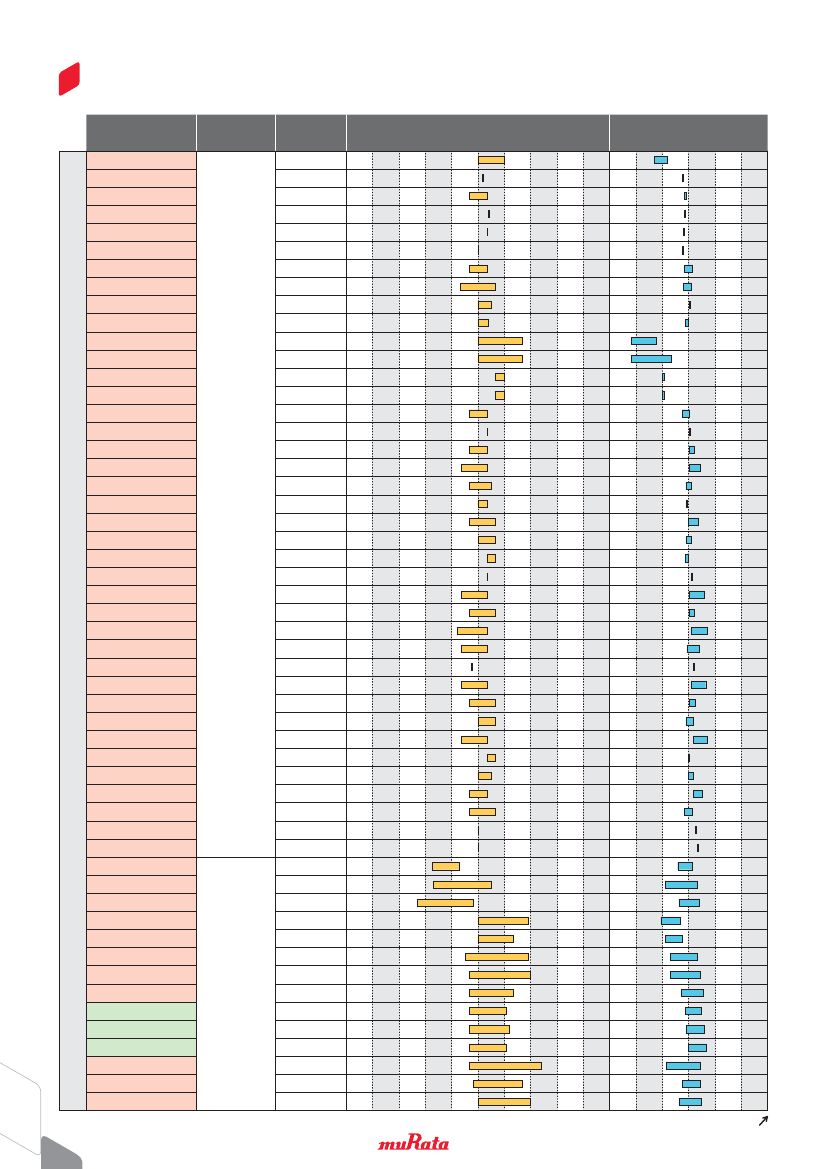

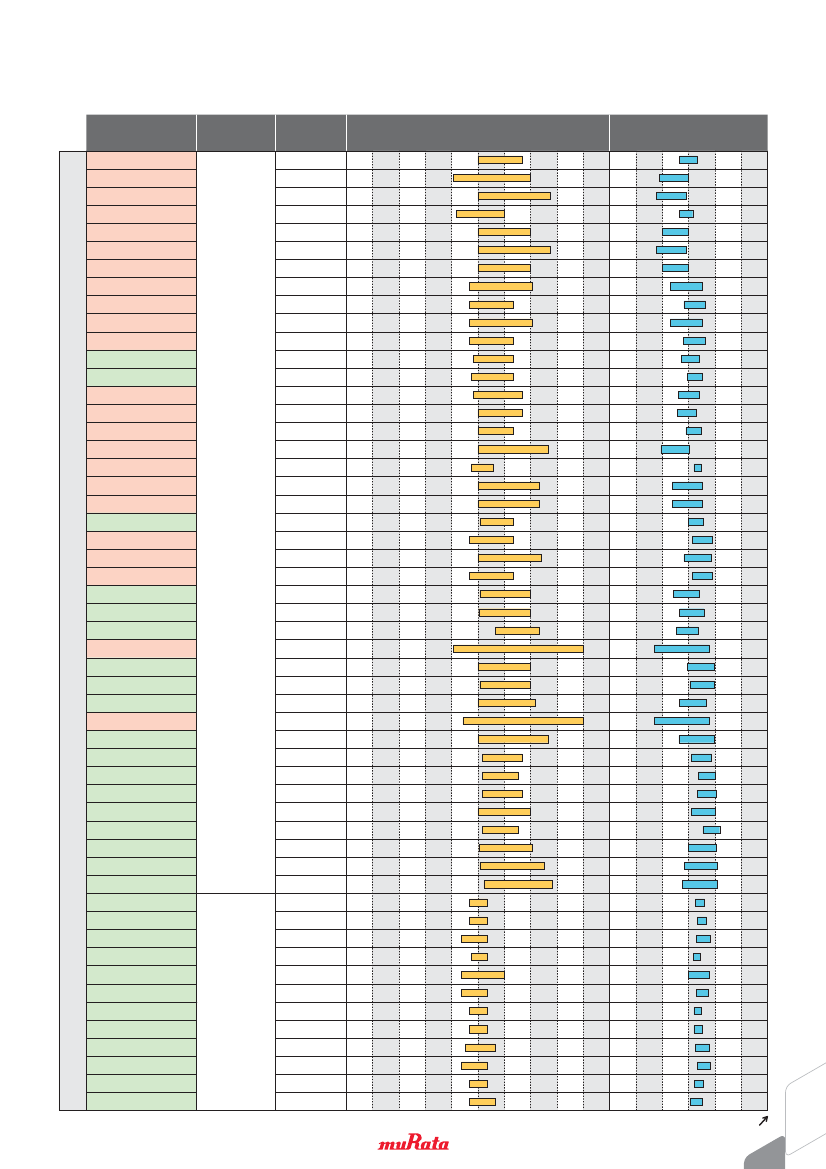

Chip Inductors (Chip Coils)
